120
Equipment T h e fi t t i n g o f e l e c t r i c a l e q u i p m e n t
or accessories which are not
recommended by CITROËN may
result in a failure of your vehicle's
electronic system. Please note this
s p e c i fi c w a r n i n g . Y o u a r e a d v i s e d
to contact a dealer to be shown the
r a n g e o f r e c o m m e n d e d e q u i p m e n t o r
accessories.
Depending on the country in which
the vehicle is sold, it is compulsory to
have a high visibility jacket, warning
triangle and spare bulbs available in
the vehicle.
F r o n t m u d fl a p s , r e a r m u d fl a p s ,
15/17 inch alloy wheels, wheelarch
trim, leather steering wheel, ...
Screenwash, interior and exterior
cleaning and maintenance products,
spare bulbs, ...
Seat covers compatible with air bags
for the front seats, bench seat, rubber
mats, carpet mats, snow chains, blinds,
tailgate bicycle carrier, ...
To prevent the mat from becoming
caught under the pedals:
- e n s u r e t h a t t h e m a t a n d i t s fi x i n g s
are positioned correctly,
- n e v e r fi t o n e m a t o n t o p o f a n o t h e r .
A u d i o e q u i p m e n t , h a n d s - f r e e k i t ,
speakers, CD changer, navigation, ...
Regardless of the audio and telematic
e q u i p m e n t o f f e r e d o n t h e m a r k e t , t h e
technical constraints linked with the
fi t t i n g o f e q u i p m e n t o f t h e s e p r o d u c t
groups mean that the special features
o f t h e e q u i p m e n t a n d i t s c o m p a t i b i l i t y
with the capacities of your vehicle's
s t a n d a r d e q u i p m e n t m u s t b e t a k e n i n t o
account. Please ask a CITROËN dealer
f o r f u r t h e r i n f o r m a t i o n b e f o r e fi t t i n g s u c h
e q u i p m e n t .
Maximum weights on bars
- T r a n s v e r s e b a r s o n l o n g i t u d i n a l bars: 75 Kg (these bars are not
compatible with the Zenith roof). Installing radiocommunication
transmitters
Y o u a r e a d v i s e d t o c o n t a c t a C I T R O Ë N
dealer before installing accessory
radiocommunication transmitters with
external aerial on your vehicle.
The CITROËN network will inform you
o f t h e c h a r a c t e r i s t i c s ( f r e q u e n c y b a n d ,
maximum output power, aerial position,
s p e c i fi c c o n d i t i o n s o f i n s t a l l a t i o n ) o f
t h e t r a n s m i t t e r s w h i c h c a n b e fi t t e d ,
in accordance with the Motor Vehicle
Electromagnetic Compatibility Directive
(2004/104/EC).
"Active Fleet Data" telematic unit
Connected directly to the heart of the
vehicle (multiplexed network: "Full
CAN"), the telematic unit, by means of
a "ready to use" service, permits the
sending in real time of information such
as:
- d i s t a n c e t r a v e l l e d ,
- d i s t a n c e r e m a i n i n g b e f o r e t h e n e x t
service,
- w a r n i n g s a n d f a u l t s ( o i l l e v e l , coolant level, oil temperature,
coolant temperature, etc ...).
This enables "Fleet" mangers
to optimise the monitoring and
management of their professional
vehicles.
According to country, contact
a CITROËN dealer for further
information.
149
Dimensions
TECHNICAL DATA
9

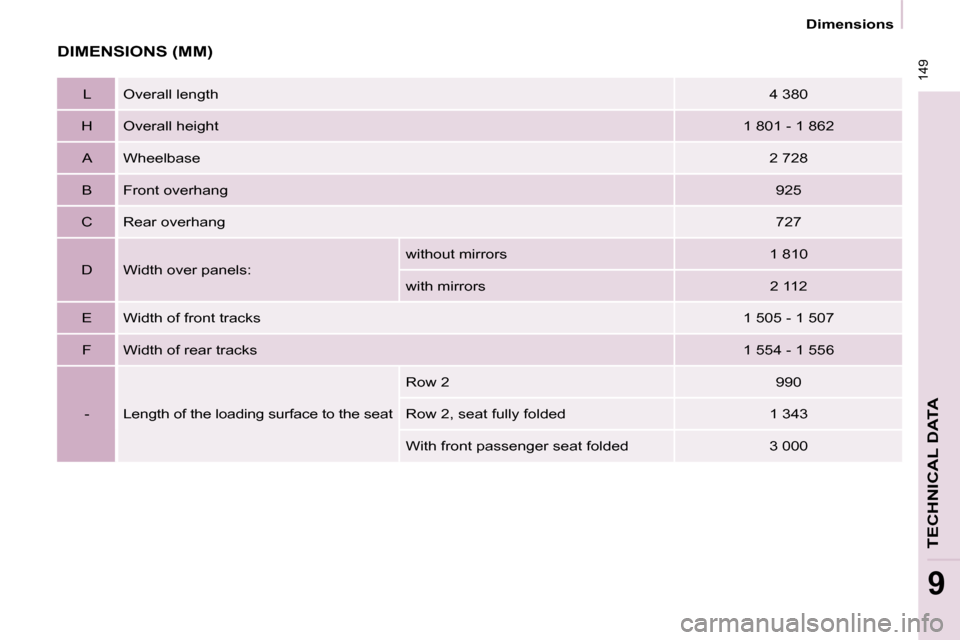

DIMENSIONS (MM)
L Overall length 4 380
H Overall height 1 801 - 1 862
A Wheelbase 2 728
B Front overhang 925
C Rear overhang 727
D Width over panels: without mirrors
1 810
with mirrors 2 112
E Width of front tracks 1 505 - 1 507
F Width of rear tracks 1 554 - 1 556
- Length of the loading surface to the seat Row 2
990
Row 2, seat fully folded 1 343
With front passenger seat folded 3 000
153
TECHNICAL DATA
9
Diesel - Petrol engines
ENGINES AND GEARBOX
Petrol Diesel
TVV NFR NFU 9HT 9HX 9HV 9HZ
Name 1.6 Petrol 1.6 Petrol 1.6 HDi 1.6 HDi 1.6 HDi PEF 1.6 HDi
Power (bhp) 90 110 75 90 90 110
EU standard maximum power (kW/DIN) 66 80 55 66 66 80
Engine speed (rpm) 5 800 5 800 4 000 4 000 4 000 4 000
Cubic capacity (cm 3
) 1 587 1 587 1 560 1 560 1 560 1 560
Gearbox - manual 5 5 5 5 5 5
Bore x stroke (mm) 78.5 x 82 78.5 x 82 75 x 88.3 75 x 88.3 75 x 88.3 75 x 88.3
EU standard max torque (Nm) 132 147 185 215 2 15 240
Max power engine speed (rpm) 2 500 4 000 1 750 1 750 1 750 1 750
Fuel Unleaded Diesel
P a r t i c l e e m i s s i o n fi l t e r - - - - Yes Yes
Catalytic converter Yes Yes Yes Yes Yes Yes
155
TECHNICAL DATA
9
Identification features
IDENTIFICATION FEATURES
A. Manufacturer's plate. C. Tyres and paint colour reference.
The label C , on the front door gives:
- the wheel and tyre sizes,
- the brands of tyres approved by the manufacturer,
- the tyre pressures (the tyre pressure must be checked when
the tyre is cold, at least once a
month),
- the paint colour reference.
B. Serial number.
This is engraved on the front right
wheelarch.
