2007 YAMAHA YFM350R-W engine

4-4
4
CAUTION:ECB00050See the starting instructions on page 6-1 priorto starting the engine.EBU28061Light switch “//”
Set the switch to “” to turn on the high beam.
Set this switch to “” to turn on the low beam.
Set the switch to “” to turn off the headlight.CAUTION:ECB00030Do not use the headlight with the engine turned
off for an extended period of time, otherwise
the battery may discharge to the point that the
starter motor will not operate properly. If this
should happen, remove the battery and re-charge it.EBU27990Turn signal switch “/”
To signal a right-hand turn, push this switch to
“”. To signal a left-hand turn, push this switch to
“”. When released, the switch returns to the cen-
ter position. To cancel the turn signal lights, push
the switch in after it has returned to the center po-
sition.
EBU18170Horn switch “”
Press the switch to sound the horn.EBU28000Hazard switch “”
With the key in the “ON” position, turn this switch to
“” to turn on the hazard lights (simultaneous
flashing of all turn signal lights).
The hazard lights are used in case of an emergen-
cy or to warn other drivers when your vehicle is
stopped where it might be a traffic hazard.CAUTION:ECB00860Do not use the hazard lights for an extended
length of time with the engine not running, oth-erwise the battery may discharge.EBU18280Throttle lever Once the engine is running, movement of the throt-
tle lever will increase the engine speed.
Regulate the speed of the ATV by varying the
throttle position. Because the throttle is spring-
loaded, the ATV will decelerate, and the engine will
return to an idle any time the hand is removed from
the throttle lever.
U10P60E0.book Page 4 Thursday, June 15, 2006 4:19 PM

4-5
4
Before starting the engine, check the throttle to be
sure it is operating smoothly. Make sure it returns
to the idle position as soon as the lever is released.
WARNING
EWB00250Malfunction of the throttle could make it diffi-
cult to speed up or slow down when you need
to. This could cause an accident. Check the op-
eration of the throttle lever before you start the
engine. If the throttle does not work smoothly,
check for the cause. Correct the problem be-fore riding the ATV or consult a Yamaha dealer.
EBU18321Speed limiter Your ATV was delivered with an adjustable speed
limiter. The speed limiter keeps the throttle from
fully opening, even when the throttle lever is
pushed to the maximum.
1. Loosen the locknut.
2. To increase the maximum engine power avail-
able and the maximum speed of the ATV, turn
the adjusting screw in direction (a). To de-
crease the maximum engine power available
and the maximum speed of the ATV, turn the
adjusting screw in direction (b).
1. Throttle lever
1. Locknut
2. Adjusting screw
3. No more than 12 mm (0.47 in)
U10P60E0.book Page 5 Thursday, June 15, 2006 4:19 PM

4-7
4
EBU28070Brake pedal The brake pedal is located on the right side of the
ATV.
This model is equipped with a unified brake sys-
tem.
When pressing down on the brake pedal, the brak-
ing force is applied to the rear brake and a portion
of the front brakes. For full braking performance,
apply both the brake lever and the brake pedal si-
multaneously.
EBU18520Parking brake lever Use the parking brake before starting the engine or
parking the ATV, especially on a slope. To apply
the parking brake, move the parking brake lever in
direction (a). To release the parking brake, move
the parking brake lever in direction (b).
1. Brake lever
1. Brake pedal
U10P60E0.book Page 7 Thursday, June 15, 2006 4:19 PM

4-8
4
WARNING
EWB00220
Always set the parking brake before starting
the engine. The ATV could start moving un-
expectedly if the parking brake is not ap-
plied. This could cause loss of control or a
collision.
Always be sure you have released the park-
ing brake before you begin to ride. The brake
could overheat if you ride the ATV without re-
leasing the parking brake. You could lose
braking performance which could cause an
accident. You could also wear out the brakesprematurely.EBU18530Shift pedal This ATV is equipped with a constant-mesh 6-
speed transmission. The shift pedal is located on
the left side of the engine and is used in combina-
tion with the clutch when shifting.
1. Parking brake lever (locked position)
1. Parking brake lever (unlocked position)U10P60E0.book Page 8 Thursday, June 15, 2006 4:19 PM

4-11
4

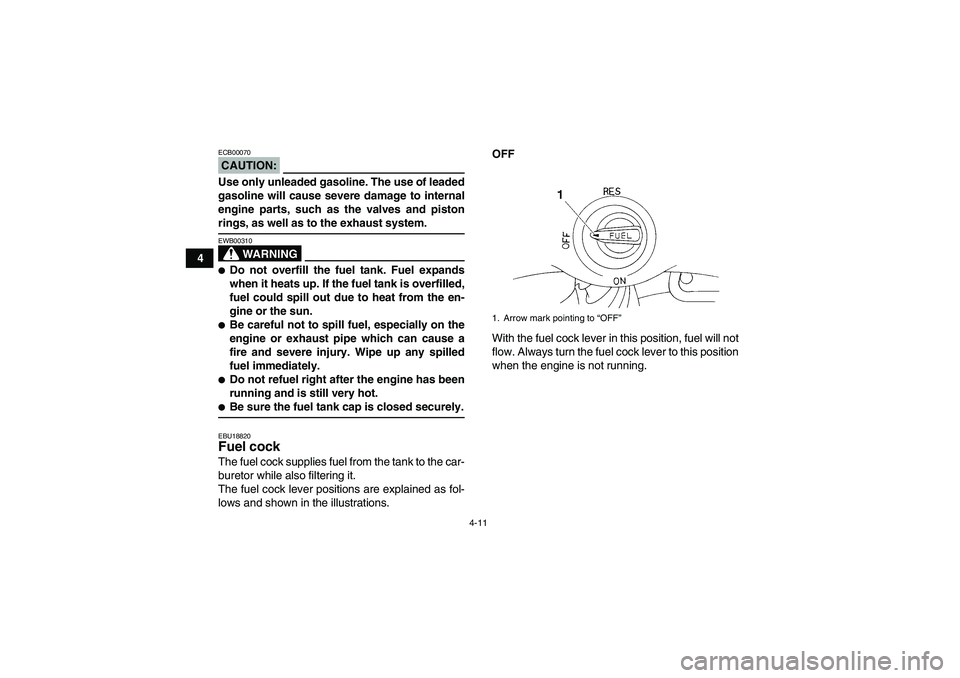

CAUTION:ECB00070Use only unleaded gasoline. The use of leaded
gasoline will cause severe damage to internal
engine parts, such as the valves and pistonrings, as well as to the exhaust system.
WARNING
EWB00310
Do not overfill the fuel tank. Fuel expands
when it heats up. If the fuel tank is overfilled,
fuel could spill out due to heat from the en-
gine or the sun.
Be careful not to spill fuel, especially on the
engine or exhaust pipe which can cause a
fire and severe injury. Wipe up any spilled
fuel immediately.
Do not refuel right after the engine has been
running and is still very hot.
Be sure the fuel tank cap is closed securely.EBU18820Fuel cock The fuel cock supplies fuel from the tank to the car-
buretor while also filtering it.
The fuel cock lever positions are explained as fol-
lows and shown in the illustrations.OFF
With the fuel cock lever in this position, fuel will not
flow. Always turn the fuel cock lever to this position
when the engine is not running.
1. Arrow mark pointing to “OFF”
U10P60E0.book Page 11 Thursday, June 15, 2006 4:19 PM

4-12
4 ON
With the fuel cock lever in this position, fuel flows
to the carburetor. Turn the fuel cock lever to this
position when starting the engine and riding.RES
This indicates reserve. With the fuel cock lever in
this position, the fuel reserve is made available.
Turn the fuel cock lever to this position if you run
out of fuel while riding. When this occurs, refuel as
soon as possible and be sure to turn the fuel cock
lever back to “ON”!
EBU18850Starter (choke) “” Starting a cold engine requires a richer air-fuel mix-
ture, which is supplied by the starter (choke).
Move the starter (choke) in direction (a) to turn on
the starter (choke).
1. Arrow mark pointing to “ON”
1. Arrow mark pointing to “RES”
U10P60E0.book Page 12 Thursday, June 15, 2006 4:19 PM

4-13
4Move the starter (choke) in direction (b) to turn off
the starter (choke).
See the “Starting a cold engine” section on page
6-1 for proper operation.
EBU28010Steering lock To lock the steering
1. Turn the handlebar all the way to either side.
2. Open the steering lock cap, and then insert
the steering lock key.
3. Turn the key 1/8 turn counterclockwise, push
it in, and then turn the key 1/8 turn clockwise.
4. Check that the steering is locked, remove the
key, and then close the steering lock cap.
1. Starter (choke) “”
1. Steering lock cap
2. Steering lock
U10P60E0.book Page 13 Thursday, June 15, 2006 4:19 PM

5-1
5
EBU19200
PRE-OPERATION CHECKS
EBU19220Pre-operation check list Before operating this ATV, be sure to check the items listed in the following table.NOTE:The maintenance of some items in the table has to be performed by a Yamaha dealer. Refer to the “Periodic
maintenance and lubrication chart” on page 8-3 to determine which service should be performed by aYamaha dealer.
ITEM ROUTINE PAGE
FuelCheck fuel level in fuel tank, and add recommended fuel if neces-
sary.
Check fuel line for leakage. Correct if necessary.4-10, 5-3
Engine oilCheck oil level in engine, and add recommended oil to specified lev-
el if necessary.
Check ATV for oil leakage. Correct if necessary.5-3, 8-10
Front brakeCheck operation. If soft or spongy, have Yamaha dealer bleed hy-
draulic system.
Check brake pads for wear, and replace if necessary.
Check brake fluid level in reservoir, and add recommended brake
fluid to specified level if necessary.
Check hydraulic system for leakage. Correct if necessary.5-3, 8-20, 8-21, 8-22
Rear brakeCheck operation. If soft or spongy, have Yamaha dealer bleed hy-
draulic system.
Check brake pads for wear, and replace if necessary.
Check brake fluid level in reservoir, and add recommended brake
fluid to specified level if necessary.
Check hydraulic system for leakage. Correct if necessary.5-3, 8-20, 8-21, 8-23
U10P60E0.book Page 1 Thursday, June 15, 2006 4:19 PM
