2007 YAMAHA WOLVERINE 450 torque

8-2
8The service information included in this manual
and the tools provided in the owner’s tool kit are in-
tended to assist you in the performance of preven-
tive maintenance and minor repairs. However,
additional tools such as a torque wrench may be
necessary to perform certain maintenance work
correctly.
NOTE:If you do not have the tools or experience required
for a particular job, have a Yamaha dealer performit for you.
WARNING
EWB01850Never modify this ATV through improper in-
stallation or use of accessories, as it may
cause changes in handling, which in some sit-
uations could lead to an accident. All parts and
accessories added to this ATV should be gen-
uine Yamaha or equivalent components de-
signed for use on this ATV and should be
installed and used according to instructions. If
you have questions, consult an authorizedYamaha ATV dealer.U3C261E0.book Page 2 Thursday, June 29, 2006 4:15 PM

8-16
82. Clean the surface of the spark plug gasket
and its mating surface, and then wipe off any
grime from the spark plug threads.
3. Install the spark plug with the spark plug
wrench, and then tighten it to the specified
torque.
NOTE:If a torque wrench is not available when installing
a spark plug, a good estimate of the correct torque
is 1/4–1/2 turn past finger tight. However, the spark
plug should be tightened to the specified torque assoon as possible.
4. Install the spark plug cap.EBU26422Engine oil and oil filter cartridge The engine oil level should be checked before
each ride. In addition, the oil must be changed and
the oil filter cartridge replaced at the intervals spec-
ified in the periodic maintenance and lubrication
chart.
To check the engine oil level
1. Place the ATV on a level surface.
2. Remove panel D. (See page 8-8.)
3. Start the engine, warm it up for several min-
utes, and then turn it off.
4. Wait a few minutes until the oil settles before
checking.
5. Remove the engine oil filler cap, and then
wipe the dipstick off with a clean rag.
1. Spark plug gapTightening torque:
Spark plug:
17.5 Nm (1.75 m·kgf, 12.7 ft·lbf)
U3C261E0.book Page 16 Thursday, June 29, 2006 4:15 PM

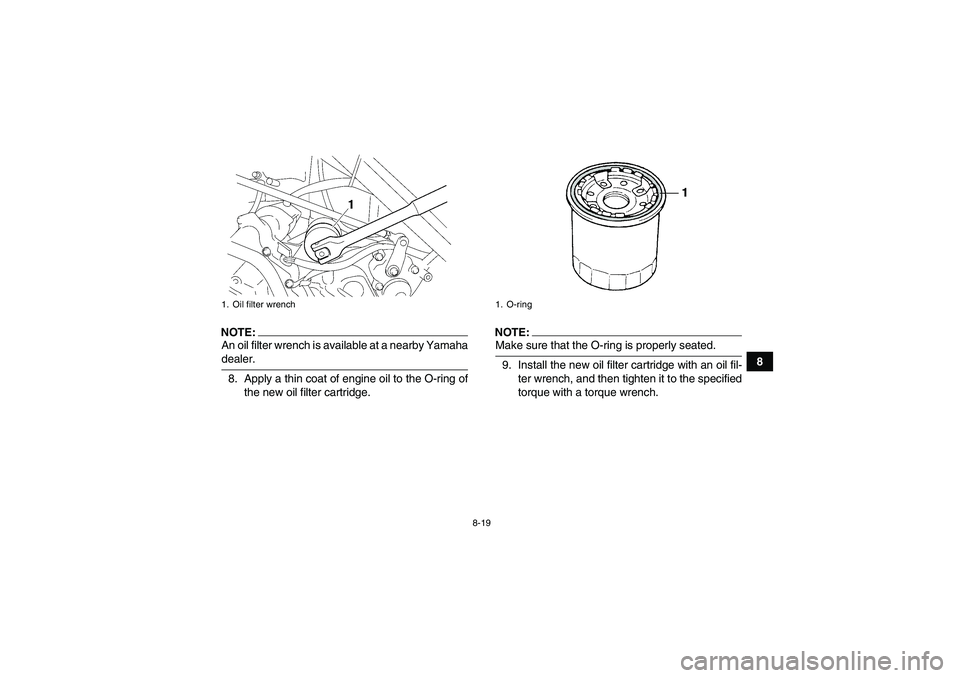

8-19
8
NOTE:An oil filter wrench is available at a nearby Yamahadealer.
8. Apply a thin coat of engine oil to the O-ring of
the new oil filter cartridge.
NOTE:Make sure that the O-ring is properly seated.
9. Install the new oil filter cartridge with an oil fil-
ter wrench, and then tighten it to the specified
torque with a torque wrench.
1. Oil filter wrench
1. O-ring
U3C261E0.book Page 19 Thursday, June 29, 2006 4:15 PM

8-20
8
10. Install panel C.
11. Install the engine oil drain bolt, and then tight-
en it to the specified torque.12. Add the specified amount of the recommend-
ed engine oil, and then install and tighten the
engine oil filler cap.
CAUTION:ECB00300
In order to prevent clutch slippage (since the
engine oil also lubricates the clutch), do not
mix any chemical additives. Do not use oils
with a diesel specification of “CD” or oils of
a higher quality than specified. In addition,
do not use oils labeled “ENERGY CONSERV-
ING II” or higher.
Make sure that no foreign material enters thecrankcase.
1. Torque wrenchTightening torque:
Oil filter cartridge:
17 Nm (1.7 m·kgf, 12 ft·lbf)
Tightening torque:
Engine oil drain bolt:
23 Nm (2.3 m·kgf, 17 ft·lbf)
Recommended oil:
See page 10-1.
Oil quantity:
Without oil filter cartridge replacement:
2.30 L (2.43 US qt) (2.02 Imp.qt)
With oil filter cartridge replacement:
2.40 L (2.54 US qt) (2.11 Imp.qt)
U3C261E0.book Page 20 Thursday, June 29, 2006 4:15 PM

8-21
8 13. Start the engine, and then let it idle for several
minutes while checking it for oil leakage. If oil
is leaking, immediately turn the engine off and
check for the cause.
14. Turn the engine off, and then check the oil lev-
el and correct it if necessary.
15. Install panel D.
EBU23381Final gear oil The final gear case must be checked for oil leak-
age before each ride. If any leakage is found, have
a Yamaha dealer check and repair the ATV. In ad-
dition, the final gear oil level must be checked and
the oil changed as follows at the intervals specified
in the periodic maintenance and lubrication chart.
To check the final gear oil level
1. Place the ATV on a level surface.NOTE:The final gear oil level must be checked on a coldengine.
2. Remove the final gear oil filler bolt, and then
check the oil level in the final gear case.
NOTE:The oil level should be at the brim of the filler hole.
3. If the oil is below the brim of the filler hole, add
sufficient oil of the recommended type to raise
it to the correct level.
4. Install the oil filler bolt, and then tighten it to the
specified torque.1. Final gear oil
2. Final gear oil filler bolt
3. Correct oil levelTightening torque:
Final gear oil filler bolt:
23 Nm (2.3 m·kgf, 17 ft·lbf)
U3C261E0.book Page 21 Thursday, June 29, 2006 4:15 PM

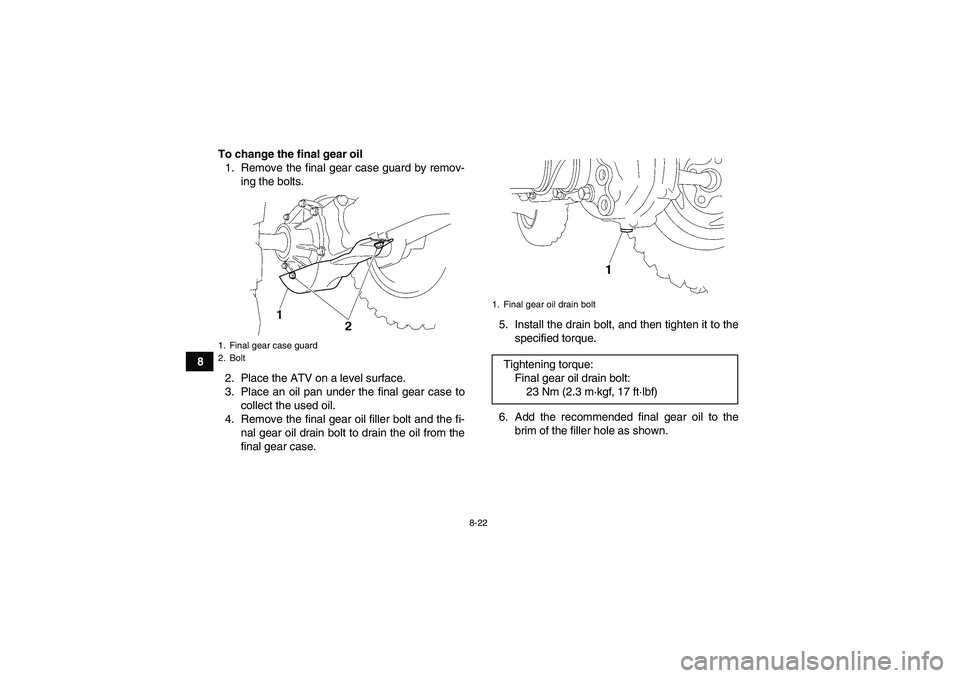

8-22
8To change the final gear oil
1. Remove the final gear case guard by remov-
ing the bolts.
2. Place the ATV on a level surface.
3. Place an oil pan under the final gear case to
collect the used oil.
4. Remove the final gear oil filler bolt and the fi-
nal gear oil drain bolt to drain the oil from the
final gear case.5. Install the drain bolt, and then tighten it to the
specified torque.
6. Add the recommended final gear oil to the
brim of the filler hole as shown.
1. Final gear case guard
2. Bolt
1. Final gear oil drain boltTightening torque:
Final gear oil drain bolt:
23 Nm (2.3 m·kgf, 17 ft·lbf)
U3C261E0.book Page 22 Thursday, June 29, 2006 4:15 PM

8-23
8
CAUTION:ECB00420Be sure no foreign material enters the finalgear case.
7. Install the oil filler bolt, and then tighten it to the
specified torque.8. Check the final gear case for oil leakage. If oil
is leaking, check for the cause.
9. Install the final gear case guard by installing
the bolts and tightening them to the specified
torque.
EBU23431Changing the differential gear oil The differential gear case must be checked for oil
leakage before each ride. If any leakage is found,
have a Yamaha dealer check and repair the ATV.
In addition, the differential gear oil must be
changed as follows at the intervals specified in the
periodic maintenance and lubrication chart.
1. Place the ATV on a level surface.
2. Place an oil pan under the differential gear
case to collect the used oil.
1. Final gear oil
2. Final gear oil filler bolt
3. Correct oil levelRecommended final gear oil:
See page 10-1.
Tightening torque:
Final gear oil filler bolt:
23 Nm (2.3 m·kgf, 17 ft·lbf)
Tightening torque:
Final gear case guard bolt:
16 Nm (1.6 m·kgf, 11 ft·lbf)
U3C261E0.book Page 23 Thursday, June 29, 2006 4:15 PM

8-24
83. Remove the differential gear oil filler bolt and
the differential gear oil drain bolt to drain the
oil from the differential gear case.
4. Install the drain bolt, and then tighten it to the
specified torque.
5. Add the specified amount of the recommend-
ed differential gear oil.
NOTE:
Do not exceed the specified differential gear oil
quantity when filling. Overfilling will cause the oil
to seep out of the breather hose during and after
riding.
1. Differential gear oil filler bolt
1. Differential gear oil drain boltTightening torque:
Differential gear oil drain bolt:
10 Nm (1.0 m·kgf, 7.2 ft·lbf)
U3C261E0.book Page 24 Thursday, June 29, 2006 4:15 PM
