1-1
1
SAFETY INFORMATION
EAU41860
Safe riding

Always make pre-operation
checks. Careful checks may help
prevent an accident.


This motorcycle is designed for off-
road use only, therefore, it is illegal
to operate it on public streets,
roads, or highways, even a dirt or
gravel one. Off-road use on public
lands may be illegal. Please check
local regulations before riding.


This motorcycle is designed to car-
ry the operator only. No passen-
gers.


Many accidents involve inexperi-
enced operators.
Make sure that the operator is
qualified and that you only lend
your motorcycle to other quali-
fied operators.
Know your skills and limits.
Staying within your limits may
help you to avoid an accident.


Many accidents have been caused
by error of the motorcycle opera-
tor. A typical error made by the op-
erator is veering wide on a turn
due to EXCESSIVE SPEED or un-dercornering (insufficient lean an-
gle for the speed). Never travel
faster than warranted by condi-
tions.


Ride cautiously in unfamiliar ar-
eas. You may encounter hidden
obstacles that could cause an ac-
cident.


The posture of the operator is im-
portant for proper control. The op-
erator should keep both hands on
the handlebar and both feet on the
operator footrests during operation
to maintain control of the motor-
cycle.


Never ride under the influence of
alcohol or other drugs.


Be sure the transmission is in neu-
tral before starting the engine.
Protective apparel
The majority of fatalities from motor-
cycle accidents are the result of head
injuries. The use of a safety helmet is
the single most critical factor in the pre-
vention or reduction of head injuries.


Always wear an approved helmet.


Wear a face shield or goggles.
Wind in your unprotected eyes
could contribute to an impairment
of vision that could delay seeing a
hazard.


The use of a jacket, heavy boots,
trousers, gloves, etc., is effective in
preventing or reducing abrasions
or lacerations.


Never wear loose-fitting clothes,
otherwise they could catch on the
control levers, footrests, or wheels
and cause injury or an accident.


Never touch the engine or exhaust
system during or after operation.
They become very hot and can
cause burns. Always wear protec-
tive clothing that covers your legs,
ankles, and feet.
Modifications
Modifications made to this motorcycle
not approved by Yamaha, or the re-
moval of original equipment, may ren-
der the motorcycle unsafe for use and
may cause severe personal injury.
Modifications may also make your
motorcycle illegal to use.
U3P281E0.book Page 1 Monday, April 17, 2006 11:26 AM

SAFETY INFORMATION
1-2
1 Loading and accessories
Adding accessories to your motorcycle
can adversely affect stability and han-
dling if the weight distribution of the
motorcycle is changed. To avoid the
possibility of an accident, use extreme
caution when adding accessories to
your motorcycle. Use extra care when
riding a motorcycle that has added ac-
cessories. Here are some general
guidelines to follow if adding accesso-
ries to your motorcycle:
Loading


The weight of the operator must
not exceed 40 kg (88 lb).


Accessory weight should be kept
as low and close to the motorcycle
as possible. Make sure to distrib-
ute the weight as evenly as possi-
ble on both sides of the motorcycle
to minimize imbalance or instabili-
ty.


Shifting weights can create a sud-
den imbalance. Make sure that ac-
cessories are securely attached to
the motorcycle before riding.
Check accessory mounts fre-
quently.


Never attach any large or heavy
items to the handlebar, front fork,
or front fender.
Accessories
Genuine Yamaha accessories have
been specifically designed for use on
this motorcycle. Since Yamaha cannot
test all other accessories that may be
available, you must personally be re-
sponsible for the proper selection, in-
stallation and use of non-Yamaha
accessories. Use extreme caution
when selecting and installing any ac-
cessories.
Keep these guidelines in mind for
mounting accessories in addition to
those provided under “Loading”.

Never install accessories or that
would impair the performance of
your motorcycle. Carefully inspect
the accessory before using it to
make sure that it does not in any
way reduce ground clearance or
cornering clearance, limit suspen-
sion travel, steering travel or con-
trol operation.
Accessories fitted to the handle-
bar or the front fork area can
create instability due to improperweight distribution or aerody-
namic changes. If accessories
are added to the handlebar or
front fork area, they must be as
lightweight as possible and
should be kept to a minimum.
Bulky or large accessories may
seriously affect the stability of
the motorcycle due to aerody-
namic effects. Wind may at-
tempt to lift the motorcycle, or
the motorcycle may become un-
stable in cross winds.
Certain accessories can dis-
place the operator from his or
her normal riding position. This
improper position limits the free-
dom of movement of the opera-
tor and may limit control ability,
therefore, such accessories are
not recommended.


Use caution when adding electri-
cal accessories. If electrical acces-
sories exceed the capacity of the
motorcycle’s electrical system, an
electric failure could result, which
could cause a dangerous loss of
engine power.
U3P281E0.book Page 2 Monday, April 17, 2006 11:26 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-4
3 [(R+M)/2] of 86 or higher, or a research
octane number of 91 or higher. If
knocking (or pinging) occurs, use a
gasoline of a different brand or premi-
um unleaded fuel. Use of unleaded fuel
will extend spark plug life and reduce
maintenance cost.
Gasohol
There are two types of gasohol: gaso-
hol containing ethanol and that contain-
ing methanol. Gasohol containing
ethanol can be used if ethanol content
does not exceed 10%. Gasohol con-
taining methanol is not recommended
by Yamaha because it can cause dam-
age to the fuel system or vehicle perfor-
mance problems.
For Europe, Oceania and South Afri-
ca
CAUTION:
ECA11400
Use only unleaded gasoline. The use
of leaded gasoline will cause severe
damage to internal engine parts,
such as the valves and piston rings,as well as to the exhaust system.
Your Yamaha engine has been de-
signed to use regular unleaded gaso-
line with a research octane number of
91 or higher. If knocking (or pinging) oc-
curs, use a gasoline of a different brand
or premium unleaded fuel. Use of un-
leaded fuel will extend spark plug life
and reduce maintenance costs.
EAU13411
Fuel tank breather hose TT-R90(W)
TT-R90E(W)
Before operating the motorcycle:

Check the fuel tank breather hose
connection.
Recommended fuel:
For Europe: REGULAR UNLEADED
GASOLINE ONLY
For Oceania and South Africa: UN-
LEADED GASOLINE ONLY
Fuel tank capacity:
4.2 L (1.11 US gal) (0.92 Imp.gal)
Fuel reserve amount:
0.5 L (0.13 US gal) (0.11 Imp.gal)
1. Fuel tank breather hose
1. Fuel tank breather hose
U3P281E0.book Page 4 Monday, April 17, 2006 11:26 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-5
3


Check the fuel tank breather hose
for cracks or damage, and replace
it if damaged.


Make sure that the end of the fuel
tank breather hose is not blocked,
and clean it if necessary.
EAU13561
Fuel cock The fuel cock supplies fuel from the
tank to the carburetor while filtering it al-
so.
The fuel cock has three positions:
OFF
With the lever in this position, fuel will
not flow. Always return the lever to this
position when the engine is not running.ON
With the lever in this position, fuel flows
to the carburetor. Normal riding is done
with the lever in this position.
RES1. Arrow mark positioned over “OFF”
1. Arrow mark positioned over “ON”
1. Arrow mark positioned over “RES”
U3P281E0.book Page 5 Monday, April 17, 2006 11:26 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-9
3

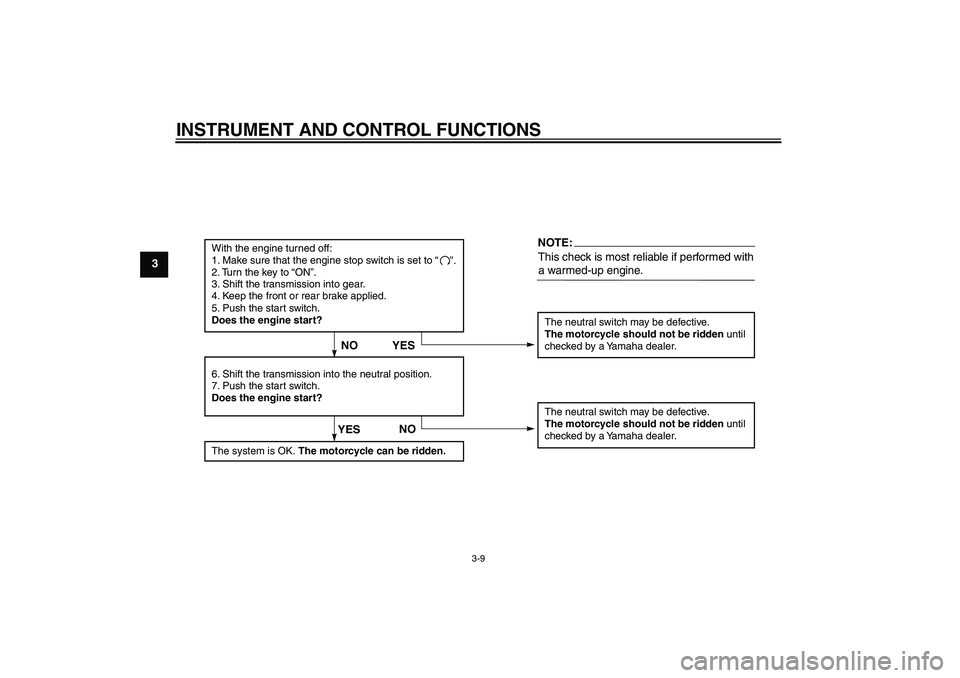

With the engine turned off:
1. Make sure that the engine stop switch is set to “
”.
2. Turn the key to “ON”.
3. Shift the transmission into gear.
4. Keep the front or rear brake applied.
5. Push the start switch.
Does the engine start?
The neutral switch may be defective.
The motorcycle should not be ridden until
checked by a Yamaha dealer.
6. Shift the transmission into the neutral position.
7. Push the start switch.
Does the engine start?
The neutral switch may be defective.
The motorcycle should not be ridden until
checked by a Yamaha dealer.
YES
NOTE:
a warmed-up engine.
NO
The system is OK. The motorcycle can be ridden.
YES
NO
This check is most reliable if performed with
U3P281E0.book Page 9 Monday, April 17, 2006 11:26 AM

PRE-OPERATION CHECKS
4-2
4
EAU15605
Pre-operation check list
ITEM CHECKS PAGE
FuelCheck fuel level in fuel tank.
Refuel if necessary.
Check fuel line for leakage.3-3
Engine oilCheck oil level in engine.
If necessary, add recommended oil to specified level.
Check vehicle for oil leakage.6-8
Front brakeCheck operation.
Lubricate cable if necessary.
Check lever free play.
Adjust if necessary.6-17, 6-18
Rear brakeCheck operation.
Check pedal free play.
Adjust if necessary.6-17, 6-18
Throttle gripMake sure that operation is smooth.
Check cable free play.
If necessary, have Yamaha dealer adjust cable free play and lubricate cable and
grip housing.6-14, 6-21
Control cablesMake sure that operation is smooth.
Lubricate if necessary.6-21
Drive chainCheck chain slack.
Adjust if necessary.
Check chain condition.
Lubricate if necessary.6-18, 6-20
Wheels and tiresCheck for damage.
Check tire condition and tread depth.
Check air pressure.
Correct if necessary.6-15, 6-16
Shift pedalMake sure that operation is smooth.
Correct if necessary.6-21
U3P281E0.book Page 2 Monday, April 17, 2006 11:26 AM

PRE-OPERATION CHECKS
4-3
4
Brake pedalMake sure that operation is smooth.
Lubricate pedal pivoting point if necessary.6-21
Brake leverMake sure that operation is smooth.
Lubricate lever pivoting point if necessary.6-22
SidestandMake sure that operation is smooth.
Lubricate pivot if necessary.6-22
Chassis fastenersMake sure that all nuts, bolts and screws are properly tightened.
Tighten if necessary.—
Engine stop switchCheck operation.3-1 ITEM CHECKS PAGE
U3P281E0.book Page 3 Monday, April 17, 2006 11:26 AM
