SPEC
2 - 13
MAINTENANCE SPECIFICATIONS
Part to be tightened Thread size Q’tyTightening torque
Nm m•kg ft•lb
Spark plug M10 × 1.0 1 13 1.3 9.4
Cylinder head bolt M8 × 1.25 4 22 2.2 16
Cylinder head bolt M6 × 1.0 2 10 1.0 7.2
Oil pressure check bolt M6 × 1.0 1 7 0.7 5.1
Cylinder head side cover M6 × 1.0 2 10 1.0 7.2
Tappet cover M45 × 1.5 2 18 1.8 13
Timing chain guide M6 × 1.0 1 10 1.0 7.2
Adjusting screw (valve) and locknut M5 × 0.5 2 8 0.8 5.8
Camshaft sprocket M8 × 1.25 1 20 2.0 14
Bearing plate cover (camshaft) M6 × 1.0 1 10 1.0 7.2
Timing chain tensioner cap bolt M6 × 1.0 1 8 0.8 5.8
Timing chain tensioner M6 × 1.0 2 10 1.0 7.2
Oil pump assembly M6 × 1.0 2 7 0.7 5.1
Oil pump cover M5 × 0.8 1 5 0.5 3.6
Engine oil drain bolt M12 × 1.5 1 20 2.0 14
Carburetor joint M6 × 1.0 2 10 1.0 7.2
Carburetor joint clamp (air filter) M4 × 0.7 1 2 0.2 1.4
Coasting enricher cover M4 × 0.7 2 2 0.2 1.4
Air filter case M6 × 1.0 3 7 0.7 5.1
Muffler M6 × 1.0 2 10 1.0 7.2
Muffler M10 × 1.25 1 60 6.0 43
Muffler M8 × 1.25 1 30 3.0 22
Muffler guard M6 × 1.0 7 10 1.0 7.2
Spark arrester M6 × 1.0 3 10 1.0 7.2
Crankcase M6 × 1.0 10 10 1.0 7.2
Left crankcase cover M6 × 1.0 7 10 1.0 7.2
Drive sprocket cover M6 × 1.0 2 12 1.2 8.7
Right crankcase cover M6 × 1.0 9 10 1.0 7.2
Lead guide (CDI magneto lead) M6 × 1.0 1 7 0.7 5.1
Timing mark accessing screw M14 × 1.5 1 7 0.7 5.1
Crankshaft end accessing screw M32 × 1.5 1 7 0.7 5.1
Kickstarter crank M12 × 1.0 1 50 5.0 36
Starter clutch (TT-R125E/TT-R125LWE) M8 × 1.25 3 30 3.0 22
Plate (starter idle gear) (TT-R125E/TT-R125LWE) M6 × 1.0 2 7 0.7 5.1
Primary drive gear M12 × 1.0 1 70 7.0 50
Clutch spring M5 × 0.8 4 6 0.6 4.3
Clutch boss M12 × 1.0 1 60 6.0 43
Adjusting screw (push rod) and locknut M6 × 1.0 1 8 0.8 5.8
Bearing plate cover (main axle) M6 × 1.0 2 7 0.7 5.1
Drive sprocket M5 × 0.8 2 6 0.6 4.3
Shift arm M6 × 1.0 1 10 1.0 7.2
Shift rod and shift pedal M6 × 1.0 1 7 0.7 5.1
Shift rod and shift arm M6 × 1.0 1 7 0.7 5.1
Shift pedal M6 × 1.0 1 12 1.2 8.7

SPEC
2 - 22
MAINTENANCE SPECIFICATIONS
NOTE:
- marked portion shall be checked for torque tightening after break-in o\
r before each ride.Part to be tightened Thread size Q
’ty Tightening torque
Nm m •kg ft •lb
Bead stopper M8 × 1.25 1 3 0.3 2.2
Driven sprocket (nut) M10 × 1.25 4 43 4.3 31
Driven sprocket (stud) M10 × 1.25 4 30 3.0 22
Sidestand mounting (nut) M10 × 1.25 1 44 4.4 32
Engine mounting: Engine bracket (front) and frame M8 × 1.25 2 40 4.0 29
Engine bracket (front) and engine M8 × 1.25 2 40 4.0 29
Engine bracket (upper) and frame M8 × 1.25 2 40 4.0 29
Engine bracket (upper) and cylinder head M8 × 1.25 1 40 4.0 29
Engine and frame (rear) M8 × 1.25 2 40 4.0 29
Pivot shaft and nut M12 × 1.25 1 53 5.3 38
Relay arm and swingarm (TT-R125LW) M12 × 1.25 1 70 7.0 50
(TT-R125LWE) M12 × 1.25 1 53 5.3 38
Relay arm and connecting arm M10 × 1.25 1 35 3.5 25
Connecting arm and frame M10 × 1.25 1 35 3.5 25
Rear shock absorber assembly and frame M12 × 1.25 1 53 5.3 38
Rear shock absorber assembly and relay arm M10 × 1.25 1 35 3.5 25
Rear shock absorber and locknut (preload) M46 × 1.5 1 42 4.2 30
Drive chain tensioner (upper) M8 × 1.25 1 23 2.3 17
Drive chain tensioner (lower) M6 × 1.0 1 7 0.7 5.1
Drive chain support and swingarm M6 × 1.0 2 7 0.7 5.1
Drive chain guide and swingarm M6 × 1.0 2 7 0.7 5.1
Drive chain guard mounting M6 × 1.0 2 7 0.7 5.1
Fuel tank mounting M6 × 1.0 2 10 1.0 7.2
Fuel tank and fuel cock M6 × 1.0 2 7 0.7 5.1
Fuel tank and fuel tank bracket M6 × 1.0 4 7 0.7 5.1
Front fender mounting M6 × 1.0 4 7 0.7 5.1
Rear fender mounting M6 × 1.0 4 7 0.7 5.1
Flap guard mounting M6 × 1.0 2 4 0.4 2.9
Left side cover mounting M6 × 1.0 2 7 0.7 5.1
Seat mounting M6 × 1.0 2 7 0.7 5.1
Battery cover and battery box (TT-R125LWE) M6 × 1.0 1 5 0.5 3.6
Battery box and frame (TT-R125LWE) M6 × 1.0 1 7 0.7 5.1

PERIODIC MAINTENANCE CHART FOR THE EMISSION
CONTROL SYSTEM
NOTE:
From 18 months or 7,000 km (4,200 mi) or 210 hours, repeat the maintenance intervals starting from 6 months
or 3,000 km (1,800 mi) or 90 hours.
Items marked with an asterisk should be performed by a Yamaha dealer as they require special tools, data and
technical skills.
For TT-Rs not equipped with an odometer or an hour meter, follow the month maintenance intervals.
For TT-Rs equipped with an odometer or an hour meter, follow the km (mi) or hours maintenance intervals.
Hovewer, keep in mind that if the TT-R isn´t used for a long period of time, the month maintenance intervals
should be followed.
Nº ITEM CHECKS AND MAINTENANCE JOBS
ODOMETER READINGSINITIAL
Fuel lineCheck fuel hoses for cracks or damage.
Replace if necessary. 1
*
Whichever
comer firstmonth
km
(mi)
hours1,000
(600)1612
3,000
(1,800)5,000
(3,000)
30 90 150
Spark plug
Check condition
Adjust gap and clean.
CarburetorCheck engine idling speed an starter operation.
Adjust if necessary.
Exhaust system
Engine oilChange (warm engine before draining).2
*3
*5
7
8
√√
√
√√√
√√
√√√√√
Valve clearenceCheck and adjust valve clearance when engine is cold.
Air filter elementClean with solvent.
Replace if necessary. 4
*
Breather systemCheck ventilation hose for cracks or damage.
Replace if necessary.
*6
Check for leakage.
Tighten if necessary.
Replace gasket if necessary.
√√
√√√
3
INSP
ADJ
MAINTENANCE INTERVALS
ONLY FOR CANADA
REGULAR INSPECTION AND ADJUSTMENTS
3 - 0 - 1

NOTE:
The air filter needs more frequent service if you are riding in unusually wet or dusty areas.
Hydraulic brake service (TT-R125LW / TT-R125LWE)
After disassembling the brake master cylinders and calipers, always change the fluid. Regulary check the
brake fluid levels and fill the reservoirs as required.
Every two years replace the internal components of the brake master cylinders and calipers, and change
the brake fluid.
Replace the brake hoses every four years and if cracked or damaged.
Control cabesApply Yamaha chain and cable lube or engine oil 10W-30 thoroughly.
Throttle grip
housing and cableCheck operation and free play.
Adjust the throttle cable free play if necessary.
Lubricate the throttle grip housing and cable.
Chassis
fastenersCheck all chassis fitting and fasteners.
Correct if necessary.
Battery (TT-R125E
/ TT-R125LWE)Check terminal for looseness and corrosion.

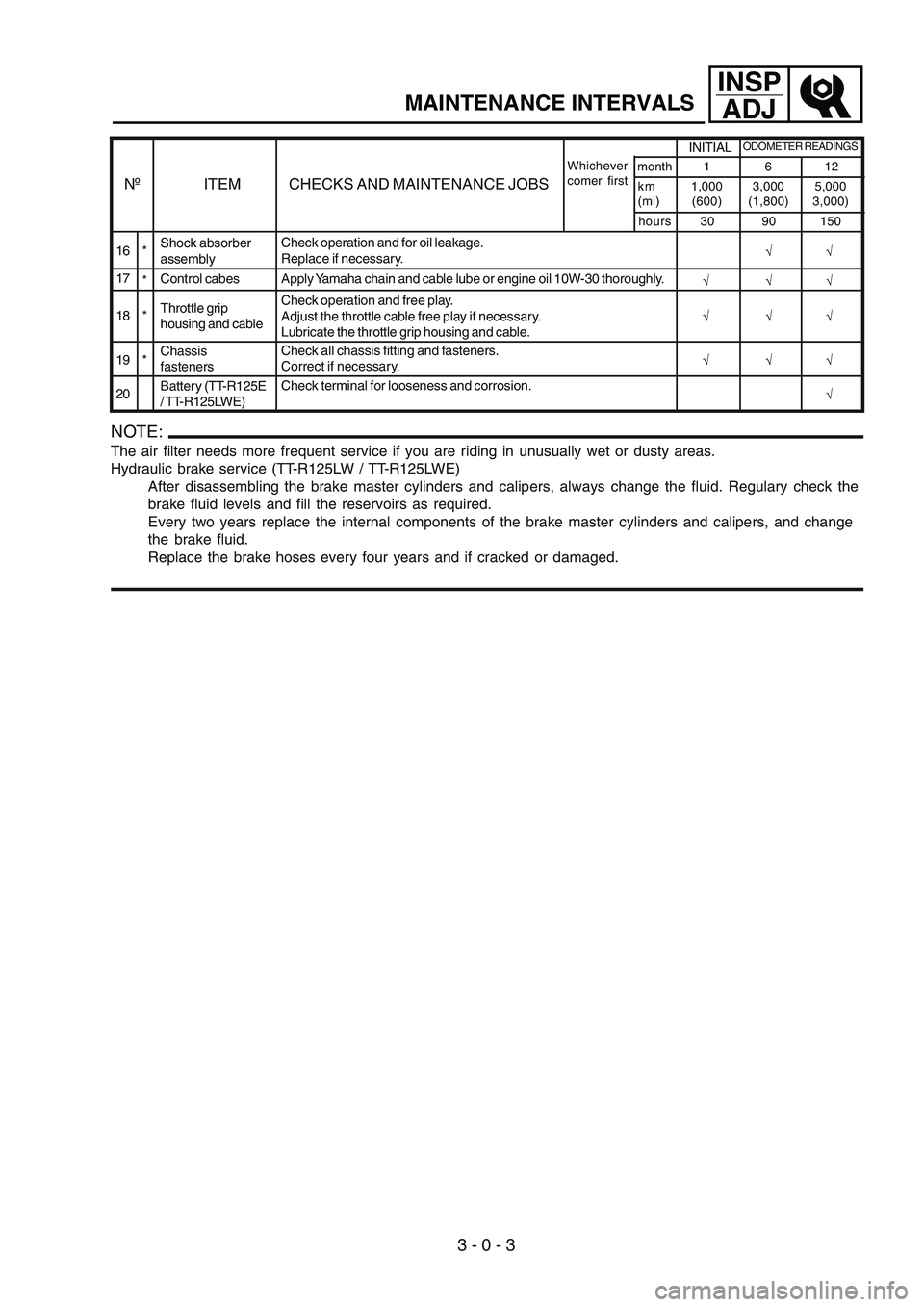

Nº ITEM CHECKS AND MAINTENANCE JOBS
ODOMETER READINGSINITIAL
16
Whichever
comer firstmonth
km
(mi)
hours1,000
(600)1612
3,000
(1,800)5,000
3,000)
30 90 150
Shock absorber
assemblyCheck operation and for oil leakage.
Replace if necessary.*
17
*
18 *
19 *
20
√√
√√√
√√√
√√√
√
INSP
ADJ
MAINTENANCE INTERVALS
3 - 0 - 3

3 - 1
INSP
ADJ
MAINTENANCE INTERVALS
EC300000
REGULAR INSPECTION AND ADJUSTMENTS
MAINTENANCE INTERVALS
The following schedule is intended as a general guide to maintenance and lubrication. Bear in mind
that such factors as weather, terrain, geographical location, and individual usage will alter the
required maintenance and lubrication intervals. If you are a doubt as to what intervals to follow in
maintaining and lubricating your machine, consult your Yamaha dealer.
Dealer
NoteItem Checks and maintenance jobsInitial Every
10 hours
(1 month)60 hours
(6 months)120 hours
(12 months)
*Fuel lineCheck fuel hoses for cracks or damage.
Replace if necessary.
Spark plugCheck condition.
Clean, regap or replace if necessary.
*ValvesCheck valve clearance.
Adjust if necessary.
Air filter Clean or replace element if necessary.
*CarburetorCheck engine idling speed and starter operation.
Adjust if necessary.
Exhaust systemsCheck for leakage.
Retighten if necessary.
Replace gasket if necessary.
Engine oilCheck oil level and vehicle for oil leakage.
Correct if necessary.
Change. (Warm engine before draining.)
ClutchCheck operation.
Adjust or replace cable.
*Front brakeCheck operation.
Adjust brake lever free play.
Check fluid level and leakage.
(TT-R125LW/TT-R125LWE only)Every ride
*Rear brakeCheck operation.
Adjust brake pedal free play and replace brake
shoes if necessary.Every ride
*WheelsCheck balance, runout, spoke tightness and for
damage.
Tighten spokes and rebalance, replace if
necessary.
*TiresCheck tread depth and for damage.
Replace if necessary.
Check air pressure.
Correct if necessary.
*Wheel bearingsCheck bearing for looseness or damage.
Replace if necessary.
*SwingarmCheck swingarm pivoting point for play.
Correct if necessary.
Lubricate with molybdenum disulfide grease.
Drive chainCheck chain slack.
Adjust if necessary. Make sure that the rear wheel
is properly aligned.
Clean and lubricate.Every ride
*Steering bearingsCheck bearing play and steering for roughness.
Correct accordingly.
Lubricate with lithium soap base grease every 120
hours.

3 - 3
INSP
ADJ
PRE-OPERATION INSPECTION AND MAINTENANCE
PRE-OPERATION INSPECTION AND MAINTENANCE
Before riding for break-in operation or practice, make sure the machine is in good operating condi-
tion.
Before using this machine, check the following points.
GENERAL INSPECTION AND MAINTENANCE
Item Routine Page
FuelCheck that a fresh gasoline is filled in the fuel tank. Check the
fuel line for leakage.P.1-12
Engine oilCheck that the oil level is correct. Check the crankcase for leak-
age.P.3-7 ~ 10
Gear shifter and clutchCheck that gears can be shifted correctly in order and that the
clutch operates smoothly.P.3-4
Throttle grip/housingCheck that the throttle grip operation and free play are correctly
adjusted. Lubricate the throttle grip and housing, if necessary.P.3-4 ~ 5
BrakesCheck the play of front and rear brake and effect of front and
rear brake.
Check fluid level and leakage. (TT-R125LW/TT-R125LWE only)P.3-15 ~ 20
Drive chainCheck chain slack and alignment. Check that the chain is lubri-
cated properly.P.3-21 ~ 22
WheelsCheck for excessive wear and tire pressure. Check for loose
spokes and have no excessive play.P.3-27 ~ 28
SteeringCheck that the handlebar can be turned smoothly and have no
excessive play.P.3-28 ~ 32
Front forks and rear shock
absorber assemblyCheck that they operate smoothly and there is no oil leakage. P.3-23 ~ 26
Cables (wires)Check that the clutch and throttle cables move smoothly. Check
that they are not caught when the handlebars are turned or
when the front forks travel up and down.—
Muffler Check that the muffler is tightly mounted and has no cracks. P.4-2
Sprocket Check that the driven sprocket tightening nut is not loose. P.3-20
Lubrication Check for smooth operation. Lubricate if necessary. P.3-33
Bolts and nuts Check the chassis and engine for loose bolts and nuts.—
Lead connectorsCheck that the CDI magneto, CDI unit, and ignition coil are con-
nected tightly.P.1-5

3 - 4
INSP
ADJENGINE/CLUTCH ADJUSTMENT/
THROTTLE CABLE ADJUSTMENT
EC350000
ENGINE
CLUTCH ADJUSTMENT
1. Check:
Clutch lever free play a
Out of specification → Adjust.
Clutch lever free play a:
10 ~ 15 mm (0.39 ~ 0.59 in)
2. Adjust:
Clutch lever free play
NOTE:
Make minute adjustment on the lever side.
After adjustment, check proper operation of
clutch lever. Clutch lever free play adjustment steps:
Loosen the locknut 1.
Turn the adjuster 2 until free play a is
within the specified limits.
Tighten the locknut.
EC35A001
THROTTLE CABLE ADJUSTMENT
1. Check:
Throttle grip free play a
Out of specification → Adjust.
Throttle grip free play a:
3 ~ 5 mm (0.12 ~ 0.20 in)
2. Adjust:
Throttle grip free play
Throttle grip free play adjustment steps:
Loosen the locknut 1.
Turn the adjuster 2 until the specified free
play is obtained.
Tighten the locknut.

3 - 8
INSP
ADJ
ENGINE OIL LEVEL INSPECTION
4. Check:
Oil level
Oil level should be between maximum
a and minimum b marks.
Oil level is low → Add oil to proper
level.
NOTE:
When inspecting the oil level, do not screw the
dipstick into the oil tank. Insert the gauge
lightly.
(For USA and CDN)
CAUTION:
Do not add any chemical additives.
Engine oil also lubricates the clutch and
additives could cause clutch slippage.
Do not allow foreign material to enter the
crankcase.
Recommended oil:
At –10 ˚C (10 ˚F) or higher Å:
Yamalube 4 (10W-30) or SAE
10W-30 type SE motor oil
At 5 ˚C (40 ˚F) or higher ı:
Yamalube 4 (20W-40) or SAE
20W-40 type SE motor oil
(Except for USA and CDN)
CAUTION:
Do not add any chemical additives or use
oils with a grade of CD a or higher.
Do not use oils labeled “ENERGY CON-
SERVING II” b or higher. Engine oil also
lubricates the clutch and additives could
cause clutch slippage.
Do not allow foreign materials to enter the
crankcase.
Recommended oil:
Refer to the following chart for
selection of oils which are suited
to the atmospheric temperatures.
Recommended engine oil classi-
fication:
API STANDARD:
API “SE” or higher grade
(Designed primarily for motor-
cycles)
