PERIODIC MAINTENANCE AND MINOR REPAIR
6-30
2
3
4
5
67
8
9
necessary.
3. Fully charge the battery before in-
stallation.
4. After installation, make sure that
the battery leads are properly con-
nected to the battery terminals.
CAUTION:
ECA10630
Always keep the battery
charged. Storing a discharged
battery can cause permanent
battery damage.
To charge a sealed-type (MF)
battery, a special (constant-volt-
age) battery charger is required.
Using a conventional battery
charger will damage the battery.
If you do not have access to a
sealed-type (MF) battery charg-
er, have a Yamaha dealer
charge your battery.
EAU36543

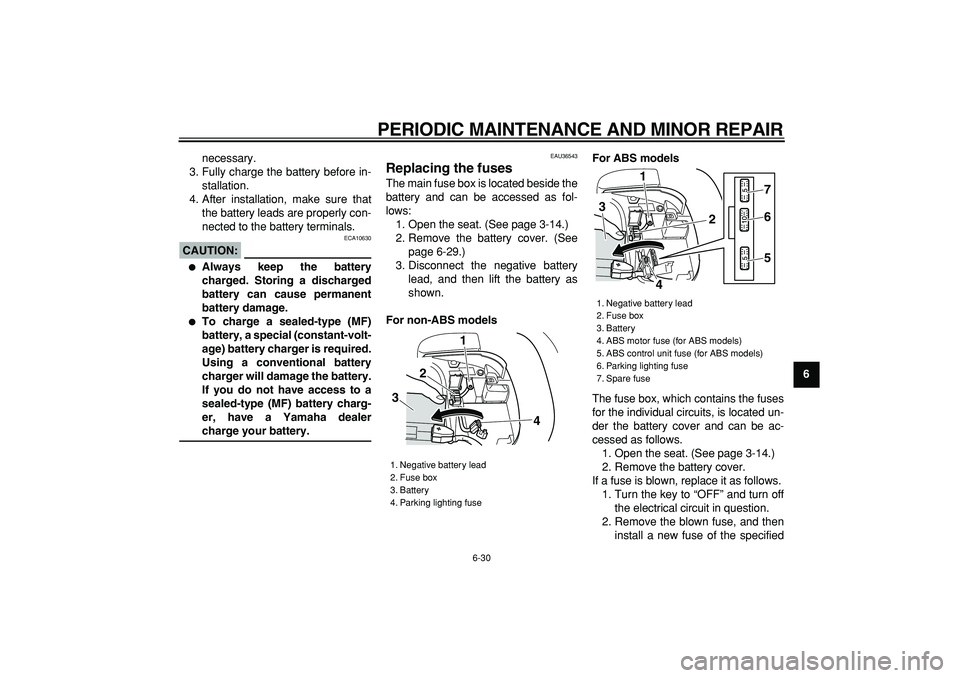

Replacing the fuses
The main fuse box is located beside the
battery and can be accessed as fol-
lows:
1. Open the seat. (See page 3-14.)
2. Remove the battery cover. (See
page 6-29.)
3. Disconnect the negative battery
lead, and then lift the battery as
shown.
For non-ABS modelsFor ABS models
The fuse box, which contains the fuses
for the individual circuits, is located un-
der the battery cover and can be ac-
cessed as follows.
1. Open the seat. (See page 3-14.)
2. Remove the battery cover.
If a fuse is blown, replace it as follows.
1. Turn the key to “OFF” and turn off
the electrical circuit in question.
2. Remove the blown fuse, and then
install a new fuse of the specified
1. Negative battery lead
2. Fuse box
3. Battery
4. Parking lighting fuse1
2
4 3
1. Negative battery lead
2. Fuse box
3. Battery
4. ABS motor fuse (for ABS models)
5. ABS control unit fuse (for ABS models)
6. Parking lighting fuse
7. Spare fuse
1
3
2
4
765
PERIODIC MAINTENANCE AND MINOR REPAIR
6-31
1
2
3
4
5
6
7
8
9
amperage.
NOTE:
To access the main fuse, remove the
main fuse box cover as shown.
For non-ABS models For ABS models
1. Main fuse
2. Spare main fuse
3. Main fuse box cover
21
3
1. Signaling system fuse
2. Headlight fuse
3. Ignition fuse
4. Radiator fan fuse
5. Fuel injection system fuse
6. Backup fuse (for odometer and clock)
7. Spare fuse
7
123456
1. Signaling system fuse
2. Headlight fuse
3. Ignition fuse
4. Radiator fan fuse
5. Fuel injection system fuse
6. Backup fuse (for odometer and clock)
7. Spare fuse
7
123456
