INSTRUMENT AND CONTROL FUNCTIONS
3-5
2
34
5
6
7
8
9

EAU11872
Tachometer
The electric tachometer allows the rider
to monitor the engine speed and keep it
within the ideal power range.
When the key is turned to “ON”, the ta-
chometer needle will sweep once
across the r/min range and then return
to zero r/min in order to test the electri-
cal circuit.
CAUTION:

ECA10031
Do not operate the engine in the ta-
chometer red zone.
Red zone: 8250 r/min and above
EAU33519
Multi-function display
WARNING

EWA12311
Be sure to stop the vehicle before
making any setting changes to the
multi-function display.
The multi-function display is equipped
with the following:

a fuel meter

a coolant temperature meter

an odometer (which shows the to-
tal distance traveled)

two tripmeters (which show the
distance traveled since they were
last set to zero)

a fuel reserve tripmeter (which
shows the distance traveled since
the bottom segment of the fuel
meter and fuel level warning indi-
1. Tachometer
2. Tachometer red zone
12

1. Clock
2. Coolant temperature meter
3. Fuel meter
4. Odometer/tripmeters
5. “SELECT” button
6. “RESET” button
1
2
3
4
5
6

1. V-belt replacement indicator “V-BELT”
2. Fuel level warning indicator “”
3. Coolant temperature warning indicator
“”
4. Oil change indicator “OIL”
12
4
3

INSTRUMENT AND CONTROL FUNCTIONS
3-6
1
2
3
4
5
6
7
8
9
cator started flashing)


a self-diagnosis device

a clock

an oil change indicator

a V-belt replacement indicator
NOTE:


Be sure to turn the key to “ON” be-
fore using the “SELECT” and “RE-
SET” buttons.

When the key is turned to “ON”, all
of the display segments of the
multi-function display will appear
one after the other and then disap-
pear, in order to test the electrical
circuit.
Odometer and tripmeter modes
Pushing the “SELECT” button switches
the display between the odometer
mode “ODO” and the tripmeter modes
“TRIP” in the following order:
ODO
→
TRIP (top)
→
TRIP (bottom)
→
ODO
When approximately 2.8 L (0.74 US
gal) (0.62 Imp.gal) of fuel remains in the
fuel tank, the bottom segment of the
fuel meter and fuel level warning indica-
tor will start flashing, and the display willautomatically change to the fuel re-
serve tripmeter mode “TRIP F” and
start counting the distance traveled
from that point. In that case, pushing
the “SELECT” button switches the dis-
play between the various tripmeter and
odometer modes in the following order:
TRIP F
→
TRIP (top)
→
TRIP (bottom)
→
ODO
→
TRIP F
To reset a tripmeter, select it by push-
ing the “SELECT” button until “TRIP” or
“TRIP F” begins flashing (“TRIP” or
“TRIP F” will only flash for five sec-
onds). While “TRIP” or “TRIP F” is
flashing, push the “RESET” button for
at least one second. If you do not reset
the fuel reserve tripmeter manually, itwill reset itself automatically and the
display will return to the prior mode af-
ter refueling and traveling 5 km (3 mi).
NOTE:

The display cannot be changed back to
“TRIP F” after pushing the “RESET”
button.
Fuel meter
With the key in the “ON” position, the
fuel meter indicates the amount of fuel
in the fuel tank. The display segments
of the fuel meter disappear towards “E”
(Empty) as the fuel level decreases.
When the fuel level reaches the bottom
segment near “E”, the fuel level warn-
ing indicator and the bottom segment
will flash. Refuel as soon as possible.
Coolant temperature meter
With the key in the “ON” position, the
coolant temperature meter indicates
the temperature of the coolant. The
coolant temperature varies with chang-
es in the weather and engine load. If
the top segment and coolant tempera-
ture warning indicator flash, stop the
vehicle and let the engine cool. (See

1. Fuel reserve tripmeter
1

INSTRUMENT AND CONTROL FUNCTIONS
3-8
1
2
3
4
5
6
7
8
9
If any of the immobilizer system circuits
are defective, the immobilizer system
indicator light will flash, and then the
multi-function display will indicate a
two-digit error code when the key is
turned to “ON”.
NOTE:

If the multi-function display indicates er-
ror code 52, this could be caused by
transponder interference. If this error
appears, try the following.
1. Use the code re-registering key to
start the engine.
NOTE:

Make sure there are no other immobi-
lizer keys close to the main switch, and
do not keep more than one immobilizer
key on the same key ring! Immobilizer
system keys may cause signal interfer-
ence, which may prevent the engine
from starting.
2. If the engine starts, turn it off, and
try starting the engine with the
standard keys.
3. If one or both of the standard keys
do not start the engine, take the
vehicle, the code re-registeringkey and both standard keys to a
Yamaha dealer and have the stan-
dard keys re-registered.
If the multi-function display indicates
any error codes, note the code number,
and then have a Yamaha dealer check
the vehicle.
Clock mode
To set the clock:
1. Push the “SELECT” button and
“RESET” button together for at
least two seconds.
2. When the hour digits start flashing,
push the “RESET” button to set the
hours.
3. Push the “SELECT” button, and
the minute digits will start flashing.
4. Push the “RESET” button to set
the minutes.
5. Push the “SELECT” button and
then release it to start the clock.

EAU12331
Anti-theft alarm (optional)
This model can be equipped with an
optional anti-theft alarm by a Yamaha
dealer. Contact a Yamaha dealer for
more information.

INSTRUMENT AND CONTROL FUNCTIONS
3-12
1
2
3
4
5
6
7
8
9
NOTE:


When the ABS is activated, the
brakes are operated in the usual
way. A pulsating action may be felt
at the brake levers, but this does
not indicate a malfunction.

This ABS has a test mode which
allows the owner to experience the
pulsating at the brake levers when
the ABS is operating. However,
special tools are required, so
please consult your Yamaha deal-
er when performing this test.
EAU13174
Fuel tank cap
To remove the fuel tank cap
1. Open the lid by pulling the lever up.
2. Insert the key into the lock and turn
it clockwise. The lock will be re-
leased and the fuel tank cap can
be removed.
To install the fuel tank cap
1. Align the match marks, insert the
fuel tank cap into the tank opening,
and then push down on the cap.
2. Turn the key counterclockwise to
the original position, and then re-

1. Lid
2. Opening lever
2
1

1. Fuel tank cap
1. Match marks
1
1

INSTRUMENT AND CONTROL FUNCTIONS
3-14
1
2
3
4
5
6
7
8
9

EAU13431
Catalytic converter
This model is equipped with a catalytic
converter in the exhaust system.
WARNING

EWA10860
The exhaust system is hot after op-
eration. Make sure that the exhaust
system has cooled down before do-
ing any maintenance work.
CAUTION:

ECA10700
The following precautions must be
observed to prevent a fire hazard or
other damages.

Use only unleaded gasoline.
The use of leaded gasoline will
cause unrepairable damage to
the catalytic converter.

Never park the vehicle near pos-
sible fire hazards such as grass
or other materials that easily
burn.

Do not allow the engine to idle
too long.
EAU13932
Seat
To open the seat
1. Place the scooter on the center-
stand.
2. Insert the key into the main switch,
and then turn it counterclockwise
to “OPEN”.
NOTE:

Do not push inward when turning the
key.
3. Fold the seat up.
To close the seat
1. Fold the seat down, and then push
it down to lock it in place.
2. Remove the key from the main
switch if the scooter will be left un-
attended.
NOTE:

Make sure that the seat is properly se-
cured before riding.
1. Open.
1

PERIODIC MAINTENANCE AND MINOR REPAIR
6-31
1
2
3
4
5
6
7
8
9
amperage.
NOTE:

To access the main fuse, remove the
main fuse box cover as shown.
For non-ABS models For ABS models
1. Main fuse
2. Spare main fuse
3. Main fuse box cover
21
3

1. Signaling system fuse
2. Headlight fuse
3. Ignition fuse
4. Radiator fan fuse
5. Fuel injection system fuse
6. Backup fuse (for odometer and clock)
7. Spare fuse
7
123456

1. Signaling system fuse
2. Headlight fuse
3. Ignition fuse
4. Radiator fan fuse
5. Fuel injection system fuse
6. Backup fuse (for odometer and clock)
7. Spare fuse
7
123456

PERIODIC MAINTENANCE AND MINOR REPAIR
6-34
2
3
4
5
67
8
9

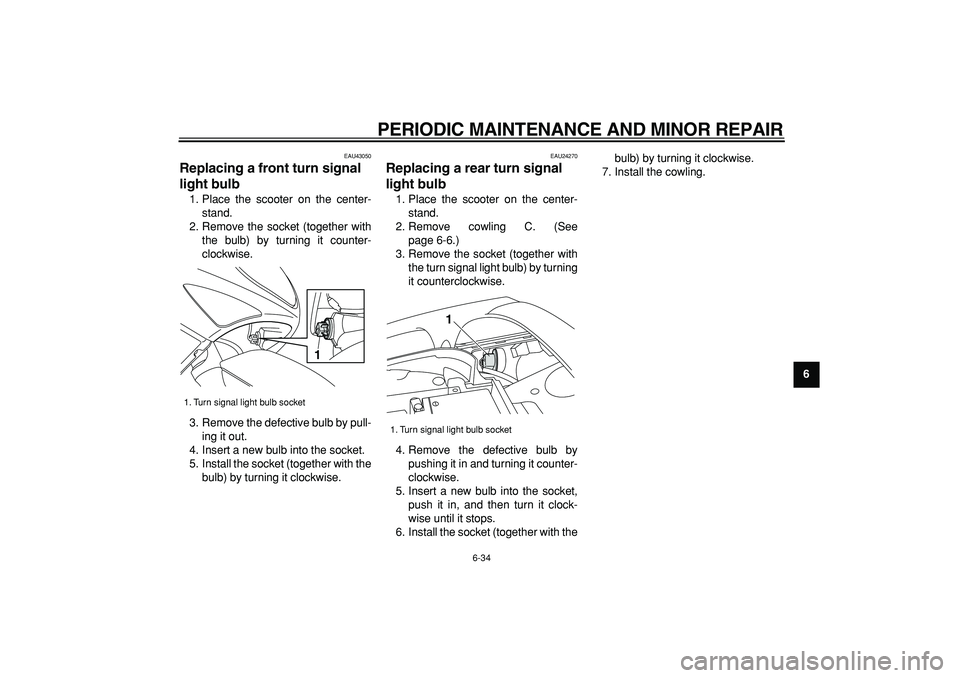

EAU43050
Replacing a front turn signal
light bulb
1. Place the scooter on the center-
stand.
2. Remove the socket (together with
the bulb) by turning it counter-
clockwise.
3. Remove the defective bulb by pull-
ing it out.
4. Insert a new bulb into the socket.
5. Install the socket (together with the
bulb) by turning it clockwise.
EAU24270
Replacing a rear turn signal
light bulb
1. Place the scooter on the center-
stand.
2. Remove cowling C. (See
page 6-6.)
3. Remove the socket (together with
the turn signal light bulb) by turning
it counterclockwise.
4. Remove the defective bulb by
pushing it in and turning it counter-
clockwise.
5. Insert a new bulb into the socket,
push it in, and then turn it clock-
wise until it stops.
6. Install the socket (together with thebulb) by turning it clockwise.
7. Install the cowling.
1. Turn signal light bulb socket
1

1. Turn signal light bulb socket1

PERIODIC MAINTENANCE AND MINOR REPAIR
6-37
1
2
3
4
5
6
7
8
9Engine overheating
WARNING

EWAT1040

Do not remove the radiator cap when the engine and radiator are hot. Scalding hot fluid and steam may be
blown out under pressure, which could cause serious injury. Be sure to wait until the engine has cooled.

Place a thick rag, like a towel, over the radiator cap, and then slowly rotate the cap counterclockwise to the de-
tent to allow any residual pressure to escape. When the hissing sound has stopped, press down on the cap
while turning it counterclockwise, and then remove the cap.
NOTE:

If coolant is not available, tap water can be temporarily used instead, provided that it is changed to the recommended coolant
as soon as possible.
Wait until the
engine has cooled.
Check the coolant level in the
reservoir and radiator.
The coolant level
is OK.The coolant level is low.
Check the cooling system
for leakage.
Have a Yamaha dealer checkand repair the cooling system.Add coolant. (See NOTE.)
Start the engine. If the engine overheats again,
have a
Yamaha dealer check
and repair the cooling system.
There is
leakage.
There is
no leakage.
