2007 YAMAHA TDM 900 wheel

DECLARATION of CONFORMITY
WeCompany: MORIC CO., LTD.
Address: 1450-6 Mori Mori-Machi Shuchi-gun Shizuoka 437-0292 Japan
Hereby declare that the product:
Kind of equipment: IMMOBILIZER
Type-designation: 5SL-00
is in compliance with following norm(s) or documents:
R&TTE Directive(1999/5/EC)
EN300 330-2 v1.1.1(2001-6), EN60950-1(2001)
Two or Three-Wheel Motor Vehicles Directive(97/24/EC: Chapter 8, EMC)
Place of issue: Shizuoka, Japan
Date of issue: 1 Aug. 2002
Revolution record
No. Contents Date
To change contact person and integrate type-designation. 9 Jun. 2005
General manager of quality assurance div.
representative name and signature
MORIC CO., LTD.1450-6 Mori-machi Shuchi-gun Shizuoka 437-0292 JAPAN Telephone +81-538-85-0757 Facsimile +81-538-85-0456URL:http://www.moric-jp.com1
Version up the norm of EN60950 to EN60950-1 27 Feb. 2006
2

EAU26943

TABLE OF CONTENTS
SAFETY INFORMATION
...................1-1
DESCRIPTION
...................................2-1
Left view ...........................................2-1
Right view .........................................2-2
Controls and instruments..................2-3
INSTRUMENT AND CONTROL
FUNCTIONS
........................................3-1
Immobilizer system ..........................3-1
Main switch/steering lock .................3-2
Indicator and warning lights .............3-3
Tachometer unit ...............................3-5
Coolant temperature gauge .............3-6
Multi-function display .......................3-7
Anti-theft alarm (optional) ................3-8
Handlebar switches .........................3-8
Clutch lever ....................................3-10
Shift pedal ......................................3-10
Brake lever ....................................3-10
Brake pedal ...................................3-11
ABS ...............................................3-11
Fuel tank cap .................................3-12
Fuel ................................................3-13
Fuel tank breather hose .................3-13
Catalytic converter .........................3-14
Seat ...............................................3-14
Storage compartment ....................3-15
Adjusting the front fork ...................3-15
Adjusting the shock absorber
assembly ....................................3-17Luggage strap holders .................. 3-18
Sidestand ...................................... 3-19
Ignition circuit cut-off system ......... 3-19
PRE-OPERATION CHECKS
.............. 4-1
Pre-operation check list ................... 4-2
OPERATION AND IMPORTANT
RIDING POINTS
.................................. 5-1
Starting the engine .......................... 5-1
Shifting ............................................ 5-2
Tips for reducing fuel consumption . 5-3
Engine break-in ............................... 5-3
Parking ............................................ 5-4
PERIODIC MAINTENANCE AND
MINOR REPAIR
.................................. 6-1
Owner’s tool kit ................................ 6-1
Periodic maintenance and lubrication
chart ............................................. 6-2
Removing and installing cowlings
and panels ................................... 6-5
Checking the spark plugs ................ 6-6
Engine oil and oil filter element ....... 6-7
Coolant .......................................... 6-10
Replacing the air filter element ...... 6-12
Adjusting the engine idling
speed ......................................... 6-14
Checking the throttle cable free
play ............................................ 6-14
Valve clearance ............................. 6-15Tires .............................................. 6-15
Cast wheels .................................. 6-18
Adjusting the clutch lever free
play ............................................ 6-18
Adjusting the rear brake light
switch ......................................... 6-19
Checking the front and rear brake
pads ........................................... 6-19
Checking the brake fluid level ....... 6-20
Changing the brake fluid ............... 6-21
Drive chain slack ........................... 6-21
Cleaning and lubricating the drive
chain .......................................... 6-23
Checking and lubricating the
cables ........................................ 6-24
Checking and lubricating the throttle
grip and cable ............................ 6-24
Checking and lubricating the brake
and shift pedals ......................... 6-24
Checking and lubricating the brake
and clutch levers ........................ 6-25
Checking and lubricating the
sidestand ................................... 6-25
Lubricating the rear suspension .... 6-25
Checking the front fork .................. 6-26
Checking the steering ................... 6-26
Checking the wheel bearings ........ 6-27
Battery ........................................... 6-27
Replacing the fuses ...................... 6-29
Replacing a headlight bulb ........... 6-30

SAFETY INFORMATION
1-2
1
ed by road and traffic conditions.

Always signal before turning or
changing lanes. Make sure that
other motorists can see you.

The posture of the operator and
passenger is important for proper
control.

The operator should keep both
hands on the handlebar and
both feet on the operator foot-
rests during operation to main-
tain control of the motorcycle.

The passenger should always
hold onto the operator, the seat
strap or grab bar, if equipped,
with both hands and keep both
feet on the passenger footrests.

Never carry a passenger unless
he or she can firmly place both
feet on the passenger footrests.

Never ride under the influence of
alcohol or other drugs.

This motorcycle is designed for
on-road use only. It is not suitable
for off-road use.
Protective apparel
The majority of fatalities from motorcy-cle accidents are the result of head in-
juries. The use of a safety helmet is the
single most critical factor in the preven-
tion or reduction of head injuries.

Always wear an approved helmet.

Wear a face shield or goggles.
Wind in your unprotected eyes
could contribute to an impairment
of vision that could delay seeing a
hazard.

The use of a jacket, heavy boots,
trousers, gloves, etc., is effective in
preventing or reducing abrasions
or lacerations.

Never wear loose-fitting clothes,
otherwise they could catch on the
control levers, footrests, or wheels
and cause injury or an accident.

Never touch the engine or exhaust
system during or after operation.
They become very hot and can
cause burns. Always wear protec-
tive clothing that covers your legs,
ankles, and feet.

A passenger should also observe
the above precautions.
Modifications
Modifications made to this motorcycle
not approved by Yamaha, or the re-
moval of original equipment, may ren-
der the motorcycle unsafe for use and
may cause severe personal injury.
Modifications may also make your mo-
torcycle illegal to use.
Loading and accessories
Adding accessories or cargo to your
motorcycle can adversely affect stabili-
ty and handling if the weight distribution
of the motorcycle is changed. To avoid
the possibility of an accident, use ex-
treme caution when adding cargo or
accessories to your motorcycle. Use
extra care when riding a motorcycle
that has added cargo or accessories.
Here are some general guidelines to
follow if loading cargo or adding acces-
sories to your motorcycle:
Loading
The total weight of the operator, pas-
senger, accessories and cargo must
not exceed the maximum load limit.

INSTRUMENT AND CONTROL FUNCTIONS
3-4
1
2
3
4
5
6
7
8
9

EAU11060
Neutral indicator light “”
This indicator light comes on when the
transmission is in the neutral position.
EAU11080
High beam indicator light “”
This indicator light comes on when the
high beam of the headlight is switched
on.
EAU38600
Oil level warning light
This warning light comes on when the
engine oil level is low.
The electrical circuit of the warning light
can be checked by turning the key to
“ON”.
If the warning light does not come on
for a few seconds, then go off, have a
Yamaha dealer check the electrical cir-
cuit.
NOTE:

Even if the oil level is sufficient, the
warning light may flicker when riding on
a slope or during sudden acceleration
or deceleration, but this is not a mal-
function.
EAU11371
Fuel level warning indicator “”
This fuel level warning indicator starts
flashing when the fuel level drops be-
low approximately 3.5 L (0.92 US gal)
(0.77 Imp.gal).
EAU11500
Engine trouble warning light “”
This warning light comes on or flashes
when an electrical circuit monitoring the
engine is defective. When this occurs,
have a Yamaha dealer check the
self-diagnosis system.
The electrical circuit of the warning light
can be checked by turning the key to
“ON”. If the warning light does not come
on for a few seconds, then go off, have
a Yamaha dealer check the electrical
circuit.
EAU39500
ABS warning light “”
If this warning light comes on or flashes
while riding, the ABS may be defective.
If this occurs, have a Yamaha dealer
check the system as soon as possible.
(See page 3-11.)
WARNING

EWA10081
If the ABS warning light comes on or
flashes while riding, the brake sys-
tem reverts to conventional braking.
Therefore, be careful not to cause
the wheels to lock during emergen-
cy braking. If the warning light
comes on or flashes while riding,
have a Yamaha dealer check the
brake system as soon as possible.
The electrical circuit of the warning light
can be checked by turning the key to
“ON”.
If the warning light does not come on or
remains on, have a Yamaha dealer
check the electrical circuit.
EAU38610
Immobilizer system indicator light
The electrical circuit of the indicator
light can be checked by turning the key
to “ON”.
If the indicator light does not come on
for a few seconds, then go off, have a
Yamaha dealer check the electrical cir-
cuit.
When the key is turned to “OFF” and 30ABS

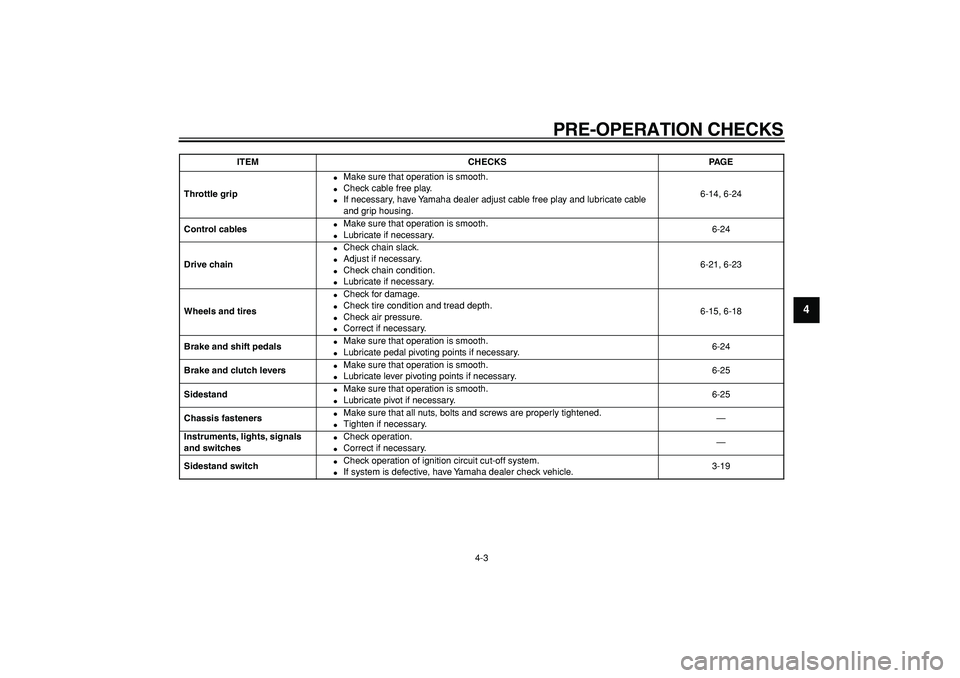

PRE-OPERATION CHECKS
4-3
2
3
45
6
7
8
9

Throttle grip

Make sure that operation is smooth.

Check cable free play.

If necessary, have Yamaha dealer adjust cable free play and lubricate cable
and grip housing.6-14, 6-24
Control cables

Make sure that operation is smooth.

Lubricate if necessary.6-24
Drive chain

Check chain slack.

Adjust if necessary.

Check chain condition.

Lubricate if necessary.6-21, 6-23
Wheels and tires

Check for damage.

Check tire condition and tread depth.

Check air pressure.

Correct if necessary.6-15, 6-18
Brake and shift pedals

Make sure that operation is smooth.

Lubricate pedal pivoting points if necessary.6-24
Brake and clutch levers

Make sure that operation is smooth.

Lubricate lever pivoting points if necessary.6-25
Sidestand

Make sure that operation is smooth.

Lubricate pivot if necessary.6-25
Chassis fasteners

Make sure that all nuts, bolts and screws are properly tightened.

Tighten if necessary.—
Instruments, lights, signals
and switches

Check operation.

Correct if necessary.—
Sidestand switch

Check operation of ignition circuit cut-off system.

If system is defective, have Yamaha dealer check vehicle.3-19
ITEM CHECKS PAGE

PERIODIC MAINTENANCE AND MINOR REPAIR
6-2
2
3
4
5
67
8
9

EAU17705
Periodic maintenance and lubrication chart
NOTE:


The annual checks must be performed every year, except if a kilometer-based maintenance is performed in-
stead.

From 50000 km, repeat the maintenance intervals starting from 10000 km.

Items marked with an asterisk should be performed by a Yamaha dealer as they require special tools, data and technical
skills.
NO. ITEM CHECK OR MAINTENANCE JOBODOMETER READING (
×
1000 km)
ANNUAL
CHECK
1 10203040
1*
Fuel line


Check fuel hoses for cracks or damage.
√√√√ √
2*
Spark plugs

Check condition.

Clean and regap.
√√

Replace.
√√
3*
Valves

Check valve clearance.

Adjust.Every 40000 km
4
Air filter element

Replace.
√
5
Clutch

Check operation.

Adjust.
√√√√√
6*
Front brake

Check operation, fluid level and vehicle for fluid leak-
age.
√√√√√ √

Replace brake pads. Whenever worn to the limit
7*
Rear brake

Check operation, fluid level and vehicle for fluid leak-
age.
√√√√√ √

Replace brake pads. Whenever worn to the limit
8*
Brake hoses

Check for cracks or damage.
√√√√ √

Replace. Every 4 years
9*
Wheels

Check runout and for damage.
√√√√

PERIODIC MAINTENANCE AND MINOR REPAIR
6-3
1
2
3
4
5
6
7
8
9

10

*
Tires

Check tread depth and for damage.

Replace if necessary.

Check air pressure.

Correct if necessary.
√√√√ √
11

*
Wheel bearings

Check bearing for looseness or damage.
√√√√
12

*
Swingarm

Check operation and for excessive play.
√√√√

Lubricate with lithium-soap-based grease. Every 50000 km
13

Drive chain

Check chain slack, alignment and condition.

Adjust and lubricate chain with a special O-ring chain
lubricant thoroughly.Every 1000 km and after washing the motorcycle or
riding in the rain
14

*
Steering bearings

Check bearing play and steering for roughness.
√√√√√

Lubricate with lithium-soap-based grease. Every 20000 km
15

*
Chassis fasteners

Make sure that all nuts, bolts and screws are properly
tightened.
√√√√ √
16

Sidestand

Check operation.

Lubricate.
√√√√ √
17

*
Sidestand switch

Check operation.
√√√√√ √
18

*
Front fork

Check operation and for oil leakage.
√√√√
19

*
Shock absorber assem-
bly

Check operation and shock absorber for oil leakage.
√√√√
20

*
Rear suspension relay
arm and connecting arm
pivoting points

Check operation.
√√√√

Lubricate with lithium-soap-based grease.
√√
21

*
Fuel injection

Adjust engine idling speed and synchronization.
√√√√√ √
22

Engine oil

Change.

Check oil level and vehicle for oil leakage.
√√√√√ √
23

Engine oil filter element

Replace.
√√√
24

*
Cooling system

Check coolant level and vehicle for coolant leakage.
√√√√ √

Change. Every 3 years
NO. ITEM CHECK OR MAINTENANCE JOBODOMETER READING (
×
1000 km)
ANNUAL
CHECK
1 10203040

PERIODIC MAINTENANCE AND MINOR REPAIR
6-16
2
3
4
5
67
8
9 TORCYCLE! Operation of an
overloaded motorcycle may re-
sult in tire damage, loss of con-
trol, or severe injury. Make sure
that the total weight of rider,
passenger, cargo, and accesso-
ries does not exceed the speci-
fied maximum load for the
vehicle.


Do not carry along loosely
packed items, which can shift
during a ride.

Securely pack the heaviest
items close to the center of the
motorcycle and distribute the
weight evenly on both sides.

Adjust the suspension and tire
air pressure with regard to the
load.

Check the tire condition and air
pressure before each ride.Tire inspection
The tires must be checked before each
ride. If the center tread depth reaches
the specified limit, if the tire has a nail or
glass fragments in it, or if the sidewall is
cracked, have a Yamaha dealer re-
place the tire immediately.
NOTE:

The tire tread depth limits may differ
from country to country. Always comply
with the local regulations.
WARNING

EWA10470

Have a Yamaha dealer replace
excessively worn tires. Besides
being illegal, operating the vehi-
cle with excessively worn tires
decreases riding stability and
can lead to loss of control.

The replacement of all wheel
and brake related parts, includ-
ing the tires, should be left to a
Yamaha dealer, who has the
necessary professional knowl-
edge and experience.
1. Tire tread depth
2. Tire sidewall
Minimum tire tread depth (front and
rear):
1.6 mm (0.06 in)
21
