INSTRUMENT AND CONTROL FUNCTIONSMain switch / steering lock .................................................................. 3-1
Indicator and warning lights ................................................................ 3-2
Speedometer unit ................................................................................ 3-3
Handlebar switches ............................................................................. 3-4
Front brake lever ................................................................................. 3-4
Rear brake lever ................................................................................. 3-5
Fuel and 2-stroke engine oil tank caps ............................................... 3-5
Fuel ..................................................................................................... 3-6
2-stroke engine oil ............................................................................... 3-7
Catalytic converter .............................................................................. 3-7
Starter (choke) lever ........................................................................... 3-7
Kickstarter ........................................................................................... 3-8
Seat ..................................................................................................... 3-8
Luggage hook ..................................................................................... 3-8
Anti-theft device housing ..................................................................... 3-9
3
Page 18 of 80

3
INSTRUMENT AND CONTROL FUNCTIONS
EAU00029
Main switch/steering lockThe main switch/steering lock controls
the ignition and lighting systems, and
is used to lock the steering. The various
positions are described below.
PUSH
ZAUM0332
EAU00038
OFF “
”
All electrical systems are off. The key
can be removed.
EAU04470
*The 2-stroke engine oil level warning
light should come on. See page 3-2 for
an explanation of the engine oil level
warning light.
EAUM0074
LOCK“
”
The steering is locked, and all electrical
systems are off. The key can be
removed.
To lock the steering
1. Turn the handlebars all the way
to the left.
2. Push the key in from the “
” po-
sition, release it, and then turn it
to “
”.
3. Remove the key.
To unlock the steering
Insert the key and turn it to “
”.
EW000016
Never turn the key to “
” or “
”.
while the scooter is moving,
otherwise the electrical systems will
be switched off, which may result in
loss of control or an accident. Make
sure that the scooter is stopped
before turning the key to “
” or
“
”.
NOTE :
Remove the key from the main switch
when the scooter will be leftunattended.
3-1
EAU04384
ON “
”
All electrical circuits are supplied with
power, the taillight and meter lighting
come on, and the engine can be
started. The key cannot be removed.
NOTE :
The headlight comes on as soon as theengine is started.
Page 19 of 80

INSTRUMENT AND CONTROL FUNCTIONS
3
12 34
ZAUM0522
EAU03034
Indicator and warning lights
EAU00057
Turn signal indicator light “
”
This indicator light flashes when the
turn signal switch is pushed to the left
or right.
1. Fuel level warning light “
”
2. Turn signal indicator light “
”
3. Oil level warning light “
”
4. High beam indicator light “”
EAU00063
High beam indicator light “
”
This indicator light comes on when the
high beam of the headlight is switched
on.
EAU02958
Oil level warning light “
”
This warning light comes on when the
key is in the “
*
” position or when the
oil level in the 2-stroke engine oil tank
is low during operation. If the warning
light comes on during operation, stop
immediately and fill the oil tank with
Yamalube 2 or equivalent 2-stroke
engine oil of either JASO grade "FC"
or ISO grades "EG-C" or "EG-D". The
warning light should go off after the 2-
stroke engine oil tank has been refilled.
NOTE :
If the warning light does not come on
when the key is in the “
*
” position or
does not go off after the 2-stroke engine
oil tank has been refilled, have a
Yamaha dealer check the electrical cir-
cuit.
EC000000
Do not operate the scooter until you
know that the engine oil level issufficient.
3-2
ZAUM0524
EAUM0112
Fuel level warning light “
”
This warning light comes on and the
last two segments of the fuel meter will
start to flash when the fuel level drops
below approximately 1.4 L . When this
occurs, refuel as soon as possible.
Page 20 of 80
3
INSTRUMENT AND CONTROL FUNCTIONS
12 3
ZAUM05231. Speedometer
2. Odometer
3. Fuelmeter
3-3
NOTE:•
Do not allow the fuel tank to empty
itself completely.
•
The electrical circuit of the warninglight can be checked as follows.
Turn the key to “
”. If the warning light
does not come on, have a Yamaha
dealer check the electrical circuit.
EAUM0113
Speedometer unitThe speedometer unit is equipped with
a speedometer, an odometer and a fuel
meter. The speedometer shows riding
speed. The odometer shows the total
distance traveled. The fuel meter
indicates the amount of fuel in the fuel
tank. (See page 3-2 for an explanation
of the fuel level warning light.)
Page 32 of 80

OPERATION AND IMPORTANT RIDING POINTS
5
EAU01118
EW000129
•
Become thoroughly familiar
with all operating controls and
their functions before riding.
Consult a Yamaha dealer
regarding any control or
function that you do not
thoroughly understand.
•
Never start the engine or
operate it in a closed area for
any length of time. Exhaust fu-
mes are poisonous, and
inhaling them can cause loss of
consciousness and death
within a short time. Always
make sure that there is
adequate ventilation.
•
For safety, always start the
engine with the centerstanddown.
PUSH
ZAUM0332
ZAUM0367
EAU00415
Starting the engine1. Turn the key to “
*
”, then when
the oil level warning light comes
on, turn it to “
”.
ECA00045
For maximum engine life, never
accelerate hard when the engine iscold!
2. Turn the starter (choke) on and
completely close the throttle. (See
page 3-7 for starter (choke)
operation.)3. Start the engine by pushing the
start switch or by pushing the
kickstarter lever down, while
applying the front or rear brake.
NOTE :
If the engine fails to start by pushing
the start switch, release the switch, wait
a few seconds, and then try again. Each
starting attempt should be as short as
possible to preserve the battery. Do not
crank the engine more than 5 seconds
on any one attempt. If the engine does
not start with the starter motor, try usingthe kickstarter.
4. After starting the engine, move the
starter (choke) knob/lever back
halfway.
5-1
Page 70 of 80
SPECIFICATIONS
8

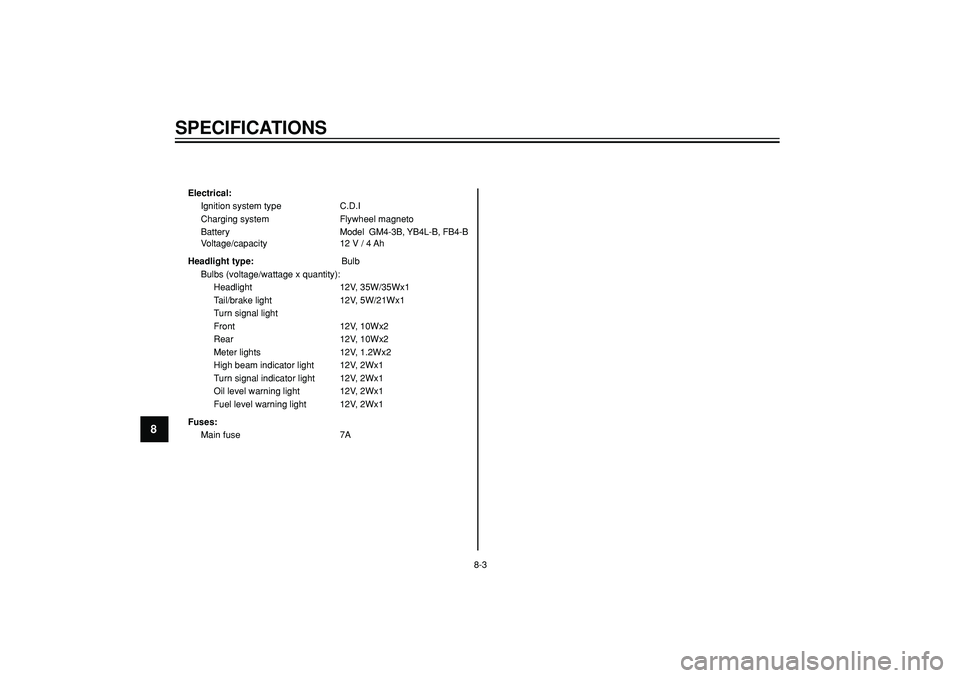

8-3 Electrical:
Ignition system type C.D.I
Charging system Flywheel magneto
BatteryModel GM4-3B, YB4L-B, FB4-B
Voltage/capacity 12 V / 4 Ah
Headlight type:Bulb
Bulbs (voltage/wattage x quantity):
Headlight 12V, 35W/35Wx1
Tail/brake light 12V, 5W/21Wx1
Turn signal light
Front 12V, 10Wx2
Rear 12V, 10Wx2
Meter lights 12V, 1.2Wx2
High beam indicator light 12V, 2Wx1
Turn signal indicator light 12V, 2Wx1
Oil level warning light 12V, 2Wx1
Fuel level warning light 12V, 2Wx1
Fuses:
Main fuse 7A
