2007 YAMAHA MT-01 ignition

TABLE OF CONTENTSSAFETY INFORMATION ..................1-1
DESCRIPTION ..................................2-1
Left view ..........................................2-1
Right view ........................................2-2
Controls and instruments.................2-3
INSTRUMENT AND CONTROL
FUNCTIONS.......................................3-1
Immobilizer system .........................3-1
Main switch/steering lock ................3-2
Indicator and warning lights ............3-3
Multi-function display ......................3-5
Anti-theft alarm (optional) ...............3-8
Handlebar switches ........................3-9
Clutch lever ...................................3-10
Shift pedal .....................................3-11
Brake lever ...................................3-11
Brake pedal ..................................3-12
Fuel tank cap ................................3-12
Fuel ...............................................3-13
Fuel tank breather/overflow
hose ..........................................3-14
Catalytic converter ........................3-14
Seat ..............................................3-14
Adjusting the front fork ..................3-15
Adjusting the shock absorber
assembly ...................................3-17
Luggage strap holders ..................3-19
EXUP system ...............................3-19
Sidestand ......................................3-20Ignition circuit cut-off system ........ 3-20
PRE-OPERATION CHECKS............. 4-1
Pre-operation check list .................. 4-2
OPERATION AND IMPORTANT
RIDING POINTS................................. 5-1
Starting the engine ......................... 5-1
Shifting ........................................... 5-2
Tips for reducing fuel
consumption ............................... 5-3
Engine break-in .............................. 5-3
Parking ........................................... 5-4
PERIODIC MAINTENANCE AND
MINOR REPAIR................................. 6-1
Owner’s tool kit ............................... 6-1
Periodic maintenance and
lubrication chart .......................... 6-2
Removing and installing the
cowling ........................................ 6-5
Checking the spark plugs ............... 6-6
Engine oil and oil filter cartridge ..... 6-7
Air filter element ........................... 6-10
Checking the throttle cable
free play .................................... 6-11
Valve clearance ............................ 6-11
Tires ............................................. 6-11
Cast wheels .................................. 6-14
Clutch lever .................................. 6-14Adjusting the rear brake light
switch ....................................... 6-15
Checking the front and rear
brake pads ................................ 6-15
Checking the brake fluid level ...... 6-16
Changing the brake and clutch
fluids ......................................... 6-17
Drive chain slack .......................... 6-17
Cleaning and lubricating the
drive chain ................................ 6-18
Checking and lubricating the
cables ....................................... 6-19
Checking and lubricating the
throttle grip and cable ............... 6-19
Checking and lubricating the
brake and shift pedals .............. 6-20
Checking and lubricating the
brake and clutch levers ............ 6-20
Checking and lubricating the
sidestand .................................. 6-21
Checking the front fork ................. 6-21
Checking the steering .................. 6-22
Checking the wheel bearings ....... 6-23
Battery ......................................... 6-23
Replacing the fuses ..................... 6-24
Replacing a headlight bulb .......... 6-26
Tail/brake light ............................. 6-28
Replacing a turn signal light
bulb ........................................... 6-29
Replacing the license plate light
bulb ........................................... 6-29U5YUE2E0.book Page 1 Tuesday, September 12, 2006 5:02 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-2
3
EAU10471
Main switch/steering lock The main switch/steering lock controls
the ignition and lighting systems, and is
used to lock the steering.NOTE:Be sure to use the standard key (black
bow) for regular use of the vehicle. To
minimize the risk of losing the code re-
registering key (red bow), keep it in a
safe place and only use it for code re-registering.
EAU36870
ON
All electrical circuits are supplied with
power, the meter lighting, taillight, li-
cense plate light and auxiliary lights
come on, and the engine can be start-
ed. The key cannot be removed.NOTE:The headlight comes on automatically
when the engine is started and stays on
until the key is turned to “OFF”, even ifthe engine stalls.
EAU36881
OFF
All electrical systems are off. The key
can be removed.NOTE:This motorcycle is equipped with a fan
for the muffler covers, which is located
under the seat. After the main switch is
turned to “OFF”, if the temperature of
the sensor for the muffler covers ex-
ceeds 55 °C (131 °F), the fan will stay
on for a maximum of five minutes, andthen switch off automatically.
EAU10680
LOCK
The steering is locked, and all electrical
systems are off. The key can be re-
moved.
To lock the steering1. Turn the handlebars all the way to
the left.
2. Push the key in from the “OFF” po-
sition, and then turn it to “LOCK”
while still pushing it.
3. Remove the key.1. Push.
2. Turn.
U5YUE2E0.book Page 2 Tuesday, September 12, 2006 5:02 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-20
3
EAU15301
Sidestand The sidestand is located on the left side
of the frame. Raise the sidestand or
lower it with your foot while holding the
vehicle upright.NOTE:The built-in sidestand switch is part of
the ignition circuit cut-off system, which
cuts the ignition in certain situations.
(See further down for an explanation ofthe ignition circuit cut-off system.)
WARNING
EWA10240
The vehicle must not be ridden with
the sidestand down, or if the side-
stand cannot be properly moved up
(or does not stay up), otherwise the
sidestand could contact the ground
and distract the operator, resulting
in a possible loss of control.
Yamaha’s ignition circuit cut-off
system has been designed to assist
the operator in fulfilling the respon-
sibility of raising the sidestand be-
fore starting off. Therefore, check
this system regularly as describedbelow and have a Yamaha dealer re-
pair it if it does not function proper-
ly.
EAU15311
Ignition circuit cut-off system The ignition circuit cut-off system (com-
prising the sidestand switch, clutch
switch and neutral switch) has the fol-
lowing functions.

It prevents starting when the trans-
mission is in gear and the side-
stand is up, but the clutch lever is
not pulled.


It prevents starting when the trans-
mission is in gear and the clutch le-
ver is pulled, but the sidestand is
still down.


It cuts the running engine when the
transmission is in gear and the sid-
estand is moved down.
Periodically check the operation of the
ignition circuit cut-off system according
to the following procedure.WARNING
EWA10250
If a malfunction is noted, have a
Yamaha dealer check the system be-fore riding.
U5YUE2E0.book Page 20 Tuesday, September 12, 2006 5:02 PM

PRE-OPERATION CHECKS
4-3
4
Drive chainCheck chain slack.
Adjust if necessary.
Check chain condition.
Lubricate if necessary.6-17, 6-18
Wheels and tiresCheck for damage.
Check tire condition and tread depth.
Check air pressure.
Correct if necessary.6-11, 6-14
Brake and shift pedalsMake sure that operation is smooth.
Lubricate pedal pivoting points if necessary.6-20
Brake and clutch leversMake sure that operation is smooth.
Lubricate lever pivoting points if necessary.6-20
SidestandMake sure that operation is smooth.
Lubricate pivot if necessary.6-21
Chassis fastenersMake sure that all nuts, bolts and screws are properly tightened.
Tighten if necessary.—
Instruments, lights, signals
and switchesCheck operation.
Correct if necessary.—
Sidestand switchCheck operation of ignition circuit cut-off system.
If system is defective, have Yamaha dealer check vehicle.3-20 ITEM CHECKS PAGE
U5YUE2E0.book Page 3 Tuesday, September 12, 2006 5:02 PM

OPERATION AND IMPORTANT RIDING POINTS
5-1
5
EAU15950
WARNING
EWA10270


Become thoroughly familiar
with all operating controls and
their functions before riding.
Consult a Yamaha dealer re-
garding any control or function
that you do not thoroughly un-
derstand.


Never start the engine or oper-
ate it in a closed area for any
length of time. Exhaust fumes
are poisonous, and inhaling
them can cause loss of con-
sciousness and death within a
short time. Always make sure
that there is adequate ventila-
tion.


Before starting out, make sure
that the sidestand is up. If the
sidestand is not raised com-
pletely, it could contact the
ground and distract the opera-
tor, resulting in a possible lossof control.
EAU36740
Starting the engine In order for the ignition circuit cut-off
system to enable starting, one of the
following conditions must be met:

The transmission is in the neutral
position.


The transmission is in gear with
the clutch lever pulled and the sid-
estand up.WARNING
EWA10290


Before starting the engine,
check the function of the igni-
tion circuit cut-off system ac-
cording to the procedure
described on page 3-20.


Never ride with the sidestanddown.
1. Turn the key to “ON” and make
sure that the engine stop switch is
set to “”.
CAUTION:
ECA15070
The following warning lights and in-
dicator light should come on for a
few seconds, then go off.

Fuel level warning light


Engine trouble warning light


Immobilizer system indicator
light
If a warning or indicator light does
not go off, see page 3-3 for the corre-
sponding warning and indicator
light circuit check.
2. Shift the transmission into the neu-
tral position.NOTE:When the transmission is in the neutral
position, the neutral indicator light
should be on, otherwise have a
Yamaha dealer check the electrical cir-cuit.
3. Start the engine by pushing the
start switch.NOTE:If the engine fails to start, release the
start switch, wait a few seconds, and
then try again. Each starting attempt
should be as short as possible to pre-
serve the battery. Do not crank the en-
gine more than 10 seconds on any oneattempt.
U5YUE2E0.book Page 1 Tuesday, September 12, 2006 5:02 PM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-25
6
The main fuse and the fuse box, which
contains the fuses for the individual cir-
cuits, are located under the seat. (See
page 3-14.)
If a fuse is blown, replace it as follows.
1. Turn the key to “OFF” and turn off
the electrical circuit in question.2. Remove the blown fuse, and then
install a new fuse of the specified
amperage.
CAUTION:
ECA10640
Do not use a fuse of a higher amper-
age rating than recommended to
avoid causing extensive damage to
the electrical system and possibly afire.
3. Turn the key to “ON” and turn on
the electrical circuit in question to
check if the device operates.
4. If the fuse immediately blows
again, have a Yamaha dealer
check the electrical system.
1. Fuse box
2. Headlight fuse
3. Signaling system fuse
4. Ignition fuse
5. Muffler cover fan fuse
6. Backup fuse (for odometer, clock and immo-
bilizer system)
7. Auto-decompression fuse
8. ECU fuse
9. Parking lighting fuse
10.Spare fuse
Specified fuses:
Main fuse:
50.0 A
Headlight fuse:
15.0 A
Ignition fuse:
25.0 A
Signaling system fuse:
10.0 A
Parking lighting fuse:
10.0 A
Muffler cover fan fuse:
15.0 A
ECU fuse:
10.0 A
Backup fuse:
10.0 A
Auto-decompression fuse:
15.0 A
Fuel injection system fuse:
15.0 A
U5YUE2E0.book Page 25 Tuesday, September 12, 2006 5:02 PM

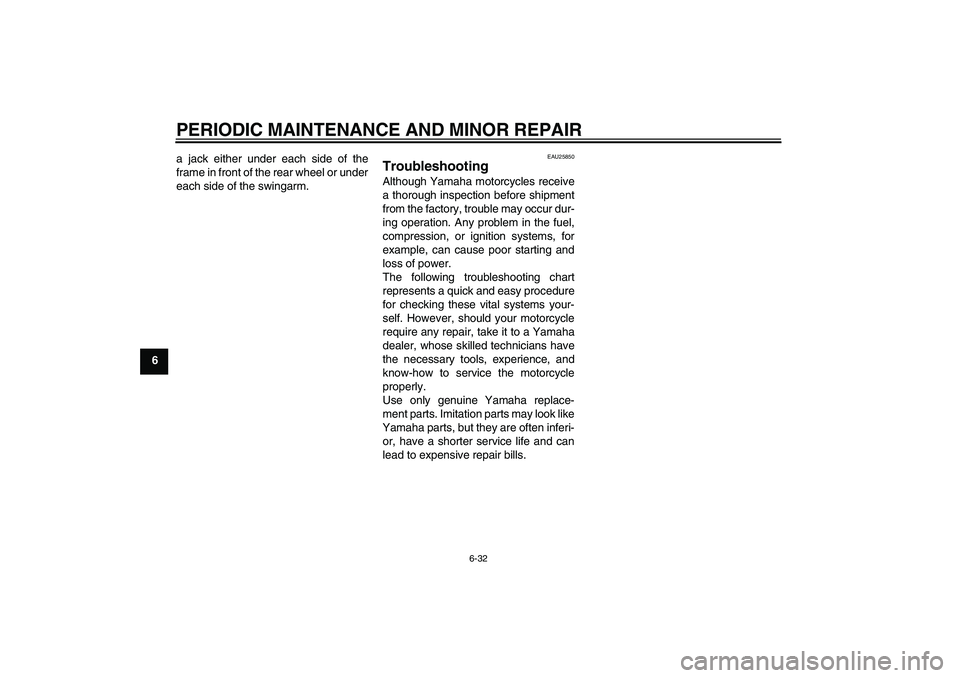

PERIODIC MAINTENANCE AND MINOR REPAIR
6-32
6a jack either under each side of the
frame in front of the rear wheel or under
each side of the swingarm.
EAU25850
Troubleshooting Although Yamaha motorcycles receive
a thorough inspection before shipment
from the factory, trouble may occur dur-
ing operation. Any problem in the fuel,
compression, or ignition systems, for
example, can cause poor starting and
loss of power.
The following troubleshooting chart
represents a quick and easy procedure
for checking these vital systems your-
self. However, should your motorcycle
require any repair, take it to a Yamaha
dealer, whose skilled technicians have
the necessary tools, experience, and
know-how to service the motorcycle
properly.
Use only genuine Yamaha replace-
ment parts. Imitation parts may look like
Yamaha parts, but they are often inferi-
or, have a shorter service life and can
lead to expensive repair bills.
U5YUE2E0.book Page 32 Tuesday, September 12, 2006 5:02 PM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-33
6
EAU42600
Troubleshooting chart
WARNING
EWA10840
Keep away open flames and do not smoke while checking or working on the fuel system.
Check the fuel level in
the fuel tank.1. Fuel
There is enough fuel.
There is no fuel.
Check the compression.
Supply fuel.
The engine does not start.
Check the compression.
Operate the electric starter.2. Compression
There is compression.
There is no compression.
Check the ignition.
Have a Yamaha dealer
check the vehicle.
Remove the spark plugs
and check the electrodes.3. Ignition
Wipe off with a dry cloth and correct the
spark plug gaps, or replace the spark plugs.
Have a Yamaha dealer check the vehicle.
The engine does not start.
Have a Yamaha dealer
check the vehicle.
The engine does not start.
Check the battery.
Operate the electric starter.4. Battery
The engine turns over
quickly.
The engine turns over
slowly.
The battery is good.Check the battery lead connections,
and charge the battery if necessary.
DryWet
Operate the electric starter.
U5YUE2E0.book Page 33 Tuesday, September 12, 2006 5:02 PM
