CAUTION:ECB00420Be sure no foreign material enters the finalgear case.
6. Install the oil level check bolt and oil filler bolt,
and then tighten them to the specified torques.7. Check the final gear case for oil leakage. If oil
is leaking, check for the cause.
EBU23421Differential gear oil The differential gear case must be checked for oil
leakage before each ride. If any leakage is found,
have a Yamaha dealer check and repair the ATV.
In addition, the differential gear oil level must be
checked and the oil changed as follows at the in-
tervals specified in the periodic maintenance and
lubrication chart.
To check the differential gear oil level
1. Place the ATV on a level surface.NOTE:The differential gear oil level must be checked ona cold engine.
1. Final gear oil
2. Final gear oil level check bolt
3. Correct oil levelRecommended final gear oil:
See page 10-1.
Tightening torques:
Final gear oil level check bolt:
10 Nm (1.0 m·kgf, 7.2 ft·lbf)
Final gear oil filler bolt:
23 Nm (2.3 m·kgf, 17 ft·lbf)
U3B460E0.book Page 28 Friday, May 12, 2006 2:51 PM

8-31
8
NOTE:The coolant level must be checked on a cold en-
gine since the level varies with engine tempera-ture.
2. Check the coolant level in the coolant reser-
voir.NOTE:The coolant should be between the minimum andmaximum level marks.
3. If the coolant is at or below the minimum level
mark, remove panel D. (See page 8-8.)4. Remove the reservoir cap, add coolant or dis-
tilled water to the maximum level mark, install
the reservoir cap, and then install the panel.1. Maximum level mark
2. Minimum level mark
1. Coolant reservoir cap
2. Maximum level mark
3. Minimum level markCoolant reservoir capacity (up to the maximum
level mark):
0.17 L (0.18 US qt) (0.15 Imp.qt)
U3B460E0.book Page 31 Friday, May 12, 2006 2:51 PM

8-32
8
CAUTION:ECB00401
If coolant is not available, use distilled water
or soft tap water instead. Do not use hard wa-
ter or salt water since it is harmful to the en-
gine.
If water has been used instead of coolant, re-
place it with coolant as soon as possible,
otherwise the cooling system will not be pro-
tected against frost and corrosion.
If water has been added to the coolant, have
a Yamaha dealer check the antifreeze con-
tent of the coolant as soon as possible, oth-
erwise the effectiveness of the coolant willbe reduced.
NOTE:
The radiator fan is automatically switched on or
off according to the coolant temperature in the
radiator.
If the engine overheats, see page 8-65 for fur-ther instructions.
EBU27761To change the coolant
WARNING
EWB01890Wait for the engine and radiator to cool before
removing the radiator cap. You could be
burned by hot fluid and steam blown out under
pressure. Always place a thick rag over the cap
when opening. Allow any remaining pressureto escape before completely removing the cap.
1. Place the ATV on a level surface.
2. Remove panels D and F. (See page 8-8.)
3. Place a container under the engine, and then
remove the coolant drain bolt. (Use a trough
or a similar object as shown to prevent coolant
from spilling on the engine guard.)
U3B460E0.book Page 32 Friday, May 12, 2006 2:51 PM

8-36
8 18. When coolant begins to flow out of the bolt
hole, tighten the cylinder head air bleed bolt to
the specified torque.
19. Start the engine and let it idle for ten minutes.
20. Rev the engine five times.
21. Pour the recommended coolant into the radia-
tor until it is full.22. Stop the engine and allow it to cool. If the cool-
ant level has dropped after the engine has
cooled, add sufficient coolant until it reaches
the top of the radiator, and then install the ra-
diator cap.
23. Start the engine, and then check for coolant
leakage.
NOTE:If any leakage is found, have a Yamaha dealercheck the cooling system.
24. Install the V-belt cooling duct, and then tighten
the clamp screw.
25. Install the panels.EBU27800Cleaning the air filter element The air filter element should be cleaned at the in-
tervals specified in the periodic maintenance and
lubrication chart. Clean the air filter element more
frequently if you are riding in unusually wet or dusty
areas.NOTE:There are two check hoses at the bottom of the air
filter case, which are located behind panels D and
E. (See page 8-8 for an explanation on removing
1. Cylinder head air bleed boltTightening torque:
Cylinder head air bleed bolt:
10 Nm (1.0 m·kgf, 7.2 ft·lbf)
U3B460E0.book Page 36 Friday, May 12, 2006 2:51 PM

8-39
8
CAUTION:ECB00440Do not twist the sponge material when squeez-ing it.
7. Check the sponge material and replace it if
damaged.
8. Apply Yamaha foam air filter oil or other qual-
ity foam air filter oil to the sponge material.NOTE:The sponge material should be wet but not drip-ping.
9. Install the mesh and the sponge material into
the air filter case.
10. Insert the projections on the air filter case cov-
er into the holders on the air filter case, and
then install the air filter case cover by hooking
the holders onto the cover.11. Install the panel.
NOTE:The air filter element should be cleaned every 20–
40 hours. It should be cleaned and lubricated more
often if the ATV is operated in extremely dusty ar-
eas. Each time the air filter element maintenance
is performed, check the air inlet of the air filter case
for obstructions. Check the air filter case rubber
joint to the throttle body and the rubber joint mani-
fold fittings for an air-tight seal. Tighten all fittings
securely to avoid the possibility of unfiltered air en-tering the engine.
U3B460E0.book Page 39 Friday, May 12, 2006 2:51 PM

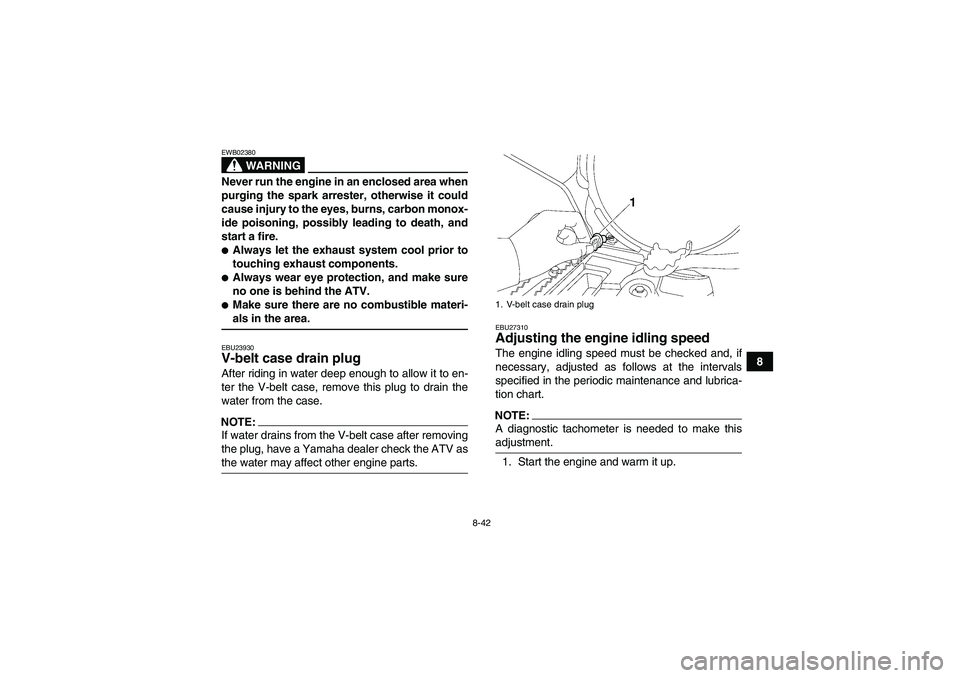

8-42
8
WARNING
EWB02380Never run the engine in an enclosed area when
purging the spark arrester, otherwise it could
cause injury to the eyes, burns, carbon monox-
ide poisoning, possibly leading to death, and
start a fire.
Always let the exhaust system cool prior to
touching exhaust components.
Always wear eye protection, and make sure
no one is behind the ATV.
Make sure there are no combustible materi-als in the area.EBU23930V-belt case drain plug After riding in water deep enough to allow it to en-
ter the V-belt case, remove this plug to drain the
water from the case.NOTE:If water drains from the V-belt case after removing
the plug, have a Yamaha dealer check the ATV asthe water may affect other engine parts.
EBU27310Adjusting the engine idling speed The engine idling speed must be checked and, if
necessary, adjusted as follows at the intervals
specified in the periodic maintenance and lubrica-
tion chart.NOTE:A diagnostic tachometer is needed to make thisadjustment.
1. Start the engine and warm it up.1. V-belt case drain plug
U3B460E0.book Page 42 Friday, May 12, 2006 2:51 PM

8-43
8
NOTE:The engine is warm when it quickly responds to thethrottle.
2. Remove panel C. (See page 8-8.)
3. Attach the tachometer to the spark plug lead.
4. Check the engine idling speed and, if neces-
sary, adjust it to specification by turning the
idle adjusting screw. To increase the engine
idling speed, turn the idle adjusting screw in
direction (a), and to decrease it, turn the screw
in direction (b).
NOTE:If the specified idling speed cannot be obtained as
described above, have a Yamaha dealer make theadjustment.
5. Install the panel.EBU24043Adjusting the throttle cable free play The throttle cable free play should be checked
and, if necessary, adjusted at the intervals speci-
fied in the periodic maintenance and lubrication
chart.
The throttle cable free play should measure 3.0–
5.0 mm (0.12–0.20 in) at the throttle lever. Period-
ically check the throttle cable free play and, if nec-
essary, adjust it as follows.NOTE:The engine idling speed must be checked, and ad-
justed if necessary, before adjusting the throttle ca-ble free play.
1. Loosen the locknut.
1. Idle adjusting screw
Engine idling speed:
1350–1450 r/min
U3B460E0.book Page 43 Tuesday, May 16, 2006 4:35 PM

8-44
8 2. To increase the throttle cable free play, turn
the adjusting bolt in direction (a). To decrease
the throttle cable free play, turn the adjusting
bolt in direction (b).
3. Tighten the locknut.
EBU24060Valve clearance The valve clearance changes with use, resulting in
improper air-fuel mixture and/or engine noise. To
prevent this from occurring, the valve clearancemust be adjusted by a Yamaha dealer at the inter-
vals specified in the periodic maintenance and lu-
brication chart.
EBU24070Adjusting the drive select lever safety
system cable The drive select lever safety system cable stretch-
es with use, which can result in improper function.
Therefore, the safety system cable should be
checked and adjusted at the intervals specified in
the periodic maintenance and lubrication chart.EBU27470Checking the front and rear brake pads The front and rear brake pads must be checked for
wear at the intervals specified in the periodic main-
tenance and lubrication chart. Each brake pad is
provided with a wear indicator groove, which al-
lows you to check the brake pad wear without hav-
ing to disassemble the brake. If a brake pad has
worn to the point that the wear indicator groove has
almost disappeared, have a Yamaha dealer re-
place the brake pads as a set.
1. Locknut
2. Throttle cable free play adjusting bolt
