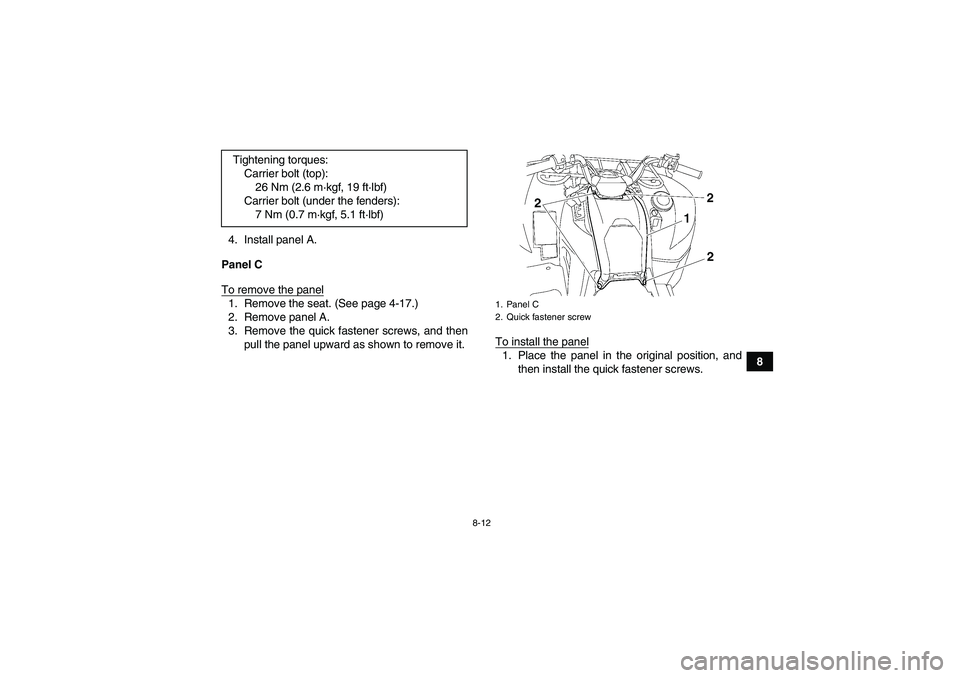

8 4. Install panel A.
Panel C
To remove the panel
1. Remove the seat. (See page 4-17.)
2. Remove panel A.
3. Remove the quick fastener screws, and then
pull the panel upward as shown to remove it.To install the panel
1. Place the panel in the original position, and
then install the quick fastener screws. Tightening torques:
Carrier bolt (top):
26 Nm (2.6 m·kgf, 19 ft·lbf)
Carrier bolt (under the fenders):
7 Nm (0.7 m·kgf, 5.1 ft·lbf)1. Panel C
2. Quick fastener screw
U3B460E0.book Page 12 Friday, May 12, 2006 2:51 PM

8-13
82. Install panel A.
3. Install the seat.
Panels D and E

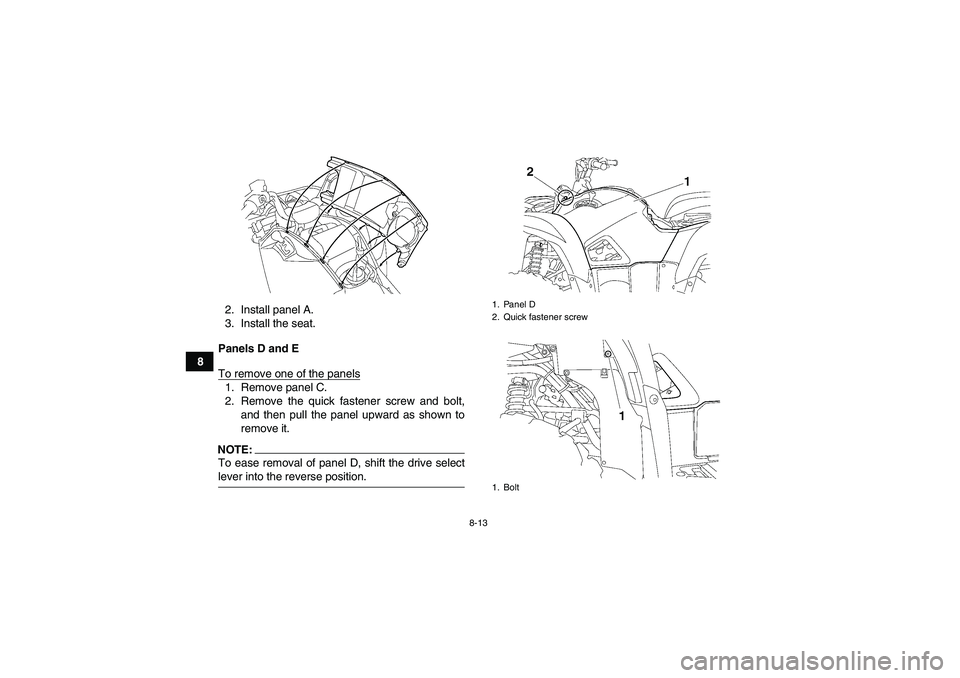

To remove one of the panels
1. Remove panel C.
2. Remove the quick fastener screw and bolt,
and then pull the panel upward as shown to
remove it.NOTE:To ease removal of panel D, shift the drive selectlever into the reverse position.
1. Panel D
2. Quick fastener screw
1. Bolt
U3B460E0.book Page 13 Friday, May 12, 2006 2:51 PM

8-14
8 To install one of the panels

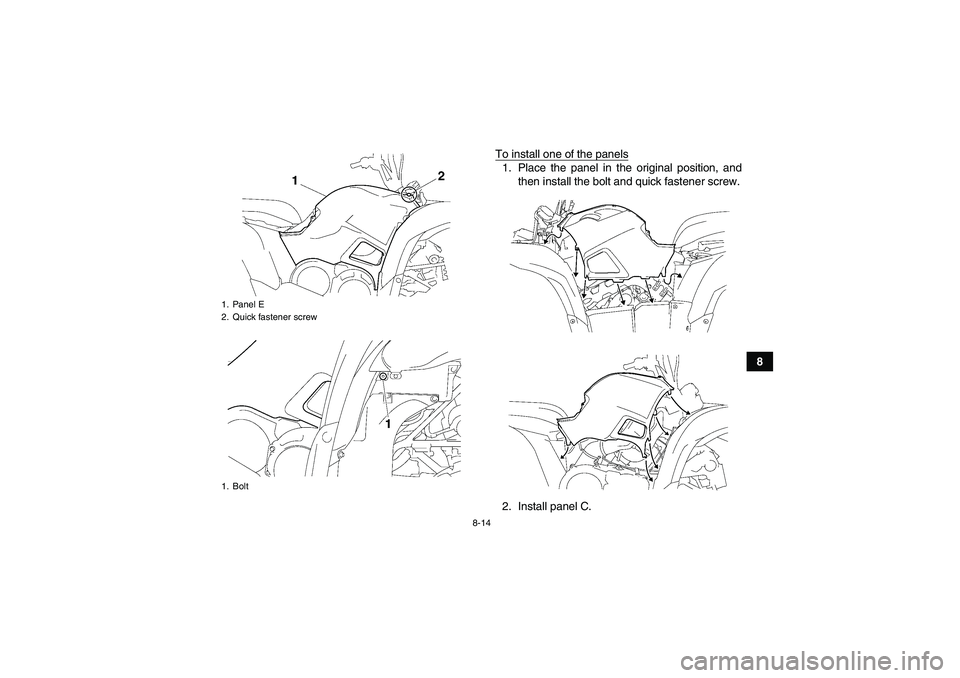

1. Place the panel in the original position, and
then install the bolt and quick fastener screw.
2. Install panel C.
1. Panel E
2. Quick fastener screw
1. BoltU3B460E0.book Page 14 Friday, May 12, 2006 2:51 PM

8-15

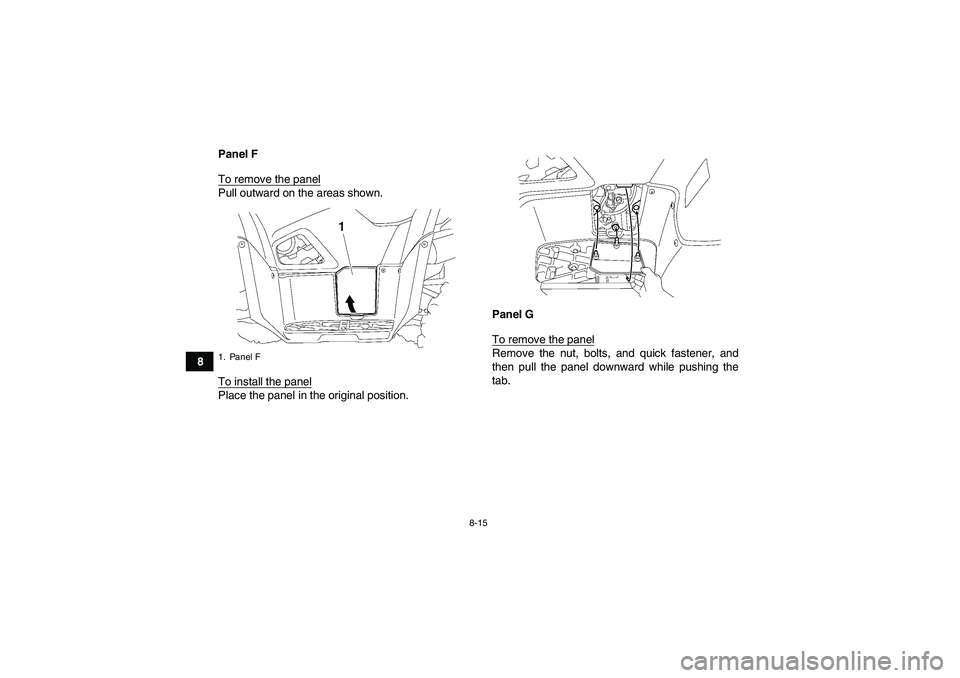

8Panel F
To remove the panel
Pull outward on the areas shown.
To install the panelPlace the panel in the original position.Panel G
To remove the panel
Remove the nut, bolts, and quick fastener, and
then pull the panel downward while pushing the
tab.
1. Panel FU3B460E0.book Page 15 Friday, May 12, 2006 2:51 PM

8-16
8
To install the panel

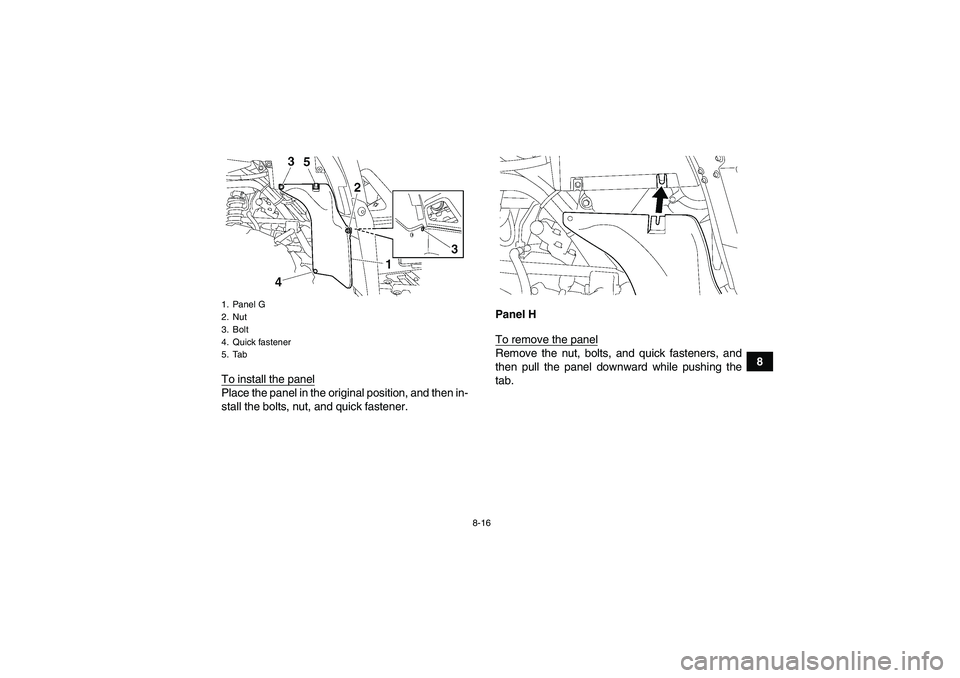

Place the panel in the original position, and then in-
stall the bolts, nut, and quick fastener.Panel H
To remove the panel
Remove the nut, bolts, and quick fasteners, and
then pull the panel downward while pushing the
tab.
1. Panel G
2. Nut
3. Bolt
4. Quick fastener
5. TabU3B460E0.book Page 16 Friday, May 12, 2006 2:51 PM

8-17
8

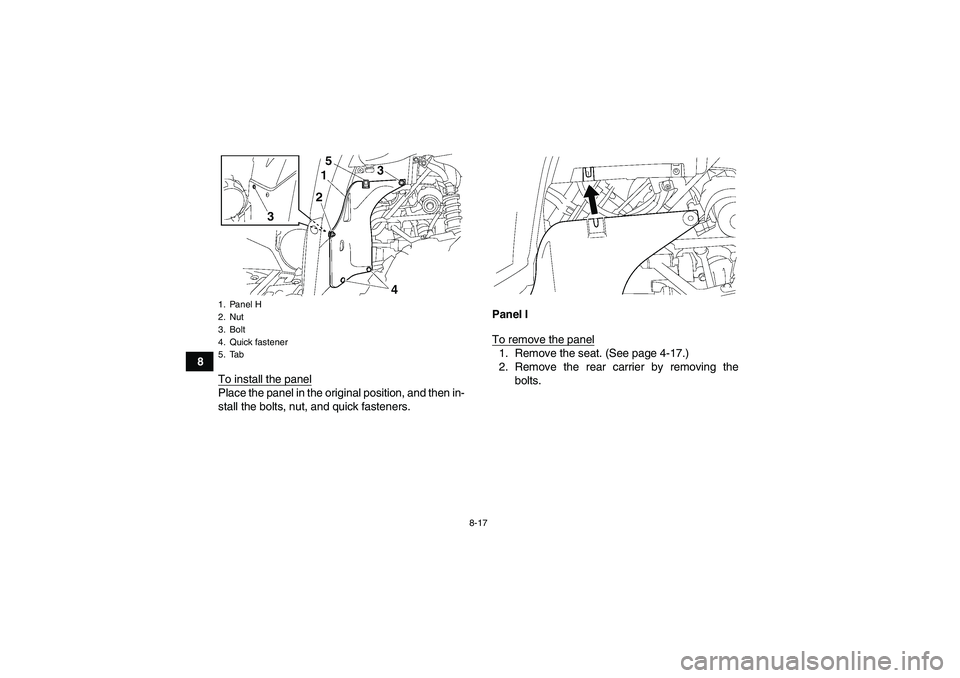

To install the panel
