6-1
6
EBU19880
OPERATION
EBU19900Read the Owner’s Manual carefully before riding
the ATV.
WARNING
EWB00630Read the Owner’s Manual carefully to become
familiar with all controls in order to help pre-
vent any loss of control, which could cause an
accident or injury. If there is a control or func-
tion you do not understand, ask your Yamahadealer.EBU20052Starting a cold engine
WARNING
EWB00640Always make sure all control cables work
smoothly before you begin riding in cold
weather. If the control cables are frozen or do
not work smoothly, you could be unable to
control the ATV, which could lead to an acci-dent or collision.
CAUTION:ECB00150See the “Engine break-in” section on page 6-5prior to operating the engine for the first time.
1. Turn the fuel cock to “ON”.
2. Turn the main switch to “ON” and the engine
stop switch to “”.
3. Shift the drive select lever into the neutral or
park position. The corresponding indicator
light should come on. If the indicator light does
not come on, have a Yamaha dealer check
the electrical circuit.NOTE:The engine can be started under the following con-
ditions:
The drive select lever is in the neutral or park po-
sition.
The rear brake lever is applied with the drive se-
lect lever in any position. However, it is recom-
mended to shift into the neutral or park positionbefore starting the engine.
U2C661E0.book Page 1 Thursday, March 16, 2006 10:45 AM

6-5
6 4. Check behind for people or obstacles, and
then release the brake pedal.
5. Open the throttle lever gradually and continue
to watch to the rear while backing.
WARNING
EWB00720Improper operation in reverse could make you
hit an obstacle or even a person behind you,
resulting in serious injury. When you shift into
reverse, make sure there are no people or ob-
stacles behind you. When it is safe to proceed,go slowly.EBU20681Engine break-in There is never a more important period in the life of
your engine than the first 20 hours of riding. For
this reason, you should read the following material
carefully.
Since the engine is brand new, do not put an ex-
cessive load on it for the first 20 hours. The various
parts in the engine wear and polish themselves to
the correct operating clearances. During this peri-
od, prolonged full-throttle operation or any condi-
tion that might result in engine overheating must be
avoided.0–10 hours
Avoid prolonged operation above 1/2 throttle. Vary
the speed of the ATV regularly. Do not operate it at
one set throttle position.
10–20 hours
Avoid prolonged operation above 3/4 throttle. Rev
the engine freely, but do not use full throttle at any
time.
20 hours and beyond
The ATV can now be operated normally.
CAUTION:ECB00220If any engine trouble should occur during the
engine break-in period, immediately have aYamaha dealer check the ATV.EBU20690Parking When parking the ATV, stop the engine, shift the
drive select lever into the park position, and then
turn the fuel cock to the “OFF” position.
U2C661E0.book Page 5 Thursday, March 16, 2006 10:45 AM

8-5
8
15*Shock absorber as-
sembliesCheck operation and correct if necessary.
Check for oil leakage and replace if necessary.√√√
16*Stabilizer bushesCheck for cracks or other damage, and replace if
necessary.√√√
17*Knuckle pivotsLubricate with lithium-soap-based grease.√√√
18*Steering systemCheck operation and repair or replace if damaged.
Check toe-in and adjust if necessary.√√√√√
19*Engine mountCheck for cracks or other damage, and replace if
necessary.√√√
20*Axle bootsCheck for cracks or other damage, and replace if
necessary.√√√√√
21*CarburetorCheck starter (choke) operation and correct if nec-
essary.
Check engine idling speed and adjust if neces-
sary.√√√√
22*Crankcase breather
systemCheck breather hose for cracks or other damage,
and replace if necessary.√√√
23 Engine oilChange.
Check ATV for oil leakage, and correct if neces-
sary.√ √√√
24Engine oil filter car-
tridgeReplace.√√√
25 Differential gear oilChange.
Check ATV for oil leakage, and correct if neces-
sary.√√ NO. ITEMCHECK OR MAINTENANCE
JOBINITIAL EVERY
Whichev-
er comes
firstmonth136612
km
(mi)320
(200)1200
(750)2400
(1500)2400
(1500)4800
(3000)
hours 20 75 150 150 300U2C661E0.book Page 5 Thursday, March 16, 2006 10:45 AM

8-15
8
EBU23221Checking the spark plug The spark plug is an important engine component,
which is easy to check. Since heat and deposits
will cause any spark plug to slowly erode, the spark
plug should be removed and checked in accor-
dance with the periodic maintenance and lubrica-
tion chart. In addition, the condition of the spark
plug can reveal the condition of the engine.
To remove the spark plug
1. Remove panel A. (See page 8-8.)
2. Remove the spark plug cap.3. Remove the spark plug as shown, with the
spark plug wrench included in the owner’s tool
kit.
To check the spark plug
1. Check that the porcelain insulator around the
center electrode of the spark plug is a medi-
um-to-light tan (the ideal color when the ATV
is ridden normally).
NOTE:If the spark plug shows a distinctly different color,
the engine could be operating improperly. Do not
attempt to diagnose such problems yourself. In-stead, have a Yamaha dealer check the ATV.
1. Spark plug cap
1. Spark plug wrench
U2C661E0.book Page 15 Thursday, March 16, 2006 10:45 AM

8-17
8
NOTE:If a torque wrench is not available when installing
a spark plug, a good estimate of the correct torque
is 1/4–1/2 turn past finger tight. However, the spark
plug should be tightened to the specified torque assoon as possible.
4. Install the spark plug cap.
5. Install the panel.EBU23321Engine oil and oil filter cartridge The engine oil level should be checked before
each ride. In addition, the oil must be changed and
the oil filter cartridge replaced at the intervals spec-
ified in the periodic maintenance and lubrication
chart.
To check the engine oil level
1. Remove panel F. (See page 8-8.)
2. Place the ATV on a level surface.
3. Start the engine, warm it up for several min-
utes, and then turn it off.
4. Wait a few minutes until the oil settles before
checking.
5. Remove the engine oil filler cap, and then
wipe the dipstick off with a clean rag.6. Insert the dipstick into the filler hole (without
screwing it in), and then remove it again to
check the oil level.
1. Engine oil filler cap
2. Dipstick
U2C661E0.book Page 17 Thursday, March 16, 2006 10:45 AM

8-21
8 13. Start the engine, and then let it idle for several
minutes while checking it for oil leakage. If oil
is leaking, immediately turn the engine off and
check for the cause.
14. Turn the engine off, and then check the oil lev-
el and correct it if necessary.
15. Install panel F.
EBU23410Changing the final gear oil The final gear case must be checked for oil leak-
age before each ride. If any leakage is found, have
a Yamaha dealer check and repair the ATV. In ad-
dition, the final gear oil must be changed as follows
at the intervals specified in the periodic mainte-
nance and lubrication chart.
1. Place the ATV on a level surface.
2. Place an oil pan under the final gear case to
collect the used oil.
3. Remove the final gear oil filler bolt and the fi-
nal gear oil drain bolt to drain the oil from the
final gear case.
4. Install the drain bolt, and then tighten it to the
specified torque.
1. Final gear oil filler bolt
1. Final gear oil drain bolt
U2C661E0.book Page 21 Thursday, March 16, 2006 10:45 AM

8-22
85. Add the specified amount of the recommend-
ed final gear oil.
CAUTION:ECB00420Be sure no foreign material enters the finalgear case.
6. Install the oil filler bolt, and then tighten it to the
specified torque.
7. Check the final gear case for oil leakage. If oil
is leaking, check for the cause.
EBU23421Differential gear oil The differential gear case must be checked for oil
leakage before each ride. If any leakage is found,
have a Yamaha dealer check and repair the ATV.
In addition, the differential gear oil level must be
checked and the oil changed as follows at the in-
tervals specified in the periodic maintenance and
lubrication chart.
To check the differential gear oil level
1. Place the ATV on a level surface.NOTE:The differential gear oil level must be checked ona cold engine.
2. Remove the differential gear oil filler bolt, and
then check the oil level in the differential gear
case. Tightening torque:
Final gear oil drain bolt:
23 Nm (2.3 m·kgf, 17 ft·lbf)
Recommended final gear oil:
See page 10-1.
Oil quantity:
0.25 L (0.26 US qt) (0.22 Imp.qt)
Tightening torque:
Final gear oil filler bolt:
23 Nm (2.3 m·kgf, 17 ft·lbf)
U2C661E0.book Page 22 Thursday, March 16, 2006 10:45 AM

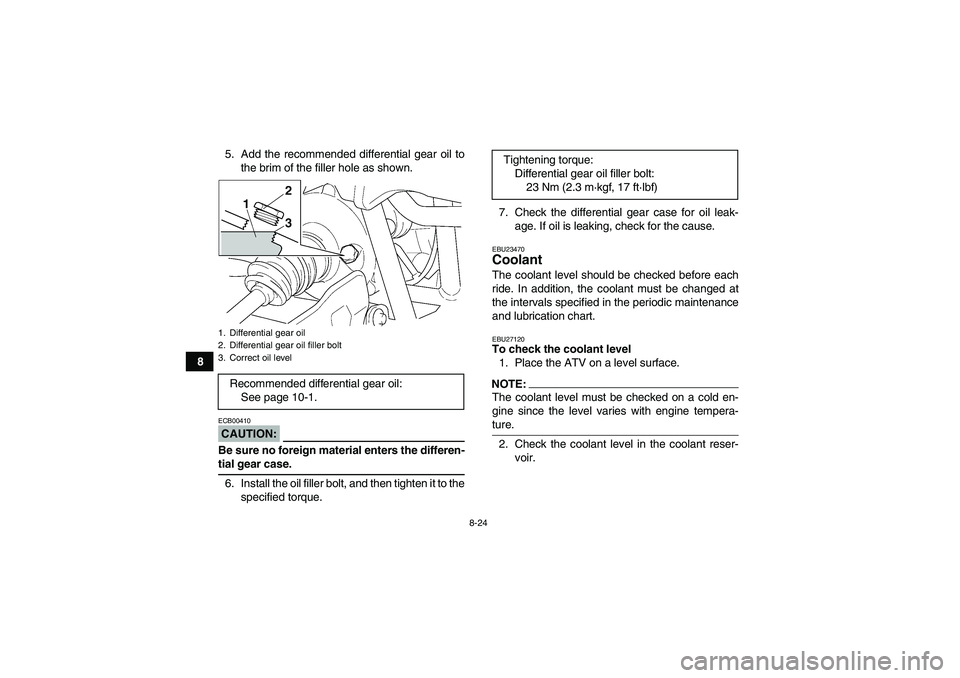

8-24
85. Add the recommended differential gear oil to
the brim of the filler hole as shown.
CAUTION:ECB00410Be sure no foreign material enters the differen-tial gear case.
6. Install the oil filler bolt, and then tighten it to the
specified torque.7. Check the differential gear case for oil leak-
age. If oil is leaking, check for the cause.
EBU23470Coolant The coolant level should be checked before each
ride. In addition, the coolant must be changed at
the intervals specified in the periodic maintenance
and lubrication chart.EBU27120To check the coolant level
1. Place the ATV on a level surface.NOTE:The coolant level must be checked on a cold en-
gine since the level varies with engine tempera-ture.
2. Check the coolant level in the coolant reser-
voir.
1. Differential gear oil
2. Differential gear oil filler bolt
3. Correct oil levelRecommended differential gear oil:
See page 10-1.
Tightening torque:
Differential gear oil filler bolt:
23 Nm (2.3 m·kgf, 17 ft·lbf)
