2007 YAMAHA FZ6 N warning

PERIODIC MAINTENANCE AND MINOR REPAIR
6-39
6
EAU42360
Troubleshooting charts Starting problems or poor engine performance
WARNING
EWA10840
Keep away open flames and do not smoke while checking or working on the fuel system.
Check the fuel level in
the fuel tank.1. Fuel
There is enough fuel.
There is no fuel.
Check the compression.
Supply fuel.
The engine does not start.
Check the compression.
Operate the electric starter.2. Compression
There is compression.
There is no compression.
Check the ignition.
Have a Yamaha dealer
check the vehicle.
Remove the spark plugs
and check the electrodes.3. Ignition
Wipe off with a dry cloth and correct the
spark plug gaps, or replace the spark plugs.
Have a Yamaha dealer check the vehicle.
The engine does not start.
Have a Yamaha dealer
check the vehicle.
The engine does not start.
Check the battery.
Operate the electric starter.4. Battery
The engine turns over
quickly.
The engine turns over
slowly.
The battery is good.Check the battery lead connections,
and charge the battery if necessary.
DryWet
Operate the electric starter.
U1B3E3E0.book Page 39 Friday, July 14, 2006 11:34 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-40
6Engine overheating
WARNING
EWA10400


Do not remove the radiator cap when the engine and radiator are hot. Scalding hot fluid and steam may be
blown out under pressure, which could cause serious injury. Be sure to wait until the engine has cooled.


After removing the radiator cap retaining bolt, place a thick rag, like a towel, over the radiator cap, and then
slowly rotate the cap counterclockwise to the detent to allow any residual pressure to escape. When the hissingsound has stopped, press down on the cap while turning it counterclockwise, and then remove the cap.
NOTE:If coolant is not available, tap water can be temporarily used instead, provided that it is changed to the recommended coolantas soon as possible.
Wait until the
engine has cooled.
Check the coolant level in the
reservoir and radiator.
The coolant level
is OK.The coolant level is low.
Check the cooling system
for leakage.
Have a Yamaha dealer checkand repair the cooling system.Add coolant. (See NOTE.)
Start the engine. If the engine overheats again,
have a
Yamaha dealer check
and repair the cooling system.
There is
leakage.
There is
no leakage.
U1B3E3E0.book Page 40 Friday, July 14, 2006 11:34 AM

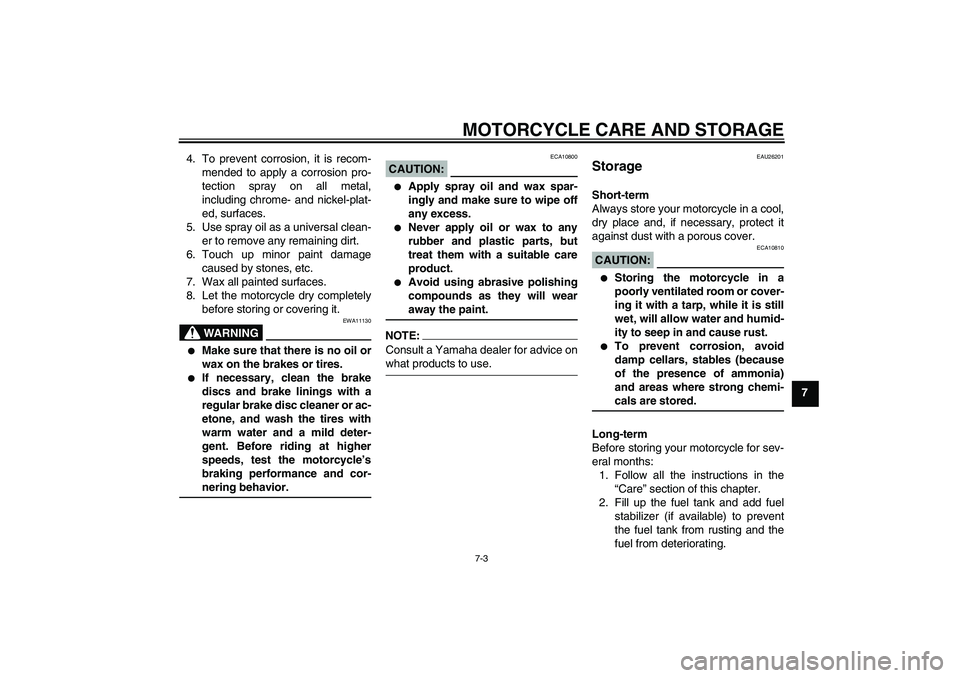

MOTORCYCLE CARE AND STORAGE
7-3
7 4. To prevent corrosion, it is recom-
mended to apply a corrosion pro-
tection spray on all metal,
including chrome- and nickel-plat-
ed, surfaces.
5. Use spray oil as a universal clean-
er to remove any remaining dirt.
6. Touch up minor paint damage
caused by stones, etc.
7. Wax all painted surfaces.
8. Let the motorcycle dry completely
before storing or covering it.
WARNING
EWA11130


Make sure that there is no oil or
wax on the brakes or tires.


If necessary, clean the brake
discs and brake linings with a
regular brake disc cleaner or ac-
etone, and wash the tires with
warm water and a mild deter-
gent. Before riding at higher
speeds, test the motorcycle’s
braking performance and cor-nering behavior.
CAUTION:
ECA10800


Apply spray oil and wax spar-
ingly and make sure to wipe off
any excess.


Never apply oil or wax to any
rubber and plastic parts, but
treat them with a suitable care
product.


Avoid using abrasive polishing
compounds as they will wearaway the paint.
NOTE:Consult a Yamaha dealer for advice onwhat products to use.
EAU26201
Storage Short-term
Always store your motorcycle in a cool,
dry place and, if necessary, protect it
against dust with a porous cover.CAUTION:
ECA10810


Storing the motorcycle in a
poorly ventilated room or cover-
ing it with a tarp, while it is still
wet, will allow water and humid-
ity to seep in and cause rust.


To prevent corrosion, avoid
damp cellars, stables (because
of the presence of ammonia)
and areas where strong chemi-cals are stored.
Long-term
Before storing your motorcycle for sev-
eral months:
1. Follow all the instructions in the
“Care” section of this chapter.
2. Fill up the fuel tank and add fuel
stabilizer (if available) to prevent
the fuel tank from rusting and the
fuel from deteriorating.
U1B3E3E0.book Page 3 Friday, July 14, 2006 11:34 AM

MOTORCYCLE CARE AND STORAGE
7-4
73. Perform the following steps to pro-
tect the cylinders, piston rings, etc.
from corrosion.
a. Remove the spark plug caps
and spark plugs.
b. Pour a teaspoonful of engine oil
into each spark plug bore.
c. Install the spark plug caps onto
the spark plugs, and then place
the spark plugs on the cylinder
head so that the electrodes are
grounded. (This will limit spark-
ing during the next step.)
d. Turn the engine over several
times with the starter. (This will
coat the cylinder walls with oil.)
e. Remove the spark plug caps
from the spark plugs, and then
install the spark plugs and the
spark plug caps.
WARNING
EWA10950
To prevent damage or injury from
sparking, make sure to ground the
spark plug electrodes while turningthe engine over.4. Lubricate all control cables and the
pivoting points of all levers and
pedals as well as of the side-
stand/centerstand.
5. Check and, if necessary, correct
the tire air pressure, and then lift
the motorcycle so that both of its
wheels are off the ground. Alterna-
tively, turn the wheels a little every
month in order to prevent the tires
from becoming degraded in one
spot.
6. Cover the muffler outlets with plas-
tic bags to prevent moisture from
entering them.
7. Remove the battery and fully
charge it. Store it in a cool, dry
place and charge it once a month.
Do not store the battery in an ex-
cessively cold or warm place [less
than 0 °C (30 °F) or more than 30
°C (90 °F)]. For more information
on storing the battery, see page
6-28.
NOTE:Make any necessary repairs beforestoring the motorcycle.
U1B3E3E0.book Page 4 Friday, July 14, 2006 11:34 AM

SPECIFICATIONS
8-3
8
Electrical system:Ignition system:
Transistorized coil ignition (digital)
Charging system:
AC magnetoBattery:Model:
GT12B-4
Voltage, capacity:
12 V, 10.0 AhHeadlight:Bulb type:
Halogen bulbBulb voltage, wattage × quantity:Headlight:
12 V, 60 W/55.0 W × 1
Tail/brake light:
12 V, 5.0 W/21.0 W × 1
Front turn signal light:
12 V, 10.0 W × 2
Rear turn signal light:
12 V, 10.0 W × 2
Auxiliary light:
12 V, 5.0 W × 1
License plate light:
12 V, 5.0 W × 1
Meter lighting:
EL (LCD backlight)
Neutral indicator light:
LED
High beam indicator light:
LED
Oil level warning light:
LEDTurn signal indicator light:
LED
Engine trouble warning light:
LED
Immobilizer system indicator light:
LED
Fuses:Main fuse:
30.0 A
Headlight fuse:
20.0 A
Taillight fuse:
10.0 A
Signaling system fuse:
10.0 A
Ignition fuse:
10.0 A
Radiator fan fuse:
20.0 A
Fuel injection system fuse:
10.0 A
Backup fuse:
10.0 A
U1B3E3E0.book Page 3 Friday, July 14, 2006 11:34 AM

INDEXAAir filter element, replacing ................... 6-13
Anti-theft alarm (optional)........................ 3-9
Auxiliary light bulb, replacing ................ 6-34BBattery................................................... 6-28
Brake and clutch levers, checking and
lubricating ........................................... 6-25
Brake and shift pedals, checking and
lubricating ........................................... 6-25
Brake fluid, changing ............................ 6-22
Brake fluid level, checking .................... 6-21
Brake lever ............................................ 3-12
Brake pedal ........................................... 3-12CCables, checking and lubricating .......... 6-24
Care ........................................................ 7-1
Catalytic converter ................................ 3-14
Caution, matte color ................................ 7-1
Clutch lever ........................................... 3-11
Clutch lever free play, adjusting ............ 6-19
Coolant.................................................. 6-10DDimmer switch ...................................... 3-10
Drive chain, cleaning and lubricating .... 6-23
Drive chain slack ................................... 6-22EEngine break-in ....................................... 5-3
Engine idling speed............................... 6-15
Engine oil and oil filter cartridge .............. 6-7
Engine stop switch ................................ 3-10
Engine trouble warning light.................... 3-4FFront and rear brake pads, checking .... 6-20Front fork, checking .............................. 6-27
Fuel....................................................... 3-13
Fuel consumption, tips for reducing........ 5-3
Fuel tank breather hose........................ 3-14
Fuel tank cap ........................................ 3-12
Fuses, replacing ................................... 6-30
HHandlebar switches .............................. 3-10
Hazard switch ....................................... 3-11
Headlight bulb, replacing ...................... 6-31
Helmet holder ....................................... 3-15
High beam indicator light ........................ 3-4
Horn switch ........................................... 3-10IIdentification numbers ............................ 9-1
Ignition circuit cut-off system ................ 3-18
Immobilizer system ................................. 3-1
Immobilizer system indicator light........... 3-4
Indicator and warning lights .................... 3-3KKey identification number ....................... 9-1LLCD tachometer ..................................... 3-5
License plate light bulb, replacing ........ 6-33MMain switch/steering lock........................ 3-2
Model label ............................................. 9-2
Multi-function display .............................. 3-5NNeutral indicator light .............................. 3-3OOil level warning light.............................. 3-4PPanel, removing and installing................ 6-6Parking .................................................... 5-4
Part locations .......................................... 2-1
Pass switch ........................................... 3-10
Periodic maintenance and lubrication
chart ...................................................... 6-2
Pre-operation check list........................... 4-2
RRear brake light switch .......................... 6-20SSafety information ................................... 1-1
Seat ....................................................... 3-15
Shifting .................................................... 5-2
Shift pedal ............................................. 3-11
Shock absorber assembly, adjusting .... 3-16
Sidestand .............................................. 3-17
Sidestand, checking and lubricating...... 6-26
Spark plugs, checking ............................. 6-6
Specifications .......................................... 8-1
Starting the engine .................................. 5-1
Start switch............................................ 3-10
Steering, checking................................. 6-27
Storage.................................................... 7-3
Storage compartment............................ 3-16
Supporting the motorcycle .................... 6-34
Swingarm pivots, lubricating ................. 6-26TTail/brake light bulb, replacing .............. 6-32
Throttle cable free play, checking ......... 6-15
Throttle grip and cable, checking and
lubricating ........................................... 6-24
Tires ...................................................... 6-16
Tool kit..................................................... 6-1
Troubleshooting .................................... 6-38
Troubleshooting charts.......................... 6-39
