Features and functions
21

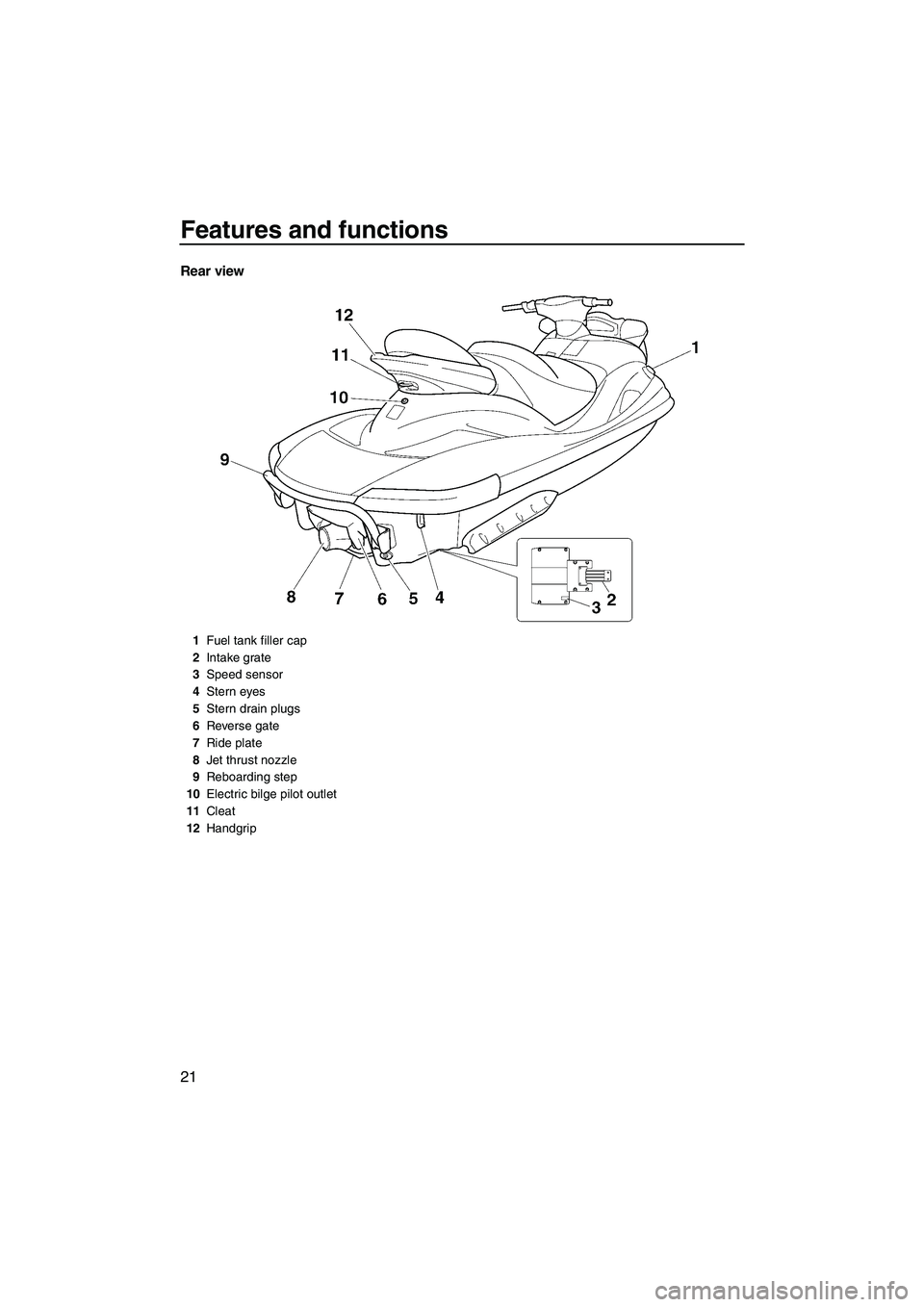

Rear view
1Fuel tank filler cap
2Intake grate
3Speed sensor
4Stern eyes
5Stern drain plugs
6Reverse gate
7Ride plate
8Jet thrust nozzle
9Reboarding step
10Electric bilge pilot outlet
11Cleat
12Handgrip
UF1X71E0.book Page 21 Tuesday, September 26, 2006 9:52 AM
Features and functions
41
engine shut-off switch. Severe injury or
death could result from coming in contact
with the rotating parts of the jet pump.
CAUTION:
ECJ00951
If you cannot locate and correct the cause
of the overheating, consult a Yamaha deal-
er. Continuing to operate at higher speeds
could result in severe engine damage.
NOTE:
Press any button on the multifunction informa-
tion center to stop the buzzer.
EJU36321Exhaust temperature warning indicator
This model is equipped with an exhaust tem-
perature warning system.
If the exhaust temperature becomes too hot,
the “WARNING” indicator light and the ex-haust temperature warning indicator begin to
blink, and the buzzer sounds intermittently.
If this occurs, reduce the engine speed and
return to shore to allow the exhaust system to
cool down.
CAUTION:
ECJ00960
This model is equipped with a catalytic
converter.
If the “WARNING” indicator light, exhaust
temperature warning indicator, and buzzer
come on, reduce the engine speed (below
6000 r/min), return to shore, and have a
Yamaha dealer check the watercraft.
NOTE:
Press any button on the multifunction informa-
tion center to stop the buzzer.
EJU35131Check engine warning indicator
If a sensor malfunction or a short circuit is de-
tected, the “WARNING” indicator light and the
UF1X71E0.book Page 41 Tuesday, September 26, 2006 9:52 AM
Trouble recovery
93
Engine runs irregu-
larly or stallsFuel Empty Refill as soon as pos-
sible50
Stale or contaminat-
edHave serviced by
Yamaha dealer83
Fuel tank Water or dirt present Have serviced by
Yamaha dealer83
Spark plug Fouled or defective Replace 86
Incorrect heat range Replace 86
Gap incorrect Adjust 86
Spark plug
capLoose Connect properly 86
Cracked, torn, or
damagedReplace
—
Electrical wir-
ingLoose connection Tighten or connect
properly—
Fuel injec-
tion systemFaulty or clogged in-
jectorsHave serviced by
Yamaha dealer—
Warning light or in-
dicator blinksFuel level Empty Refill as soon as pos-
sible50
Engine over-
heatedJet intake clogged Clean
94
Exhaust gas
temperatureGas temperature is
too highCool down engine
41
Check engine
warningFaulty sensors Have serviced by
Yamaha dealer41
Watercraft slow or
loses powerCavitation Jet intake clogged Clean 94
Impeller damaged or
wornHave serviced by
Yamaha dealer94
Engine over-
heat warningEngine speed reduc-
tion control activatedClean jet intake and
cool engine40
Oil pressure
warningEngine speed reduc-
tion control activatedAdd oil
40
Spark plug Fouled or defective Replace 86
Incorrect heat range Replace 86
Gap incorrect Adjust 86
Spark plug
capsLoose Connect properly
86
Electrical wir-
ingLoose connection Tighten or connect
properly—
Fuel Stale or contaminat-
edHave serviced by
Yamaha dealer83
Air filter Clogged Clean or replace 84
Oil buildup Replace 84 TROUBLE POSSIBLE CAUSE REMEDY PAGE
UF1X71E0.book Page 93 Tuesday, September 26, 2006 9:52 AM
