Maintenance and care
78
leave it in direct sunlight. Leave it in a
well-ventilated area with the watercraft
in a horizontal position.

Tighten the fuel tank filler cap securely
after refueling.

If you should swallow some gasoline, in-
hale a lot of gasoline vapor, or get gaso-
line in your eyes, get immediate medical
attention.

If any gasoline spills on your skin or
clothing, immediately wash the affected
area with soap and water and change
your clothes.
Add approximately 550 ml (18.6 US oz, 19.4
Imp oz) of Yamaha Fuel Stabilizer and Condi-
tioner to the fuel tank, and then top it off with
fresh gasoline.
CAUTION:
ECJ00140
Use only Yamaha Fuel Stabilizer and Con-
ditioner, otherwise the catalytic converter
could be seriously damaged.
EJU33680Battery
If the watercraft will not be used for more than
a month, remove the battery from the water-
craft and store it in a cool, dry place.
(1) Disconnect the negative (–) battery lead
first, then the positive (+) battery lead and
breather hose, and then remove the bat-
tery from the watercraft.
(2) Clean the battery casing using fresh wa-
ter.
(3) If the battery terminals are dirty or corrod-
ed, clean them with a wire brush.
(4) Fully charge the battery.
(5) Apply Yamaha Marine Grease or
Yamaha Grease A to the battery termi-
nals, and then store the battery in a cool,
dry place.(6) Check the battery at least once every 2
months and fully charge it if necessary.
CAUTION:
ECJ00100
Always keep the battery charged. Storing
a discharged battery can cause permanent
battery damage.
To check the condition of the battery, check
the specific gravity of the electrolyte or mea-
sure the voltage at both battery terminals.
Charge the battery if the voltage is less than
12 volts.
It is recommended to have a Yamaha dealer
check the specific gravity and charge the bat-
tery. If you maintain the battery yourself, be
sure to read and follow the instructions provid-
ed with the battery tester and charger you
use.
EJU33730Cleaning the watercraft
Clean the watercraft before storing it for a long
period.
(1) Wash down the hull, handlebars, and jet
unit with fresh water.
(2) Rinse the engine and bilge area with
fresh water. Drain all of the water and
wipe up any remaining moisture with
clean, dry rags.
CAUTION:
ECJ00110
Do not use high-pressure water when rins-
ing the engine and bilge area as severe en-
gine damage could result.
(3) Spray the engine’s exterior with a rust in-
hibitor and lubricant.
(4) Wax the hull with a non-abrasive wax.Specific gravity (for reference):
1.28 at 20 °C (68 °F)
UF1X71E0.book Page 78 Tuesday, September 26, 2006 9:52 AM

Maintenance and care
81
EJU33820Periodic maintenance chart
The following chart gives general guidelines for periodic maintenance. However, maintenance
may need to be performed more frequently depending on your operating conditions.
This “” mark indicates maintenance that you may do yourself.
This “” mark indicates work to be done by a Yamaha dealer.
Item OperationInitial Thereafter every
Page 10
hours50
hours100
hours100
hours200
hours
6
months12
months12
months24
months
Spark plugsCheck, clean, adjust 86
Lubrication pointsLubricate 87
Intermediate hous-
ingLubricate 87
Fuel systemCheck 83
Fuel tankCheck, clean 83
Trolling speedCheck, adjust 90
Throttle shaftCheck—
Cooling water pas-
sagesFlush
*76
Water inlet strain-
erCheck, clean—
Bilge strainerClean—
Electric bilge
pump strainerCheck, clean—
ImpellerCheck—
Jet thrust nozzle
angleCheck, adjust 85
Steering masterCheck—
QSTS mechanismCheck, adjust—
Shift cable and re-
verse gateCheck, adjust 85
Throttle cableCheck, adjust 85
Stern drain plugsCheck, replace 55
BatteryCheck, charge 88
Rubber couplingCheck—
Engine mountCheck—
UF1X71E0.book Page 81 Tuesday, September 26, 2006 9:52 AM

Maintenance and care
82
* This operation should be performed after every use.
Nuts and boltsCheck—
Air filter elementCheck 84
Engine oilReplace 83
Oil filterReplace 83
Valve clearanceCheck, adjust— Item OperationInitial Thereafter every
Page 10
hours50
hours100
hours100
hours200
hours
6
months12
months12
months24
months
UF1X71E0.book Page 82 Tuesday, September 26, 2006 9:52 AM

Maintenance and care
83

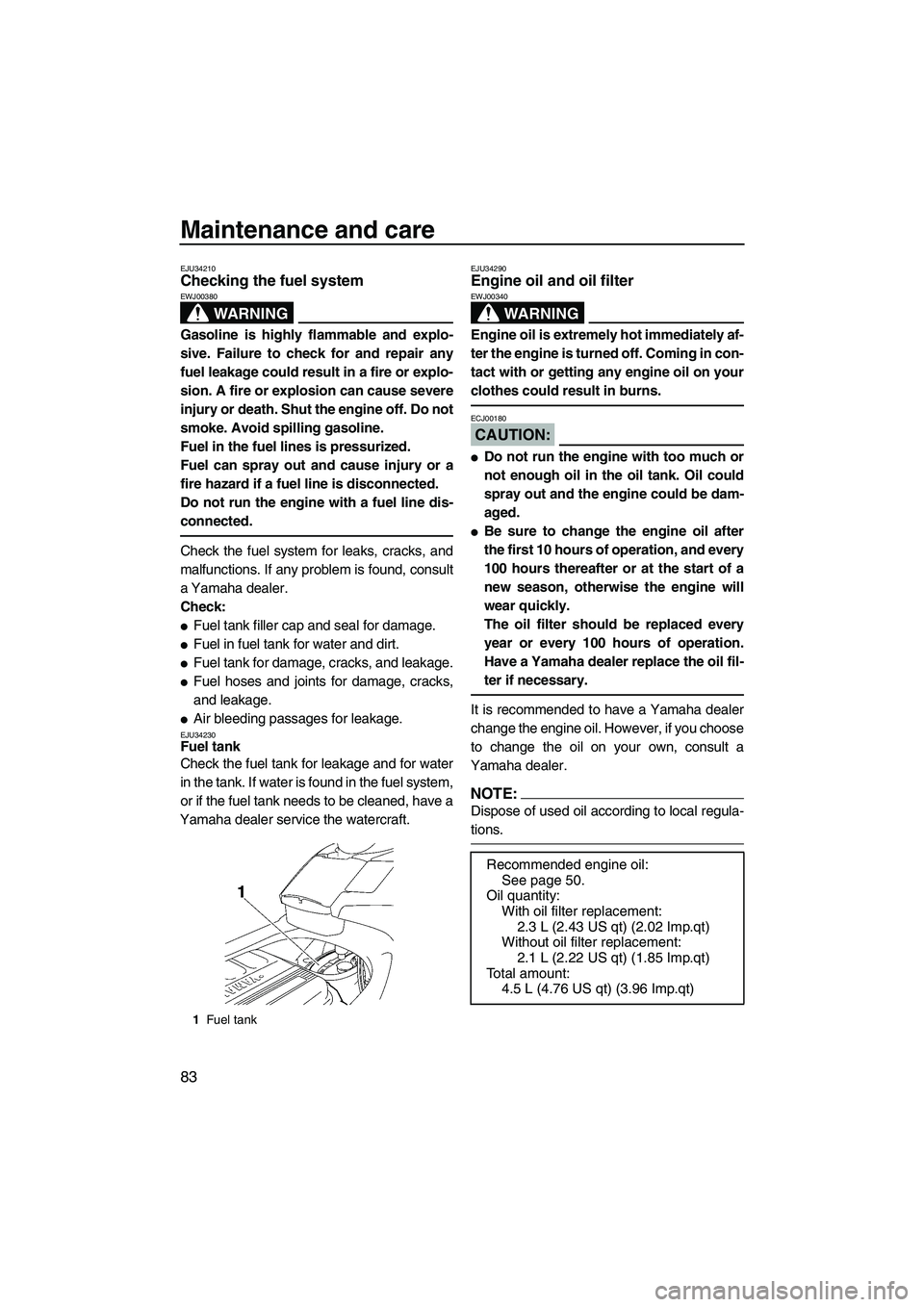

EJU34210Checking the fuel system
WARNING
EWJ00380
Gasoline is highly flammable and explo-
sive. Failure to check for and repair any
fuel leakage could result in a fire or explo-
sion. A fire or explosion can cause severe
injury or death. Shut the engine off. Do not
smoke. Avoid spilling gasoline.
Fuel in the fuel lines is pressurized.
Fuel can spray out and cause injury or a
fire hazard if a fuel line is disconnected.
Do not run the engine with a fuel line dis-
connected.
Check the fuel system for leaks, cracks, and
malfunctions. If any problem is found, consult
a Yamaha dealer.
Check:

Fuel tank filler cap and seal for damage.

Fuel in fuel tank for water and dirt.

Fuel tank for damage, cracks, and leakage.

Fuel hoses and joints for damage, cracks,
and leakage.

Air bleeding passages for leakage.EJU34230Fuel tank
Check the fuel tank for leakage and for water
in the tank. If water is found in the fuel system,
or if the fuel tank needs to be cleaned, have a
Yamaha dealer service the watercraft.
EJU34290Engine oil and oil filter
WARNING
EWJ00340
Engine oil is extremely hot immediately af-
ter the engine is turned off. Coming in con-
tact with or getting any engine oil on your
clothes could result in burns.
CAUTION:
ECJ00180

Do not run the engine with too much or
not enough oil in the oil tank. Oil could
spray out and the engine could be dam-
aged.

Be sure to change the engine oil after
the first 10 hours of operation, and every
100 hours thereafter or at the start of a
new season, otherwise the engine will
wear quickly.
The oil filter should be replaced every
year or every 100 hours of operation.
Have a Yamaha dealer replace the oil fil-
ter if necessary.
It is recommended to have a Yamaha dealer
change the engine oil. However, if you choose
to change the oil on your own, consult a
Yamaha dealer.
NOTE:
Dispose of used oil according to local regula-
tions.
1Fuel tank
Recommended engine oil:
See page 50.
Oil quantity:
With oil filter replacement:
2.3 L (2.43 US qt) (2.02 Imp.qt)
Without oil filter replacement:
2.1 L (2.22 US qt) (1.85 Imp.qt)
Total amount:
4.5 L (4.76 US qt) (3.96 Imp.qt)
UF1X71E0.book Page 83 Tuesday, September 26, 2006 9:52 AM

Maintenance and care
84
CAUTION:
ECJ00190
If oil is leaking or the oil pressure warning
indicator comes on when the engine is
running, immediately shut the engine off
and have a Yamaha dealer check the wa-
tercraft. Continuing to operate the engine
under such conditions could cause severe
engine damage.
EJU34300Checking the air filter element
The air filter element should be checked every
12 months or every 100 hours of operation.
To check the air filter element:
(1) Remove the seats. (See page 24 for seat
removal and installation procedures.)
(2) Remove the air filter case cover screws,
slide the locks open, and then remove the
air filter case cover.
(3) Remove the air filter element and check it
for dirt and oil. Replace the air filter ele-ment if there is any oil buildup, or every 2
years or every 200 hours of operation.
(4) Install the air filter element in the air filter
case, and then install the air filter case
cover.
(5) Install the seats.
CAUTION:
ECJ00200

Make sure that the air filter element is in-
stalled in the air filter case properly.

Do not start the engine with the air filter
element removed, otherwise the pistons
and cylinders could be damaged.

If cleaning the air filter element, use cold
or lukewarm water and let it air dry com-
pletely. Do not use detergent or solvent
to clean the air filter element, or dry it
with hot or compressed air, otherwise it
could be damaged.
1Air filter case cover screw
2Lock
UF1X71E0.book Page 84 Tuesday, September 26, 2006 9:52 AM

Maintenance and care
90
To install the battery:
(1) Place the battery in the battery compart-
ment and connect the battery leads to the
battery terminals.
(2) Connect the breather hose to the battery.
(3) Secure the battery in place.
WARNING
EWJ00400
Be sure to connect the breather hose to
the battery. Fire or explosion could result
if the breather hose is damaged, obstruct-
ed, or not connected properly.
CAUTION:
ECJ00260
After installation, make sure that the bat-
tery leads are properly connected to the
battery terminals.
EJU34490Fuel injection system
The fuel injection system was set at the
Yamaha factory. If the fuel injection system
needs to be adjusted, have a Yamaha dealer
service the watercraft.
CAUTION:
ECJ00220
Do not attempt to adjust the fuel injection
system. If the settings are disturbed by
someone who does not have the neces-sary technical knowledge, poor engine
performance and damage may result.
EJU34500Checking the trolling speed
(1) Place the watercraft in the water.
(2) Start the engine and warm it up. Use the
tachometer in the multifunction informa-
tion center to check the trolling speed.
If the trolling speed is out of specification,
have a Yamaha dealer service the watercraft.
1Positive (+) battery terminal: Red lead
2Negative (–) battery terminal: Black lead
3Breather hose
Trolling speed:
1650 ±50 r/min
UF1X71E0.book Page 90 Tuesday, September 26, 2006 9:52 AM

Trouble recovery
92
EJU34560
Troubleshooting
If you have any trouble with your watercraft, use this section to check for the possible cause.
If you cannot find the cause, or if the procedure for replacement or repair is not described in
this owner’s/operator’s manual, have a Yamaha dealer perform the necessary service.
EJU36390Troubleshooting chart
TROUBLE POSSIBLE CAUSE REMEDY PAGE
Engine does not
start (Starter motor
does not turn over)Yamaha Se-
curity SystemLock mode selected Select unlock mode
33
Engine shut-
off switchClip not in place Install clip
27
Fuse Burned out Replace the fuse and
check wiring96
Battery Run down Recharge 88
Poor terminal con-
nectionsTighten as required
88
Terminal corroded Clean 78
Starter motor Faulty Have serviced by
Yamaha dealer—
Warning sys-
temOverheat mode Cool down engine
40
Engine does not
start (Starter motor
turns over)Throttle lever Squeezed Release 27
Fuel Empty Refill as soon as pos-
sible50
Stale or contaminat-
edHave serviced by
Yamaha dealer83
Fuel tank Water or dirt present Have serviced by
Yamaha dealer83
Spark plug Fouled or defective Clean or replace 86
Spark plug
capNot connected or
looseConnect properly
86
Connected to wrong
cylinderConnect properly
86
Fuel injec-
tion systemFuel pump faulty Have serviced by
Yamaha dealer—
UF1X71E0.book Page 92 Tuesday, September 26, 2006 9:52 AM

Trouble recovery
93
Engine runs irregu-
larly or stallsFuel Empty Refill as soon as pos-
sible50
Stale or contaminat-
edHave serviced by
Yamaha dealer83
Fuel tank Water or dirt present Have serviced by
Yamaha dealer83
Spark plug Fouled or defective Replace 86
Incorrect heat range Replace 86
Gap incorrect Adjust 86
Spark plug
capLoose Connect properly 86
Cracked, torn, or
damagedReplace
—
Electrical wir-
ingLoose connection Tighten or connect
properly—
Fuel injec-
tion systemFaulty or clogged in-
jectorsHave serviced by
Yamaha dealer—
Warning light or in-
dicator blinksFuel level Empty Refill as soon as pos-
sible50
Engine over-
heatedJet intake clogged Clean
94
Exhaust gas
temperatureGas temperature is
too highCool down engine
41
Check engine
warningFaulty sensors Have serviced by
Yamaha dealer41
Watercraft slow or
loses powerCavitation Jet intake clogged Clean 94
Impeller damaged or
wornHave serviced by
Yamaha dealer94
Engine over-
heat warningEngine speed reduc-
tion control activatedClean jet intake and
cool engine40
Oil pressure
warningEngine speed reduc-
tion control activatedAdd oil
40
Spark plug Fouled or defective Replace 86
Incorrect heat range Replace 86
Gap incorrect Adjust 86
Spark plug
capsLoose Connect properly
86
Electrical wir-
ingLoose connection Tighten or connect
properly—
Fuel Stale or contaminat-
edHave serviced by
Yamaha dealer83
Air filter Clogged Clean or replace 84
Oil buildup Replace 84 TROUBLE POSSIBLE CAUSE REMEDY PAGE
UF1X71E0.book Page 93 Tuesday, September 26, 2006 9:52 AM
