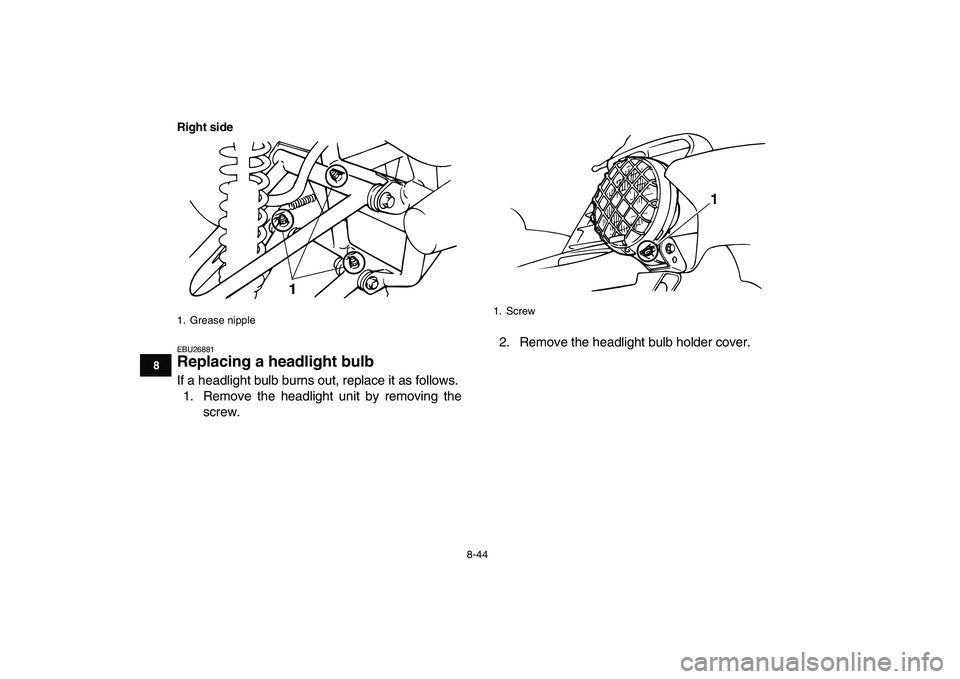

Replacing a headlight bulb
If a headlight bulb burns out, replace it as follows.
1. Remove the headlight unit by removing the
screw.2. Remove the headlight bulb holder cover.
1. Grease nipple
1

1. Screw
1

8-45
1
2
3
4
5
6
78
9
10
11

3. Remove the bulb holder by turning it counter-
clockwise.4. Remove the defective bulb.
WARNING

EWB02200
A headlight bulb is hot when it is on and imme-
diately after it is turned off. Wait for the bulb to
cool before touching or removing it. You can
be burned, or a fire could start if the bulb
touches something flammable.
5. Place a new bulb into position, and then install
the bulb holder by turning it clockwise.
1. Headlight bulb holder cover
1

1. Headlight bulb holder
1

8-46
1
2
3
4
5
6
78
9
10
11
CAUTION:

ECB00650
Do not touch the glass part of the headlight
bulb to keep it free from oil, otherwise the
transparency of the glass, the luminosity of the
bulb, and the bulb life will be adversely affect-
ed. Thoroughly clean off any dirt and finger-
prints on the headlight bulb using a cloth
moistened with alcohol or thinner.
6. Install the bulb holder cover.CAUTION:
ECB00680
Make sure the bulb holder cover is securely fit-
ted over the bulb holder and seated against the
reflector.
7. Place the headlight unit in the original posi-
tion, and then install the screw.
8. Adjust the headlight beam if necessary.
1. Do not touch the glass part of the bulb.
1

1. Headlight bulb holder cover
2. Headlight bulb holder
3. Headlight unit
1
2
3

8-47
1
2
3
4
5
6
78
9
10
11

EBU25550
Adjusting a headlight beam
CAUTION:

ECB00690
It is advisable to have a Yamaha dealer make
this adjustment.
To raise a headlight beam, turn the adjusting
screw in direction (a).
To lower a headlight beam, turn the adjusting
screw in direction (b).
EBU25610
Replacing the tail/brake light bulb
If the tail/brake light bulb burns out, replace it asfollows.
1. Remove the bulb holder (together with the
bulb) by turning it counterclockwise.
2. Remove the defective bulb by pushing it in
and turning it counterclockwise.
1. Headlight beam adjusting screw
1
(a) (b)

1. Tail/brake light bulb holder
1
