4-16
1
2
34
5
6
7
8
9
10
11
CAUTION:
ECB00090
Never turn an adjusting mechanism beyond
the minimum and maximum settings.NOTE:
Although the total number of clicks of a damping
force adjusting mechanism may not exactly match
the above specifications due to small differences in
production, the actual number of clicks always rep-
resents the entire adjusting range. To obtain a pre-
cise adjustment, it would be advisable to check the
number of clicks of each damping force adjusting
mechanism and to modify the specifications as
necessary.WARNING
EWB00460
Suspension components become hot during
operation. Never touch the compression
damping force adjusting knob, the rebound
damping force adjusting dial or the oil reser-
voir with your bare hand or skin until suspen-
sion components have cooled.

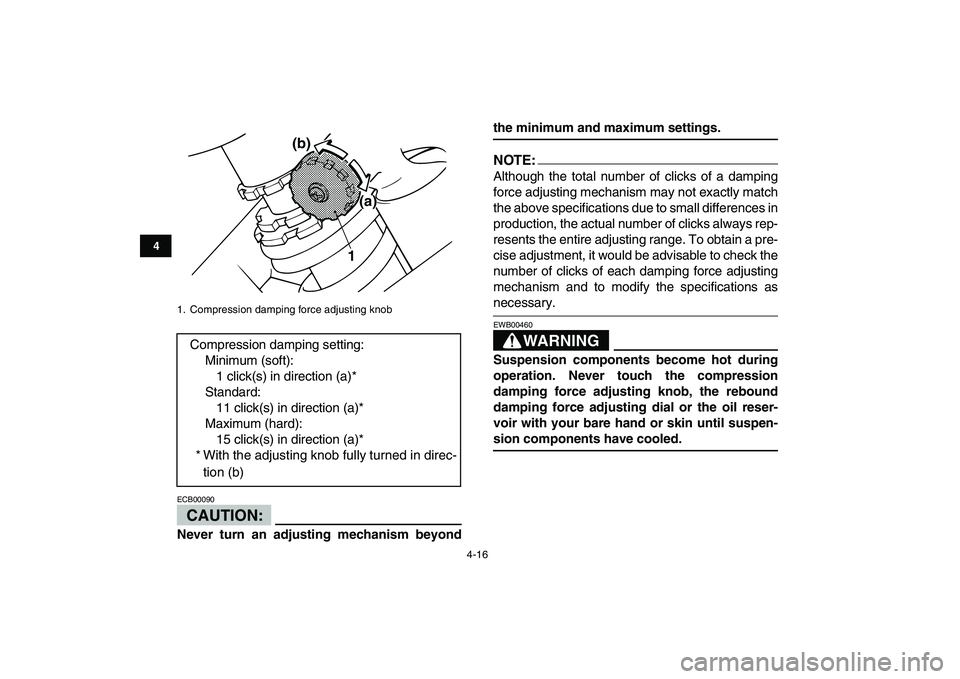

1. Compression damping force adjusting knob
Compression damping setting:
Minimum (soft):
1 click(s) in direction (a)*
Standard:
11 click(s) in direction (a)*
Maximum (hard):
15 click(s) in direction (a)*
* With the adjusting knob fully turned in direc-
tion (b)
1(a) (b)
8-49
1
2
3
4
5
6
78
9
10
11
Rear
2. Elevate the ATV and place a suitable stand
under the frame.
3. Remove the nuts from the wheel.
4. Remove the wheel.
EBU25660
Installing a wheel
1. Install the wheel and the nuts.
2. Lower the ATV to the ground.
3. Tighten the wheel nuts to the specified
torques.
EBU25740
Troubleshooting
Although Yamaha ATVs receive a thorough in-
spection before shipment from the factory, trouble
may occur during operation. Any problem in the fu-
el, compression, or ignition systems, for example,
can cause poor starting and loss of power.
The following troubleshooting charts represent
quick and easy procedures for checking these vital
systems yourself. However, should your ATV re-
quire any repair, take it to a Yamaha dealer, whose
skilled technicians have the necessary tools, expe-
rience, and know-how to service the ATV properly.
Use only genuine Yamaha replacement parts. Im-
itation parts may look like Yamaha parts, but they
are often inferior, have a shorter service life and
can lead to expensive repair bills.

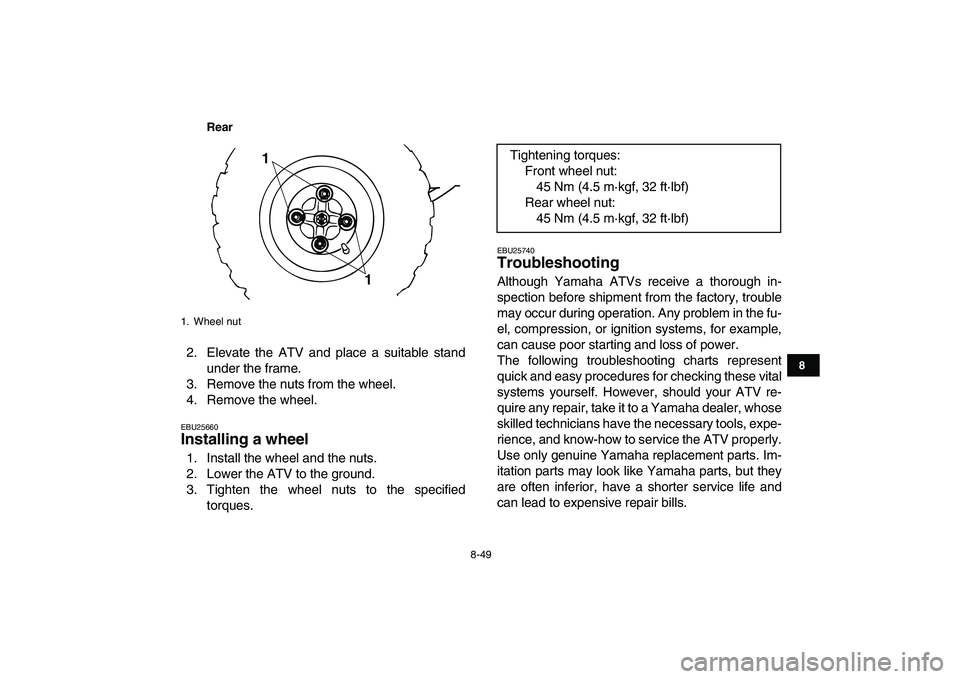

1. Wheel nut
1
1
Tightening torques:
Front wheel nut:
45 Nm (4.5 m·kgf, 32 ft·lbf)
Rear wheel nut:
45 Nm (4.5 m·kgf, 32 ft·lbf)
10-1
1
2
3
4
5
6
7
8
910
11
EBU25960
SPECIFICATIONS
EBU25977
Dimensions:
Overall length:
1855 mm (73.0 in)
Overall width:
1100 mm (43.3 in)
Overall height:
1080 mm (42.5 in)
Seat height:
800 mm (31.5 in)
Wheelbase:
1280 mm (50.4 in)
Ground clearance:
135 mm (5.3 in)
Minimum turning radius:
3600 mm (142 in)
Weight:
With oil and fuel:
187.0 kg (412 lb)
Engine:
Engine type:
Liquid cooled 2-stroke
Cylinder arrangement:
Forward-inclined parallel 2-cylinder
Displacement:
347.0 cm
3
Bore
×
stroke:
64.0
×
54.0 mm (2.52
×
2.13 in)Compression ratio:
6.50 :1
Starting system:
Kickstarter
Lubrication system:
Premix
Type:
YAMALUBE 2-R, Castrol R30, A545, A747
Engine oil quantity:
Mixing ratio:
YAMALUBE R 24:1
Transmission oil:
Type:
SAE10W30 type SE motor oil (EUR)
YAMALUBE 4 (10W30) or SAE10W30 type SE motor oil
(AUS)(NZL)
Quantity:
1.5 L (1.59 US qt) (1.32 Imp.qt)
Cooling system:
Coolant reservoir capacity (up to the maximum level mark):
0.28 L (0.30 US qt) (0.25 Imp.qt)
Radiator capacity (including all routes):
1.50 L (1.59 US qt) (1.32 Imp.qt)
Air filter:
Air filter element:
Wet element
