2007 TOYOTA RAV4 check engine light

’07 Rav4_U (L/O 0701)
128
2007 RAV4 from Dec. ’06 Prod. (OM42662U)
If the indicator or buzzer comes on...Do this.
(h)orTake vehicle to Toyota dealer.
If brake system warning light is also on, stop immediately and contact Toyota dealer.
(i)Close all side doors and back door.
(j)Take vehicle to Toyota dealer immediately.
(k)Stop and check.
(l)Take vehicle to Toyota dealer.
(m)Adjust the tire inflation pressure. If warning light remains, contact Toyota dealer.
(n)Cool the driveline without turning off the engine. If warning light remains, contact
Toyota dealer.
(o)Take vehicle to Toyota dealer as soon as possible.

’07 Rav4_U (L/O 0701)
130
2007 RAV4 from Dec. ’06 Prod. (OM42662U)
(a) Brake System Warning Light
This light comes on in the following cases
when the ignition key is in the “ON” posi-
tion.
When the parking brake is applied...
This light comes on for a few seconds
when the ignition key is turned to the
“ON” position even after the parking brake
is released.
When the brake fluid level is low...

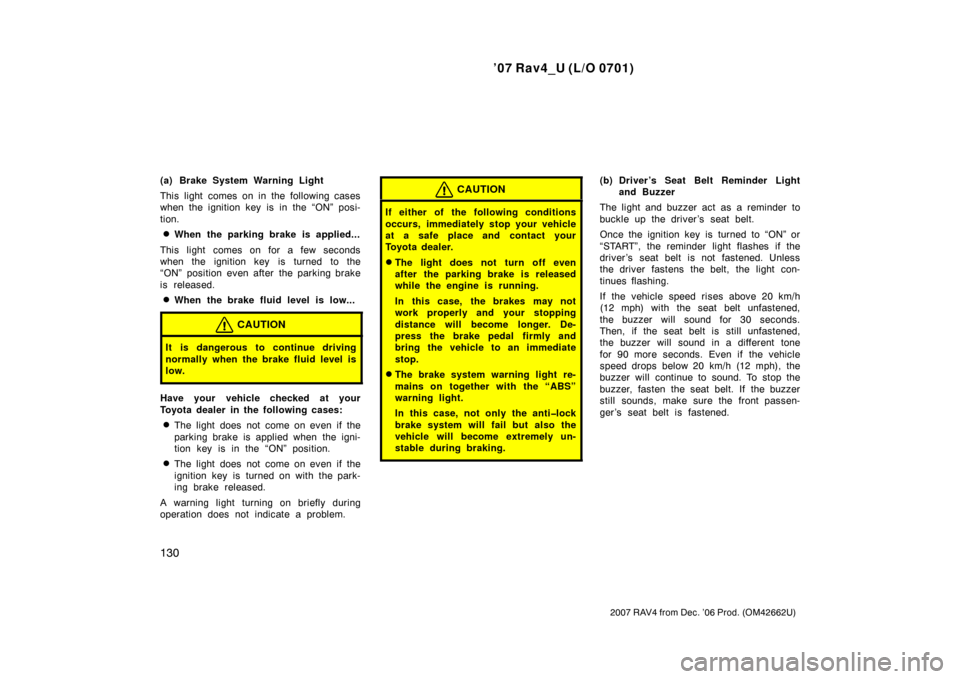

CAUTION
It is dangerous to continue driving
normally when the brake fluid level is
low.
Have your vehicle checked at your
Toyota dealer in the following cases:
The light does not come on even if the
parking brake is applied when the igni-
tion key is in the “ON” position.
The light does not come on even if the
ignition key is turned on with the park-
ing brake released.
A warning light turning on briefly during
operation does not indicate a problem.
CAUTION
If either of the following conditions
occurs, immediately stop your vehicle
at a safe place and contact your
Toyota dealer.
The light does not turn off even
after the parking brake is released
while the engine is running.
In this case, the brakes may not
work properly and your stopping
distance will become longer. De-
press the brake pedal firmly and
bring the vehicle to an immediate
stop.
The brake system warning light re-
mains on together with the “ABS”
warning light.
In this case, not only the antilock
brake system will fail but also the
vehicle will become extremely un-
stable during braking.
(b) Driver’s Seat Belt Reminder Light and Buzzer
The light and buzzer act as a reminder to
buckle up the driver’s seat belt.
Once the ignition key is turned to “ON” or
“START”, the reminder light flashes if the
driver ’s seat belt is not fastened. Unless
the driver fastens the belt, the light con-
tinues flashing.
If the vehicle speed rises above 20 km/h
(12 mph) with the seat belt unfastened,
the buzzer will sound for 30 seconds.
Then, if the seat belt is still unfastened,
the buzzer will sound in a different tone
for 90 more seconds. Even if the vehicle
speed drops below 20 km/h (12 mph), the
buzzer will continue to sound. To stop the
buzzer, fasten the seat belt. If the buzzer
still sounds, make sure the front passen-
ger ’s seat belt is fastened.

’07 Rav4_U (L/O 0701)
131
2007 RAV4 from Dec. ’06 Prod. (OM42662U)
(c) Front Passenger ’s Seat Belt Re-minder Light and Buzzer
The light and buzzer act as a reminder to
have the front passenger buckle up the
seat belt.
Once the ignition key is turned to “ON” or
“START”, the reminder light flashes if a
passenger sits in the front passenger seat
and does not fasten the seat belt. Howev-
er, if a front passenger uses an additional
seat cushion, the light may not flash even
when the seat belt is not buckled up.
If the vehicle speed rises above 20 km/h
(12 mph) with the seat belt unfastened,
the buzzer will sound for 30 seconds.
Then, if the seat belt is still unfastened,
the buzzer will sound in a different tone
for 90 more seconds. Even if the vehicle
speed drops below 20 km/h (12 mph), the
buzzer will continue to sound. To stop the
buzzer, fasten the seat belt. If the buzzer
still sounds, make sure the driver ’s seat
belt is fastened.
If luggage or other load is placed on the
front passenger seat, depending on its
weight the reminder light may flash. (d) Charging System Warning Light
This warning light comes on when the
ignition switch is turned to the “ON” posi-
tion, and goes off when the engine is
started.
When there are problems in the charging
system while the engine is r
unning, the
warning light comes on.
NOTICE
When the charging system warning
light comes on while the engine is
running, malfunctions such as the en-
gine drive belt being broken may have
occurred. If the warning light comes
on, immediately stop the vehicle in a
safe place and contact your Toyota
dealer.
(e) Low Engine Oil Pressure Warning
Light
This light warns that the engine oil pres-
sure is too low.
If it flickers or stays on while you are
driving, pull off the road to a safe place
and stop the engine immediately. Call a
Toyota dealer or qualified repair shop for
assistance. The light may occasionally flicker when
the engine is idling or it may come on
briefly after a hard stop. There is no
cause for concern if it then goes out when
the engine is accelerated slightly.
The light may come on when the oil level
is extremely low. It is not designed to
indicate low oil level, and the oil level
must be checked using the level dipstick.
NOTICE
Do not drive the vehicle with the
warning light on—even for one block.
It may ruin the engine.
(f) Malfunction Indicator Lamp
This lamp comes on when the ignition
key is turned to the “ON” position and
goes off after the engine starts. This
means that the warning light system is
operating properly.
If the lamp remains on, or the lamp
comes on while driving, first check the
followings.
Empty fuel tank
If the fuel tank is empty, refuel immedi-
ately.

’07 Rav4_U (L/O 0701)
132
2007 RAV4 from Dec. ’06 Prod. (OM42662U)
Loose fuel tank cap
If the fuel tank cap is loose, securely
tighten it.
These cases are temporary malfunctions.
The malfunction indicator lamp will go off
after taking several driving trips.
If the lamp does not go off even after
several trips, contact your Toyota dealer
as soon as possible.
If the fuel tank is not empty or the fuel
tank cap is not loose...
There is a problem somewhere in the
engine, emission control system, elec-
tronic throttle control system, automatic
transmission electrical system or warn-
ing light system itself.
Contact your Toyota dealer as soon as
possible to service the vehicle.
If engine speed does not increase when
the accelerator pedal is depressed, there
may be a problem somewhere in the elec-
tronic throttle control system.
At this time, vibration may occur. Howev-
er, if you depress the accelerator pedal
more firmly and slowly, you can drive your
vehicle at low speeds. Have your vehicle
checked by your Toyota dealer as soon as
possible. Even if the abnormality of the electronic
throttle control system is corrected during
low speed driving, the system may not be
recovered until the engine is stopped and
the ignition key is turned to the “ACC” or
“LOCK” position.
CAUTION
Be especially careful to prevent erro-
neous pedal operation.
Emissions Inspection and Maintenance
(I/M) programs
Your vehicle may not pass a state
emission inspection if the malfunction
indicator lamp remains on. Contact your
Toyota dealer to check your vehicle’s
emission control system and OBD
(On
−Board Diagnostics) system before
taking your vehicle for the inspection.
For details, see “Emissions Inspection and
Maintenance (I/M) programs” on page 388
in Section 6. (g) Low Fuel Level Warning Light
This light comes on when the fuel level
in the tank becomes nearly empty. Fill up
the tank as soon as possible.
On inclines or curves, due to the move-
ment of fuel in the tank, the low fuel level
warning light may come on earlier than
usual.
(h) “ABS” Warning Light
The light comes on when the ignition key
is turned to the “ON” position. If the anti
−
lock brake system and the brake assist
system work properly, the light turns off
after a few seconds. Thereafter, if either
of the systems malfunctions, the light
comes on again.
When the “ABS” warning light is on (and
the brake system warning light is off), the
following systems do not operate, but the
brake system still operates conventionally.
Anti −lock brake system
Brake assist system
Traction control system
“AUTO LSD” system
Vehicle stability control system
Downhill assist control system
Hill −start assist control system

’07 Rav4_U (L/O 0701)
135
2007 RAV4 from Dec. ’06 Prod. (OM42662U)
(n) “4WD” Warning Light
The light warns that when there is a prob-
lem somewhere in active torque control
4WD system.
The light will come on when the ignition
key is turned to “ON”, and will go off after
about a few seconds.
If the warning light does not come on
when the ignition key is turned to “ON”,
contact your Toyota dealer to service the
vehicle.
If the “4WD” warning light flashes...
This indicates that the driveline tempera-
ture has become too high. Without turning
off the engine, do either of the following
to cool the driveline:
Reduce vehicle speed until the light
goes off.
Stop the vehicle at a safe place and
allow the engine to idle until the light
goes off.
If operation of the vehicle is continued
while the light is flashing, the system au-
tomatically shuts off the engine torque that
is applied to the rear wheels to protect
the driveline. If this happens, the light will
flash faster.
When the driveline temperature falls
enough, the light will go off. If the “4WD” warning light remains on...
This indicates that the system may not
work properly. Contact your Toyota dealer
to service your vehicle.
(o) Electric Power Steering System
Warning Light
The light comes on when the ignition key
is turned to the “ON” position. If the elec-
tric power steering system warning light
works properly, the light turns off after a
few seconds. If the system has malfunc-
tions, the light comes on again.
If the following conditions occur, this
indicates a malfunction somewhere in
the components monitored by the warn-
ing light system. Have your vehicle
checked by your Toyota dealer as soon
as possible.The light does not come on when the
ignition key is turned to the “ON” posi-
tion or remains on.
The light stays on while you are driv-
ing.
CAUTION
If the electric power steering system
warning light comes on, take your ve-
hicle to your Toyota dealer as soon
as possible. In this case, more effort
is required for the steering wheel to
turn than usual. Drive your vehicle
while firmly gripping the steering
wheel.
(p) Low Windshield Washer Fluid Level Warning Light
The light warns that the windshield washer
fluid level is too low. Add washer fluid at
your earliest opportunity. (For instructions,
see “Adding washer fluid” on page 416 in
Section 7 −3.)

’07 Rav4_U (L/O 0701)
136
2007 RAV4 from Dec. ’06 Prod. (OM42662U)
(q) Engine Oil Replacement ReminderLight
This light acts as a reminder to replace
the engine oil.
This light will come on when the ignition
key is turned to “ON” and will go off after
about a few seconds.
When you drive for about 7200 km (4500
miles) after the engine oil replacement,
this light illuminates for about 3 seconds
and then flashes for about 12 seconds
with the ignition key turned to the “ON”
position. If you continue driving without
replacing the engine oil, and if the dis-
tance driven exceeds 8000 km (5000
miles), the light will come on after the
ignition key is turned to “ON” position.
The light will remain on thereafter.
If the light is flashing, we recommend that
you replace the engine oil at an early
opportunity depending on the driving and
road conditions. If the light comes on,
replace it as soon as possible. The system must be reset after the en-
gine oil replacement. Reset the system by
the following procedure:
1. Turn the ignition key to the “OFF” posi- tion with the trip meter A reading
shown. (For details, see “Odometer and
two trip meters” on page 125 in this
Section.)
2. Turn the ignition key to the “ON” posi- tion while holding down the trip meter
reset knob.
Hold down the knob for at least 5 sec-
onds. The odometer indicates “000000”
and the light goes off.
If the system fails to reset, the light will
continue flashing.
(r) Key Reminder Buzzer
This buzzer acts as a reminder to remove
the key when you open the driver’s door
with the ignition key in the “ACC” or
“LOCK” position. CHECKING SERVICE REMINDER
INDICATORS (except the low fuel level
warning light
and low windshield
washer fluid level warning light)
1. Apply the parking brake.
2. Open one of the doors. The open door warning light should
come on.
3. Close the door. The open door warning light should go
off.
4. Turn the ignition key to “ON”, but do not start the engine.
All the service reminder indicators ex-
cept the open door warning light should
come on.
The following service reminder indica-
tors go off after a few seconds:
Engine oil replacement reminder light
Automatic transmission fluid tempera-
ture warning light
“ABS” warning light
“VSC” warning light
Tire pressure warning light
“4WD” warning light
Electric power steering system warning
light

’07 Rav4_U (L/O 0701)
150
2007 RAV4 from Dec. ’06 Prod. (OM42662U)
The traction control system automatical-
ly helps prevent the spinning of the
front wheels (twowheel drive models)
or 4 wheels (fourwheel drive models)
when the vehicle is started or acceler-
ated on slippery road surfaces.
When the ignition key is turned to “ON”,
the system automatically turns on.
CAUTION
Under certain slippery road condi-
tions, full traction of the vehicle and
power to the front wheels (twowheel
drive models) or 4 wheels (fourwheel
drive models) cannot be maintained,
even though the traction control sys-
tem is in operation. Do not drive the
vehicle under any speed or maneuver-
ing conditions which may cause the
vehicle to lose traction control. If the
road surface is covered with ice or
snow, your vehicle should be fitted
with snow tires or tire chains. Always
drive at a speed that is appropriate
for the present road conditions.
A sound may be heard from the engine
compartment for a few seconds when the
engine is started or just after the vehicle
begins to move. This means that the sys-
tem is in the self−check mode. This sound
does not indicate a malfunction. When the traction control system is oper-
ating, the following conditions occur:
The system controls the spinning of the
front wheels (two
−wheel drive models)
or 4 wheels (four −wheels drive mod-
els). At this time, the slip indicator light
blinks.
The vehicle may vibrate or make a
noise due to brake operation. This indi-
cates the system is functioning proper-
ly.
The slip indicator light comes on for a few
seconds when the ignition key is turned
to “ON”. If the indicator light does not
come on when the ignition key is turned
to “ON”, contact your Toyota dealer.
Traction control system

’07 Rav4_U (L/O 0701)
153
2007 RAV4 from Dec. ’06 Prod. (OM42662U)
If the light comes on while driving, all the
above systems will not work. In such a
case, the brakes will operate when applied
(no electronic assistance will be avail-
able), and it will be possible to continue
driving the vehicle.
In the following cases, contact your Toyota
dealer:
The warning light does not come on
when the ignition key is turned to
“ON”.
The warning light remains on after the
ignition key is turned to “ON”.
The warning light comes on while driv-
ing.The vehicle stability control system
helps provide integrated control of the
such systems as the antilock brake,
brake assist, traction control, engine
control, electric power steering. This
system automatically controls the
brakes, engine and power steering to
help prevent the vehicle from skidding
when cornering on a slippery road sur-
face or operating steering wheel abrupt-
ly.
This system activates when the vehicle
speed exceeds about 15 km/h (9 mph).
A sound may be heard from the engine
compartment for a few seconds when the
engine is started or just after the vehicle
begins to move. This means that the sys-
tem is in the self
−check mode. This sound
does not indicate a malfunction.

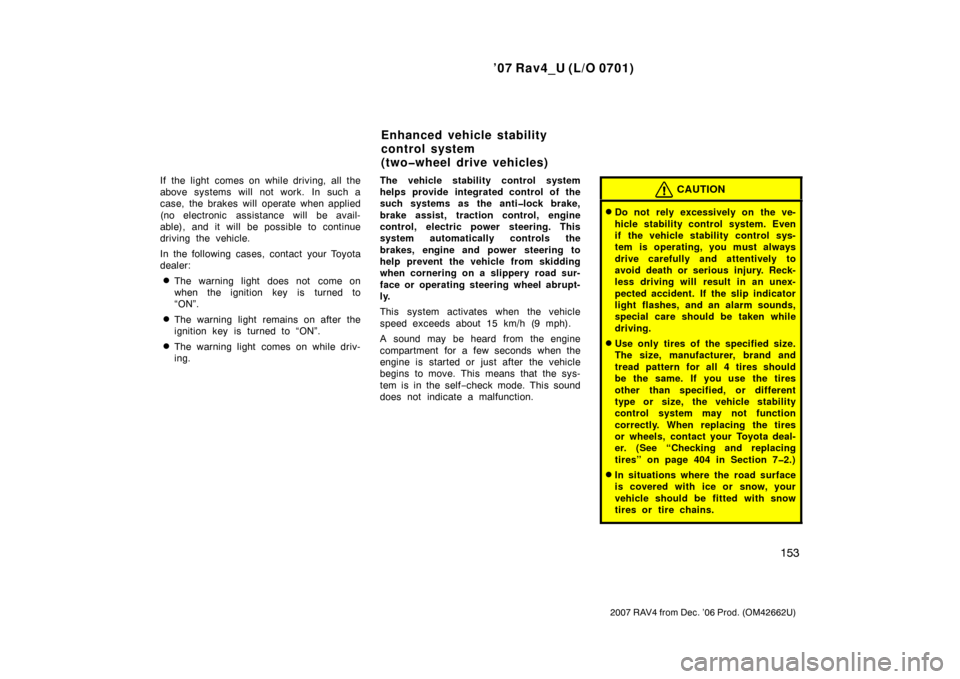

CAUTION
Do not rely excessively on the ve-
hicle stability control system. Even
if the vehicle stability control sys-
tem is operating, you must always
drive carefully and attentively to
avoid death or serious injury. Reck-
less driving will result in an unex-
pected accident. If the slip indicator
light flashes, and an alarm sounds,
special care should be taken while
driving.
Use only tires of the specified size.
The size, manufacturer, brand and
tread pattern for all 4 tires should
be the same. If you use the tires
other than specified, or different
type or size, the vehicle stability
control system may not function
correctly. When replacing the tires
or wheels, contact your Toyota deal-
er. (See “Checking and replacing
tires” on page 404 in Section 72.)
In situations where the road surface
is covered with ice or snow, your
vehicle should be fitted with snow
tires or tire chains.
Enhanced vehicle stability
control system
(twowheel drive vehicles)
