WHEN TO USE SNOW TIRES OR
CHAINS
Snow tires or chains are recommended
when driving on snow or ice.
On wet or dry roads, conventional tires
provide better traction than snow tires.
SNOW TIRE SELECTION
If you need snow tires, select tires of
the same size, construction and load
capacity as the originally installed tires.
Also, on all wheel drive models, all the
tires must be the same brand and have
the same tread patterns.
Do not use tires other than those men-
tioned above. Do not install studded tires
without first checking local regulations for
possible restrictions.
CAUTION
Observe the following instructions.
Otherwise, an accident may occur re-
sulting in death or serious injuries.
Do not use snow tires other than
the manufacturer ’s recommended si-
ze, as this may cause dangerous
handling characteristics resulting in
loss of control.
All wheel drive models:
Do not use snow tires of different
brands, sizes, construction or tread
patterns, as this may cause danger-
ous handling characteristics result-
ing in loss of control.
SNOW TIRE INSTALLATION
Snow tires should be installed on all
wheels.
Installing snow tires on the front wheels
only can lead to an excessive difference
in road grip capability between the front
and rear tires, which could cause loss of
vehicle control.
When storing removed tires, you should
store them in a cool dry place.
Mark the direction of rotation and be sure
to install them in the same direction when
replacing.
CAUTION
Do not drive with the snow tires
incorrectly inflated.
Never drive over 120 km/h (75 mph)
with any type of snow tires.

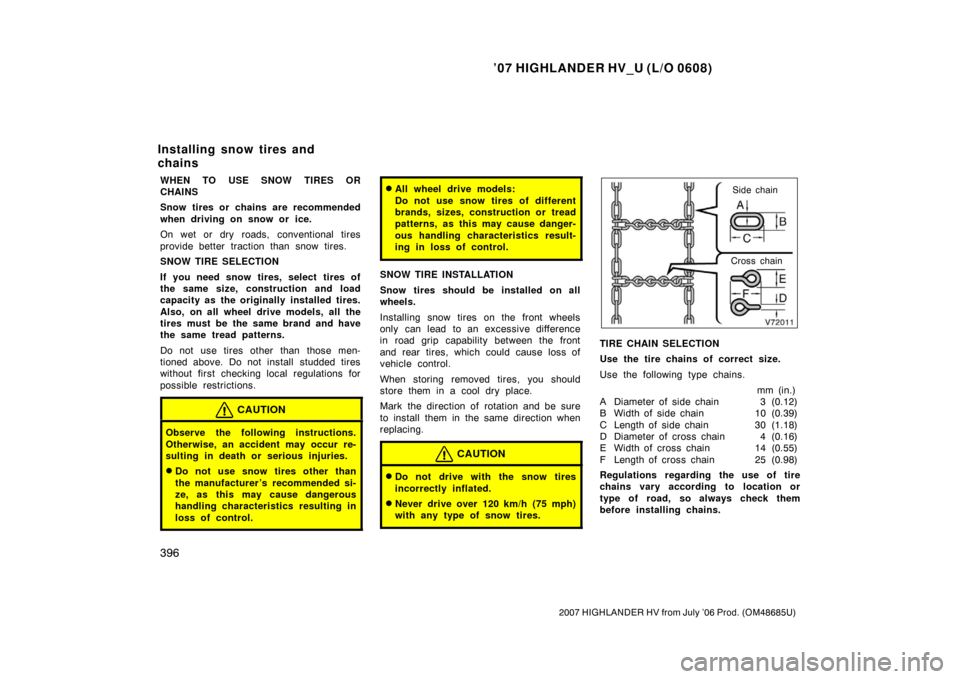

Side chain
Cross chain
TIRE CHAIN SELECTION
Use the tire chains of correct size.
Use the following type chains. mm (in.)
A Diameter of side chain 3 (0.12)
B Width of side chain 10 (0.39)
C Length of side chain 30 (1.18)
D Diameter of cross chain 4 (0.16)
E Width of cross chain 14 (0.55)
F Length of cross chain 25 (0.98)
Regulations regarding the use of tire
chains vary according to location or
type of road, so always check them
before installing chains.
Installing snow tires and
chains
