DOITYOURSELF MAINTENANCE
Electrical components
Checking 12 volt battery condition400
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
12 volt battery recharging precautions 401
. . . . . . . . . . . . . . . . . . . . . . . .
Checking and replacing fuses 402
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Adding washer fluid 403
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . .
Replacing light bulbs 404
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . .
SECTION 7 3

’07 HIGHLANDER HV_U (L/O 0608)
400
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)
CAUTION
BATTERY PRECAUTIONS
The battery produces flammable and
explosive hydrogen gas.
Do not cause a spark from the bat-
tery with tools.
Do not smoke or light a match near
the battery.
The electrolyte contains poisonous
and corrosive sulfuric acid.
Avoid contact with eyes, skin or
clothes.
Never ingest electrolyte.
Wear protective safety glasses when
working near the battery.
Keep children away from the bat-
tery.
EMERGENCY MEASURES
If electrolyte gets in your eyes,
flush your eyes with clean water
immediately and get immediate
medical attention. If possible, con-
tinue to apply water with a sponge
or cloth while en route to the medi-
cal office.
If electrolyte gets on your skin,
thoroughly wash the contact area. If
you feel pain or burning, get medi-
cal attention immediately.
If electrolyte gets on your clothes,
there is a possibility of its soaking
through to your skin, so immediate-
ly take off the exposed clothing and
follow the procedure above, if nec-
essary.
If you accidentally swallow electro-
lyte, drink a large quantity of water
or milk. Follow with milk of magne-
sia, beaten raw egg or vegetable
oil. Then go immediately for emer-
gency help.

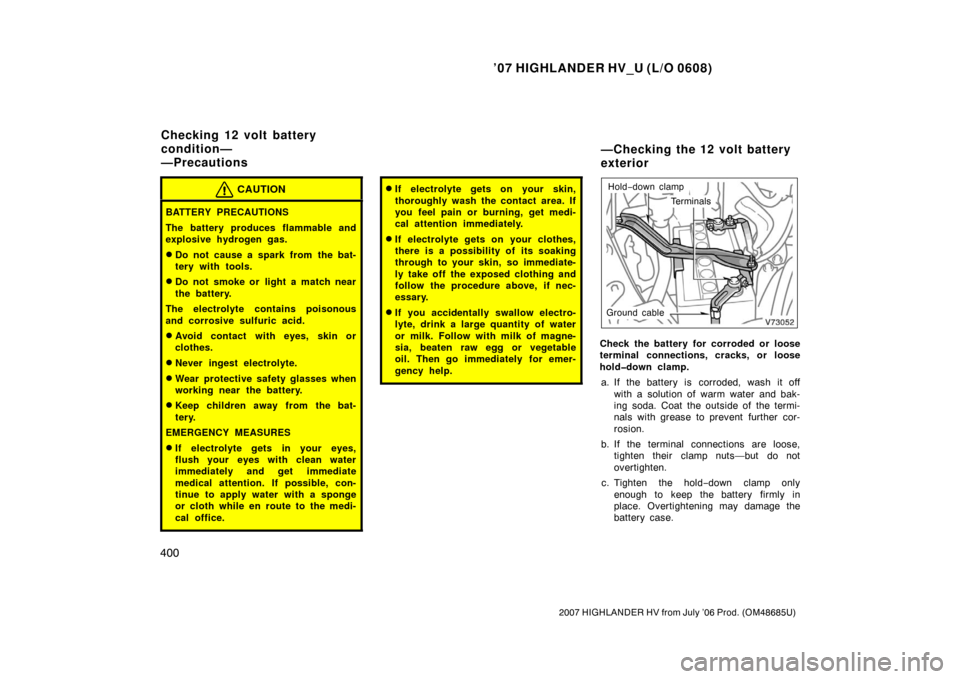

Hold −down clamp
Ground cable Terminals
Check the battery for corroded or loose
terminal connections, cracks, or loose
holddown clamp.
a. If the battery is corroded, wash it off with a solution of warm water and bak-
ing soda. Coat the outside of the termi-
nals with grease to prevent further cor-
rosion.
b. If the terminal connections are loose, tighten their clamp nuts—but do not
overtighten.
c. Tighten the hold −down clamp only
enough to keep the battery firmly in
place. Overtightening may damage the
battery case.
Checking 12 volt battery
condition—
—Precautions —Checking the 12 volt battery
exterior

’07 HIGHLANDER HV_U (L/O 0608)
401
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)
NOTICE
Be sure the hybrid system and all
accessories are off before perform-
ing maintenance.
 When checking the battery, remove
the ground cable from the negative
terminal (“” mark) first and rein-
stall it last.
 Be careful not to cause a short cir-
cuit with tools.
 Take care no solution gets into the
battery when washing it.Ty p e A
Green Dark Clear or
light yellow
Ty p e B Blue White Red
CHECKING BY INDICATOR
Check the battery condition by the indi-
cator color.
Indicator color
ConditionTy p e ATy p e B
GreenBlueGood
DarkWhite
Charging necessary.
Have battery
checked by your
Toyota dealer.
Clear orlight
yellow
Red
Have battery
checked by your
Toyota dealer.
During recharging, the battery is pro-
ducing hydrogen gas.
Therefore, before recharging:
1. If recharging with the battery installed on the vehicle, be sure to disconnect
the ground cable.
2. Be sure the power switch on the re- charger is off when connecting the
charger cables to the battery and when
disconnecting them.
CAUTION
Always charge the battery in an un-
confined area. Do not charge the
battery in a garage or closed room
where there is not sufficient ventila-
tion.
Only do a slow charge (5 A or
less). Charging at a quicker rate is
dangerous. The battery may ex-
plode, causing personal injuries.
NOTICE
Never recharge the battery with the
hybrid system on. Also, be sure all
accessories are turned off.
—Checking battery c ondition12 volt battery recharging
precautions

’07 HIGHLANDER HV_U (L/O 0608)
402
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)
GoodBlown
Ty p e A
Good Blown
Ty p e B
Good Blown
Ty p e C
If the headlights or other electrical
components do not work, check the
fuses. If any of the fuses are blown,
they must be replaced.
See “Fuse locations” on page 378 in Sec-
tion 7 −1 for locations of the fuses.
Turn the ignition switch and inoperative
component off. Pull the suspected fuse
straight out and check it.
Determine which fuse may be causing the
problem. The lid of the fuse box shows
the name of the circuit for each fuse. See
page 416 in Section 8 for the functions
controlled by each circuit.
Checking and replacing fuses

’07 HIGHLANDER HV_U (L/O 0608)
404
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)
The following illustrations show how to
gain access to the bulbs. When replacing
a bulb, make sure the ignition switch and
light switch are off. Use bulbs with the
wattage ratings given in the table.
The stop and tail lights consist of a num-
ber of LEDs. If any of the LEDs burn out,
take your vehicle to your Toyota dealer to
have the light replaced.
If two or more LEDs burn out, your ve-
hicle may not conform to local laws
(SAE).
CAUTION
To prevent burning yourself, do not
replace the light bulbs while they
are hot.
Halogen bulbs have pressurized gas
inside and require special handling.
They can burst or shatter if
scratched or dropped. Hold a bulb
only by its plastic or metal case.
Do not touch the glass part of a
bulb with bare hands.
NOTICE
Only use a bulb of the listed type.
The inside of the lens of exterior lights
such as headlights may temporarily fog up
when the lens becomes wet in the rain or
in a car wash. This is not a problem
because the fogging is caused by the
temperature difference between the outside
and inside of the lens, just like the
windshield fogs up in the rain. However, if
there is a large drop of water on the
inside of the lens, or if there is water
pooled inside the light, contact your
Toyota dealer.Light bulbsBulb
No.WTy p e
Headlights (low)900651A
Headlights (high)900560B
Front fog lights900651A
Front turn signals/
parking and front
side marker lights
—21/5C
Rear side marker
lights1685E
Rear turn signal
lights—21D
Back −up lights92116E
High mounted stop
light92116E
License plate
lights—5E
Interior lights—8F
Personal lights—5E
Vanity lights—2F
Door courtesy
lights1685E
Glove box light741.2E
Replacing light bulbs—

’07 HIGHLANDER HV_U (L/O 0608)
405
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)
A: HB4 halogen bulbs
B: HB3 halogen bulbs
C: Single end bulbs
D: Wedge base bulbs (amber)
E: Wedge base bulbs (clear)
F: Double end bulbs
1. Open the hood. Turn the bulb basecounterclockwise to the front of the
vehicle as shown.2. Pull the bulb out of the bulb baseand install a new bulb.
If the connector is tight, wiggle it.
—Headlights

’07 HIGHLANDER HV_U (L/O 0608)
406
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)
3. Insert the bulb base into the mount-ing hole by turning it clockwise.
Aiming is not necessary after replacing
the bulb. When aiming adjustment is nec-
essary, contact your Toyota dealer. If any of the following lights burns out,
contact your Toyota dealer.
Front fog lights
Front turn signals/parking and front
side marker lights
Rear side marker lights
NOTICE
Do not try to replace any of the light
bulbs mentioned above by yourself.
You may damage the vehicle.
—Front fog, front turn signal/
parking and front side marker,
and rear side marker lights
—Rear turn signal and
backup lights

’07 HIGHLANDER HV_U (L/O 0608)
407
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)

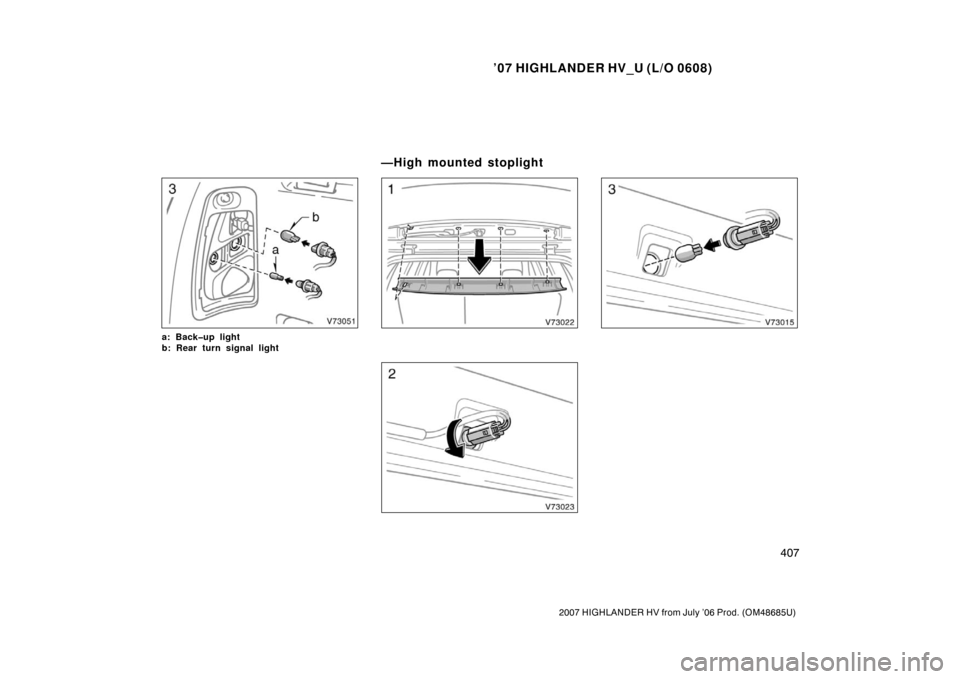

a: Backup light
b: Rear turn signal light
—High mounted stoplight
