2007 TOYOTA AVALON navigation system

3

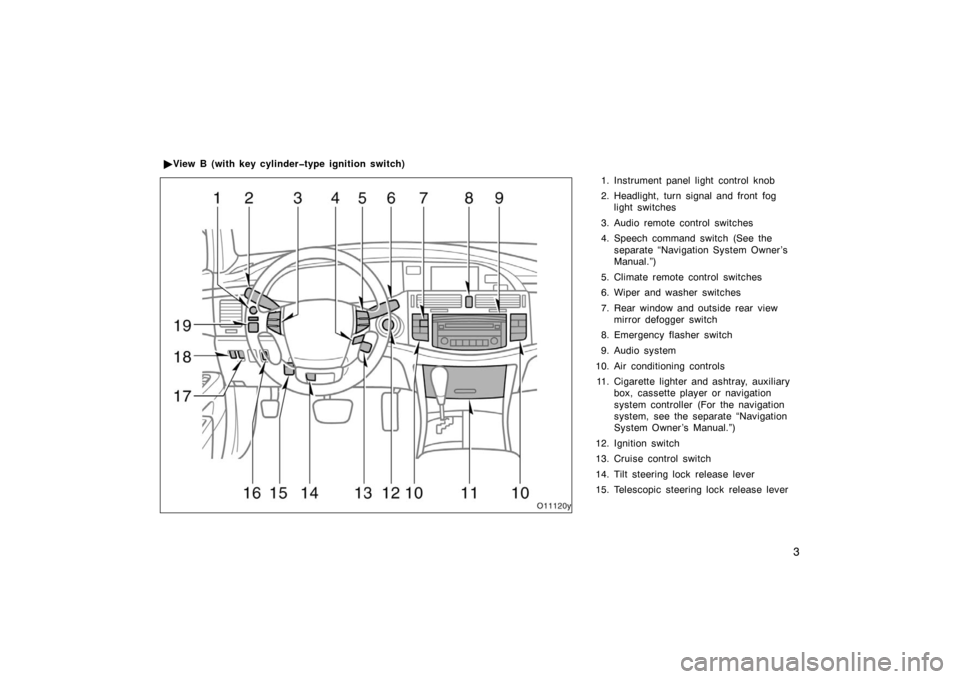

1. Instrument panel light control knob
2. Headlight, turn signal and front foglight switches
3. Audio remote control switches
4. Speech command switch (See the separate “Navigation System Owner ’s
Manual.”)
5. Climate remote control switches
6. Wiper and washer switches
7. Rear window and outside rear view mirror defogger switch
8. Emergency flasher switch
9. Audio system
10. Air conditioning controls 11. Cigarette lighter and ashtray, auxiliary box, cassette player or navigation
system controller (For the navigation
system, see the separate “Navigation
System Owner ’s Manual.”)
12. Ignition switch
13. Cruise control switch
14. Tilt steering lock release lever
15. Telescopic steering lock release lever

View B (with key cylindertype ignition switch)

5
1. Instrument panel light control knob
2. Headlight, turn signal and front foglight switches
3. Audio remote control switches
4. Speech command switch (See the separate “Navigation System Owner ’s
Manual.”)
5. Climate remote control switches
6. Wiper and washer switches
7. Rear window and outside rear view mirror defogger switch
8. Emergency flasher switch
9. Audio system
10. Air conditioning controls 11. Cigarette lighter and ashtray, auxiliary box, cassette player or navigation
system controller (For the navigation
system, see the separate “Navigation
System Owner ’s Manual.”)
12. Ignition switch (engine switch)
13. Cruise control switch
14. Distance switch
15. Tilt steering lock release lever

View B (with smart key system)

8
1. Clock
2. Center display
∗1
3. Front passenger ’s seat belt reminder
light∗2
4. “AIRBAG ON” and “AIRBAG OFF”
indicator lights
5. Pattern selector knob (for center display)
∗1: If your vehicle is equipped with navigation system, see the separate “Navigation System Owner ’s Manual”.
∗2: For details, see “Service reminder indicators and warning buzzers” on page 145 in Section 1 −6.
Center cluster overview

195
OPERATION OF INSTRUMENTS AND
CONTROLS
Audio system
Reference196
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . .
Using your audio system 197
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
Audio remote controls 221
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . .
Audio system operating hints 222
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
For information about the speech command system of a vehicle
equipped with navigation system, please refer to the separate
“Navigation System Owner’s Manual”.
SECTION 1 8

230
1. Air conditioning display (withoutnavigation system)
2. Air conditioning display (For the navigation system, see the separate
“Navigation System Owner ’s Manual.”)
3. Windshield air flow button
4. Temperature selector (“TEMP”) (with “DUAL” button indicator
on—individual setting on driver side
only)
(with “DUAL” button indicator
off—simultaneous setting on driver,
front passenger)
5. “AUTO” button
6. Temperature selector (“PASSENGER TEMP”)
(individual setting on front passenger
side only)
7. “OFF” button
8. “A/C” button
9. Air intake selector
10. “MODE” button (air flow selector)
11. Fan speed selector
12. “DUAL” button (temperature setting mode change)
Controls

387

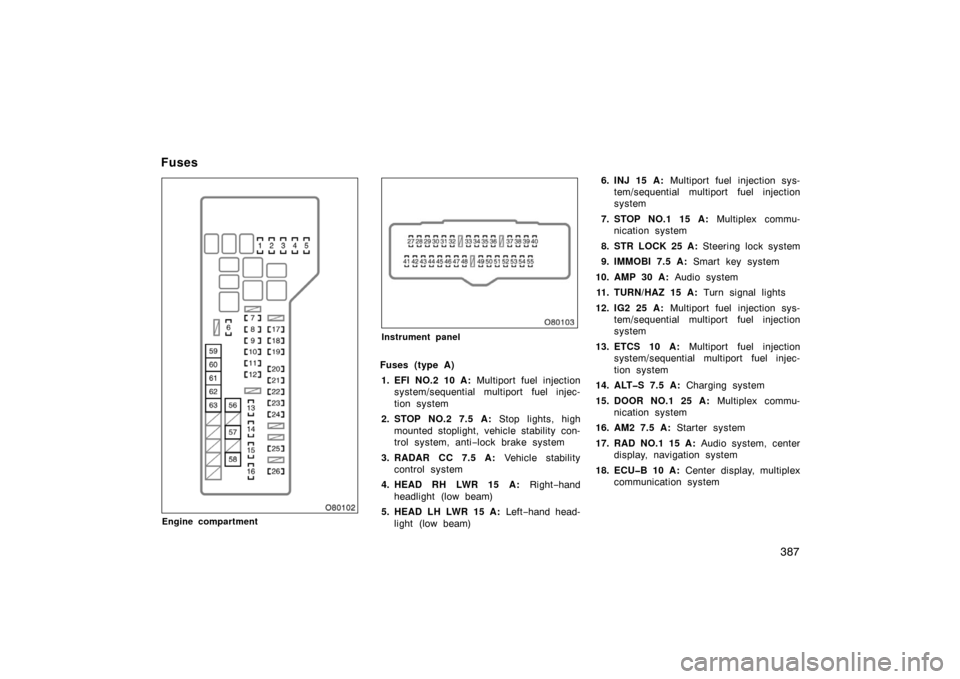

Engine compartment
Instrument panel
Fuses (type A)1. EFI NO.2 10 A: Multiport fuel injection
system/se quential multiport fuel injec-
tion system
2. STOP NO.2 7.5 A: Stop lights, high
mounted stoplight, vehicle stability con-
trol system, anti −lock brake system
3. RADAR CC 7.5 A: Vehicle stability
control system
4. HEAD RH LWR 15 A: Right−hand
headlight (low beam)
5. HEAD LH LWR 15 A: Left−hand head-
light (low beam) 6. INJ 15 A:
Multiport fuel injection sys-
tem/sequential multiport fuel injection
system
7. STOP NO.1 15 A: Multiplex commu-
nication system
8. STR LOCK 25 A: Steering lock system
9. IMMOBI 7.5 A: Smart key system
10. AMP 30 A: Audio system
11. TURN/HAZ 15 A: Turn signal lights
12. IG2 25 A: Multiport fuel injection sys-
tem/sequential multiport fuel injection
system
13. ETCS 10 A: Multiport fuel injection
system/s equential multiport fuel injec-
tion system
14. ALTS 7.5 A: Charging system
15. DOOR NO.1 25 A: Multiplex commu-
nication system
16. AM2 7.5 A: Starter system
17. RAD NO.1 15 A: Audio system, center
display, navigation system
18. ECUB 10 A: Center display, multiplex
communication system
Fuses

388
19. DOME 7.5 A: Gauges and meters,
clock, front personal lights, door cour-
tesy lights, garage door opener, rear
personal lights, trunk light
20. SHORN 7.5 A: Horn
21. WASHER 20 A: Windshield washer
22. A/F 25 A: Air fuel ratio sensor
23. HEAD RH UPR 15 A: Right−hand
headlight (high beam)
24. HEAD LH UPR 15 A: Left−hand head-
light (high beam)
25. HORN 10 A: Horn
26. EFI NO.1 25 A: Multiport fuel injection
system/s equential multiport fuel injec-
tion system, fuel pump
27. RR DOOR 25 A: Power window (for
rear right passenger)
28. RL DOOR 25 A: Power window (for
rear left passenger)
29. FR DOOR 25 A: Power window (front
passenger), driving position memory
system
30. FOG 15 A: Front fog lights
31. OBD 7.5 A: On−board diagnosis sys-
tem
32. MPXB 7.5 A: Multiplex communication
system 33. P/W 25 A:
Power window, driving posi-
tion memory system
34. FUEL OPN 7.5 A: Fuel filler door
opener
35. AM1 7.5 A: Multiport fuel injection sys-
tem/sequential multiport fuel injection
system, starting system, ignition sys-
tem
36. A/C 7.5 A: Air conditioning system
37. DOOR NO.2 25 A: Multiplex commu-
nication system
38. S/ROOF 30 A: Electric moon roof
39. TAIL 10 A: Parking lights, license plate
lights, tail lights, front and rear side
marker lights
40. PANEL 7.5 A: Seat heaters, navigation
system, emer gency flasher, electroni-
cally controlled automatic transmission
system, glove box light, instrument
panel lights, power outlets
41. ECU IG NO.1 10 A: Center display,
shift lock control system, electric moon
roof, multiplex communication system
42. ECU IG NO.2 10 A: Anti−lock brake
system, dynamic laser cruise control
system, automatic headlight leveling
system, vehicle stability control system,
multiplex communication system 43. HTR 7.5 A:
Air conditioning system,
instrument panel lights, electric cooling
fan
44. A/C COMP 7.5 A: Air conditioning sys-
tem
45. SHTR 20 A: Air conditioning system
46. GAUGE NO.1 10 A: Back−up lights,
navigation system, emergency flashers
47. WIP 30 A: Windshield wipers
48. RR S/SHADE 10 A: Rear electric sun-
shade
49. IGN 10 A: Multiport fuel injection sys-
t

em/sequential multiport fuel injection
system, SRS airbag system, front pas-
senger occupant classification system,
smart key system, starter system
50. GAUGE NO.2 7.5 A: Gauges and me-
ters, center display
51. ECUACC 7.5 A: Power rear view mir-
rors, center display, shift lock system,
multiplex communication system
52. CIG 15 A: Cigarette lighter
53. PWR OUTLET 15 A: Power outlets
54. RADIO NO.2 7.5 A: Audio system,
navigation system
55. MIR HTR 10 A: Outside rear view mir-
ror defoggers
