2007 TOYOTA 4RUNNER steering wheel adjustment

492007 4Runner from Aug. ’06 Prod. (OM35866U)
To make only slight changes to an already
memorized position, the easiest way is to
first activate the memorized position, then
make the desired changes and perform
step 2 above.
CY13301
RECALLING THE MEMORIZED POSITION
When you push button “1” or “2”, a
beep will sound and the driving posi-
tion will be automatically adjusted to
the position recorded for that button.
The memorized position can be recalled
under the following conditions:
The ignition key is in the “ON” position
and the selector lever is in the “P”
position.
The ignition key is turned to the
“LOCK” position or the key is not in
the ignition switch, and less than 30
seconds have passed since opening
the driver ’s door.To stop the operation, push any driving
position memory button.
To reactivate the system, push the button
“1” or “2” again.
If the vehicle’s battery is disconnected,
the memory will be erased and the posi-
tions will have to be set again.
CAUTION
Do not start the vehicle while the
adjustments are being made.
Take care not to select the wrong
button, or the seat could strike the
rear passenger or hit your body
against the steering wheel. If this
happens, you can stop the move-
ment by pressing another driving
position memory switch.

1202007 4Runner from Aug. ’06 Prod. (OM35866U)

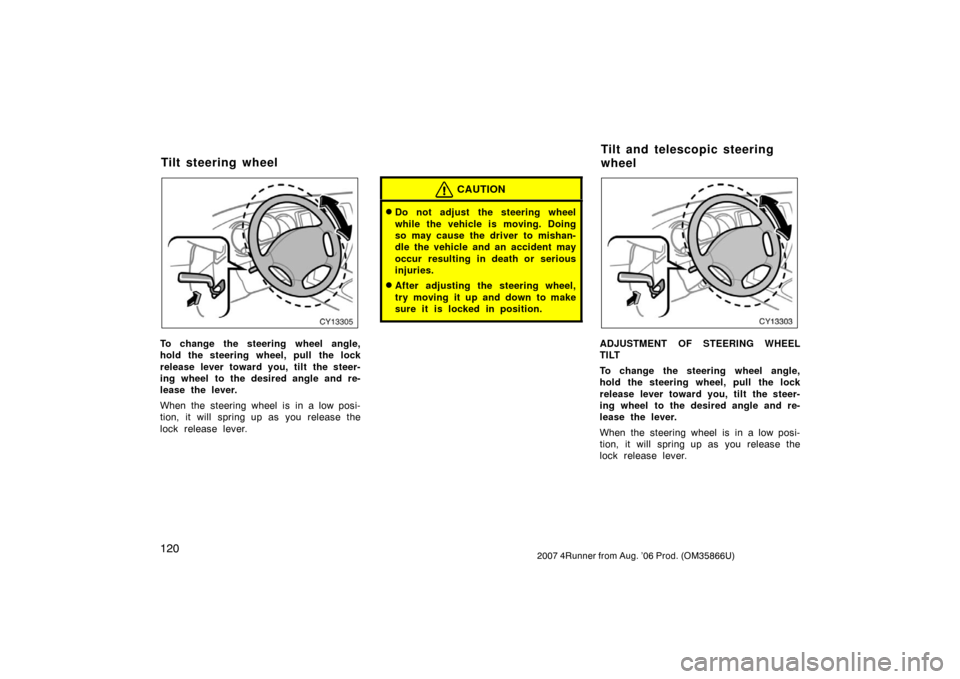

CY13305
To change the steering wheel angle,
hold the steering wheel, pull the lock
release lever toward you, tilt the steer-
ing wheel to the desired angle and re-
lease the lever.
When the steering wheel is in a low posi-
tion, it will spring up as you release the
lock release lever.
CAUTION
Do not adjust the steering wheel
while the vehicle is moving. Doing
so may cause the driver to mishan-
dle the vehicle and an accident may
occur resulting in death or serious
injuries.
After adjusting the steering wheel,
try moving it up and down to make
sure it is locked in position.
CY13303
ADJUSTMENT OF STEERING WHEEL
TILT
To change the steering wheel angle,
hold the steering wheel, pull the lock
release lever toward you, tilt the steer-
ing wheel to the desired angle and re-
lease the lever.
When the steering wheel is in a low posi-
tion, it will spring up as you release the
lock release lever.
Tilt steering wheelTilt and telescopic steering
wheel

1212007 4Runner from Aug. ’06 Prod. (OM35866U)
CY13304
ADJUSTMENT OF TELESCOPIC
STEERING COLUMN
To change the steering wheel length,
push down the lock release lever, set
the steering wheel to the desired length
and return the lever to its original posi-
tion.
CAUTION
Do not adjust the steering wheel
while the vehicle is moving. Doing
so may cause the driver to mishan-
dle the vehicle and an accident may
occur resulting in death or serious
injuries.
After adjusting the steering wheel,
try moving it up and down or for-
ward and rearward to make sure it
is locked in position.
CY13009
Adjust the mirror so that you can just
see the side of your vehicle in the mir-
ror.
Be careful when judging the size or dis-
tance of any object seen in the outside
rear view mirror on the passenger ’s side
because it is a convex mirror. Any object
seen in a convex mirror will look smaller
and farther away than when seen in a flat
mirror.
On some models, when you push the
back window defogger switch, the heater
panels in the outside rear view mirrors will
quickly clear the surface. (See “Back
window and outside rear view mirror
defoggers” on page 142 in Section 1−5.)
Outside rear view mirrors—

4502007 4Runner from Aug. ’06 Prod. (OM35866U)
BRAKES
Minimum pedal clearance when depressed
with the force of 490 N (50 kgf, 110 lbf)
with the engine running, mm (in.):54 (2.1)
Pedal free play, mm (in.): 1—6 (0.04—0.24)
Pad wear limit, mm (in.): 1.0 (0.04)
Lining wear limit, mm (in.): 1.0 (0.04)
Parking brake adjustment when depressed
with the force of 294 N (30 kgf, 66.1 lbf): 5—7 clicks
Fluid type: SAE J1703 or FMVSS No.116 DOT 3
STEERING
Wheel free play: Less than 30 mm (1.2 in.)
Power steering fluid type: Automatic transmission fluid DEXRON II
or III
