522007 4Runner from Aug. ’06 Prod. (OM35866U)

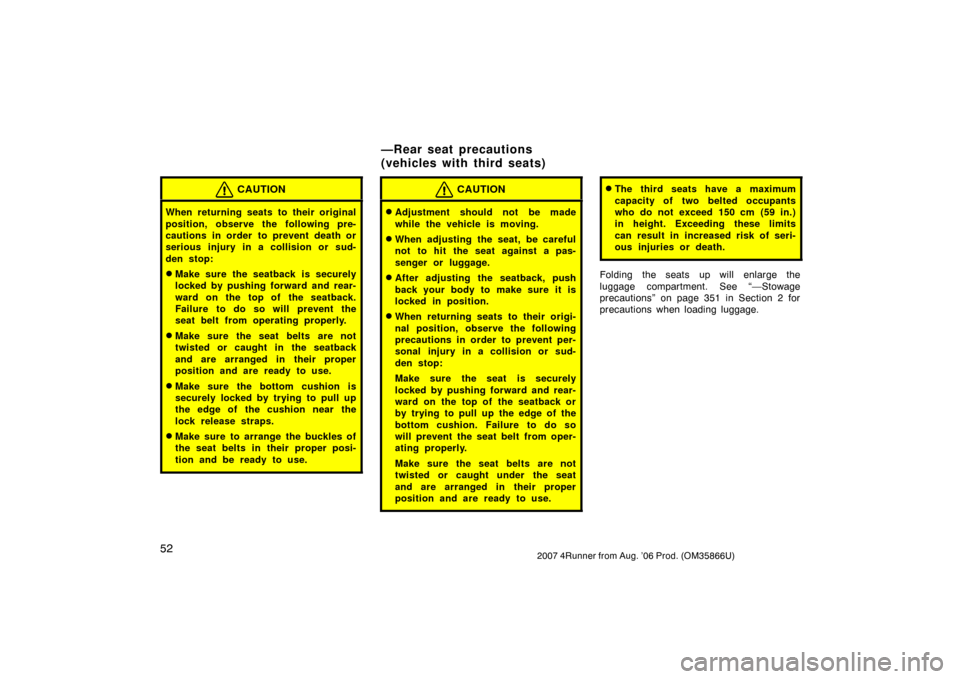

CAUTION
When returning seats to their original
position, observe the following pre-
cautions in order to prevent death or
serious injury in a collision or sud-
den stop:
Make sure the seatback is securely
locked by pushing forward and rear-
ward on the top of the seatback.
Failure to do so will prevent the
seat belt from operating properly.
Make sure the seat belts are not
twisted or caught in the seatback
and are arranged in their proper
position and are ready to use.
Make sure the bottom cushion is
securely locked by trying to pull up
the edge of the cushion near the
lock release straps.
Make sure to arrange the buckles of
the seat belts in their proper posi-
tion and be ready to use.
CAUTION
Adjustment should not be made
while the vehicle is moving.
When adjusting the seat, be careful
not to hit the seat against a pas-
senger or luggage.
After adjusting the seatback, push
back your body to make sure it is
locked in position.
When returning seats to their origi-
nal position, observe the following
precautions in order to prevent per-
sonal injury in a collision or sud-
den stop:
Make sure the seat is securely
locked by pushing forward and rear-
ward on the top of the seatback or
by trying to pull up the edge of the
bottom cushion. Failure to do so
will prevent the seat belt from oper-
ating properly.
Make sure the seat belts are not
twisted or caught under the seat
and are arranged in their proper
position and are ready to use.
The third seats have a maximum
capacity of two belted occupants
who do not exceed 150 cm (59 in.)
in height. Exceeding these limits
can result in increased risk of seri-
ous injuries or death.
Folding the seats up will enlarge the
luggage compartment. See “—Stowage
precautions” on page 351 in Section 2 for
precautions when loading luggage.
—Rear seat precautions
(vehicles with third seats)
1862007 4Runner from Aug. ’06 Prod. (OM35866U)
If the vehicle is moved to its usual loca-
tion or the ice is removed and the height
select switch is pressed, the vehicle
height control cannot be operated. In this
case, turn off and restart the engine, then
push the control switches.

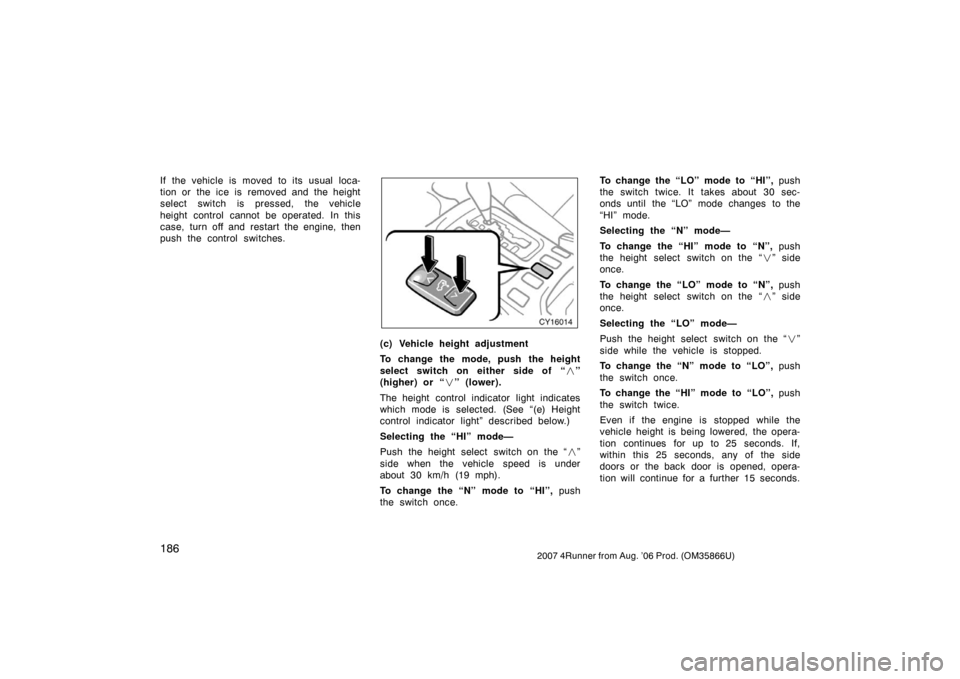

CY16014
(c) Vehicle height adjustment
To change the mode, push the height
select switch on either side of “”
(higher) or “ ” (lower).
The height control indicator light indicates
which mode is selected. (See “(e) Height
control indicator light” described below.)
Selecting the “HI” mode—
Push the height select switch on the “ ”
side when the vehicle speed is under
about 30 km/h (19 mph).
To change the “N” mode to “HI”, push
the switch once. To change the “LO” mode to “HI”,
push
the switch twice. It takes about 30 sec-
onds until the “LO” mode changes to the
“HI” mode.
Selecting the “N” mode—
To change the “HI” mode to “N”, push
the height select switch on the “ ” side
once.
To change the “LO” mode to “N”, push
the height select switch on the “ ” side
once.
Selecting the “LO” mode—
Push the height select switch on the “ ”
side while the vehicle is stopped.
To change the “N” mode to “LO”, push
the switch once.
To change the “HI” mode to “LO”, push
the switch twice.
Even if the engine is stopped while the
vehicle height is being lowered, the opera-
tion continues for up to 25 seconds. If,
within this 25 seconds, any of the side
doors or the back door is opened, opera-
tion will continue for a further 15 seconds.
