2007 TOYOTA 4RUNNER fog light

42007 4Runner from Aug. ’06 Prod. (OM35866U)
1. Driving position memory switches
2. Headlight, turn signal and front foglight switches
3. Wiper and washer switches
4. Power back window switch
5. Audio system/rear view monitor system and navigation system including audio
system (For the navigation system, see
the separate “Navigation System
Owner ’s Manual”.)
6. Front passenger ’s seat belt reminder light
7. Engine immobilizer/theft deterrent system indicator light
8. Front passenger occupant classification indicator light
9. Multi −information display
10. Emergency flasher switch
11. Air conditioning controls
12. Auxiliary box
13. Back window and outside rear view mirror defogger switch
14. Four −wheel drive control switch knob
(full −time four −wheel drive models) or
multi −mode control switch knob
(multi −mode four −wheel drive models)
CY11088y

92007 4Runner from Aug. ’06 Prod. (OM35866U)
Center differential lock indicator light∗3
(four −wheel drive models)
Automatic transmission indicator lights
Slip indicator light
Turn signal indicator lights
Low speed four
−wheel drive indicator light∗
3
(four −wheel drive models)
Downhill assist control system indicator light
(four −wheel drive models)
Headlight high beam indicator light
Engine immobilizer/theft deterrent system
indicator light
Roll sensing of curtain shield airbags off
indicator light∗
2
Headlight low beam indicator light
Tail light indicator light
“AUTO LSD” indicator light
(two −wheel drive models)
Low windshield washer fluid level warning
light∗
1 (for vehicles sold in Canada)
Front passenger occupant classification indicator
light
Vehicle stability control system off indicator light
(four−wheel drive models)
Four −wheel drive indicator light∗
3
(multi −mode four −wheel drive models)
Front fog light indicator light

1292007 4Runner from Aug. ’06 Prod. (OM35866U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Lights, Wipers and Defogger
Headlights and turn signals130
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Emergency flashers 135
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . .
Instrument panel light control 135
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Front fog lights 136
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . .
Interior light 136
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . .
Personal lights 138
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . .
Luggage compartment light 138
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Ignition switch light 139
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . .
Running board lights 140
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . .
Windshield wipers and washer 141
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Back window wiper and washer 141
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Back window and outside rear view mirror defoggers 142
. . . . . . . . . . .
SECTION 1 5

1362007 4Runner from Aug. ’06 Prod. (OM35866U)

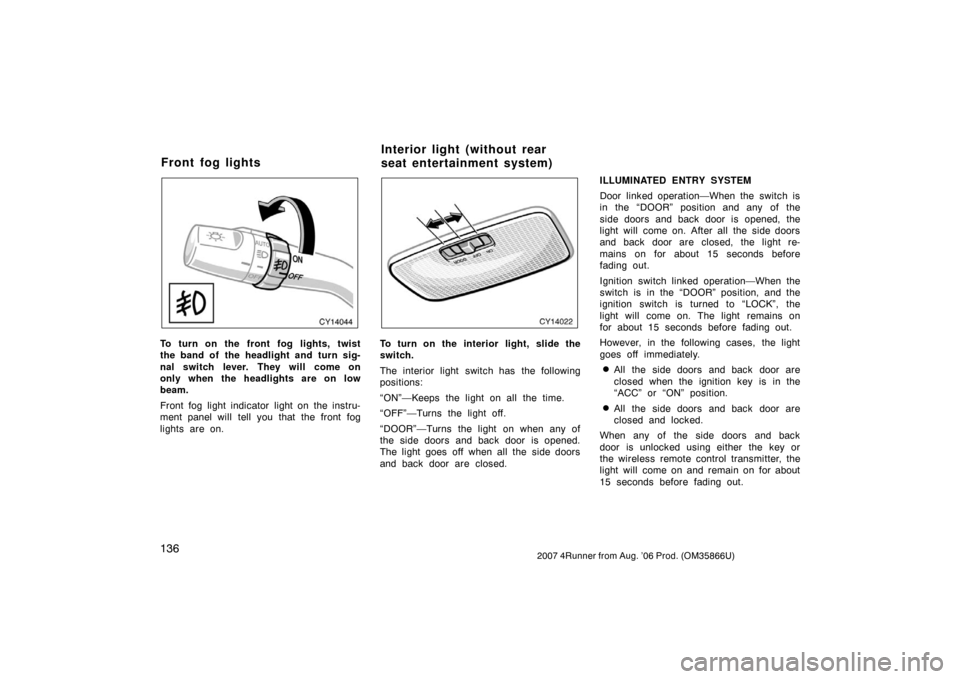

CY14044
To turn on the front fog lights, twist
the band of the headlight and turn sig-
nal switch lever. They will come on
only when the headlights are on low
beam.
Front fog light indicator light on the instru-
ment panel will tell you that the front fog
lights are on.
CY14022
To turn on the interior light, slide the
switch.
The interior light switch has the following
positions:
“ON”—Keeps the light on all the time.
“OFF”—Turns the light off.
“DOOR”—Turns the light on when any of
the side doors and back door is opened.
The light goes off when all the side doors
and back door are closed.ILLUMINATED ENTRY SYSTEM
Door linked operation—When the switch is
in the “DOOR” position and any of the
side doors and back door is opened, the
light will come on. After all the side doors
and back door are closed, the light re-
mains on for about 15 seconds before
fading out.
Ignition switch linked operation—When the
switch is in the “DOOR” position, and the
ignition switch is turned to “LOCK”, the
light will come on. The light remains on
for about 15 seconds before fading out.
However, in the following cases, the light
goes off immediately.
All the side doors and back door are
closed when the ignition key is in the
“ACC” or “ON” position.
All the side doors and back door are
closed and locked.
When any of the side doors and back
door is unlocked using either the key or
the wireless remote control transmitter, the
light will come on and remain on for about
15 seconds before fading out.
Front fog lights Interior light (without rear
seat entertainment system)

1422007 4Runner from Aug. ’06 Prod. (OM35866U)
If the back window is not fully closed, the
back window wiper and washer will not
work. Make sure the back window is fully
closed when using the back window wiper
and washer.
NOTICE
Do not operate the back window wip-
er if the back window is dry. It may
scratch the glass.
CY14009
To defog or defrost the back window,
push the switch with the back window
closed.
The key must be in the “ON” position.
The thin heater wires on the inside of the
back window will quickly clear the surface.
An indicator light will illuminate to indicate
the defogger is operating.
On some models, heater panels in the
outside rear view mirrors will also quickly
clear the surfaces.
Push the switch once again to turn the
defoggers off.
The system will automatically shut off af-
ter the defoggers have operated about 15
minutes.If the back window is not fully closed, the
back window defogger will not work. Make
sure the back window is fully closed when
using the back window defogger.
If the back window is opened while the
defogger is working, the defogger will au-
tomatically turn off. Even if the back win-
dow is fully closed after that, the defogger
will not automatically turn on.
Make sure you turn the defoggers off
when the surfaces are clear. Leaving the
defoggers on for a long time could cause
the battery to discharge, especially during
stop
−and− go driving. The defoggers are
not designed for drying rain water or for
melting snow.
CAUTION
On some models, since the mirror
surfaces can get hot, do not touch
them when the defogger switch is on.
NOTICE
When cleaning the inside of the back
window, be careful not to scratch or
damage the heater wires or connec-
tors.
Back window and outside rear
view mirror defoggers

2822007 4Runner from Aug. ’06 Prod. (OM35866U)
4. Floor/Windshield—Air flows mainly
from the floor vents and windshield
vents and fan speed may increase in
order to clean up the front view.
This button allows the air intake to
select FRESH automatically. This is to
clean up the front view more quickly.
If you want to return the setting to
RECIRCULATE mode, press the air in-
take selector button once again.
5. Windshield— Air flows mainly from the
windshield vents and fan speed may
increase in order to clean up the front
view.
Pressing this button once again returns
the air flow mode to the last one used.
This button allows the air intake to
select FRESH automatically. This is to
clean up the front view more quickly.
It is not possible to return to RECIR-
CULATE in this mode.
For details about air flow selector settings,
see “Air flow selector settings” described
below.

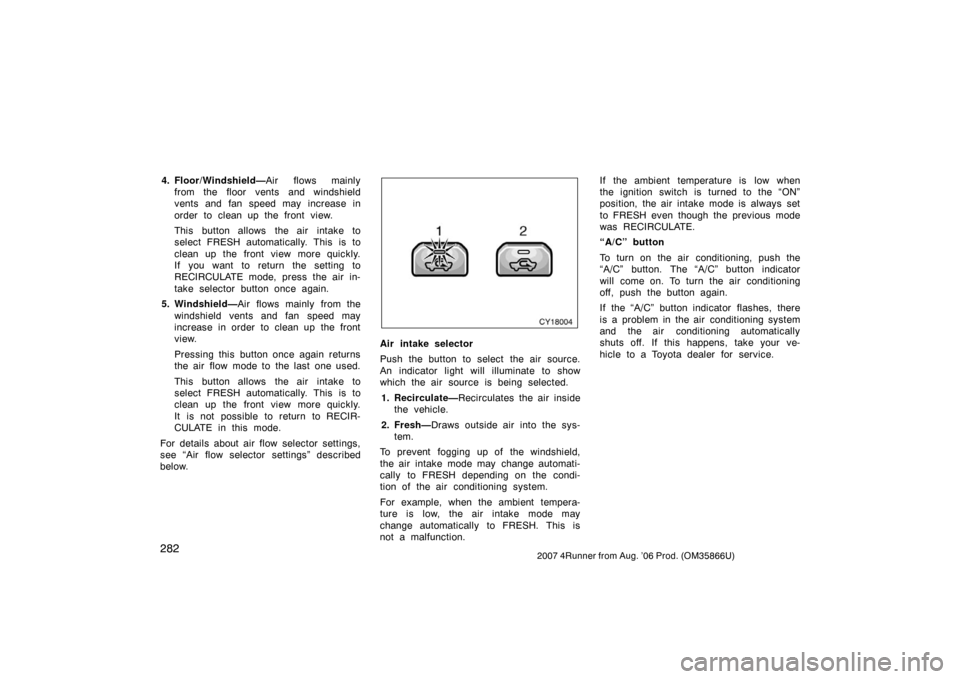

CY18004
Air intake selector
Push the button to select the air source.
An indicator light will illuminate to show
which the air source is being selected. 1. Recirculate— Recirculates the air inside
the vehicle.
2. Fresh— Draws outside air into the sys-
tem.
To prevent fogging up of the windshield,
the air intake mode may change automati-
cally to FRESH depending on the condi-
tion of the air conditioning system.
For example, when the ambient tempera-
ture is low, the air intake mode may
change automatically to FRESH. This is
not a malfunction. If the ambient temperature is low when
the ignition switch is turned to the “ON”
position, the air intake mode is always set
to FRESH even though the previous mode
was RECIRCULATE.
“A/C” button
To turn on the air conditioning, push the
“A/C” button. The
“A/C” button indicator
will come on. To turn the air conditioning
off, push the button again.
If the “A/C” button indicator flashes, there
is a problem in the air conditioning system
and the air conditioning automatically
shuts off. If this happens, take your ve-
hicle to a Toyota dealer for service.

2852007 4Runner from Aug. ’06 Prod. (OM35866U)
4. Floor/Windshield—Air flows mainly
from the floor vents and windshield
vents and fan speed may increase in
order to clean up the front view.
This button allows the air intake to
select FRESH automatically. This is to
clean up the front view more quickly.
If you want to return the setting to
RECIRCULATE mode, press the air in-
take selector button once again.
5. Windshield— Air flows mainly from the
windshield vents and fan speed may
increase in order to clean up the front
view.
Pressing this button once again returns
the air flow mode to the last one used.
This button allows the air intake to
select FRESH automatically. This is to
clean up the front view more quickly.
It is not possible to return to RECIR-
CULATE in this mode.
For details about air flow selector settings,
see “Air flow selector settings” described
below.
CY18004
Air intake selector
Push the button to select the air source.
An indicator light will illuminate to show
which the air source is being selected. 1. Recirculate— Recirculates the air inside
the vehicle.
2. Fresh— Draws outside air into the sys-
tem.
To prevent fogging up of the windshield,
the air intake mode may change automati-
cally to FRESH depending on the condi-
tion of the air conditioning system.
For example, when the ambient tempera-
ture is low, the air intake mode may
change automatically to FRESH. This is
not a malfunction. If the ambient temperature is low when
the ignition switch is turned to the “ON”
position, the air intake mode is always set
to FRESH even though the previous mode
was RECIRCULATE.
“A/C” button
To turn on the air conditioning, push the
“A/C” button. The “A/C” button indicator
will come on. To turn the air conditioning
off, push the button again.
If the “A/C” button indicator flashes, there
is a problem in the air conditioning system
and the air conditioning automatically
shuts off. If this happens, take your ve-
hicle to your Toyota dealer for service.

4032007 4Runner from Aug. ’06 Prod. (OM35866U)
The interior of your vehicle is apt
to heat up on hot summer days, so
avoid placing on the upholstery
items made of vinyl or plastic or
containing wax as these tend to
stick to leather when warm .
 Improper cleaning of the leather up-
holstery could result in discolor-
ation or staining.
If you have any questions about the
cleaning of your Toyota, your local
Toyota dealer will be pleased to answer
them. On some models, the outside rear view
mirrors have been coated to produce a
“rain clearing” effect. This coating
causes the raindrops to spread, clear-
ing the driver’s rear view when it rains.
It is sufficient to wash the mirrors with
water for day to day care.
The rain clearing effect is reduced in
drizzle and light rain.
In the following cases, the rain clearing
effect will be reduced temporarily, but will
gradually recover.
After wiping dirt off the mirrors
When the mirrors fog up
After waxing your vehicle in an auto-
matic car wash
After your vehicle has been parked for
a long period in underground parking
lots, etc. where there is no direct sun-
light.
If you would like to restore the rain clear-
ing effect to its normal level immediately
in the above cases, wash the mirrors with
neutral detergent, then rinse thoroughly.
NOTICE
To maintain the rain clearing ability,
and prevent the mirrors from being
scratched, observe the following pre-
cautions.
 Do not use any glass cleaners that
contain compounds.
 If ice should jam the mirror, do not
scrape the mirror. Use a spray de
icer to free the mirror.
 Wash off any wax stuck to the mir-
rors with neutral detergent and
rinse thoroughly as any wax on the
surface of the mirrors can cause
the rain clearing effect to be lost.
 Do not use any water repellents as
they can destroy the rain clearing
effect. If any repellent gets stuck on
the surface of the mirrors, wash it
off with neutral detergent, then
rinse thoroughly.
Rain clearing mirrors
