2007 TOYOTA 4RUNNER lock

372007 4Runner from Aug. ’06 Prod. (OM35866U)
CY12081
This indicates that the fuel filler door
is on the left side of your vehicle.
CY12055
1. To open the fuel filler door, pull thelever.
When refueling, turn off the engine.
CAUTION
Do not smoke, cause sparks or al-
low open flames when refueling.
The fumes are flammable.
When opening the cap, do not re-
move the cap quickly. In hot weath-
er, fuel under pressure could cause
injury by spraying out of the filler
neck if the cap is suddenly re-
moved.
CY12060
2. To remove the fuel tank cap, turnthe cap counterclockwise by 90 de-
grees (to the pressure point 1), and
then turn it an additional 30 degrees
(to point 2). Pause slightly before
removing it.
It is not unusual to hear a slight swoosh
when the cap is opened.
Fuel tank cap

382007 4Runner from Aug. ’06 Prod. (OM35866U)
CY12056
3. The removed cap can be stored onthe back side of the fuel filler door.
Position the cap so that the hooks point
to the left and right or up and down, and
set it in the receptacle on the back side
of the door.
When installing the cap, turn the cap
clockwise until you hear a click. When
you hear the click, the cap is fully
closed.
If the cap is not installed securely, the
malfunction indicator lamp comes on.
Make sure the cap is tightened securely.
The indicator lamp goes off after driving
several times. If the indicator lamp does
not go off, contact your Toyota dealer as
soon as possible.
CAUTION
Make sure the cap is installed se-
curely to prevent fuel sp illage in
the event of an accident.
Use only a genuine Toyota fuel tank
cap for replacement. It is designed
to regulate fuel tank pressure.
NOTICE
To prevent damage to the cap, apply
force only in the turning direction to
the cap. Do not pull or pry it.

432007 4Runner from Aug. ’06 Prod. (OM35866U)
Front passenger seat
CAUTION
The SRS front passenger airbag also
deploys with considerable force, and
can cause death or serious injury es-
pecially if the front passenger is very
close to the airbag. The front passen-
ger seat should be as far from the
airbag as possible with the seatback
adjusted, so the front passenger sits
upright.
Front seats (with SRS side airbags)
CAUTION
The SRS side airbags are installed in
the driver and front passenger seats.
Observe the following precautions.
Do not lean against the front door
when the vehicle is in use, since
the side airbag inflates with consid-
erable speed and force. Otherwise,
you may be killed or seriously in-
jured.
Do not use seat accessories which
cover the area where the side air-
bags inflate. Such accessories may
prevent the side airbags from acti-
vating correctly, causing death or
serious injury.
Do not modify or replace the seats
or upholstery of the seats with side
airbags. Such change may prevent
the side airbag system from activat-
ing correctly, disable the system or
cause the side airbags to inflate ac-
cidentally, resulting in death or seri-
ous injury.
CAUTION
Do not adjust the seat while the
vehicle is moving as the seat may
unexpectedly move and cause the
driver to lose control of the vehicle.
Be careful that the seat does not
hit a passenger or luggage.
After adjusting the seat position, re-
lease the lever and try sliding the
seat forward and backward to make
sure it is locked in position.
After adjusting the seatback, push
your body back against the seat to
make sure the seat is locked in
position.
Do not put objects under the seats.
Otherwise, the objects may interfere
with the seatlock mechanism or
unexpectedly push up the seat posi-
tion adjusting lever and the seat
may suddenly move, causing the
driver to lose control of the vehicle.
—Seat adjustment precautions

462007 4Runner from Aug. ’06 Prod. (OM35866U)
CAUTION
Avoid reclining the seatback any
more than needed. The seat belts pro-
vide maximum protection in a frontal
or rear collision when the driver and
the front passenger are sitting up
straight and well back in the seats. If
you are reclined, the lap belt may
slide past your hips and apply re-
straint forces directly to the abdomen
or your neck may contact the shoul-
der belt. In the event of a frontal
collision, the more the seat is re-
clined, the greater the risk of death
or serious injury.
3. SEAT LUMBAR SUPPORTADJUSTING SWITCH (driver ’s seat
only)
Push the control switch on either side.
The amount of lumbar support will change
while the switch is pushed.
CY13282
1. Remove the head restraint. Hold the center of the lever and pull it up.
Then slide the seat further forward
than the frontmost lock position.
CY13283
2. Pull the seatback angle adjusting le-ver to unlock and push down the
seatback.
When returning the seatback upright, be
careful not to make yourself hit by the
seatback which will bound with consid-
erable spring force.
After returning the seat to its original
position, be certain to replace the head
restraint.
—Flattening seatbacks
(manual seat)

492007 4Runner from Aug. ’06 Prod. (OM35866U)
To make only slight changes to an already
memorized position, the easiest way is to
first activate the memorized position, then
make the desired changes and perform
step 2 above.
CY13301
RECALLING THE MEMORIZED POSITION
When you push button “1” or “2”, a
beep will sound and the driving posi-
tion will be automatically adjusted to
the position recorded for that button.
The memorized position can be recalled
under the following conditions:
The ignition key is in the “ON” position
and the selector lever is in the “P”
position.
The ignition key is turned to the
“LOCK” position or the key is not in
the ignition switch, and less than 30
seconds have passed since opening
the driver ’s door.To stop the operation, push any driving
position memory button.
To reactivate the system, push the button
“1” or “2” again.
If the vehicle’s battery is disconnected,
the memory will be erased and the posi-
tions will have to be set again.
CAUTION
Do not start the vehicle while the
adjustments are being made.
Take care not to select the wrong
button, or the seat could strike the
rear passenger or hit your body
against the steering wheel. If this
happens, you can stop the move-
ment by pressing another driving
position memory switch.

512007 4Runner from Aug. ’06 Prod. (OM35866U)

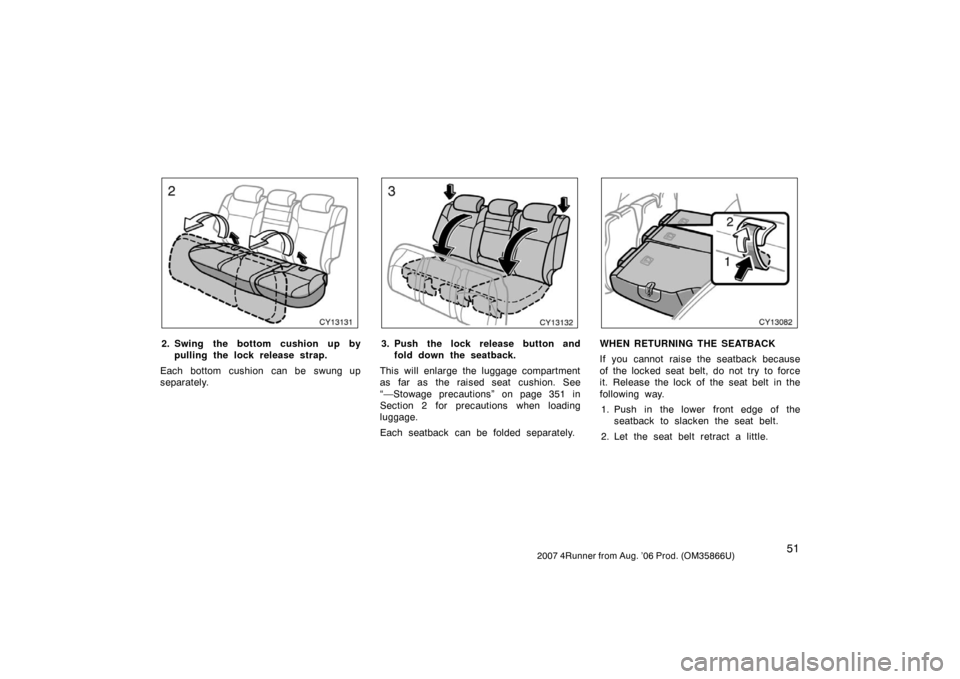

CY13131
2. Swing the bottom cushion up bypulling the lock rel ease strap.
Each bottom cushion can be swung up
separately.
CY13132
3. Push the lock release button and fold down the seatback.
This will enlarge the luggage compartment
as far as the raised seat cushion. See
“—Stowage precautions” on page 351 in
Section 2 for precautions when loading
luggage.
Each seatback can be folded separately.
CY13082
WHEN RETURNING THE SEATBACK
If you cannot raise the seatback because
of the locked seat belt, do not try to force
it. Release the lock of the seat belt in the
following way. 1. Push in the lower front edge of the seatback to slacken the seat belt.
2. Let the seat belt retract a little.

522007 4Runner from Aug. ’06 Prod. (OM35866U)
CAUTION
When returning seats to their original
position, observe the following pre-
cautions in order to prevent death or
serious injury in a collision or sud-
den stop:
Make sure the seatback is securely
locked by pushing forward and rear-
ward on the top of the seatback.
Failure to do so will prevent the
seat belt from operating properly.
Make sure the seat belts are not
twisted or caught in the seatback
and are arranged in their proper
position and are ready to use.
Make sure the bottom cushion is
securely locked by trying to pull up
the edge of the cushion near the
lock release straps.
Make sure to arrange the buckles of
the seat belts in their proper posi-
tion and be ready to use.
CAUTION
Adjustment should not be made
while the vehicle is moving.
When adjusting the seat, be careful
not to hit the seat against a pas-
senger or luggage.
After adjusting the seatback, push
back your body to make sure it is
locked in position.
When returning seats to their origi-
nal position, observe the following
precautions in order to prevent per-
sonal injury in a collision or sud-
den stop:
Make sure the seat is securely
locked by pushing forward and rear-
ward on the top of the seatback or
by trying to pull up the edge of the
bottom cushion. Failure to do so
will prevent the seat belt from oper-
ating properly.
Make sure the seat belts are not
twisted or caught under the seat
and are arranged in their proper
position and are ready to use.
The third seats have a maximum
capacity of two belted occupants
who do not exceed 150 cm (59 in.)
in height. Exceeding these limits
can result in increased risk of seri-
ous injuries or death.
Folding the seats up will enlarge the
luggage compartment. See “—Stowage
precautions” on page 351 in Section 2 for
precautions when loading luggage.
—Rear seat precautions
(vehicles with third seats)

532007 4Runner from Aug. ’06 Prod. (OM35866U)

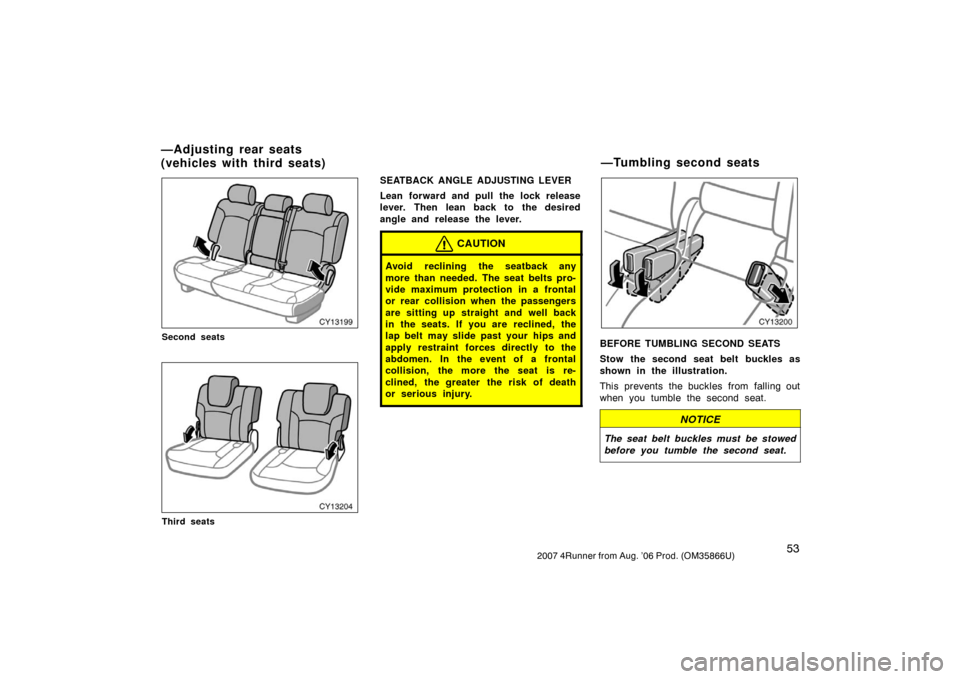

CY13199
Second seats
CY13204
Third seats
SEATBACK ANGLE ADJUSTING LEVER
Lean forward and pull the lock release
lever. Then lean back to the desired
angle and release the lever.
CAUTION
Avoid reclining the seatback any
more than needed. The seat belts pro-
vide maximum protection in a frontal
or rear collision when the passengers
are sitting up straight and well back
in the seats. If you are reclined, the
lap belt may slide past your hips and
apply restraint forces directly to the
abdomen. In the event of a frontal
collision, the more the seat is re-
clined, the greater the risk of death
or serious injury.CY13200
BEFORE TUMBLING SECOND SEATS
Stow the second seat belt buckles as
shown in the illustration.
This prevents the buckles from falling out
when you tumble the second seat.
NOTICE
The seat belt buckles must be stowed
before you tumble the second seat.
—Adjusting rear seats
(vehicles with third seats)—Tumbling second seats
