2007 TOYOTA 4RUNNER height

3802007 4Runner from Aug. ’06 Prod. (OM35866U)
Make sure to set the jack prop-
erly in the jack point. Raising
the vehicle with jack improper-
ly positioned will damage the
vehicle or may allow the ve-
hicle to fall off the jack and
cause death or serious injury.
 Never get under the vehicle
when the vehicle is supported
by the jack alone.
 Use the jack only for lifting
your vehicle during wheel
changing.
 Do not raise the vehicle with
someone in the vehicle.
 When raising the vehicle, do
not place any objects on top
of or underneath the jack.
 Raise the vehicle only high
enough to remove and change
the tire.NOTICE
 Do not continue driving with
a deflated tire. Driving even a
short distance can damage a
tire and wheel beyond repair.
 Vehicles with rear height con-
trol air suspension: When
jacking up or insta lling the
tire chains, be sure to turn
off the rear height control
and stop the engine. Other-
wise, the vehicle height may
change in the automatic lev-
eling function, resulting in
accident.
CY40055
1. G et th e req u i red to o l s an d
spare tire.
1. Tool bag
2. Jack
To prepare yourself for an emergency,
you should familiarize yourself with
the use of the jack, each of the tools
and their storage locations.
When storing the tool bag, make sure
it is securely held by the tightening
strap.
—Required tools and spare
tire

3902007 4Runner from Aug. ’06 Prod. (OM35866U)

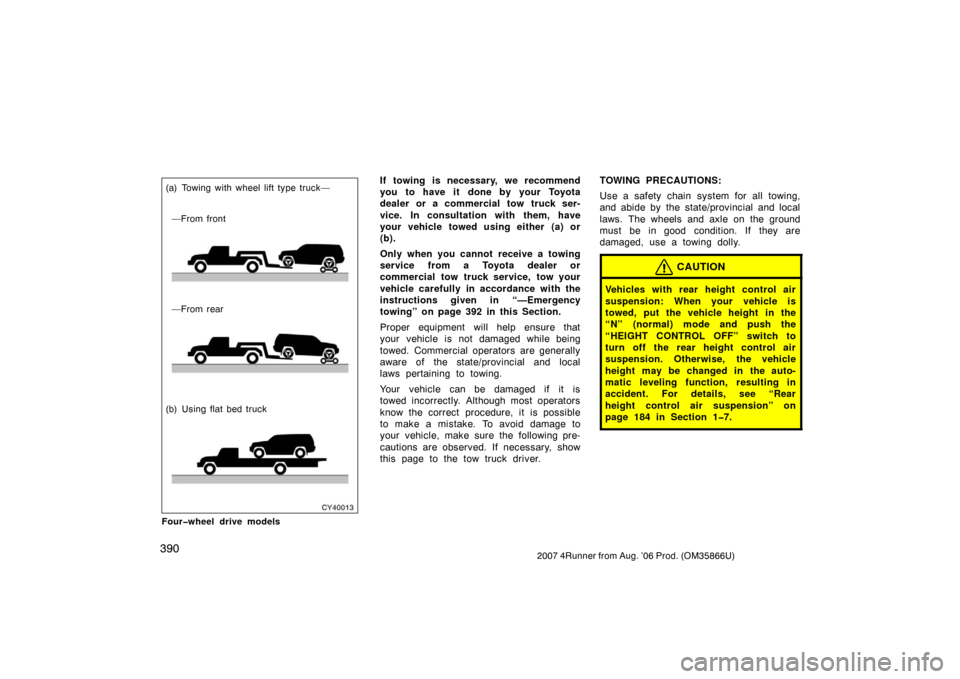

CY40013
(b) Using flat bed truck—From rear —From front
(a) Towing with wheel lift type truck—
Fourwheel drive models
If towing is necessary, we recommend
you to have it done by your Toyota
dealer or a commercial tow truck ser-
vice. In consultation with them, have
your vehicle towed using either (a) or
(b).
Only when you cannot receive a towing
service from a Toyota dealer or
commercial tow truck service, tow your
vehicle carefully in accordance with the
instructions given in “—Emergency
towing” on page 392 in this Section.
Proper equipment will help ensure that
your vehicle is not damaged while being
towed. Commercial operators are generally
aware of the state/provincial and local
laws pertaining to towing.
Your vehicle can be damaged if it is
towed incorrectly. Although most operators
know the correct procedure, it is possible
to make a mistake. To avoid damage to
your vehicle, make sure the following pre-
cautions are observed. If necessary, show
this page to the tow truck driver. TOWING PRECAUTIONS:
Use a safety chain system for all towing,
and abide by the state/provincial and local
laws. The wheels and axle on the ground
must be in good condition. If they are
damaged, use a towing dolly.
CAUTION
Vehicles with rear height control air
suspension: When your vehicle is
towed, put the vehicle height in the
“N” (normal) mode and push the
“HEIGHT CONTROL OFF” switch to
turn off the rear height control air
suspension. Otherwise, the vehicle
height may be changed in the auto-
matic leveling function, resulting in
accident. For details, see “Rear
height control air suspension” on
page 184 in Section 17.

3992007 4Runner from Aug. ’06 Prod. (OM35866U)
Check the interior of your vehicle. Wa-
ter and dirt can accumulate under the
floor mats and could cause corrosion. Oc-
casionally check under the mats to make
sure the area is dry. Be particularly care-
ful when transporting chemicals, cleans-
ers, fertilizers, salt, etc; these should be
transported in proper containers. If a spill
or leak should occur, immediately clean
and dry the area.
Use mud shields on your wheels. If you
drive on salted or gravel roads, mud
shields help protect your vehicle. Full −size
shields, which come as near to the ground
as possible, are the best. We recommend
that the fittings and the area where the
shields are installed be treated to resist
corrosion. Your Toyota dealer will be
happy to assist in supplying and installing
the shields if they are recommended for
your area.
Keep your vehicle in a well ventilated
garage or a roofed place. Do not park
your vehicle in a damp, poorly venti-
lated garage. If you wash your vehicle in
the garage, or if you drive it covered with
water or snow, your garage may be so
damp as to cause corrosion. Even if your
garage is heated, a wet vehicle can cor-
rode if the ventilation is poor. Washing your Toyota
Keep your vehicle clean by regular
washing.
The following cases may cause weakness
to the paint or corrosion to the body and
parts. Wash your vehicle as soon as pos-
sible.
When driving in a coastal area
When driving on a road sprinkled with
antifreeze
When exposed to coal tar, tree sap,
bird droppings and carcass of an insect
When driving in areas where there is
a lot of smoke, soot, dust, iron dust or
chemical substances
When the vehicle becomes remarkably
dirty with dust and mud
Handwashing your Toyota
Work in the shade and wait until the
vehicle body is not warm to the touch.
CAUTION
When cleaning under floor or chas-
sis, be careful not to injure your
hands.
Exhaust gases cause the exhaust
pipe to become quite hot. When
washing the vehicle, be careful not
to touch the pipe until it has cooled
sufficiently, as touching a hot ex-
haust pipe can cause burns.
1. Rinse off loose dirt with a hose. Re- move any mud or road salt from the
underside of the vehicle or the wheel
wells.
2. Wash with a mild car −wash soap,
mixed according to the manufacturer ’s
instructions. Use a soft cotton mitt and
keep it wet by dipping it frequently into
the wash water. Do not rub hard—let
the soap and water remove the dirt.
Fuel filler door: Do not apply water (high −
pressure car wash, for example) at or
near the fuel tank inlet with the fuel filler
door opened. If the water enters the air
vent, you may experience trouble with re-
fueling or rough engine idling.
Rear height control air suspension: Do not
spray a jet of high −pressure water at the
air suspension unit, especially the air
spring, at an extremely close range. This
may damage the air suspension.
Washing and waxing your
To y o t a

4312007 4Runner from Aug. ’06 Prod. (OM35866U)
TIRE CHAIN SELECTION
Use the tire chains of correct size.
Regulations regarding the use of tire
chains vary according to location or
type of road, so always check local reg-
ulations before installing chains.
CHAIN INSTALLATION
Install the chains on the rear tires as
tightly as possible. Do not use tire
chains on the front tires. Retighten
chains after driving 0.5—1.0 km
(1/4—1/2 mile).
When installing chains on your tires, care-
fully follow the instructions of the chain
manufacturer.
If wheel covers are used, they will be
scratched by the chain band, so remove
the covers before putting on the chains.
CAUTION
Do not exceed 50 km/h (30 mph) or
the chain manufacturer ’s recom-
mended speed limit, whichever is
lower.
Drive carefully avoiding bumps,
holes, and sharp turns, which may
cause the vehicle to bounce.
Avoid sharp turns or lockedwheel
braking, as use of chains may ad-
versely affect vehicle handling.
When driving with chains installed,
be sure to drive carefully. Slow
down before entering curves to
avoid losing control of the vehicle.
Otherwise an accident may occur.
WHEN TO REPLACE YOUR WHEELS
If you have wheel damage such as
bending, cracks or heavy corrosion, the
wheel should be replaced.
If you fail to replace a damaged wheel,
the tire may slip off the wheel or cause
loss of handling control.
WHEEL SELECTION
When replacing wheels, care should be
taken to ensure that the wheels are re-
placed by ones with the same load ca-
pacity, diameter, rim width, and offset.
Correct replacement wheels are available
at your Toyota dealer.
A wheel of a different size or type may
adversely affect handling, wheel and bear-
ing life, brake cooling, speedometer/odom-
eter calibration, stopping ability, headlight
aim, bumper height, vehicle ground clear-
ance, and tire or snow chain clearance to
the body and chassis.
Replacing wheels

4462007 4Runner from Aug. ’06 Prod. (OM35866U)
Towing capacity (trailer weight + cargo
weight), kg (lb.):For weight carrying hitch 2268 (5000)
Also for weight distributing hitch
(4.7 L V8 [2UZ −FE] engine only)
Tw o −wheel drive models
3311 (7300)
Four −wheel drive models
3175 (7000)
Dimensions and weights
Overall width mm (in.)
2790 (109.8)
Overall height
∗
1mm (in.)
1575 (62.0)
Wheelbase mm (in.)
Front tread mm (in.) 1575 (62.0)
Rear tread mm (in.)
431 (950)
∗7
477 (1050)∗8
∗1: Unladen vehicle∗2:Two −wheel drive models∗
3: Four −wheel drive models∗
4: With roof rails∗5: With rear spoiler∗6: With rear height control air suspension∗7: With 5 occupants∗8: With 7 occupantsOverall length mm (in.)
Vehicle capacity weight (occupants + luggage)
kg (lb.)4805 (189.2)
1910 (75.2)
1820 (71.7)
∗
2or3,4
1800 (70.9)∗2, 3, 5
1755 (69.1)∗2, 3
1805 (71.1)∗2 or 3,4,6
1785 (70.3)∗2 or 3,5,6
1740 (68.5)∗2or3,6
91 (200)∗7
0(0)∗8Luggage compartment load capacity kg (lb.)

4522007 4Runner from Aug. ’06 Prod. (OM35866U)
CY80013
Engine compartment
Fuses (type A)1. SPARE 10 A: Spare fuse
2. SPARE 15 A: Spare fuse
3. STOP 10 A: Stop/tail lights, high
mounted stoplight, shift lock control
system, anti −lock brake system, trac-
tion control system (two −wheel drive
models), active traction control system
(four −wheel drive models), vehicle sta-
bility control system, rear height control
air suspension, multiport fuel injection
system/s equential multiport fuel injec-
tion system, trailer brake controller,
trailer lights (tail lights)
CY80010
Instrument panel
4. AC115V INV 15 A: AC inverter
5. FR FOG 15 A: Front fog lights
6. OBD 7.5 A: On−board diagnosis sys-
tem
7. HEAD (LO RH) 10 A: Right −hand
headlight (low beam)
8. HEAD (LO LH) 10 A: Left−hand head-
light (low beam)
9. HEAD (HI RH) 10 A: Right −hand head-
light (high beam)
10. HEAD (HI LH) 10 A: Left −hand head-
light (high beam) 11. EFI NO.2 10 A:
Multiport fuel injection
system/s equential multiport fuel injec-
tion system
12. HEATER NO.2 7.5 A: Air conditioning
system
13. AIRSUS NO.2 10 A: Rear height con-
trol air suspension
14. SEAT HEATER 25 A: Seat heaters
15. DEFOG 30 A: Back window defogger,
multiport fuel injection system/sequen-
tial multiport fuel injection system
16. MIR HEATER 10 A: Outside rear view
mirror heater
17. DOME 10 A: Interior light, personal
lights, wireless remote control system,
door courtesy lights, gauge and meter,
vanity lights, instrument panel lights,
running board lights, multiplex commu-
nication system
18. RADIO NO.1 20 A: Audio system, nav-
igation system, rear seat entertainment
system
Fuses

4532007 4Runner from Aug. ’06 Prod. (OM35866U)
19. ECUB 10 A: Anti−lock brake system,
traction control system (two −wheel
drive models), active traction control
system (four −wheel drive models), ve-
hicle stability control system, air condi-
tioning system, multiplex communica-
tion system, theft deterrent system,
driving position memory system, front
passenger occupant classification sys-
tem
20. ALTS 7.5 A: Charging system
21. HORN 10 A: Horns
22. A/F HEATER 15 A: A/F sensor
23. TRNHAZ 15 A: Turn signal lights,
emergency flashers
24. ETCS 10 A: Multiport fuel injection
system/s equential multiport fuel injec-
tion system
25. EFI 20 A: Multiport fuel injection sys-
tem/sequential multiport fuel injection
system
26. DR/LCK 20 A: Power door lock system
27. TOWING 30 A: Towing converter
28. RADIO NO.2 20 A: Audio system29. IGN 10 A:
Multiport fuel injection sys-
tem/sequential multiport fuel injection
system, anti −lock brake system, trac-
tion control system (two −wheel drive
models), active traction control system
(four− wheel drive models), vehicle sta-
bility control system, meter and gauge,
front passenger occupant classification
system
30. SRS 10 A: SRS airbag system
31. GAUGE 7.5 A: Meter and gauge
32. STA NO.2 7.5 A: Multiport fuel injec-
tion system/sequential multiport fuel in-
jection system
33. FR WIPWSH 30 A: Windshield wipers
and washer
34. 4WD 20 A: Four−wheel drive control
system
35. D P/SEAT 30 A: Driver ’s power seat
36. P P/SEAT 30 A: Front passenger ’s
power seat
37. PWR OUTLET 15 A: Power outlets
38. RR WSH 15 A: Back window washer,
multiplex communication system 39. ECUIG 10 A:
Shift lock control sys-
tem, power windows, anti −lock brake
system, traction control system (two −
wheel drive models), active traction
control system (four −wheel drive mod-
els), vehicle stability control system,
electric moon roof, multiplex commu-
nication system, theft deterrent system,
rear height control air suspension, tire
pressure warning system, driving posi-
tion memory system
40. IG1 15 A: Anti−lock brake system,
traction control system (two −wheel
drive models), active traction control
syste
m (four −wheel drive models), ve-
hicle stability control system, air condi-
tioning system, charging system, back
window defogger, back −up lights, emer-
gency flashers, seat heaters, AC invert-
er, instrument panel light control, auto
anti −glare inside rear view mirror, seat
belt tension reducer
41. STA 7.5 A: No circuit
42. SECU/HORN 10 A: Theft deterrent sys-
tem

4542007 4Runner from Aug. ’06 Prod. (OM35866U)
43. TAIL 10 A: Tail lights, license plate
lights, parking lights, instrument panel
light control, multiport fuel injection
system/s equential multiport fuel injec-
tion system, instrument panel lights,
meter and gauge, glove box light
44. ACC 7.5 A: Power outlets, outside rear
view mirrors, audio system, navigation
system, shift lock control system, in-
strument panel lights, rear seat enter-
tainment system
45. CIG 10 A: No circuit
Fuses (type B)
46. A/PUMP 50 A: Multiport fuel injection
system/s equential multiport fuel injec-
tion system
47. AIRSUS 50 A: Rear height control air
suspension
48. AM1 50 A: All components in “ACC”,
“CIG”, “IG1”, “ECU −IG”, “FR WIP −
WSH”, “RR −WSH”, “4WD”, and “STA”
fuses
49. TOWING BRK 30 A: Trailer brake con-
troller
50. J/B 50 A: All components in “PWR
OUTLET”, “D P/SEAT”, “P P/SEAT”,
“POWER”, “TAIL” and “SECU/HORN”
fuses 51. BATT CHG 30 A:
Trailer sub battery
52. TOWING 40 A: Trailer lights (tail
lights)
53. ABS MTR 40 A: Anti−lock brake sys-
tem, traction control system (two −wheel
drive models), active traction control
system (four −wheel drive models), ve-
hicle stability control system
54. AM2 30 A: Starter system, “IGN”,
“GAUGE”, “STA NO.2” and “SRS” fuses
55. ABS SOL 30 A: Anti−lock brake sys-
tem, traction control system (two −wheel
drive models), active traction control
system (four −wheel drive models), ve-
hicle stability control system
56. POWER 30 A: Power windows, electric
moon roof
Fuses (type C)
57. ALT 140 A: All components in
“A/PUMP”, “AIRSUS”, “AM1”, “TOWING
BRK”, “J/B”, “BATT CHG”, “TOWING”,
“TAIL”, “STOP”, “AC 115V INV”, “FR
FOG”, “OBD”, “DEFOG” and “MIR
HEATER” fuses
58. HEATER 60 A: Air conditioning system
