2007 TOYOTA 4RUNNER ESP

422007 4Runner from Aug. ’06 Prod. (OM35866U)
While the vehicle is being driven, all ve-
hicle occupants should have the seatback
upright, sit well back in the seat and prop-
erly wear the seat belts provided.
CAUTION
Do not drive the vehicle unless the
occupants are properly seated. Do
not allow any passengers to sit on
top of a foldeddown seatback, or
in the luggage compartment or car-
go area. Persons not properly
seated and/or not properly re-
strained by seat belts can be killed
or severely injured in the event of
emergency braking or a collision.
During driving, do not allow any
passengers to stand up or move
around between seats. Otherwise,
death or severe injuries can occur
in the event of emergency braking
or a collision.
Driver seat
CAUTION
The SRS driver airbag deploys with
considerable force, and can cause
death or serious injury especially if
the driver is very close to the airbag.
The National Highway Traffic Safety
Administration (“NHTSA”) advises:
Since the risk zone for driver airbag
is the first 50—75 mm (2—3 in.) of
inflation, placing yourself 250 mm (10
in.) from your driver airbag provides
you with a clear margin of safety.
This distance is measured from the
center of the steering wheel to your
breastbone. If you sit less than 250
mm (10 in.) away now, you can
change your driving position in sever-
al ways:
Move your seat to the rear as far
as you can while still reaching the
pedals comfortably.
Slightly recline the back of the
seat. Although vehicle designs vary,
many drivers can achieve the 250
mm (10 in.) distance, even with the
driver seat all the way forward, sim-
ply by reclining the back of the
seat somewhat. If reclining the back
of your seat makes it hard to see
the road, raise yourself by using a
firm, nonslippery cushion, or raise
the seat if your vehicle has that
feature.
If your steering wheel is adjustable,
tilt it downward. This points the air-
bag toward your chest instead of
your head and neck.
The seat should be adjusted as rec-
ommended by NHTSA above, while
still maintaining control of the foot
pedals, steering wheel, and your view
of the instrument panel controls.
Seats Front seats—
—Front seat precautions

712007 4Runner from Aug. ’06 Prod. (OM35866U)
CY13018
The driver and front passenger seat
belt pretensioners are designed to be
activated in response to a severe fron-
tal impact. On vehicles equipped with
curtain shield airbags, the pretensioners
are also activated during vehicle rol-
lover.
When the sensor detects a severe frontal
impact or a vehicle rollover, the front seat
belts are quickly drawn back by the re-
tractors so that the belts snugly restrain
the occupants.The seat belt pretensioner will not activate
if no passenger is detected in the front
passenger seat by the front passenger
occupant classification system. However,
the front passenger ’s seat belt
pretensioner may activate if luggage is put
on the seat, or the seat belt is buckled up
regardless of the presence of an occupant
in the seat. (As for the front passenger
occupant classification system, see
“—Front passenger occupant classification
system” on page 91 in this Section.)
The seat belt pretensioners and SRS air-
bags may not operate together in all colli-
sions.
CY13294
The seat belt pretensioners will not oper-
ate in a vehicle rollover if the “RSCA
OFF” indicator light is on. For details, see
“Roll sensing of curtain shield airbags off
switch” on page 95 in this Section.
—Seat belt pretensioners

752007 4Runner from Aug. ’06 Prod. (OM35866U)
In response to a severe frontal impact,
the SRS front airbags work with the seat
belts to help reduce injury by inflating.
The SRS front airbags help reduce injuries
mainly to the driver ’s or front passenger ’s
head or chest caused by hitting the ve-
hicle interior.
The SRS front passenger airbag will not
activate if there is no passenger sitting in
the front passenger seat. However, the
front passenger airbag may deploy if lug-
gage is put in the seat, or the seat belt
is buckled up, regardless of the presence
of an occupant in the seat. (As for the
front passenger occupant classification
system, see “—Front passenger occupant
classification system” on page 91 in this
Section.)

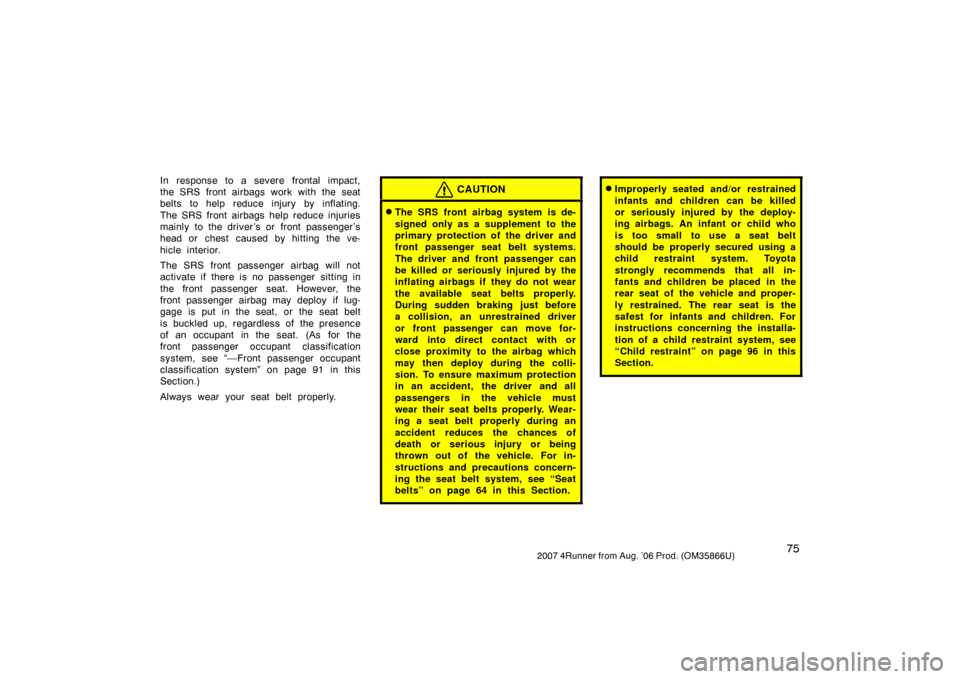

Always wear your seat belt properly.CAUTION
The SRS front airbag system is de-
signed only as a supplement to the
primary protection of the driver and
front passenger seat belt systems.
The driver and front passenger can
be killed or seriously injured by the
inflating airbags if they do not wear
the available seat belts properly.
During sudden braking just before
a collision, an unrestrained driver
or front passenger can move for-
ward into direct contact with or
close proximity to the airbag which
may then deploy during the colli-
sion. To ensure maximum protection
in an accident, the driver and all
passengers in the vehicle must
wear their seat belts properly. Wear-
ing a seat belt properly during an
accident reduces the chances of
death or serious injury or being
thrown out of the vehicle. For in-
structions and precautions concern-
ing the seat belt system, see “Seat
belts” on page 64 in this Section.
Improperly seated and/or restrained
infants and children can be killed
or seriously injured by the deploy-
ing airbags. An infant or child who
is too small to use a seat belt
should be properly secured using a
child restraint system. Toyota
strongly recommends that all in-
fants and children be placed in the
rear seat of the vehicle and proper-
ly restrained. The rear seat is the
safest for infants and children. For
instructions concerning the installa-
tion of a child restraint system, see
“Child restraint” on page 96 in this
Section.

772007 4Runner from Aug. ’06 Prod. (OM35866U)
CY13280
The SRS front airbag system consists
mainly of the following components, and
their locations are shown in the illustra-
tion.1. Front airbag sensors
2. SRS warning light
3. Front passenger occupant classification indicator light
4. Airbag module for front passenger (airbag and inflator)
5. Front passenger occupant classification system (ECU and sensors)
6. Front passenger ’s seat belt buckle switch
7. Driver ’s seat belt buckle switch 8. Driver ’s seat position sensor
9. Airbag sensor assembly
10. Airbag module for driver (airbag and inflator)
The airbag sensor assembly consists of a
safing sensor and airbag sensor.
The front airbag sensors constantly moni-
tor the forward deceleration of the vehicle.
If an impact results in a forward decelera-
tion beyond the designed threshold level,
the system triggers the airbag inflators. At
this time a chemical reaction in the infla-
tors very quickly fills the air bags with
non− toxic gas to help restrain the forward
motion of the occupants. The front airbags
then quickly deflate, so that there is no
obstruction of the driver’s vision should it
be necessary to continue driving.
When the airbags inflate, they produce a
loud noise and release some smoke and
residue along with non −toxic gas. This
does not indicate a fire. This smoke may
remain inside the vehicle for some time,
and may cause some minor irritation to
the eyes, skin or breathing. Be sure to
wash off any residue as soon as possible
to prevent any potential skin irritation with
soap and water. If you can safely exit
from the vehicle, you should do so imme-
diately. Deployment of the airbags happens in a
fraction of a second, so the airbags must
inflate with considerable force. While the
system is desi
gned to reduce serious inju-
ries, primarily to the head and chest, it
may also cause other, less severe injuries
to the face, chest, arms and hands. These
are usually in the nature of minor burns
or abrasions and swelling, but the force of
a deploying airbag can cause more seri-
ous injuries, especially if an occupant’s
hands, arms, chest or head is in close
proximity to the airbag module at the time
of deployment. This is why it is important
for the occupant to: avoid placing any
object or part of the body between the
occupant and the airbag module; sit
straight and well back into the seat; wear
the available seat belt properly; and sit as
far as possible from the airbag module,
while still maintaining control of the ve-
hicle.
Parts of the airbag module (steering wheel
hub, airbag cover and inflator) may be hot
for several minutes after deployment, so
do not touch! The airbags inflate only
once. The windshield may be damaged by
absorbing some of the force of the inflat-
ing airbag.

812007 4Runner from Aug. ’06 Prod. (OM35866U)
NOTICE
Do not disconnect the battery cables
before contacting your Toyota dealer.
CY13073
The SRS (Supplemental Restraint Sys-
tem) side airbags and curtain shield air-
bags are designed to provide further
protection for the driver, front passen-
ger and rear seat passengers
∗1/second
seat passengers∗ 2 in addition to the pri-
mary safety protection provided by the
seat belts.
∗ 1: Without third seats∗2: With third seats In response to a severe side impact, the
SRS side airbag and curtain shield airbags
in the impacted side work with the seat
belts to help reduce injury by inflating.
The SRS side airbags help reduce injuries
mainly to the driver’s or front passenger’s
chest. The SRS curtain shield airbags
help reduce injuries mainly to the driver ’s,
front passenger ’s or rear/second passen-
ger ’s head and help prevent them from
being thrown out of the vehicle.
The SRS side airbag on the passenger
seat will not activate if there is no pas-
senger sitting in the front passenger seat.
However, the side airbag on the passen-
ger seat may deploy if luggage is put in
the seat, or the seat belt is buckled up
regardless of the presence of the occu-
pant in the seat. (As for the front passen-
ger occupant classification system, see
“—Front passenger occupant classification
system” on page 91 in this Section.)
The SRS curtain shield airbag on the pas-
senger side are activated even with no
passenger in the front seat or rear/second
outside seat.
—SRS side airbags and
curtain shield airbags

822007 4Runner from Aug. ’06 Prod. (OM35866U)
Roll sensing function:
In response to a vehicle rollover, the cur-
tain shield airbags on both sides work
with the seat belts to help reduce injury
by inflating. The curtain shield airbags
help reduce injuries mainly to the driver ’s,
front passenger ’s or rear/second passen-
ger ’s head and help prevent them from
being thrown out of the vehicle. (This
function can be turned off if inflation is
not desired. See “Roll sensing of curtain
shield airbags off switch” on page 95 in
this Section.)
The SRS curtain shield airbags may acti-
vate even when the side airbags are not
activated.

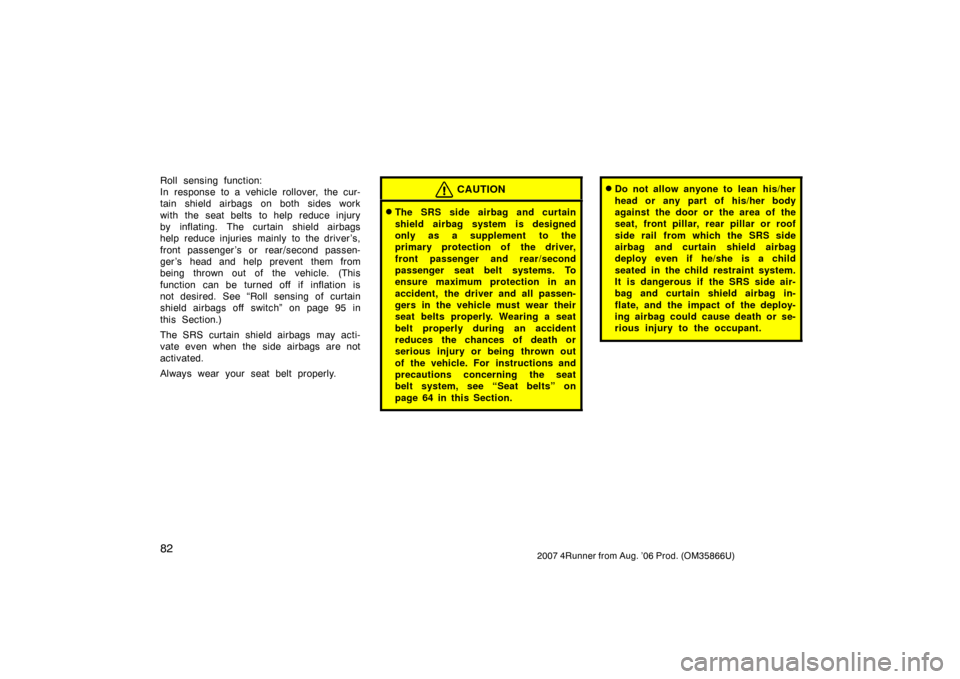

Always wear your seat belt properly.CAUTION
The SRS side airbag and curtain
shield airbag system is designed
only as a supplement to the
primary protection of the driver,
front passenger and rear/second
passenger seat belt systems. To
ensure maximum protection in an
accident, the driver and all passen-
gers in the vehicle must wear their
seat belts properly. Wearing a seat
belt properly during an accident
reduces the chances of death or
serious injury or being thrown out
of the vehicle. For instructions and
precautions concerning the seat
belt system, see “Seat belts” on
page 64 in this Section.
Do not allow anyone to lean his/her
head or any part of his/her body
against the door or the area of the
seat, front pillar, rear pillar or roof
side rail from which the SRS side
airbag and curtain shield airbag
deploy even if he/she is a child
seated in the child restraint system.
It is dangerous if the SRS side air-
bag and curtain shield airbag in-
flate, and the impact of the deploy-
ing airbag could cause death or se-
rious injury to the occupant.

862007 4Runner from Aug. ’06 Prod. (OM35866U)
When the airbags inflate, they produce a
fairly loud noise and release some smoke
and residue along with non−toxic gas. This
does not indicate a fire. This smoke may
remain inside the vehicle for some time,
and may cause some minor irritation to
the eyes, skin or breathing. Be sure to
wash off any residue as soon as possible
to prevent any potential skin irritation with
soap and water. If you can safely exit
from the vehicle, you should do so imme-
diately.
Deployment of the airbags happens in a
fraction of a second, so the airbags must
inflate with considerable force. While the
system is desi gned to reduce serious inju-
ries, it may also cause minor burns or
abrasions and swelling.
Front seats as well as parts of the front
and rear pillars, front, center and rear
garnish and roof interior may be hot for
several minutes, but the airbags them-
selves will not be hot. The airbags are
designed to inflate only once.CAUTION

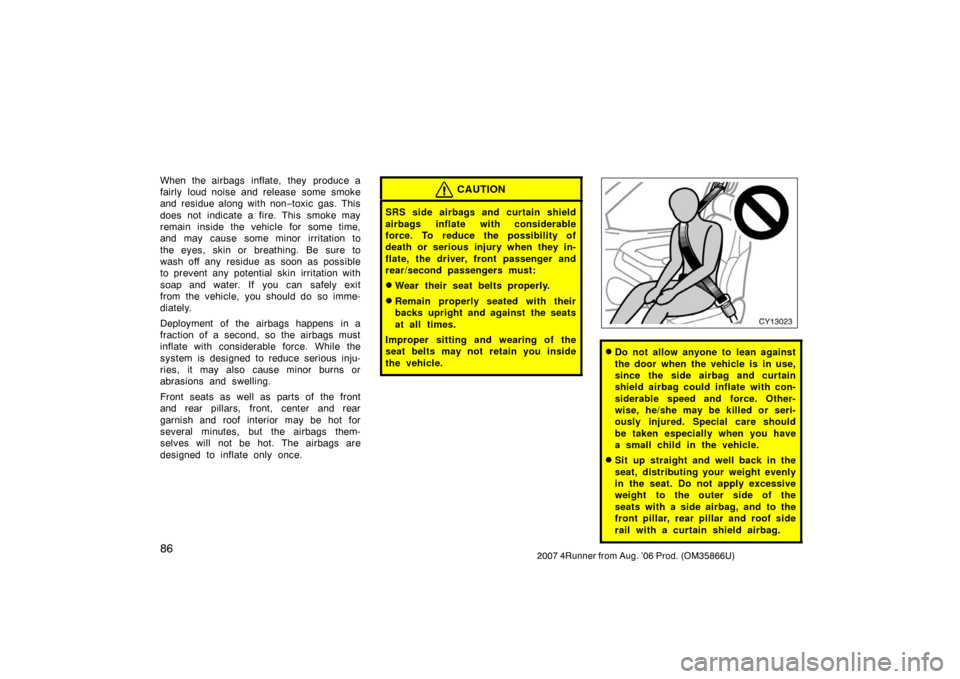

SRS side airbags and curtain shield
airbags inflate with considerable
force. To reduce the possibility of
death or serious injury when they in-
flate, the driver, front passenger and
rear/second passengers must:
Wear their seat belts properly.
Remain properly seated with their
backs upright and against the seats
at all times.
Improper sitting and wearing of the
seat belts may not retain you inside
the vehicle.
CY13023
Do not allow anyone to lean against
the door when the vehicle is in use,
since the side airbag and curtain
shield airbag could inflate with con-
siderable speed and force. Other-
wise, he/she may be killed or seri-
ously injured. Special care should
be taken especially when you have
a small child in the vehicle.
Sit up straight and well back in the
seat, distributing your weight evenly
in the seat. Do not apply excessive
weight to the outer side of the
seats with a side airbag, and to the
front pillar, rear pillar and roof side
rail with a curtain shield airbag.

872007 4Runner from Aug. ’06 Prod. (OM35866U)
CY13294
Make sure the “RSCA OFF” indica-
tor light is off. The curtain shield
airbags will not inflate in a vehicle
rollover if this indicator light is on
and you may be killed or seriously
injured. For details, see “Roll sens-
ing of curtain shield airbags off
switch” on page 95 in this Section.
CY13026
Do not allow anyone to get his/her
head closer to the area where the
side airbag and curtain shield air-
bag inflate, since these airbags
could inflate with considerable
speed and force. Otherwise, he/she
may be killed or seriously injured.
Special care should be taken espe-
cially when you have a small child
in the vehicle.
CY13024
Do not allow anyone to kneel on
the passenger seat, facing the pas-
senger ’s side door, since the side
airbag and curtain shield airbag
could inflate with considerable
speed and force. Otherwise, he/she
may be killed or seriously injured.
Special care should be taken espe-
cially when you have a small child
in the vehicle.
