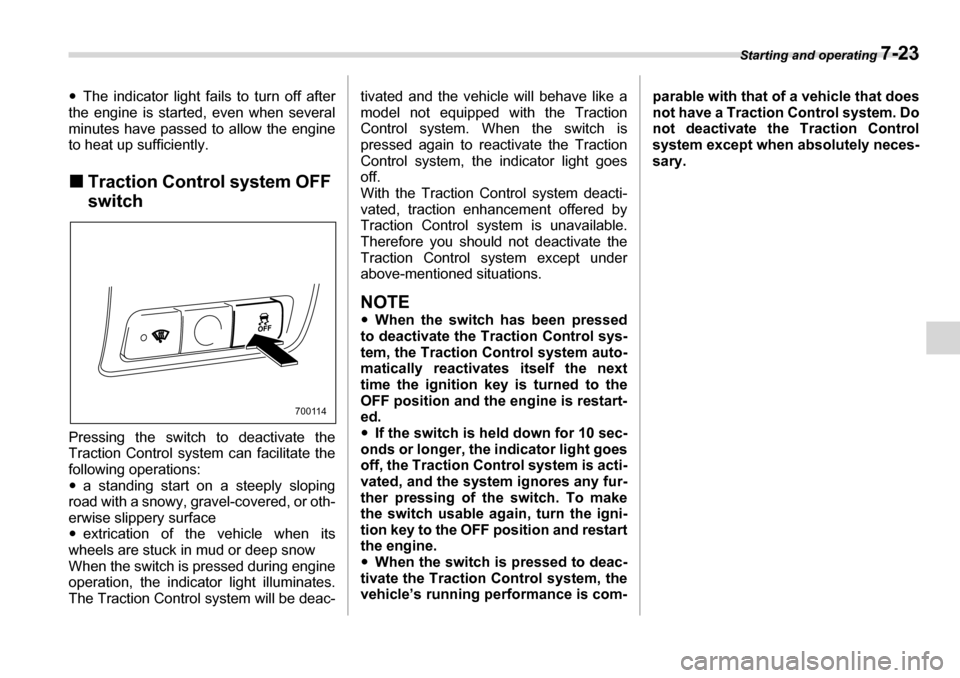

Starting and operating 7-23
yThe indicator light fails to turn off after
the engine is started, even when several
minutes have passed to allow the engine
to heat up sufficiently. „ Traction Control system OFF
switch
Pressing the switch to deactivate the
Traction Control system can facilitate the
following operations:y a standing start on a steeply sloping
road with a snowy, gravel-covered, or oth-
erwise slippery surfacey extrication of the vehicle when its
wheels are stuck in mud or deep snow
When the switch is pressed during engine
operation, the indicator light illuminates.
The Traction Control system will be deac- tivated and the vehicle will behave like a
model not equipped with the Traction
Control system. When the switch is
pressed again to reactivate the Traction
Control system, the indicator light goes
off.With the Traction Control system deacti-
vated, traction enhancement offered by
Traction Control system is unavailable.
Therefore you should not deactivate the
Traction Control system except under
above-mentioned situations.
NOTE y
When the switch has been pressed
to deactivate the Traction Control sys-
tem, the Traction Control system auto-
matically reactivates itself the next
time the ignition key is turned to the
OFF position and the engine is restart-
ed. y If the switch is held down for 10 sec-
onds or longer, the indicator light goes
off, the Traction Control system is acti-
vated, and the system ignores any fur-
ther pressing of the switch. To make
the switch usable again, turn the igni-
tion key to the OFF position and restart
the engine.y When the switch is pressed to deac-
tivate the Traction Control system, the
vehicle’s running performance is com- parable with that of a vehicle that does
not have a Traction Control system. Do
not deactivate the Traction Control
system except when absolutely neces-
sary.
700114

9-18 In case of emergency
„Towing with all wheels on the ground
1. Check the transmission and differential
oil levels and add oil to bring it to the upper
level if necessary.
2. Release the parking brake and put the
transmission in neutral.
3. The ignition switch should be in the
“ACC” position while the vehicle is being
towed.
4. Take up slack in the towline slowly to
prevent damage to the vehicle. Rear gate – if the rear gate
cannot be unlocked
In the event that you cannot unlock the
rear gate by operating the power door locking switches or the remote keyless en-
try system, you can unlock it from inside
the cargo area.
0
1. Remove the access cover at the bot-
tom-center of the rear gate trim using flat-
head screwdriver.
2. Locate the rear gate lock release lever
behind the rear gate trim panel.
y
Never turn the ignition switch to
the “LOCK” position while the ve-
hicle is being towed because the
steering wheel and the direction
of the wheels will be locked.
yRemember that the brake booster
and power steering do not func-
tion when the engine is not run-
ning. Because the engine is
turned off, it will take greater ef-
fort to operate the brake pedal and
steering wheel.
900227
yIf transmission failure occurs,
transport your vehicle on a flat-
bed truck.
y Do not run the engine while being
towed using this method. Trans-
mission damage could result if
the vehicle is towed with the en-
gine running.
y The traveling speed must be limit-
ed to less than 20 mph (30 km/h)
and the traveling distance to less
than 31 miles (50 km). For greater
speeds and distances, transport
your vehicle on a flat-bed truck.
900228

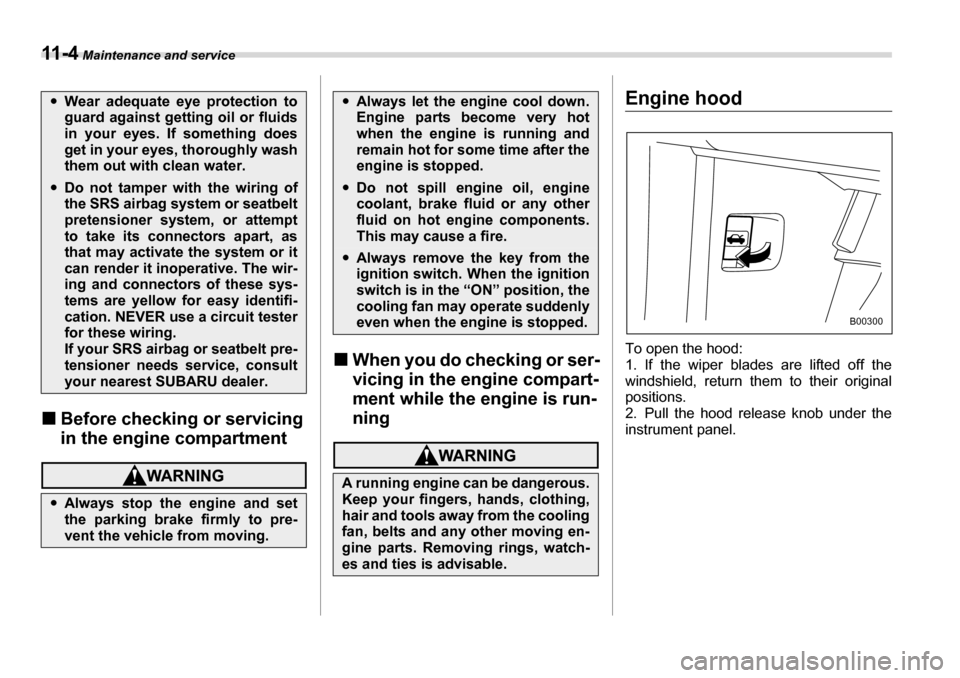

11 - 4 Maintenance and service
„Before checking or servicing
in the engine compartment
„When you do checking or ser-
vicing in the engine compart-
ment while the engine is run-ning
Engine hood
To open the hood:
1. If the wiper blades are lifted off the
windshield, return them to their original
positions.
2. Pull the hood release knob under the
instrument panel.yWear adequate eye protection to
guard against getting oil or fluids
in your eyes. If something does
get in your eyes, thoroughly wash
them out with clean water.
yDo not tamper with the wiring of
the SRS airbag system or seatbelt
pretensioner system, or attempt
to take its connectors apart, as
that may activate the system or it
can render it inoperative. The wir-
ing and connectors of these sys-
tems are yellow for easy identifi-
cation. NEVER use a circuit tester
for these wiring.
If your SRS airbag or seatbelt pre-
tensioner needs service, consult
your nearest SUBARU dealer.
yAlways stop the engine and set
the parking brake firmly to pre-
vent the vehicle from moving.
yAlways let the engine cool down.
Engine parts become very hot
when the engine is running and
remain hot for some time after the
engine is stopped.
yDo not spill engine oil, engine
coolant, brake fluid or any other
fluid on hot engine components.
This may cause a fire.
yAlways remove the key from the
ignition switch. When the ignition
switch is in the “ON” position, the
cooling fan may operate suddenly
even when the engine is stopped.
A running engine can be dangerous.
Keep your fingers, hands, clothing,
hair and tools away from the cooling
fan, belts and any other moving en-
gine parts. Removing rings, watch-
es and ties is advisable.
B00300

14-2 Index
A
ABS (Anti-lock Brake System) .......................................... 7-16 Warning light ....................................................... 3-15, 7-17
Accessories .................................................................... 11-38
Accessory power outlet ...................................................... 6-8
Active head restraint ........................................................... 1-5
Air cleaner element ........................................................ 11-13
Air filtration system ........................................................... 4-11
Air flow ............................................................................... 4-2
Alarm system .................................................................... 2-14
All-Wheel Drive warning light ........................................... 3-17
Aluminum wheels ........................................................... 11-29
Antenna system ................................................................. 5-2
Anti-lock Brake System (ABS) .......................................... 7-16
Arming the system ............................................................ 2-15
Armrest ............................................................................. 1-11
AT OIL TEMPerature warning light .................................. 3-13
Audio control buttons ....................................................... 5-22
Audio set ............................................................................ 5-3
Auto-dimming mirror/compass ......................................... 3-34
Automatic climate control system ....................................... 4-5
Automatic transmission ...................................................... 7-8 Capacities .................................................................... 12-3
Fluid ........................................................................... 11-15
Manual mode ............................................................... 7-11
Selector lever ................................................................. 7-9
Shift lock release ......................................................... 7-14
Temperature warning light (AT OIL TEMP) ................. 3-13
Automatic/Emergency Locking Retractor (A/ELR) ........... 1-16 B
Battery ............................................................................ 11-35 Jump starting ............................................................... 9-11
Replacement (Remote keyless entry system) ............. 2-10
Brake
Booster ...................................................................... 11-21
Fluid ........................................................................... 11-20
Pad and lining ............................................................ 11-22
Pedal .......................................................................... 11-21
Brake pedal
Free play .................................................................... 11-21
Reserve distance ....................................................... 11-21
Brake system .................................................................... 7-15
Warning light ................................................................ 3-16
Braking ............................................................................. 7-15 Breaking-in of new brake pads and linings ................ 11-22
Tips .............................................................................. 7-15
Bulb Chart ............................................................................ 12-8
Replacing ................................................................... 11-39
C
Capacities ......................................................................... 12-3
Cargo area Light ............................................................................... 6-2
Tie-down hooks ........................................................... 6-12
Catalytic converter .............................................................. 8-3
Center Console .......................................................................... 6-5
Ventilators ...................................................................... 4-4
Changing
Flat tire ........................................................................... 9-7
Oil and oil filter ............................................................. 11-7
Charge warning light ......................................................... 3-13

Index 14-3
CHECK ENGINE warning light/Malfunction indicator
lamp .............................................................................. 3-12
Checking Brake pedal free play ................................................. 11-21
Brake pedal reserve distance .................................... 11-21
Engine oil level ............................................................ 11-7
Fluid level ............................................ 11-15, 11-19, 11-20
Gear oil level .............................................................. 11-17
Child restraint systems ..................................................... 1-30
Installation with seatbelt .............................................. 1-33
Lower and tether anchorages ...................................... 1-38
Child safety ............................................................................ 5
Locks ........................................................................... 2-19
Chime
Key ................................................................................ 3-4
Seatbelt ....................................................................... 1-17
Cleaning
Aluminum wheels ........................................................ 10-3
Interior ......................................................................... 10-4
Ventilator grille ............................................................. 4-10
Climate control system ....................................................... 4-5
Clock ................................................................................ 3-21
Coat hook ......................................................................... 6-10
Cooling system ............................................................... 11-10
Corrosion protection ................................................ 8-10, 10-3
Cruise control ................................................................... 7-27
Set indicator light ......................................................... 3-20
Cup holder .......................................................................... 6-6 D
Daytime running light system ........................................... 3-27
Differential gear oil Front ........................................................................... 11-16
Rear ........................................................................... 11-17
Dimensions ....................................................................... 12-2
Disarming the system ....................................................... 2-16
Disc brake pad wear warning indicators ........................... 7-16
Dome light ................................................................ 6-2, 11-44
Door locks ........................................................................... 2-4
Door open warning light .................................................... 3-17
Drive belts ....................................................................... 11-15
Driving All-Wheel Drive vehicle ................................................ 3-17
Car phone/cell phone ........................................................ 7
Drinking ............................................................................. 6
Drugs ................................................................................ 6
Foreign countries ........................................................... 8-4
Pets ................................................................................... 7
Snowy and icy roads ...................................................... 8-9
Tips ....................................................................... 7-13, 8-4
Tired or sleepy .................................................................. 7
E
Electrical system ............................................................... 12-3
Electronic Brake Force Distribution (EBD) system ........... 7-18
Emergency Locking Retractor (ELR) ................................ 1-16
Engine Compartment overview ................................................ 11-6
Coolant ....................................................................... 11-11
Exhaust gas (Carbon monoxide) ................................... 8-2
Hood ............................................................................ 11-4
Oil ................................................................................. 11-7
Overheating ................................................................. 9-14
Starting ........................................................................... 7-7

Index 14-5
J
Jack and jack handle ........................................................ 9-19
Jump starting .................................................................... 9-11 K Key
Keyless entry system ..................................................... 2-8
Number .......................................................................... 2-2
Reminder chime ............................................................ 3-4
Keys ................................................................................... 2-2 L
Leather seat materials ...................................................... 10-4
Light Cargo area ..................................................................... 6-2
Control switch .............................................................. 3-26
Dome ............................................................................. 6-2
Map ................................................................................ 6-3
Light control switch ........................................................... 3-26
Loading your vehicle ........................................................ 8-11
Low fuel warning light ................................................ 3-8, 3-17
Low tire pressure warning light ......................................... 3-14
Lumbar support .................................................................. 1-5 M
Main fuse ........................................................................ 11-37
Maintenance Precautions .................................................................. 11-3
Schedule ...................................................................... 11-3
Seatbelt ....................................................................... 1-26
Tools ............................................................................ 9-19 Manual mode .................................................................... 7-11
Map light .................................................................. 6-3, 11-45
Maximum load limits ......................................................... 8-18
Meters and gauges ............................................................. 3-5
Mirrors ............................................................................... 3-34
Moonroof ........................................................................... 2-23
Multi function display ........................................................ 3-23 N
New vehicle break-in driving the first 1,000 miles
(1,600 km) ....................................................................... 8-2
O
Odometer ............................................................................ 3-6
Oil filter .............................................................................. 11-7
Oil level Engine .......................................................................... 11-7
Front differential gear ................................................. 11-16
Rear differential .......................................................... 11-17
Oil pressure warning light ................................................. 3-13
On-pavement and off road driving ...................................... 8-5
Outside mirrors ................................................................. 3-36
Outside temperature indication ......................................... 3-21
Overheating engine .......................................................... 9-14 P Parking Brake stroke ............................................................... 11-23
Light switch .................................................................. 3-28
Periodic inspection .............................................................. 8-4

14-6 Index
Power Door locking switches .................................................... 2-6
Seat ............................................................................... 1-3
Steering fluid ............................................................. 11-19
Windows ...................................................................... 2-19
Precautions against vehicle modification ................ 1-29, 1-68
Preparing to drive ............................................................... 7-6
Printed antenna .................................................................. 5-2 R
Rear Air conditioner ................................................................ 4-9
Combination lights ..................................................... 11-42
Differential gear oil ..................................................... 11-17
Gate ............................................................................. 2-22
Seats ............................................................................. 1-6
Rear seat/Second seat ....................................................... 1-6
Rear window Defogger button ........................................................... 3-33
Wiper and washer switch ............................................. 3-32
Recommended
Automatic transmission fluid ...................................... 11-16
Brake fluid ................................................................. 11-20
OIL grade and viscosity .............. 11-9, 11-10, 11-17, 11-18
Power steering fluid ................................................... 11-19
Spark plugs ............................................................... 11-14
Remote keyless entry system ............................................ 2-8
Replacement Brake pad and lining .................................................. 11-22
Wiper blades .............................................................. 11-31
Replacing Air cleaner element .................................................... 11-13 Battery (Remote keyless entry system) ....................... 2-10
Lost transmitters (keyless entry system) ...................... 2-11
Replacing bulbs .............................................................. 11-39 Cargo area light ......................................................... 11-46
Dome light .................................................................. 11-44
Door step light ............................................................ 11-45
Front fog light ............................................................. 11-42
Front turn signal light ................................................. 11-42
Headlight .................................................................... 11-40
License plate light ...................................................... 11-44
Map light .................................................................... 11-45
Parking light ............................................................... 11-41
Rear combination light ............................................... 11-42
Rocking the vehicle .......................................................... 8-11
Roof rail and crossbar ...................................................... 8-13 S
Safety
Precautions when driving .................................................. 4
Symbol .............................................................................. 2
Warnings ........................................................................... 2
Seat Fabric ........................................................................... 10-4
Heater ............................................................................ 1-6
Seatbelt ................................................................................. 4 Maintenance ................................................................ 1-26
Pretensioners ............................................................... 1-27
Safety tips .................................................................... 1-15
Warning light and chime .............................................. 1-17
Seatbelts ........................................................................... 1-15
Second-row seats ............................................................... 1-6
Selector lever ............................................................. 7-9, 7-10
