2007 SUBARU FORESTER sensor

1-58 Seat, seatbelt and SRS airbags
ySide airbag sensor (Center pillar right-
hand side) y Side airbag sensor (Center pillar left-
hand side) y Side airbag module (Driver’s side)
y Side airbag module (Front passenger’s
side)y Seatbelt pretensioner (Driver’s side)
y Seatbelt pretensioner (Front passen-
ger’s side)y Seatbelt buckle switch (Driver’s side)
y Seatbelt buckle switch (Front passen-
ger’s side)y Driver’s seat position sensor
y Front passenger’s seatbelt tension sen-
sory Front passenger’s occupant detection
system weight sensor y Front passenger’s occupant detection
control module y Front passenger’s frontal airbag ON
and OFF indicator y All related wiring„ SRS airbag system servicing

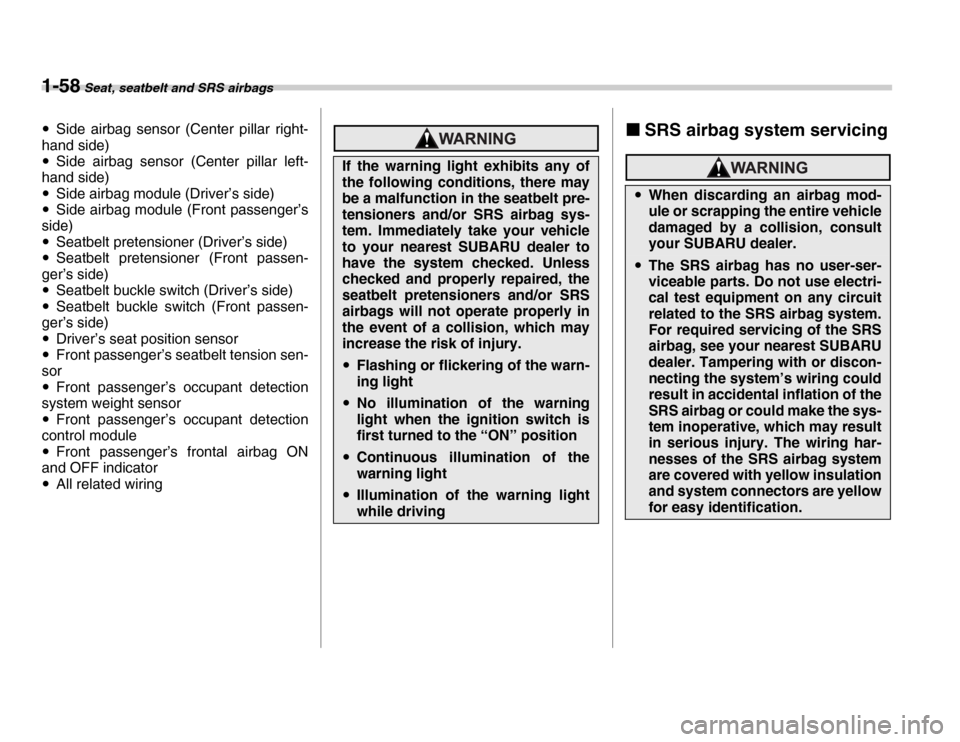

If the warning light exhibits any of
the following conditions, there may
be a malfunction in the seatbelt pre-
tensioners and/or SRS airbag sys-
tem. Immediately take your vehicle
to your nearest SUBARU dealer to
have the system checked. Unless
checked and properly repaired, the
seatbelt pretensioners and/or SRS
airbags will not operate properly in
the event of a collision, which may
increase the risk of injury.
yFlashing or flickering of the warn-
ing light
yNo illumination of the warning
light when the ignition switch is
first turned to the “ON” position
yContinuous illumination of the
warning light
yIllumination of the warning light
while driving
yWhen discarding an airbag mod-
ule or scrapping the entire vehicle
damaged by a collision, consult
your SUBARU dealer.
yThe SRS airbag has no user-ser-
viceable parts. Do not use electri-
cal test equipment on any circuit
related to the SRS airbag system.
For required servicing of the SRS
airbag, see your nearest SUBARU
dealer. Tampering with or discon-
necting the system’s wiring could
result in accidental inflation of the
SRS airbag or could make the sys-
tem inoperative, which may result
in serious injury. The wiring har-
nesses of the SRS airbag system
are covered with yellow insulation
and system connectors are yellow
for easy identification.

Seat, seatbelt and SRS airbags 1-59
– CONTINUED –
In the event that the SRS airbag is de-
ployed, replacement of the system
should be performed only by an autho-
rized SUBARU dealer. When the com-
ponents of the SRS airbag system are
replaced, use only genuine SUBARU
parts.
To ensure their long-term reliability, the
SRS airbags must be inspected by a SUB-
ARU dealer ten years after the date of
manufacture, which is shown on the certi-
fication plate attached to the driver’s door-jamb.
NOTE
In the following cases, contact your
SUBARU dealer as soon as possible. y The front part of the vehicle was in-
volved in an accident in which only the
driver’s SRS frontal airbag or both driv-
er’s and front passenger’s SRS frontal
airbags did not deploy. y The pad section of the steering
wheel or front passenger’s frontal air-
bag cover is scratched, cracked, or
otherwise damaged.
In addition, if your vehicle is equipped
with SRS side airbags, contact your
SUBARU dealer as soon as possible in
the following cases. y Either center pillar or a nearby area
of the vehicle was involved in an acci-
dent in which the SRS side airbag did
not deploy.y The fabric or leather of either front
seatback is cut, frayed, or otherwise
damaged. „
Precautions against vehicle
modificationIf you need service or repair in areas
listed below, have an authorized
SUBARU dealer perform the work.
The SRS airbag control module, im-
pact sensors and airbag modules
are stored in these areas. yUnder the center console
y Inside each front fender
y Steering wheel and column and
nearby areas
y Top of the dashboard on front
passenger’s side and nearby ar- eas
y Each front seat and nearby area
y Inside each center pillar
y To avoid accidental activation of
the system or rendering the sys-
tem inoperative, which may result
in serious injury, no modifications
should be made to any compo-
nents or wiring of the SRS airbag
system.
This includes following modifica-
tions:
yInstallation of custom steering
wheels
yAttachment of additional trim
materials to the dashboard
yInstallation of custom seats
yReplacement of seat fabric or
leather
yInstallation of additional fabric
or leather on the front seat

2
Keys and doors
Keys ..................................................................... 2-2Key number ............................................................. 2-2
Immobilizer (if equipped) ................................... 2-3 Security ID plate ..................................................... 2-3
Security indicator light ....................................... 2-3
Key replacement ..................................................... 2-4
Door locks ........................................................... 2-4 Locking and unlocking from the outside ............. 2-4
Locking and unlocking from the inside ................ 2-5
Power door locking switches ............................ 2-6 Key lock-in prevention function ............................ 2-6
Remote keyless entry system ........................... 2-6 Locking the doors .................................................. 2-7
Unlocking the doors ............................................... 2-7
Illuminated entry ..................................................... 2-8
Vehicle finder function ........................................... 2-8
Sounding a panic alarm ......................................... 2-8
Selecting audible signal operation ....................... 2-8
Replacing the battery ............................................. 2-8
Replacing lost transmitters ................................... 2-9
Alarm system ...................................................... 2-12 System operation ................................................... 2-12
Activating and deactivating the alarm system ..... 2-13
If you have accidentally triggered the alarm system ................................................................... 2-13
Arming the system ................................................. 2-13
Disarming the system ............................................ 2-14
Valet mode .............................................................. 2-15
Passive arming ....................................................... 2-15 Tripped sensor identification ................................ 2-16
Shock sensors (dealer option) .............................. 2-16
Child safety locks ............................................... 2-17
Windows .............................................................. 2-18 Power windows ....................................................... 2-18
Rear gate ............................................................. 2-20
Moonroof (if equipped) ...................................... 2-21 To open the moonroof ............................................ 2-21
To close the moonroof ........................................... 2-21
Anti-entrapment function ....................................... 2-21

2-16 Keys and doors
2. Turn the ignition switch from “ON” to
“LOCK” position and remove the key from
the ignition switch.
3. Open the doors and get out of the vehi-
cle.
4. Before closing the doors, lock all doors
with the inside door lock levers.
5. Close the doors. The system will auto-
matically arm after one minute.
In the passive mode, the system can also
be armed with the remote transmitter or
with the power door locking switches. If
the remote transmitter or power door lock-
ing switch is used to lock the vehicle, arm-
ing will take place immediately regardless
of whether or not the passive mode has
been selected.T
Disarming the system
To disarm the system, briefly press the
“ ” button on the transmitter.
„ Tripped sensor identification
The security indicator light flashes when
the alarm system has been triggered. Al-
so, the number of flashes indicates the lo-
cation of unauthorized intrusion or the se-
verity of impact on the vehicle.y When the ignition switch is turned to the
“ON” position, the indicator light will light
for 1 second and then flash as follows: When a door or rear gate was opened:
5 times
When the ignition switch was turned to
the “ON” position: 3 times
When a strong impact or multiple im-
pacts were sensed: twice (only vehicles
with shock sensors (dealer option))
When a light impact was sensed: once
(only vehicles with shock sensors (deal-
er option))
NOTE
Any of the above indicator light flash-
ings will recur each time the ignition
switch is turned to the “ON” position.
Rearming the alarm system cancels
the flashing. „
Shock sensors (dealer op-
tion)
The shock sensors trigger the alarm sys-
tem when they sense impacts applied to
the vehicle and when any of their electric
wires is cut. The alarm system causes the
horn to sound and the turn signal lights to
flash for a short time when the sensed im-
pact is weak, but it warns of a strong im-
pact or multiple impacts by sounding the
horn and flashing the turn signal lights,
both lasting approximately 30 seconds.
If you desire, your SUBARU dealer can
connect them and set them for activation
or deactivation.
NOTE
y The shock sensors are not always
able to sense impacts caused by
breaking in, and cannot sense an im-
pact that does not cause vibration
(such as breaking the glass using a
rescue hammer). y The shock sensors may sense vibra-
tion like those shown below and trigger
the alarm system. Select the settings of
the alarm system and shock sensors
appropriately depending on where you
usually park your vehicle.
Example:
Vibration from a construction site
Vibration in a multistory parking ga-
200817

Keys and doors 2-17
rage
Vibration from trains
y You can have the sensitivity of the
shock sensors adjusted to your prefer-

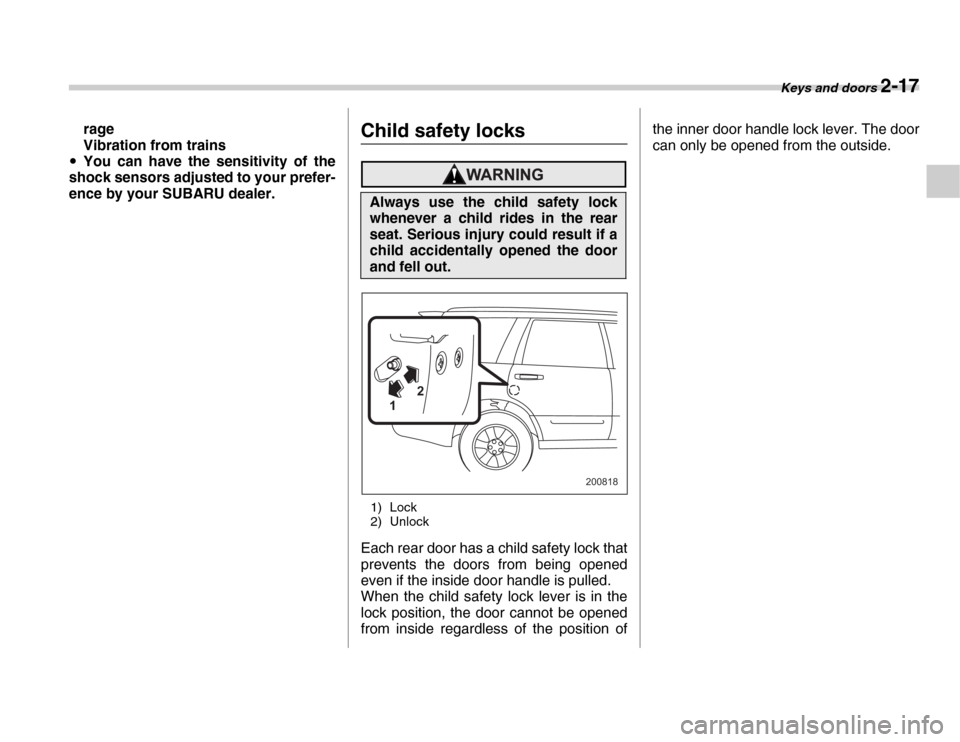

ence by your SUBARU dealer.Child safety locks
1) Lock
2) Unlock
Each rear door has a child safety lock that
prevents the doors from being opened
even if the inside door handle is pulled.
When the child safety lock lever is in the
lock position, the door cannot be opened
from inside regardless of the position of the inner door handle lock lever. The door
can only be opened from the outside.
Always use the child safety lock
whenever a child rides in the rear
seat. Serious injury could result if a
child accidentally opened the door
and fell out.
2
1
200818

3-26 Instruments and controls
TAuto-dimming mirror/compass (if
equipped)
1) Left button
2) Auto dimming indicator
3) Photosensor
4) Right button
The auto-dimming mirror/compass has an
anti-glare feature which automatically re-
duces glare coming from headlights of ve-
hicles behind you. It also contains a built-
in compass. y By pressing and releasing the left but-
ton, the automatic dimming function is tog-
gled on or off. When the automatic dim-
ming function is on, the auto dimming indi-
cator light (green) located to the right of
the button will illuminate. y By pressing and releasing the right but- ton, the compass display is toggled on or
off. When the compass is on, an illuminat-
ed compass reading will appear in the
lower part of the mirror.
Even with the mirror in anti-glare mode,
the mirror surface turns bright if the trans-
mission is shifted into reverse. This is to
ensure good rearward visibility during re-
versing. V
Photosensors
The mirror has a photosensor attached on
both the front and back sides. If the glare
from the headlights of vehicles behind you
strikes the mirror, these sensors detect it
and make the reflection surface of the mir-
ror dimmer to help prevent you from being
blinded. For this reason, use care not to cover the sensors with stickers, or other
similar items. Periodically wipe the sen-
sors clean using a piece of dry soft cotton
cloth or an applicator. V
Compass calibration
1. For optimum calibration, switch off all
nonessential electrical accessories (rear
window defogger, heater/air conditioning
system, spotlight, etc.) and ensure all
doors are shut.
2. Drive to an open, level area away from
large metallic objects or structures and
make certain the ignition switch is in the
“ON” position.
3. Press and hold the left button for 3 sec-
onds then release, and the compass will
enter the calibration mode. “CAL” and di-
rection will be displayed.
4. Drive slowly in a circle until “CAL” dis-
appears from the display (approximately
two or three circles).
5. The compass is now calibrated. Fur-
ther calibration is not required. The com-
pass will automatically calibrate from this
point forward.
1 23 4
300517
300518

4
Climate control
Ventilator ............................................................. 4-2Air flow selection .................................................... 4-2
Center and side ventilators .................................... 4-3
Manual climate control system (if equipped) .. 4-3 Control panel .......................................................... 4-3
Heater operation ..................................................... 4-5
Air conditioner operation ....................................... 4-7
Automatic climate control system (if equipped) .................................................... 4-8Control panel .......................................................... 4-8
To use as full-automatic climate control system ................................................................... 4-8
To use as semi-automatic climate control
system ................................................................... 4-8
Fan speed control dial ........................................... 4-9
Temperature control dial ........................................ 4-9
Air flow control dial ................................................ 4-9
Air inlet selection button ........................................ 4-10
Air conditioner button ............................................ 4-10
Temperature sensors ............................................. 4-11
Operating tips for heater and air conditioner ...................................................... 4-11Cleaning ventilation grille ...................................... 4-11
Efficient cooling after parking in direct sunlight ................................................................. 4-11
Lubrication oil circulation in the refrigerant circuit .................................................................... 4-12
Checking air conditioning system before summer season .................................................... 4-12 Cooling and dehumidifying in high humidity and
low temperature weather conditions .................. 4-12
Air conditioner compressor shut-off when engine is heavily loaded ...................................... 4-12
Refrigerant for your climate control system ........ 4-12
Air filtration system (if equipped) ..................... 4-12 Replacing an air filter ............................................. 4-13

Climate control 4-11
– CONTINUED –
Pressing the button cancels the “AUTO”
mode. SUBARU recommends using the
AUTO position.
NOTE
The air conditioner’s compressor does
not operate with an outside tempera-
ture of 32 qF (0 qC) or lower.
„ Temperature sensors
1) Interior air temperature sensor
2) Solar sensor
The automatic climate control system em-
ploys several sensors. These sensors are
delicate. If they are not treated properly
and become damaged, the system may
not be able to control the interior tempera-
ture correctly. To avoid damaging the sen- sors, observe the following precautions:
– Do not subject the sensors to impact.
– Keep water away from the sensors.
– Do not cover the sensors.
The sensors are located as follows:
– Solar sensor: beside the windshield de-
froster grille.
– Interior air temperature sensor: near the
ignition switch.
– Outside temperature sensor: behind the
front grille.
Operating tips for heater and
air conditioner „
Cleaning ventilation grille
Always keep the front ventilation inlet
grille free of snow, leaves, or other ob-
structions to ensure efficient heating and
defrosting. Since the condenser is located
in front of the radiator, this area should be
kept clean because cooling performance
is impaired by any accumulation of insects
and leaves on the condenser. „ Efficient cooling after parking
in direct sunlight
After parking in direct sunlight, drive with
the windows open for a few minutes to al-
2
1
400551
400552
