CONTROLS AND EQUIPMENT
6 - TIM button
Up to 9 traffic information reports with a total
length of 4 minutes can be stored automatically
with the TIM function (Traffic Information Memory)
in the quality of a telephone conversation. This
function uses a digital memory.
Recording traffic reports
You have 3 different possibilities to record traffic
announcements:
l When the radio is switched on, every traffic
announcement of the selected station will be re-
corded as soon as „TP“ appears in the display.
l Recording period: 2 hours 1
- Switch
on the TP ready mode with the TP
button 3 and select the required TP station by
pressing the traffic radio rocker switch 7.
2 - Remove the ignition key
.
All incoming traffic announcements will now be
recorded for the next 2 hours.
l Using
the functions TIM Time 1 and TIM Time
2, the TP recording function can be made avail -
a
ble for a period of 2 hours. Traffic announce -
ments
will be recorded during this period - see
page 8.
Note
l T
he oldest report will be deleted if a new report
is to be recorded and the memory is full.
lI
f a report is longer than 4 minutes the be-
ginning will be recorded over. An acoustic signal
will indicate that it was not possible to record the
entire report.
lNo
traffic announcements will be recorded if
the vehicle is not used for three days or longer.
7 - Traffic radio rocker switch
Listening to traffic reports chronologically
Press the TIM button 6 - the most recent traffic
report will be played first and the reports will then
be played in chronological order through to the
oldest. „TP Memo 2/3“, for example.
„TP-Memo“: TIM replay
„2/3“: 2nd traffic announcement of three recorded
traffic announcements.
„No TP Message“ will appear in the display if no
traffic reports have been recorded.
Listening to traffic reports in any order
l Press the TIM button 6.
l M
ove from message to message with the
traffic radio rocker switch 7 by pressing the right
side
(next message) and the left side (previous
message) or to the beginning of a message.

13
CONTROLS AND EQUIPMENT
8 - Flashing diode
When the unit is switched off and the ignition key
is removed, this flashing diode indicates that the
car radio is equipped with activated anti-theft
coding.
9 - Station buttons
Radio operation
A maximum of 24 stations can be stored on the 6
station buttons and the different memory levels.
FM1/FM2 = 6 stations each,
AM1/AM2 = 6 stations each.
„FM2“ indicates that you are on the second me-
mory level. You can switch between the memory
levels by pressing the FM or AM button 4.
Manually storing
lSelect desired waveband 4.
l Tune radio to desired station 10.
l Press the button on which the station is to be
stored and hold until the programme is muted
and a signal is emitted. The station is now stored.
The number of the station button appears in the
display (if, for example, you store a station on
button number 3, a „3“ will appear in the display.
Note
Please ensure that the name of the station is
shown in the display when storing. Otherwise
any running text being displayed, and not the
station name, will be stored!

14
CONTROLS AND EQUIPMENT
CD operation
Briefly press buttons 9 to select the individual
CDs in the magazine if a CD changer has been
installed.
„CD1“ to „CD6“ in the display indicates a CD
already loaded.
If no magazine is in the changer, „NO MAGAZINE“
appears in the display.
10 - SCAN knob
Setting station manually
The stations can be selected manually using the
SCAN knob.
l Turn button briefly:
„MAN“ appears in the display. Tuning changes in
single steps (100 kHz for FM, 9 kHz for AM).
Note (only for AS, TP and FM)
When using manual tuning by frequency, alter-
native frequencies are not automatically selected
and the station name is not displayed. Scanning stations
All station with a strong reception in one memory
level (e.g. FM1) will be played briefly by pressing
the SCAN knob.
l
Briefly press the SCAN knob:
„SCAN“ appears in the display. All stations that
can be received will be played for approximately
5 seconds.
The station currently being played will be selected
permanently if the SCAN knob is pressed again.

15
CONTROLS AND EQUIPMENT
CD operation
It is possible to „flick“ in order backwards and
forwards through the tracks on a CD by turning
the SCAN knob 10.
The track currently selected then appears in the
display:
„TRACK 1 . . . TRACK 2 . . . TRACK 3 . . .“ etc.
11 - AS button
In the AS mode it is possible to automatically
store the 6 stations with the strongest signals
in a user friendly fashion on the memory level
FM2 or AM2.
Automatic storing
lSelect the wavelength.
l Press the AS button for approximately 2
seconds.“AUTOSTORE“ appears in the display.
The 6 stations with the strongest signals on
memory level FM2 or AM2 are automatically
stored.
12 - MIX button
Press the MIX button during CD operation. The
tracks of the CD will be played in random order.
l „MIX“ appears in the display.
l The MIX function can be switched off by press -
ing the button again.
Note
If a CD changer is installed, all the CDs in the
changer will be played according to the random
principle.

16
CONTROLS AND EQUIPMENT
13 - CD eject
The Cd will be ejected from the CD player when
the CD eject button is pressed.
l„CD EJECT“ appears in the display.
Note
The CD will automatically be pulled back into the
player if it is not removed from the slot within ap-
proximately 10 seconds.
14 - CD slot
Push the CD with the printed side facing up
into the CD slot until it is pulled in automatically.
The tracks on the CD will be played.
CD mode and traffic news
If TP mode is switched on before the CD button 4
is pressed, CD playback is interrupted for traffic
news announcements.
If the transmitting range of the station is left, the
radio automatically selects a new traffic news
station.
A traffic announcement being made can be in-
terrupted by pressing the TP button 3 and the
CD player will resume its function.
The interrupted announcement will still be re-
corded and can be played at a later point.
Any subsequent traffic news announcement will
still be played.
To enjoy listening to your CD without interruption,
press and hold the Tp button 3 until „TP: OFF“
appears in the display.
Fault indicators
The following fault messages can appear in the
display:
- „NO MAGAZINE“
No magazine in the CD changer
.
- „NO DISC“
No CD in the CD player
- „NO CD“
The
chosen compartment in the magazine of the
CD changer is empty.
- „CD ERROR“
T

he CD in the chosen compartment has been
inserted with the printed side down or the CD is
heavily soiled or damaged.

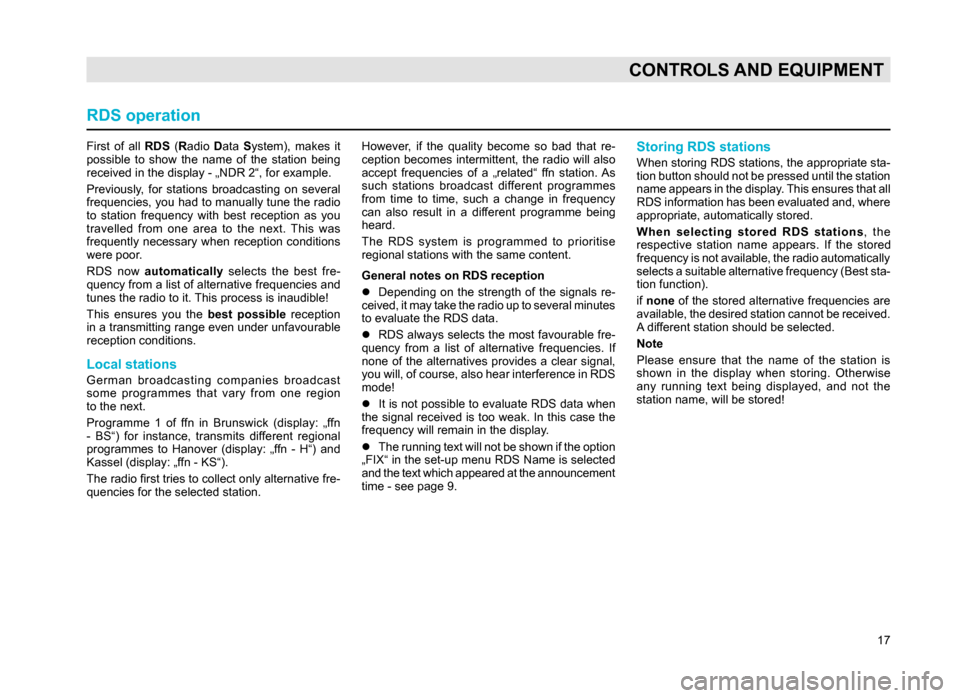

17
CONTROLS AND EQUIPMENT
First of all RDS (Radio Data System), makes it
possible to show the name of the station being
received in the display - „NDR 2“, for example.
Previously, for stations broadcasting on several
frequencies, you had to manually tune the radio
to station frequency with best reception as you
travelled from one area to the next. This was
frequently necessary when reception conditions
were poor.
RDS now automatically selects the best fre-
quency from a list of alternative frequencies and
tunes the radio to it. This process is inaudible!
This ensures you the best possible reception
in a transmitting range even under unfavourable
reception conditions.
Local stations
German broadcasting companies broadcast
some programmes that vary from one region
to the next.
Programme 1 of ffn in Brunswick (display: „ffn
- BS“) for instance, transmits different regional
programmes to Hanover (display: „ffn - H“) and
Kassel (display: „ffn - KS“).
The radio first tries to collect only alternative fre-
quencies for the selected station. However, if the quality become so bad that re-
ception becomes intermittent, the radio will also
accept frequencies of a „related“ ffn station. As
such stations broadcast different programmes
from time to time, such a change in frequency
can also result in a different programme being
heard.
The RDS system is programmed to prioritise
regional stations with the same content.
General notes on RDS reception
l
Depending on the strength of the signals re-
ceived, it may take the radio up to several minutes
to evaluate the RDS data.
l RDS always selects the most favourable fre-
quency from a list of alternative frequencies. If
none of the alternatives provides a clear signal,
you will, of course, also hear interference in RDS
mode!
l It is not possible to evaluate RDS data when
the signal received is too weak. In this case the
frequency will remain in the display.
l The running text will not be shown if the option
„FIX“ in the set-up menu RDS Name is selected
and the text which appeared at the announcement
time - see page 9.
Storing RDS stations
When storing RDS stations, the appropriate sta-
tion button should not be pressed until the station
name appears in the display. This ensures that all
RDS information has been evaluated and, where
appropriate, automatically stored.
When selecting stored RDS stations , the
respective station name appears. If the stored
frequency is not available, the radio automatically
selects a suitable alternative frequency (Best sta -
tion function).
if none of the stored alternative frequencies are
available, the desired station cannot be received.
A different station should be selected.
Note
Please ensure that the name of the station is
shown in the display when storing. Otherwise
any running text being displayed, and not the
station name, will be stored!
RDS operation

18
CONTROLS AND EQUIPMENT
How does RDS work?
In many European countries RDS has already
been introduced by a great many radio stations.
These stations attempt to cover the widest possi-
ble area.
In addition to normal FM radio signals, a further,
inaudible flow of digitalized information is trans-
mitted to the RDS receiver. Amongst other things,
this information controls the following functions.
l Programme Identification
(PI code)
The PI code tells the radio which station is cur-
rently being received - e.g. NDR 2.
l Programme Service Name
(PS code)
The PS code contains the station name, which is
then shown in the display.
Some stations also transmit running advertising
text along with the station name. It is possible
to set whether or not this running text should be
shown or not by using the „RDS Name“ set-up
menu function - see page 9.
l Alternative Frequencies
(AF code)
Since the range of FM radio waves is quite limited,
stations broadcast from several transmitters on
various frequencies. The AF code provides the
radio with a list of frequencies on which the station
broadcasts. The radio is thus able to tune to the
frequency with the best reception. The radio switches from once frequency to an-
other virtually inaudibly, and the station name
shown in the display remains unchanged.
A practical example:
On a trip on the Autobahn from Flensburg to Göt
-
tingen you would like to listen to NDR 2. All you
have to do is tune to this station at the beginning
of your trip. The station name - „NDR 2“ - lights
up in the display.
During your entire trip, your RDS radio searches
for alternative frequencies for the selected station
and, when necessary, tunes to them automatically
and virtually inaudibly.
l Traffic programme
(TP Code)
The TP code informs the radio when a traffic news
station is being received.
l Traffic announcement
(TA Code)
The radio uses the TA code to recognize a traf -
fic news announcement. If the radio is muted
or in Cd player mode, the radio automatically
switches to traffic news announcements at the
programmed volume. The unit switches to mono
at the same time.
15 - DSP knob
Sound fields
The following sound fields can be selected with
the DSP knob:
l TALK
l DRIVER
l DSP OFF
You can, with these various different fields, alter
the sound of music and spoken presentations
from the radio and CD player to suit your re-
quirements.
DSP
(Digital Sound Processor)

19
CONTROLS AND EQUIPMENT
l Press the DSP button to select a certain sound
field. The chosen sound field (e.g. DRIVER) will
be shown in the display with a settings bar.
l T
he sound field can be further defined by turn -
ing
the SCAN button 10. The alteration made can
be seen on the settings bar.
The chosen sound field (e.g. „DRIVER“) will be
shown permanently in the display.
TALK
The sound field „TALK“ is particularly suited for
the spoken word.
DRIVER
T

he sound field „DRIVER“ places the acoustic
centre of the music at the driver’s position. Activating headphones
A set of headphones can be used to listen to
spoken word and music. The loudspeakers are
muted when in use.
l
To activate the headphones, press the DSP
button for approximately 2 seconds.
The

radio is muted. „HEADSET“ appears in the
display.
l Briefly
press the DSP button to deactivate the
headphones. The radio will return to loudspeaker
mode.
Note
lThe
headphones connection is located on the
rear side of the unit. Please go to a qualified deal -
ership to have a set of headphones in
stalled.
l The
sound fields are not available once the
headphones have been activated.
Display
16 - Displays in radio mode
1- TP display
2 - Station name
3 - W
avelength
(FM, AM)
4 - Station buttons display
T

he station name will be shown instead of the
frequency if the RDS function is switched on
(see page 17)
