Lights and Visibility55
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
Headlamp range adjustment 
Once the low beam is switched on you can then adapt the range of
the headlights to the load of the vehicle.
– Turn the control dial ⇒fig. 43 until you have adjusted the low beam
so that oncoming traffic is not dazzled.
Settings
The positions correspond approximat ely to the following vehicle loads:
Front seats occupied, luggage compartment empty.
All seats occupied, lugg age compartment empty.
All seats occupied, lugg age compartment laden.
Driver seat occupied, luggage compartment laden.
Caution
Set the headlight beam adjustment in such a way as to avoid dazzling oncoming
traffic.
Note
Headlights fitted with Xenon bulbs* adap t automatically to the load and driving
state of the vehicle (e.g. accelerating, braking) when the ignition is switched on and
when driving. Vehicles which are not eq uipped with Xenon bulbs* do not have a
headlight beam adjustment control.
Switch for hazard warning lights 
–Press switch  ⇒ fig. 44 to switch the hazard warning light system on
or off.
All the turn signal lights on the vehicle flash at the same time when the hazard
warning light system is switched on. The indicator light for the turn signals and the
indicator light in the switch also flash at the same time. You can also switch on the
hazard warning light system if the ignition is switched off.
The hazard warning light system is switched on automatically if an airbag is
deployed in the event of an accident.
Please comply with any legal requirements when using the hazard warning light
system.
Fig. 43 Dash panel:
Lights and Visibility
A-
A1
A2
A3
Fig. 44 Dash panel:
Switch for hazard
warning lights
NKO A5 20 MR08.book Page 55 Wednesday, April 11, 2007 2:54 PM

Lights and Visibility
56
Note
Switch on the hazard warning light system if, for example:
•you encounter traffic congestion,
•your vehicle breaks down or an emergency situation occurs.
The turn signal   and main beam lever 
The parking lights and headlight flasher are also switched on and off
using the turn signal and main beam lever.
The turn signal and main beam lever perform the following functions:
Right
 and left  turn signal light
– Push the lever upwards or downwards ⇒fig. 45 .
– If you only wish to flash three times* (the so-called convenience turn signal), push the lever briefly up to the upper or lower pressure point
and release it. This function can be activated/deactivated in the infor-
mation display* ⇒page 22.
– Turn signal for changing lanes - in or der to only flash briefly, move the
lever up or down to the pressure point and hold it in this position. Main beam

– Switch on the low beam.
– Push the lever forwards.
– Pull the lever back into the initial po
sition in order to switch the main
beam off again.
Headlight flasher

– Pull on the lever of the steering wheel (sprung position) - the main beam and warning light in the instrument cluster come on.
Parking light

– Switch off the ignition.
– Push the lever up or down - the ri ght-hand or left-hand parking light
is switched on.
Information concerning the function of the lights.
•The turn signal system only operates when the ignition is switched on. The
corresponding indicator light  or  in the instrument cluster also flashes.
•The turn signal is automatically cancelled after negotiating a curve.
•The indicator light flashes at twice its normal rate if a bulb of the turn signal light
fails.
•The side light and rear light on the appr opriate side of the vehicle are switched
on when the parking light is selected. The parking light function only operates if
the ignition is switched off.
•An acoustic warning signal will sound when the driver's door is opened if the
lever is not in the middle position after removing the ignition key. The acoustic
warning signal will stop just as s oon as the driver's door is closed.
Caution
Use main beam or the headlight flasher only if this does not risk dazzling other road
users.
Fig. 45 Turn signal and
main beam lever
NKO A5 20 MR08.book Page 56 Wednesday, April 11, 2007 2:54 PM

Fuses and light bulbs245
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
F11Lambda probe upstream of catalytic converter,
engine control unit10
F12Lambda probe downstream of catalytic converter10
F13Control unit for automatic gearbox15
F14Not assigned
F15Coolant pump10
F16Windshield wiper lever and turn signal light lever5
F17Instrument cluster5
F18Audio amplifier (sound system)30
F19Radio15
F20Phone5
F21Not assigned
F22Not assigned
F23Engine control unit10
F24Control unit for CAN databus5
F25Not assigned
F26Not assigned
F27Not assigned
F28Engine control unit25
F29Actuation for coolant pump after-running5
F30Control unit for auxiliary heating20
F31Front window wiper30
F32Not assigned
F33Not assigned
F34Not assigned
No.Power consumerAmperes
F35Not assigned
F36Not assigned
F37Not assigned
F38Radiator fan, valves10
F39Clutch pedal switch, brake pedal switch5
F40Ignition coils20
F41Not assigned
F42Actuation of fuel pump5
F43Not assigned
F44Not assigned
F45Not assigned
F46Not assigned
F47Central control unit, Left main headlights30
F48Central control unit, Right main headlights30
F49Power supply for terminal 15 (ignition on)40
F50Not assigned
F51Not assigned
F52Power supply relay - terminal X a)40
F53Accessory equipment50
F54Not assigned
a)In order not to drain the battery unnecessarily when starting the engine, the electrical
components of this terminal are automatically switched off.
No.Power consumerAmperes
NKO A5 20 MR08.book Page 245 Wednesday, April 11, 2007 2:54 PM

Fuses and light bulbs
248
Electrically adjustable seats are protected by automatic circuit breakers, which
switch on again automatically after a few seconds after the overload has been
eliminated.
Bulbs
Changing bulbs
The relevant lamp must always be switch ed off before a light bulb is replaced. Defect light bulbs should only be replaced
with light bulbs of the same type. The
designation is located on the li ght socket or the glass bulb.
Changing certain bulbs is not something wh ich you can do yourself, but requires to
be done by a specialist. Other parts of the vehicle must be removed in order to
change the light bulbs. This applies, in particular, to bulbs which can only be
reached from the engine compartment.
We therefore recommend that you have any bulbs changed by a Škoda Service
Partner or, in exceptional cases, by ca lling on other professional assistance.
Please note that the engine compartment is a hazardous area ⇒page 210.
We recommend that you carry the set of light bulbs with you which was delivered
in your vehicle. Replacement light bulbs
13) are available at specialist garages.
The set of light bulbs can be stowed in the locable box in the spare wheel.
Fitted with a xenon headlight
Change of light bulbs on Xenon lights (low beam lights, parking lights and main
beam lights) should be undertaken by a specialist garage.
Overview of bulbs
33Electric sliding/tilting roof25
34Control unit for convenience functions20
35Anti-theft alarm system5
36Headlight cleaning system20
37Front seat heating30
38Heated rear seats30
39Not assigned
40Air blower for heating and air conditioning40
41Rear window wiper15
42Wipe wash pump for windscreen15
43Towing device15
44Towing device20
45Towing device15
46Heated windscreen washer nozzles5
47Relay for auxiliary heating5
48Not assigned
49Light switch5
No.Power consumerAmperes
13)Replacement light bulbs are, on the other hand, part of the basic equipping of the vehicle in
some countries.
Front headlightHalogen headlightXenon headlight
Low beamH7D1S
Main beamH1
Parking lightsW5W
Tu r n s i g n a l sPY21W
Fog lightsH8/H1a)
a)Octavia RS
NKO A5 20 MR08.book Page 248 Wednesday, April 11, 2007 2:54 PM

Fuses and light bulbs249
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
WARNING
•Bulbs H7 and H1 are pressurised and may burst when changing the bulb
- risk of injury!
•It is recommended to wear gloves and eye protection when changing a
light bulb.
•Gas discharge bulbs* (xenon bulbs) op erate with a high voltage, profes-
sional knowledge is required - danger to life!
Caution
Do not take hold of the glass bulb with naked fingers (even the smallest amount of
dirt reduces the working life of the light bu lb). Use a clean cloth, serviette or some-
thing similar.
Note
This Owner's Manual only describes the replacement of bulbs where it is assumed
that no major complications wi ll arise. Other light bulbs should be changed by your
specialist garage.
Removing the headlight
Light unit (Octavia)Bulb
Reversing lightP21W
Tu r n s i g n a l sPY21W
Twin filament light bulb for the brake lights and tail
lightsP21/4W
Twin filament light bulb for the rear fog lights and
tail lightsP21/4W
Parking lightsW3W
Rear light unit (estate car)Bulb
Reversing light, brake lights, tail lights and rear fog
lightP21W
Tu r n s i g n a l sPY21W
Parking lightsW3W
OthersBulb
Side turn signal lightsLED
Licence plate lightC5W
3. Brake lightLED
Entry lightW5W
Front interior lightingC10W
Reading lightsW5W
Rear interior lightingC10W
Luggage compartment lightW5W
Door warning lightC5W
Storage compartment light - front passenger sideC3WFig. 227 Removing the
headlight
NKO A5 20 MR08.book Page 249 Wednesday, April 11, 2007 2:54 PM

Fuses and light bulbs
250
The headlight must be removed in order to change the light bulb of the
parking lights, low beam lights and main beam lights as well as the turn
signal lights.
Removing the headlight
– Switch the ignition and all lights off.
– Open the bonnet ⇒page 209.
– Unscrew the plastic nut ⇒page 249, fig. 227 .
– Pull the locking lever of the headlight as far as the stop in the direction
of arrow .
– Unplug the plug connector and carefully take out the headlight in the direction of arrow .
Installation takes place in the reverse order.
Note
We recommend that you have the headlight setting checked by a specialist garage
after installing the headlight.
Parking light at the front
Removing the light bulb for the parking light
– Switch the ignition and all lights off.
– Remove the headlight ⇒ page 249.
– Press the wire clamps in the direction of arrow to the side and remove the cover ⇒fig. 228 .
– Press the contact studs in the direction of arrow and remove the holder with the light bulb of the parking light ⇒ fig. 229.
– Take the faulty bulb out of the fixture and insert a new one.
Installation takes place in the reverse order.
Note
We recommend that you have the headlight setting checked by a specialist garage
after installing the headlight.
AA
A1
A2
Fig. 228 Removing the
cover for the parking and
low beam light
Fig. 229 Removing the
light bulb for the parking
light
NKO A5 20 MR08.book Page 250 Wednesday, April 11, 2007 2:54 PM

Fuses and light bulbs251
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data

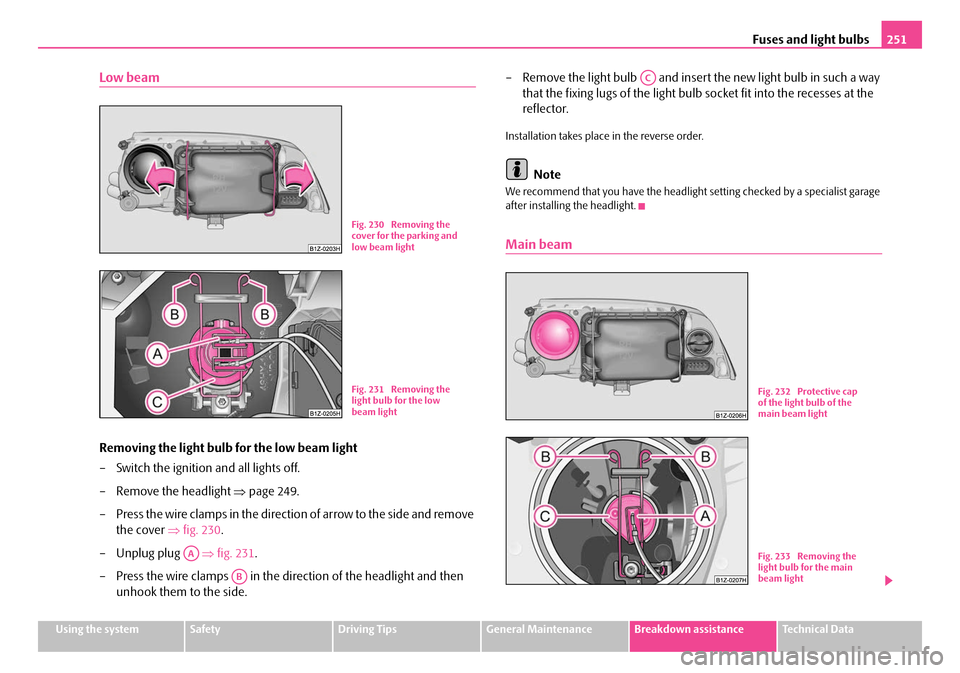

Low beam
Removing the light bulb for the low beam light
– Switch the ignition and all lights off.
– Remove the headlight ⇒page 249.
– Press the wire clamps in the direction of arrow to the side and remove the cover ⇒fig. 230 .
– Unplug plug ⇒fig. 231 .
– Press the wire clamps in the direction of the headlight and then unhook them to the side. – Remove the light bulb and insert the new light bulb in such a way
that the fixing lugs of the light bulb socket fit into the recesses at the
reflector.
Installation takes place in the reverse order.
Note
We recommend that you have the headlight setting checked by a specialist garage
after installing the headlight.
Main beam
Fig. 230 Removing the
cover for the parking and
low beam light
Fig. 231 Removing the
light bulb for the low
beam light
AA
AB
AC
Fig. 232 Protective cap
of the light bulb of the
main beam light
Fig. 233 Removing the
light bulb for the main
beam light
NKO A5 20 MR08.book Page 251 Wednesday, April 11, 2007 2:54 PM

Fuses and light bulbs
252
Removing the light bulb for the main beam light
– Switch the ignition and all lights off.
– Remove the headlight ⇒page 249.
– Remove the protective cover at the rear of the headlight ⇒page 251,
fig. 232 .
– Unplug plug ⇒page 251, fig. 233 .
– Press the wire clamps in the direction of the headlight and then unhook them to the side.
– Remove the light bulb and insert the new light bulb in such a way that the fixing lugs of the light bulb socket fit into the recesses at the
reflector.
Installation takes place in the reverse order.
Note
We recommend that you have the headlight setting checked by a specialist garage
after installing the headlight.
Turn signal light (at the front)
Changing light bulb for turn signal light (at the front)
– Switch the ignition and all lights off.
– Remove the headlight ⇒ page 249.
– Turn the socket in the direction of arrow OPEN (open) and take it out
together with the light bulb for the turn signal light ⇒fig. 234 .
– Press the defective light bulb into the socket, turn to the left and remove.
– Press a new light bulb into the socket and turn the light bulb to the right as far as the stop.
– Insert the socket with the changed light bulb into the headlight and secure it by turning in the direction of arrow CLOSE (close) to the
right.
Note
We recommend that you have the headlight setting checked by a specialist garage
after installing the headlight.
AA
AB
AC
Fig. 234 Removing the
light bulb for the turn
signal light
NKO A5 20 MR08.book Page 252 Wednesday, April 11, 2007 2:54 PM
