Navigation33
Making a selection from the last destinations
–Press ⇒page 30, fig. 20 to ma ke a se le ction fro m the
list of the last used destinations ⇒page 30.
–Turn the menu knob to make a sele ction from the list of the last
used destinations ⇒page 32, fig. 24 . Press to make an
address fully visible if it cannot be read fully.
– Press the menu knob to select the address marked in red. The Navigation main menu will appear with your selected address
after a few seconds.
Deleting the list of last destinations
– Starting in the Navigation main menu ⇒page 29, fig. 19 press
the following function keys in order: ,
and .
– Select or when confirmation is asked for. If you select , all of the last destinations, including the current
destination, will be deleted.
The addresses collected in the Last dest. memory can only be deleted all at
once, not individually.
A total of 14 last destinations can be st ored in the memory. A destination will
not be stored in Last dest. until destination guide has started. If you are not
able to store any more destinations, the destination memory is full. Delete
either the last destinations memory or destinations from the destination
memory ⇒page 38.
Address from the destination memory– Press ⇒page 30, fig. 20 to see a list of the
stored destinations.
– You can move the red bar, by turning the menu knob. Press to make an address marked in this way fully visible if it cannot be
read fully.
– The address marked in red will be activated if the menu knob is pressed. The Navigation main menu will appear with your
selected address after a few seconds.You will be shown a message if the destination memory is full. Some of the
destinations should then be deleted manually.
Last dest.

Destination
Edit memory
Delete last dest.Cancel
Delete
Delete
Fig. 26 Complete desti-
nation address
From dest. memory

MFD2 ingles Seite 33 Montag, 15. Mai 2006 9:19 09

Navigation
34Special destinations close to the address
Special destinations close to the destination can be selected
from a list.– Press ⇒page 31, fig. 22 to select a special desti-
nation close to the destination a ddress (town, street etc.) that
you have already entered.Special destinations of the same category, e.g. restaurants, will be displayed
in a list. The nearest destination will be shown in the first position.
Note
•
If you have not changed your destination address entry, the area close to
this last destination will be analysed and the special destinations there will
be listed.
•
The type and number of special destinations will be determined by the
content of the Navigation CD.
Destination on the map
A crosshair can be used to mark a destination on the map.–Press ⇒page 30, fig. 20 .
– Use the right-hand function keys to move the crosshair to your required destination.
– Use or to alter the scale to suit your search strategy ⇒page 45, “Changing the scale”.
NoteThe next section of the map will be shown after a few seconds when the cross-
hair is moved to the side of the screen.
Fig. 27 Special destina-
tions close to the address
Close to addr.
Fig. 28 Destination on
map
Dest. on map


MFD2 ingles Seite 34 Montag, 15. Mai 2006 9:19 09

Navigation
40
– Press in the navigation main menu ⇒page 29,
fig. 19.A short route might be quicker for your purpose in larger towns or cities where
there are a lot of traffic jams. Route options can be altered whilst the destina-
tion guide function is active. The change d parameters will be used as a basis
for the calculation of the remaining journey.
Function keys in the route option menu•
Fast or Short: Determines whether a fast or short route should be calcu-
lated.
•
Dynam. : Dynamic route guidance responds to traffic reports broadcast by
TMC stations. This function will automatically guide you round traffic jams or
blocked roads.
, or – Determines whether motorways, ferries or toll
roads should be used. These options will, however, be used for calculation if
there is no other logical route to the destination (e.g. an island is to be used
without using a ferry).
– Stores the selected settings for future route guidance usage.
Dynamic route guidance
An announcement that there are traffic jams on your route will be made if a
traffic jam is registered. “You will also be warned directly before the” “traffic
jam itself”.
Once the dynamic route guidance function has been activated you will be
informed that “the route is being calculat ed taking into account traffic news”.
Traffic problems are indicated by a symbol on the map:

Traffic jam ⇒page 39, fig. 38

Slow-moving traffic

Road closed The navigation system will calculate the quickest possible route when the
dynamic route guidance option is active. The system might well guide you
through a traffic jam if the diversion would be longer.
Note
•
The dynamic route guidance option will only function if you are receiving
at least one TMC radio station.
•
The MFD2 radio navigation system will automatically look for a new TMC
station if you leave the re ception area of the one you are using. The station
you are listening to, however, does not have to be a TMC station.
•
The dynamic route guidance option wi ll always use motorways, ferries
and toll roads.
•
The navigation CD-ROM should be compatible with the TMC data.
•
The quality of the dynamic route guidance depends on the information
contained in the traffic announcements. The radio stations broadcasting this
information are responsible for the content.
Route opt.
RouteMotorway
Ferry
Toll
By default
AA
AB
AC
MFD2 ingles Seite 40 Montag, 15. Mai 2006 9:19 09

Navigation41
Settings
The vehicle position can be entered manually and you can
then start a demonstration journey.
Entering your position
– Press in the Navigation main menu ⇒page 29, fig. 19
to enter the vehicle position.
– Press . The entry window for the town appears.
Once you make your entry and confirm it with , another
window for the street will appear. After confirming the name of
the street you will see a list of the streets which have an intersec-
tion with the named street.
– Select the intersection and confirm your choice by pressing the menu knob.
– Now enter your position either before or after this intersection in metres and also enter the directio n of travel using the points of
the compass.
– Confirm your entry by pressing . The screen display will return to the Navigation main menu.
Entering your position on the map
– Press successively and to see your set
position on the map. The scale of the map can be altered using
the two top left-hand function keys.
– Press the button ⇒page 4, fig. 1 twice to return to the
Navigation main menu.
Starting the demonstration
– Press and then select active. The navigation system is
activated.
Fig. 39 Settings in the
Navigation main menuFig. 40 Position settings
SettingsPosition location
OK
OK
Settings
Position map
ESC
A11
Demo
MFD2 ingles Seite 41 Montag, 15. Mai 2006 9:19 09

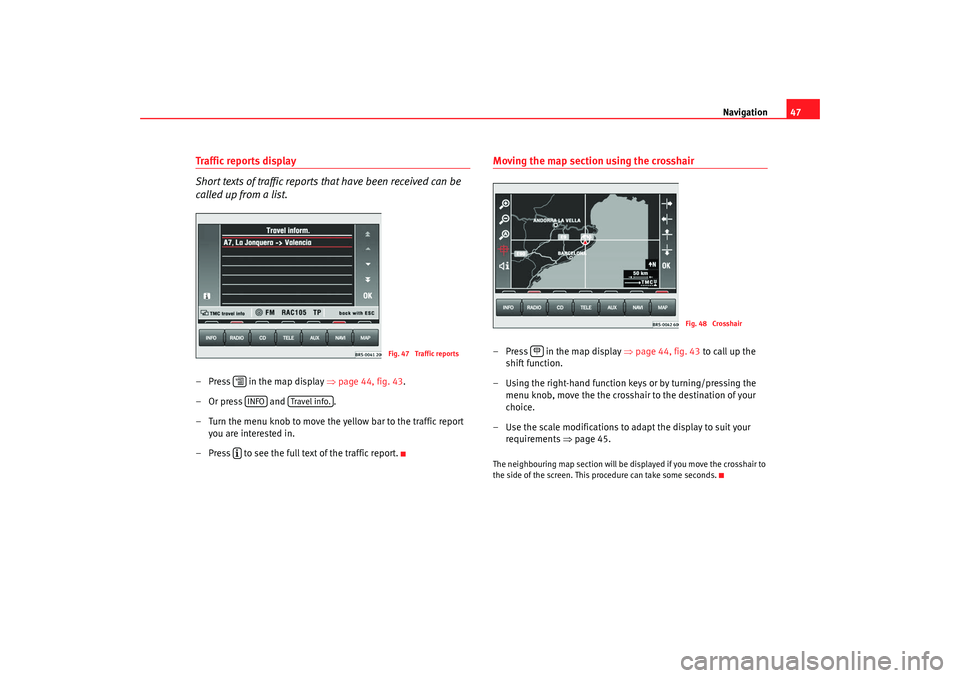

Navigation47
Traffic reports display
Short texts of traffic reports that have been received can be
called up from a list.–Press in the map display ⇒page 44, fig. 43 .
–Or press and .
– Turn the menu knob to move the yellow bar to the traffic report you are interested in.
– Press to see the full text of the traffic report.
Moving the map section using the crosshair– Press in the map display ⇒page 44, fig. 43 to call up the
shift function.
– Using the right-hand function keys or by turning/pressing the menu knob, move the the crosshair to the destination of your
choice.
– Use the scale modifications to adapt the display to suit your requirements ⇒page 45.The neighbouring map section will be displayed if you move the crosshair to
the side of the screen. This procedure can take some seconds.
Fig. 47 Traffic reports

INFO
Travel info.

Fig. 48 Crosshair

MFD2 ingles Seite 47 Montag, 15. Mai 2006 9:19 09

Navigation
48Augmenting map contents
A range of symbols can be used to display additional map
content.– Press in the map display ⇒ page 44, fig. 43.
– Turn the menu knob or use the right-hand function keys to move the yellow bar to the map detail you are interested in.
– Press the menu button or . A "tick" will appear next to the map detail.
NoteYou can lose the overview of the map if too many map details are selected.
Route list
The route list is a list of all route sections which will be trav-
elled through with active route guidance.–Press in the map display ⇒ page 44, fig. 43 to see the route
sections of your current journey.The route list is updated during the journey. It shows the roads that you have
not yet reached. Route sections that you have already travelled will be deleted
from the route list.
Note
It takes some seconds after route guidance has started for the route list to be
compiled so that it can be displayed.
Fig. 49 Map contents

OK
Fig. 50 Trajectory route
list

MFD2 ingles Seite 48 Montag, 15. Mai 2006 9:19 09

Information and system settings53
Information and system settingsInformationThe MFD2 radio navigations system stores text and spoken
announcements made by the radio stations and draws up a
route list whilst the route guidance function is active.
– Press button ⇒page 4, fig. 1 to enter the Info main
menu.Function keys in the Info main menu
The function keys , , and
are displayed in grey if no further information is available.
– Plays back recorded traffic reports (Stop by pressing
⇒ page 4, fig. 1 ).
The TIM messages are stored chronologically. The latest message is at the top
of the list. The selection bar will spring automatically to the next message
once the first message has been played. The system will return to the main
menu after the last message has been played and will then reactivate the
audio source that was being used. All of the messages will be played if
another menu button, e.g. is pr essed whilst a TIM message is being
played. The oldest announce ment will be overwritten if the memory is full.
Fig. 55 Info main menu
Fig. 56 Setting the TIM
time
INFO
A18
TIM bulletins
Travel infor m.
Route list
TMC stations
TIM messages
ESC
A11
RADIO
MFD2 ingles Seite 53 Montag, 15. Mai 2006 9:19 09

Information and system settings
54
– Displays a list of receivable TMC stations. Select a station
whose traffic reports should be played if you happen to be listening to
another radio station. A di fferent station will be chosen automatically if the
selected station can no longer be received.
– Displays a list of the latest traffic reports ⇒page 47.
⇒ page 54
– Displays the software version installed in the MFD2 radio navi-
gation system.
– Displays a list of the streets on the route to the destination. Use
the menu knob to page through the str eet lists that are on your navigation
route. Press if an entry is not fully displayed.
⇒ page 49

•
TIM hour 1 and TIM hour 2 : Here you may enter two departure times, for
example, 7:00 h and 17:30 h. The system starts to record bulletins during two
hours, one hour and a half before the departure. This means that you will
have up to date traffic information right from the start of your journey.
•
TIM Standby – Traffic reports will be recorded for two hours after you have
switched off the unit.Note
The list of announcements cannot be opened whilst a traffic announcement
is being made, as it is also being recorded.
System settingsIn the system settings menu, you can select different
languages for the displays and oral announcements and
adjust the screen brightness.– In the Info main menu, press ⇒page 53, fig. 55 to
see which settings can be made. You can also call up the system
settings from the Radio main menu by pressing ⇒page 8, fig. 4
or from the CD main menu ⇒page 12, fig. 9 .Function keys in the Settings menu
– Shows a list of available languages for display texts and voice
messages. Select a language by turning and pressing the menu knob. You
will see a display text in the chosen language. Do not press any further keys
until the loading sequence is finished.
– You can set the screen brightness to be adjusted to suit the light
conditions when the headlights are switched on.
TMC stationsTraffic bulletinsSystem settingsSystem InfoRoute list

Position displaySettings
Fig. 57 System settings
Syst. settings
Settings
LanguageDay/Night
MFD2 ingles Seite 54 Montag, 15. Mai 2006 9:19 09
