2007 Seat Leon 5D technical data

General notes on the technical data 265
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
Snow chains
Snow chains may be fitted only to the
front wheels.
Consult the chapter “wheels” of this manual.
Wheel bolts
After the wheels have been changed, the tightening torque of the wheel bolts
should be checked as soon as possible with a torque wrench ⇒. The tight-
ening torque for steel and alloy wheels is 120 Nm.
WARNING
•
Check the tyre pressure at least once per month. Correct tyre pressure
is very important. If the tyre pressure is too high or too low, there is an
increased danger of accidents, particularly at high speeds.
•
If the torque of the wheel bolts is too low, they could loosen whilst the
vehicle is in motion. Risk of accident! If the tightening torque is too high,
the wheel bolts and threads could be damaged.Note
We recommend that you ask your Authorised Service Centre for information
about appropriate wheel, tyre and snow chain size.
leon ingles.book Seite 265 Dienst ag, 11. September 2007 1:47 13

Technical data
266Te c h n i c a l d a t aChecking fluid levelsFrom time to time, the levels of the different fluids in the
vehicle must be checked. Never fi ll with incorrect fluids, to do
so may cause serious damage to the engine.
Radiator expansion tank
Windscreen washer fluid reservoir
Engine oil filler cap
Engine oil dipstick
Brake fluid reservoir
Vehicle battery (underneath the cover)
The checking and replenishment of the service fluids are carried out on the
components mentioned above. These operations are described in the
⇒ page 204. Overview
Further explanations, instructions and restrictions on the technical data are
contained as of
⇒page 261.
Fig. 184 Diagram for the
location of the various
elements
A1A2A3A4A5A6
leon ingles.book Seite 266 Dienst ag, 11. September 2007 1:47 13

Technical data267
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
Petrol engine 1.4 63 kW (86 bhp)General engine data
Performance figures
Weights
Trailer weightsPower output in kW (bhp)
rpm 63 (86)/ 5000
Maximum torque in Nm at rpm 132/ 3800
No. of cylinders, capacity in cm
3
4/ 1390
Compression ratio 10,5 ± 0,3
Fuel Premium unleaded 95 RON or regular unleaded 91 RON
a)
a)Slight power lossMaximum speedin km/h 172
Acceleration from 0-80 km/h in sec. 9,1
Acceleration from 0-100 km/h in sec. 13,7
Gross vehicle weight in kg 1746
Weight in working order (with driver) in kg 1251
Gross axle weight, front in kg 890
Gross axle weight, rear in kg 895
Permitted roof load in kg 75
With no brakes, gradients up to 12% 620
With brakes, gradients up to 12% 1000
leon ingles.book Seite 267 Dienstag, 11. September 2007 1:47 13

Technical data

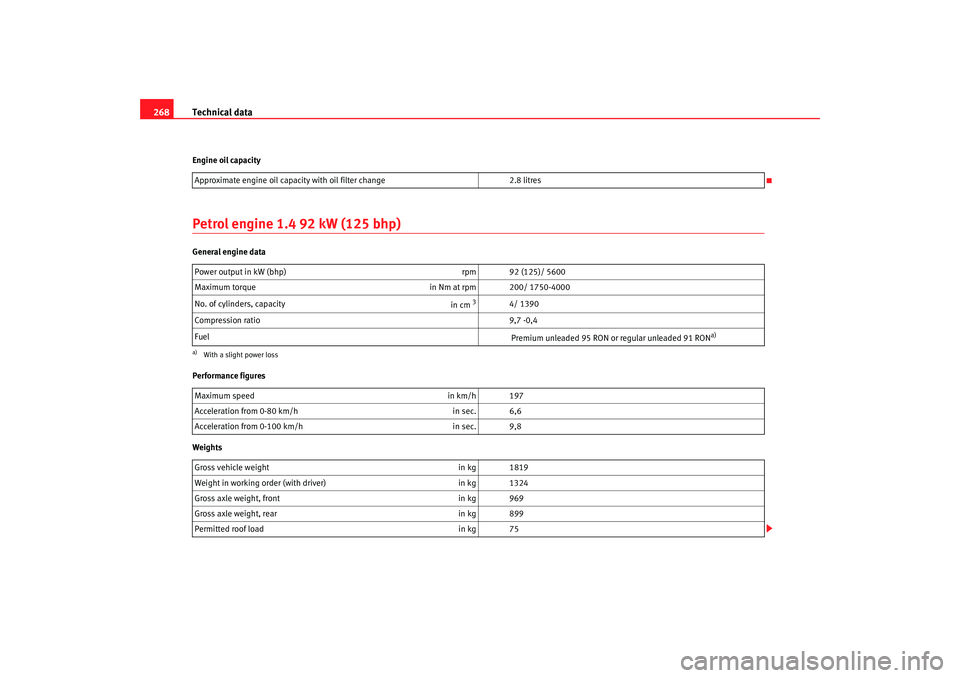

268Engine oil capacityPetrol engine 1.4 92 kW (125 bhp)General engine data
Performance figures
Weights Approximate engine oil capacity with oil filter change
2.8 litres
Power output in kW (bhp) rpm 92 (125)/ 5600
Maximum torque in Nm at rpm 200/ 1750-4000
No. of cylinders, capacity in cm
3
4/ 1390
Compression ratio 9,7 -0,4
Fuel Premium unleaded 95 RON or regular unleaded 91 RON
a)
a)With a slight power lossMaximum speedin km/h 197
Acceleration from 0-80 km/h in sec. 6,6
Acceleration from 0-100 km/h in sec. 9,8
Gross vehicle weight in kg 1819
Weight in working order (with driver) in kg 1324
Gross axle weight, front in kg 969
Gross axle weight, rear in kg 899
Permitted roof load in kg 75
leon ingles.book Seite 268 Dienstag, 11. September 2007 1:47 13

Technical data269
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a

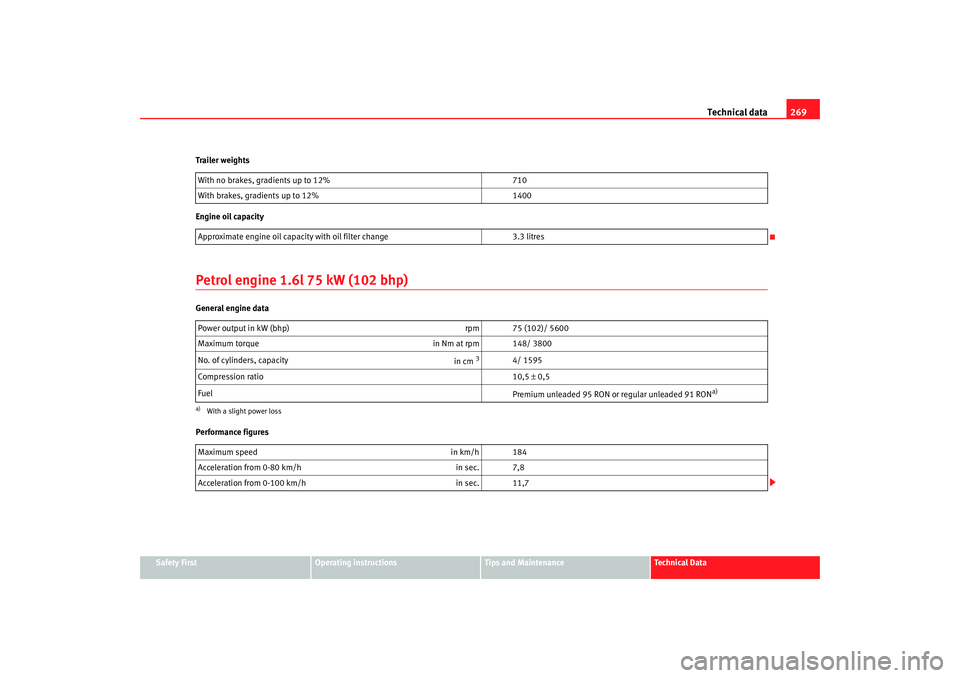

Trailer weights
Engine oil capacity
Petrol engine 1.6l 75 kW (102 bhp)General engine data
Performance figures
With no brakes, gradients up to 12%
710
With brakes, gradients up to 12% 1400
Approximate engine oil capacity with oil filter change 3.3 litres
Power output in kW (bhp) rpm 75 (102)/ 5600
Maximum torque in Nm at rpm 148/ 3800
No. of cylinders, capacity in cm
3
4/ 1595
Compression ratio 10,5 ± 0,5
Fuel Premium unleaded 95 RON or regular unleaded 91 RON
a)
a)With a slight power lossMaximum speedin km/h 184
Acceleration from 0-80 km/h in sec. 7,8
Acceleration from 0-100 km/h in sec. 11,7
leon ingles.book Seite 269 Dienstag, 11. September 2007 1:47 13

Technical data
270Weights
Trailer weights
Engine oil capacityPetrol engine 1.8 118 kW (160 bhp)General engine data Gross vehicle weight
in kg 1783
Weight in working order (with driver) in kg 1280
Gross axle weight, front in kg 936
Gross axle weight, rear in kg 890
Permitted roof load in kg 75
With no brakes, gradients up to 12% 640
With brakes, gradients up to 12% 1200
Approximate engine oil capacity with oil filter change 4.1 litres
Power output in kW (bhp) rpm 118 (160)/ 5000-6200
Maximum torque in Nm at rpm 250/ 1500-4200
No. of cylinders, capacity in cm
3
4/ 1798
Compression ratio 9,8 -0,5
Fuel Premium unleaded 95 RON or regular unleaded 91 RON
a)
a)With a slight power loss
leon ingles.book Seite 270 Dienstag, 11. September 2007 1:47 13

Technical data271
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
Performance figures
Weights
Trailer weights
Engine oil capacity
Maximum speed
in km/h 213
Acceleration from 0-80 km/h in sec. 5,7
Acceleration from 0-100 km/h in sec. 8,0
Gross vehicle weight in kg 1890
Weight in working order (with driver) in kg 1395
Gross axle weight, front in kg 1035
Gross axle weight, rear in kg 898
Permitted roof load in kg 75
With no brakes, gradients up to 12% 690
With brakes, gradients up to 12% 1400
Approximate engine oil capacity with oil filter change 4.6 litres
leon ingles.book Seite 271 Dienstag, 11. September 2007 1:47 13

Technical data
272Petrol engine 2.0l 11 0 kW (150 bhp). ManualGeneral engine data
Performance figures
Weights
Trailer weightsPower output in kW (bhp)
rpm 110 (150)/ 6000
Maximum torque in Nm at rpm 200/ 3500
No. of cylinders, capacity in cm
3
4/ 1984
Compression ratio 11,5-0,5
Fuel Super Plus 98 RON or Premium 95 RON
a)
a)With a slight power lossMaximum speedin km/h 210
Acceleration from 0-80 km/h in sec. 6,0
Acceleration from 0-100 km/h in sec. 8,8
Gross vehicle weight in kg 1830
Weight in working order (with driver) in kg 1335
Gross axle weight, front in kg 989
Gross axle weight, rear in kg 883
Permitted roof load in kg 75
With no brakes, gradients up to 12% 660
With brakes, gradients up to 12% 1400
