2007 Seat Ibiza 5D technical data

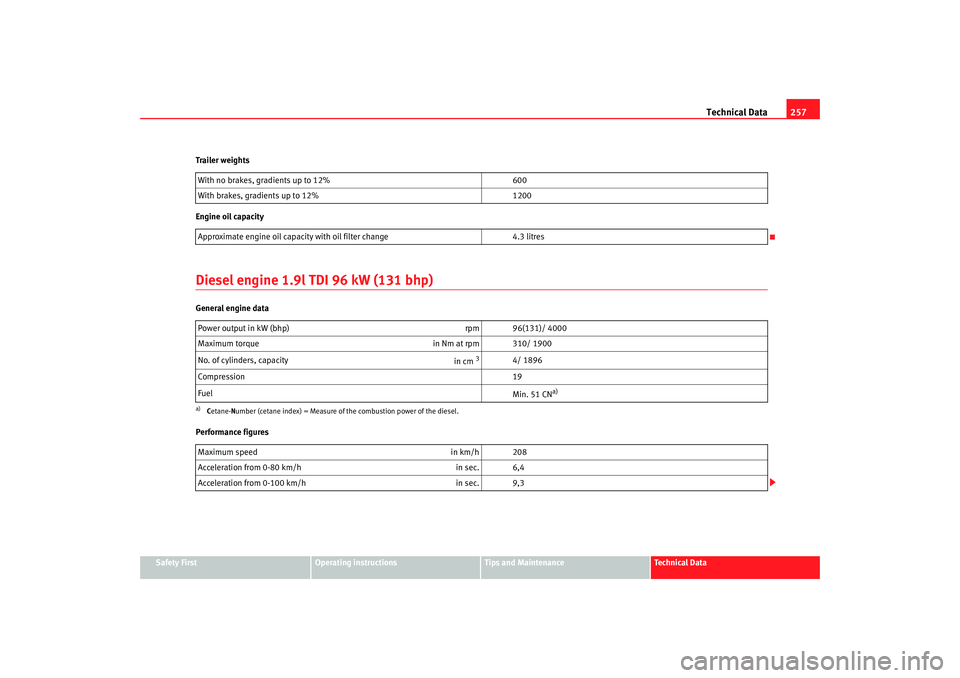

Technical Data257
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
Trailer weights
Engine oil capacity
Diesel engine 1.9l TDI 96 kW (131 bhp)General engine data
Performance figures
With no brakes, gradients up to 12%
600
With brakes, gradients up to 12% 1200
Approximate engine oil capacity with oil filter change 4.3 litres
Power output in kW (bhp) rpm 96(131)/ 4000
Maximum torque in Nm at rpm 310/ 1900
No. of cylinders, capacity in cm
3
4/ 1896
Compression 19
Fuel Min. 51 CN
a)
a)Cetane- Number (cetane index) = Measure of the combustion power of the diesel.Maximum speed in km/h 208
Acceleration from 0-80 km/h in sec. 6,4
Acceleration from 0-100 km/h in sec. 9,3
IBI_ANG_0707 Seite 257 Montag, 6. August 2007 3:59 15

Technical Data
258Weights
Trailer weights
Engine oil capacityDiesel engine 1.9 TDI 118kWGeneral engine data 3 doors
5 doors
Gross vehicle weight in kg 16751693
Weight in working order (with driver) in kg 12491252
Gross axle weight, front in kg 935940
Gross axle weight, rear in kg 783810
Permitted roof load in kg 7575
With no brakes, gradients up to 12% 600
With brakes, gradients up to 12% 1200
Approximate engine oil capacity with oil filter change 4.3 litres
Power output in kW (bhp) rpm 118 (160)/3750
Maximum torque in Nm at rpm 330/2000
No. of cylinders / capacity in cm
3
4/1896
Compression 18,5
Fuel
a)
a)BIODIESEL is NOT suitable as fuel for this engine.
Min 51 CN
b)
IBI_ANG_0707 Seite 258 Montag, 6. August 2007 3:59 15
b)Cetane- Number (cetane index) = Measure of the combustion power of the diesel

Technical Data259
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
Performance figures
Weights
Engine oil filling capacity
Maximum speed
in km/h 220,2
Acceleration from 0-80 km/h in sec. 5,25
Acceleration from 0-100 km/h in sec. 7,6
Gross vehicle weight in kg 1675
Weight in working order (with driver) in kg 1290
Gross axle weight, front in kg 935
Gross axle weight, rear in kg 783
Permitted roof load in kg 75
Approximate engine oil capacity with oil filter change
a)
a)Only use engine oil 0W-30 that meets the standards VW506 01 or VW 507 00.
5 litres
IBI_ANG_0707 Seite 259 Montag, 6. August 2007 3:59 15

Technical Data
260Dimensions and capacities
Dimensions
Length, width 3,953 mm/ 1,698 mm
Height at kerb weight 1,441 mm
Front and rear projection 931 mm/ 662 mm
Wheelbase 2,460 mm
Turning circle 10.54 m
Track width
a)
a)This data will change depending on the type of wheel rim.
Front Rear
1,435 mm 1,424 mm
1,419 mm 1,408 mm
Capacities
Fuel tank 45 litres, reserve 7 litres.
Windscreen washer fluid container with headlight washer 2 l/ 4.5 l
Tyre pressure
Summer-grade tyres:
The correct tyre pressure can be seen on the sticker on the inside of the tank flap.
Winter tyres:
The pressure of these tyres is the same as the summer tyre pressure plus 0.2 bar.
IBI_ANG_0707 Seite 260 Montag, 6. August 2007 3:59 15
