2007 Seat Altea technical data

Technical Data287
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
Diesel engine 2.0l 125 kW (170 bhp)General engine data
Performance figures
Weights
Trailer weightsPower output in kW (bhp)
rpm 125 (170)/ 4200
Maximum torque in Nm at rpm 350/ 1750 - 2500
No. of cylinders, capacity in cm
3
4/ 1968
Compression 18,5 ± 0,5
Fuel Min 51 CN
Maximum speed in km/h 208
Acceleration from 0-80 km/h in sec. 6,1
Acceleration from 0-100 km/h in sec. 8,6
Gross vehicle weight in kg 2041
Weight in working order (with driver) in kg 1521
Gross axle weight, front in kg 1092
Gross axle weight, rear in kg 982
Permitted roof load in kg 75
With no brakes, gradients up to 12% 760
With brakes, gradients up to 12% 1400
altea_ingles_0706.book Seite 287 Mittwoch, 30. August 2006 3:48 15

Technical Data

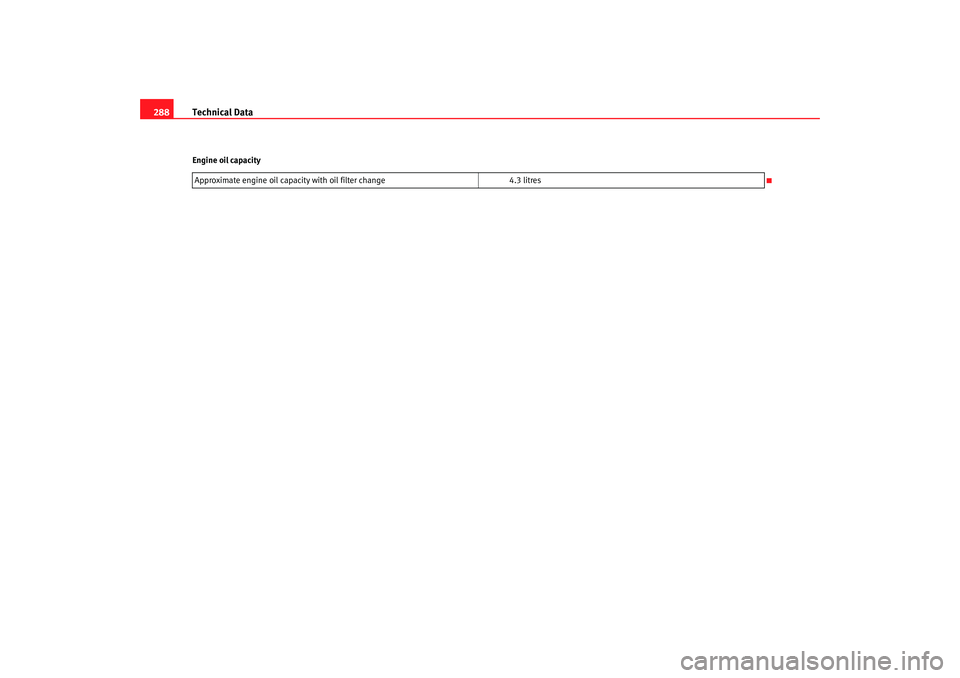

288Engine oil capacity
Approximate engine oil capacity with oil filter change 4.3 litres
altea_ingles_0706.book Seite 288 Mittwoch, 30. August 2006 3:48 15

Technical Data289
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
Dimensions and capacities
Dimensions
Length, width 4,282 mm/ 1,768 mm
Height at kerb weight 1,546 mm
Front and rear projection 916 mm/ 788 mm
Wheelbase 2,578 mm
Turning circle 10.7 m
Track width
a)
a)This data will change depending on the type of wheel rim.
Front Rear
1,525 mm 1,509 mm
1,533 mm 1,517 mm
Capacities
Fuel tank 55 l. Reserve 7 l.
Windscreen washer fluid container with headlight washer 3 l/ 5.5 l
Tyre pressure
Summer-grade tyres:
The correct tyre pressure can be seen on the sticker on the inside of the tank flap.
Winter tyres:
The pressure of these tyres is the same as the summer tyre pressure plus 0.2 bar.
altea_ingles_0706.book Seite 289 Mittwoch, 30. August 2006 3:48 15
