2007 Seat Alhambra belt

Child safety
58

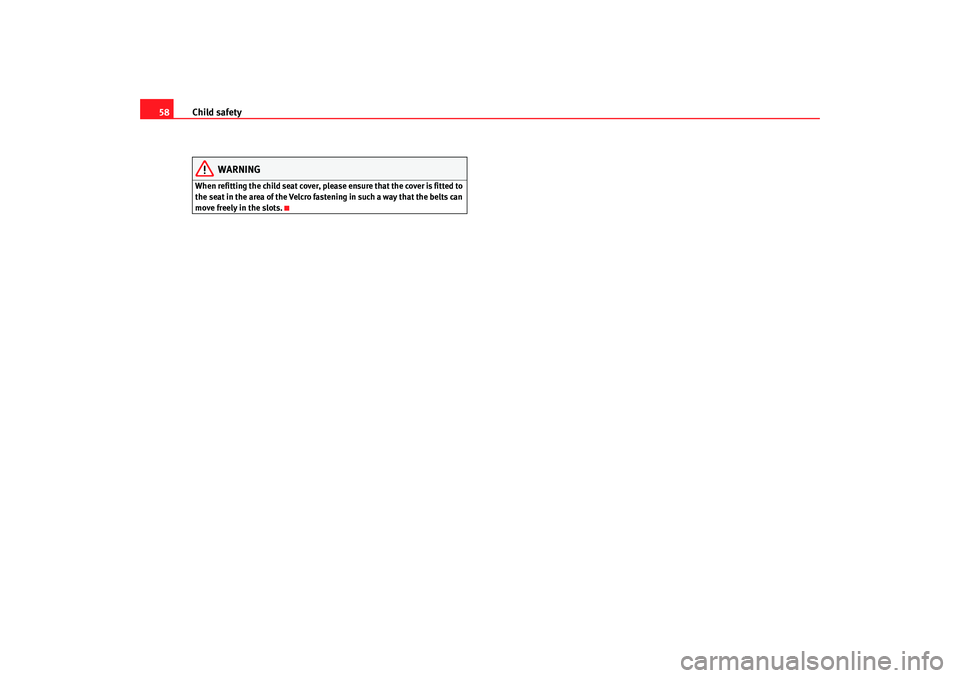

WARNING
When refitting the child seat cover, pl ease ensure that the cover is fitted to
the seat in the area of the Velcro fa stening in such a way that the belts can
move freely in the slots.
alhambra ingles.book Seite 58 Donnerstag, 19. April 2007 4:04 16

Cockpit
68Information symbols (priority 2) STOP OIL PRESSURE ENGINE OFF SERVICE MANUAL


Stop the car, turn the engine off and check the brake fluid level
⇒page 214.
ALTERNATOR WORKSHOP!

Take the vehicle to a qualified workshop as soon as possible and have the
alternator checked.
FASTEN SEATBELT

Fasten your seat belt correctly; and make sure your passengers are also
properly belted in ⇒page 17.
Fault message Symbol Action
CHECK OIL LEVEL

Check the oil level and top up with the right engine oil ⇒page 214.
OIL SENSOR WORKSHOP

Take the vehicle to an Authorised Service Centre as soon as possible and
have the engine checked.
STOP BRAKE FAULT SERVICE MANUAL

Take the vehicle to a qualified workshop as soon as possible and have the
ABS checked.
PLEASE REFUEL!

Refuel as soon as possible.
TOP UP WASHER FLUID

Fill up with water and washer fluid.
CHECK BRAKE PADS

Take the vehicle to a qualified workshop immediately and have the brake
pads checked.
EXHAUST WORKSHOP

Take the vehicle to an Authorised Service Centre as soon as possible and
have the engine checked.
ENGINE FAULT CONSULT WORKSHOP
 or
Take the vehicle to an Authorised Service Centre as soon as possible and
have the engine checked.
AIRBAG FAULT

Take the vehicle to a qualified workshop immediately and have the airbag
system checked.
Fault message
Symbol Action
alhambra ingles.book Seite 68 Donnerstag, 19. April 2007 4:04 16

Cockpit71
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a

If it lights up: pre-heating system activated.
If it flashes: there is a fault in the engine control (diesel
engines). Contact a specialist workshop. ⇒
page 73

Turn signals ⇒page 73

Engine fault (petrol engine) ⇒page 73

Main beam headlights ⇒page 73


Fault in the emission control system ⇒page 74

Traction control system TCS ⇒page 74

Electronic Stabilising Program* (ESP) ⇒page 74

Anti-lock brake system ABS*
⇒page 74


Diesel particle filter ⇒page 75

Brakes/Handbrake ⇒page 76

Alternator ⇒page 76

Seat belt warning lamp* ⇒page 17

Fuel reserve ⇒page 76

Fault in lights* ⇒page 76
Item
Symbol Meaning of warning and control lamps Further information
A6A7A8A9A10A11A11A12A13A14A15A16A17A18
alhambra ingles.book Seite 71 Donnerstag, 19. April 2007 4:04 16

Cockpit81
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
An audible signal is also given if the ca
r is driven faster than 6 km/h (approx.
4 km/h) with the handbrake applied.
Coolant temperature/level gauge

The corresponding warning is:
STOP CHECK LEVEL COOLANT
SERVICE MANUAL.
If the symbol flashes while driving, this means that either the coolant temper-
ature is too high or the coolant level is too low. Stop immediately, switch off
the engine and check the level. Top up coolant if necessary.
If the coolant level is correct, the overheating may be caused by a malfunction
of the radiator fan. In this case, check the radiator fan fuse, and replace if
necessary.
If the warning light does not go out, although the coolant level is correct and
the fan fuse is correct, do not continue driving. Obtain technical assistance.
If the fault is only in the radiator fan, it is possible to continue driving as far
as the nearest Technical Service Centre, as long as the coolant level is correct
and the display light is off.
Alternator

The corresponding warning is:
ALTERNATOR WORKSHOP!
The warning lamp lights up when the igni tion is switched on. It should go out
when the engine is started.
The alternator is operated by a long-lasting drive belt.
If the warning light lights up while driving, stop , switch off the engine and
check the drive belt. If the belt is loose or broken, do not continue driving, as
the coolant pump will not be driven. Th e belt should be checked or replaced. If the warning light comes on even
though the belt is neither loose nor
broken, it is usually possible to cont inue driving to the nearest Technical
Service Centre.
As the vehicle battery will discharge, it is advisable to switch off all non-vital
electrical consumers.
Seat belt warning lamp

The corresponding warning is:
FASTEN SEAT BELT
This warning light (only in some coun tries) lights up for approximately 6
seconds when the ignition is switched on to remind occupants to fasten seat-
belts. If the seat belts are not fastened, a sound signal is emitted when the
ignition is switched on which will stop when the seat belts are fastened or
after approximately 6 seconds.
WARNING
•
If the brake fluid level is below th e “MIN” mark, you should wait for
assistance from specialised personnel before contiuning to drive.
•
If the fluid level is correct, the fault may lie in the ABS. If the ABS control
system fails, the rear wheels may block rapidly on braking. This, in certain
cirumstances, could cause the vehicle to skid.
•
Never open the bonnet if you see steam or coolant escaping from the
engine compartment. Risk of burns. Wait until you can no longer see or
hear escaping steam or coolant.
•
Do not touch the fan, as it could sudde nly start to operate, even if the
ignition is switched off.
•
To prevent burns from boiling coolant, the following should be
observed.
•
Take care when opening the coolant expansion tank!. When the engine
is warm or hot, the system is pressurised! Therefore wait until the engine
cools before opening the cap.
alhambra ingles.book Seite 81 Donnerstag, 19. April 2007 4:04 16

Seats and stowage121
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
Seats and stowageThe importance of correct seat adjustmentProper seat adjustment optimi ses the level of protection
offered by seat belts and airbags.The driver seat, front passenger seat, and seats in the passenger compart-
ment, can be adjusted in many ways to suit the physical requirements of the
vehicle occupants. The correct seat position is very important for:•
fast and easy operation of all controls on the instrument panel,
•
relaxed posture that does not cause drowsiness,
•
safe driving,
•
optimum protection from the seat belts and airbag system ⇒page 7.
Vehicle seats
Your vehicle has a total of five or seven
24) seats.
•
First row of seats: two seats
•
Second row of seats: three seats
•
Third row of seats
24): two seats
Each seat is equipped with a three-point seat belt.
WARNING
If the driver and passengers assume improper sitting positions, they may
sustain critical injuries.•
Never transport more people than there are seats available in the
vehicle.
•
Every occupant in the vehicle must properly fasten and wear the seat
belt belonging to his or her seat. Chil dren must be protected with an appro-
priate child restraint system. Section “Child Safety”
•
The seats and all head restraints must always be adjusted to body size
and the seat belt must always be prop erly adjusted to provide you and your
passengers with optimum protection.
•
Always keep your feet in the footwell when the vehicle is moving; never
rest them on the dash panel, out of the window or on the seat. This also
applies to passengers. An incorrect sitting position exposes you to an
increased risk of injury in the event of a braking manoeuvre or an accident.
If the airbag is triggered, you could sustain fatal injuries due to an improper
sitting position.
•
It is important for the driver and front passenger to maintain a distance
of at least 25 cm from the steering wheel or dash panel. Failure to respect
the minimum distance means that the airbag will not protect you. Risk of
fatal injury. The distance between the driver and the steering wheel or
between the front passenger and the dash panel should always be as great
as possible.
•
Adjust the driver or front passenger seat only when the vehicle is
stationary. Otherwise your seat coul d move unexpectedly while the vehicle
is moving. This could increase the risk of an accident and therefore injury.
In addition, while adjusting your seat, you will assume an incorrect sitting
position. Risk of fatal accidents.
•
Special guidelines apply to installing a child seat on the front
passenger seat. When installing a child seat, observe the warning note in
“Child safety”.
•
The seats in the third row of seats may, for safety reasons, only be used
if the luggage compartment cover has been removed.
24)Optional equipment
WARNING (continued)
alhambra ingles.book Seite 121 Donnerstag, 19. April 2007 4:04 16

Seats and stowage
122Head restraintsCorrect adjustment of head restraints
Properly adjusted head restraints are an important part of
occupant protection and can redu ce the risk of injuries in
most accident situations.
– Adjust the head restraint so that its upper edge is at the same
level as the top of your head ⇒fig. 84 and ⇒ fig. 85.Adjusting the head restraints ⇒page 123.
WARNING
Travelling with the head restraints removed or improperly adjusted
increases the risk of severe injuries.•
Improperly adjusted head restraints could lead to death in the event of
a collision or accident.
•
Incorrectly adjusted head restraints also increase the risk of injury
during sudden or unexpected driving or braking manoeuvres.
•
The head restraints must always be adjusted according to the occu-
pant's size.
Fig. 84 Viewed from in
front: Properly adjusted
head restraints and
proper belt adjustment
Fig. 85 Viewed from side:
Properly adjusted head
restraints and proper belt
adjustment
alhambra ingles.book Seite 122 Donnerstag, 19. April 2007 4:04 16

Seats and stowage125
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
•
To reduce the risk of injury to the driver and front passenger during
sudden braking manoeuvres or an accident, never drive with the backrest
tilted far back. Risk of injury. The maximum protection of the seat belt can
be achieved only when the backrests are in an upright position and the
driver and front passenger have properly adjusted their seat belts. The
further the backrests are tilted to the rear, the greater the risk of injury due
to improper positioning of the belt web!
•
Exercise caution when adjusting the seat height or forwards/back-
wards position. Injuries can be caused if the backrest is tilted without due
care and attention.
•
Never turn the driver or front passenger seat while the vehicle is in
motion. While adjusting your seat, you will assume an incorrect sitting
position. Risk of injury. Only turn the driver or passenger seats when the
vehicle is stationary.
•
When the vehicle is in motion, the rotating front seats must be securely
engaged and facing the direction of travel. These front seats may be used
only when the vehicle is stationary.Caution
The driver seat and front passenger seat must not be occupied while they are
being turned. If the seat is occupied when it is turned, it could be damaged.
Seat heating

The seat cushions and backrests of the front seats can be
heated electrically.– Turn the appropriate switch ⇒fig. 88 to switch on the seat
heating. The seat heating is switched off in the 0 position.The seat heating only works when the ignition is switched on. The left switch
controls the left seat heating and the right switch the right seat heating.
Caution
To avoid damaging the heating elements, please do not kneel on the seat or
apply sharp pressure at a single point to the seat cushion and backrest.
WARNING (continued)
Fig. 88 Seat heating
controls
alhambra ingles.book Seite 125 Donnerstag, 19. April 2007 4:04 16

Seats and stowage
126Rear seatsCharacteristics of seat equipmentThe seats in the passenger compartment have the following features,
depending on the equipment level:•
Integrated three-point seat belt with adjustable latch plate holder,
•
Integrated ISOFIX anchor points for a child seat,
•
Height-adjustable head restraints ⇒page 122
•
Room for just one person,
•
Adjustable armrests
26).
•
Individual seats can be removed ⇒ page 129,
•
Integrated child seats
26).
Seat with integrated child seat
Seats with an integrated child seat have the same functions as the conven-
tional individual seats. The integrated child seat is described in “Safety
first”.
Seat layout
Second row, left seat.
Third row, left seat.
Second row, centre seat.
26)Optional equipment
Fig. 89 Maximum number of seats in the Alhambra
A1A2A3
alhambra ingles.book Seite 126 Donnerstag, 19. April 2007 4:04 16
