2007 SATURN RELAY relay

Seats and Restraint Systems
....................... 7
Front Seats
.............................................. 9
Rear Seats
............................................. 14
Safety Belts
............................................ 32
Child Restraints
...................................... 56
Airbag System
........................................ 83
Restraint System Check
....................... 101
Features and Controls
.............................. 103
Keys
..................................................... 105
Doors and Locks
.................................. 114
Windows
............................................... 130
Theft-Deterrent Systems
....................... 133
Starting and Operating Your Vehicle
..... 138
Mirrors
.................................................. 153
OnStar
®System
................................... 154
Universal Home Remote System
.......... 156
Storage Areas
...................................... 167
Instrument Panel
....................................... 177
Instrument Panel Overview
................... 180
Climate Controls
................................... 205Warning Lights, Gages, and
Indicators
.......................................... 219
Driver Information Center (DIC)
............ 234
Audio System(s)
................................... 270
Driving Your Vehicle
................................. 357
Your Driving, the Road, and
Your Vehicle
..................................... 358
Towing
................................................. 396
Service and Appearance Care
.................. 409
Service
................................................. 412
Fuel
...................................................... 414
Checking Things Under
the Hood
........................................... 420
Bulb Replacement
................................ 455
Windshield Wiper Blade Replacement
... 460
Tires
..................................................... 462
Appearance Care
.................................. 501
Vehicle Identication
............................. 510
Electrical System
.................................. 511
Capacities and Specications
................ 518
2007 Saturn RELAY Owner ManualM
1
ProCarManuals.com

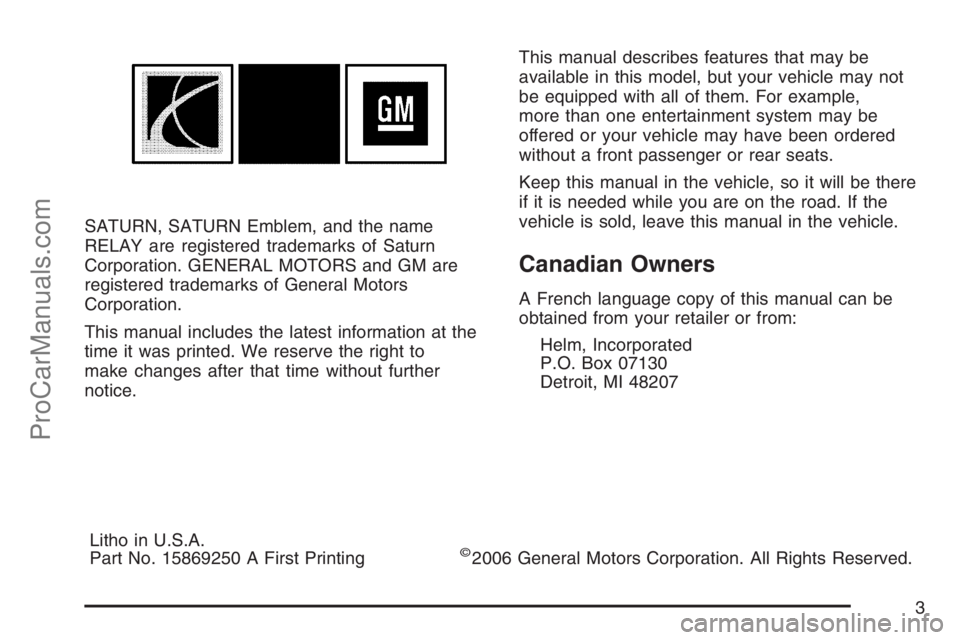

SATURN, SATURN Emblem, and the name
RELAY are registered trademarks of Saturn
Corporation. GENERAL MOTORS and GM are
registered trademarks of General Motors
Corporation.
This manual includes the latest information at the
time it was printed. We reserve the right to
make changes after that time without further
notice.This manual describes features that may be
available in this model, but your vehicle may not
be equipped with all of them. For example,
more than one entertainment system may be
offered or your vehicle may have been ordered
without a front passenger or rear seats.
Keep this manual in the vehicle, so it will be there
if it is needed while you are on the road. If the
vehicle is sold, leave this manual in the vehicle.
Canadian Owners
A French language copy of this manual can be
obtained from your retailer or from:
Helm, Incorporated
P.O. Box 07130
Detroit, MI 48207
Litho in U.S.A.
Part No. 15869250 A First Printing
©2006 General Motors Corporation. All Rights Reserved.
3
ProCarManuals.com

Electrical System
Add-On Electrical Equipment
Notice:Do not add anything electrical to your
vehicle unless you check with your retailer
rst. Some electrical equipment can damage
your vehicle and the damage would not
be covered by your warranty. Some add-on
electrical equipment can keep other
components from working as they should.
Your vehicle has an airbag system. Before
attempting to add anything electrical to your
vehicle, seeServicing Your Airbag-Equipped
Vehicle on page 99.
Headlamp Wiring
The headlamp wiring is protected by four internal
fuses in the underhood fuse block. An electrical
overload will cause the lamps to go on and off, or
in some cases to remain off. If this happens,
have your headlamp wiring checked right away.
Windshield Wiper Fuses
The windshield wiper motor is protected by
an internal fuse in the underhood fuse block.
If the motor overheats due to heavy snow, etc.,
the wiper will stop until the motor cools. If the
overload is caused by some electrical problem,
be sure to get it xed.
The rear washer pump is controlled by a relay
located in the engine compartment, behind
the windshield washer uid reservoir. The rear
wiper motor is protected by a fuse located in the
instrument panel fuse block.
Power Windows and Other Power
Options
Circuit breakers in the instrument panel fuse panel
protect the power windows and other power
accessories. When the current load is too heavy,
the circuit breaker opens and closes, protecting
the circuit until the problem is xed.
511
ProCarManuals.com

Fuses Usage
16 Heated Mirror
17Center High-Mounted Stoplamp,
Back-up Lamps
18 Blank
19 Canister Vent Solenoid
20 Park Lamps
21 Power Sliding Door
22 Blank
23 Blank
24 Left Power Sliding Door
25 Right Power Sliding DoorRelays Usage
26 Blank
27 Blank
28 Park Lamps, Taillamps
29 Retained Accessory Power
30 Rear Defog
PLR Fuse Puller
Circuit
BreakersUsage
31 Power Seats
32 Power Window
Underhood Fuse Block
The underhood fuse block is located in the engine
compartment. For more information on location
seeEngine Compartment Overview on page 422.
514
ProCarManuals.com

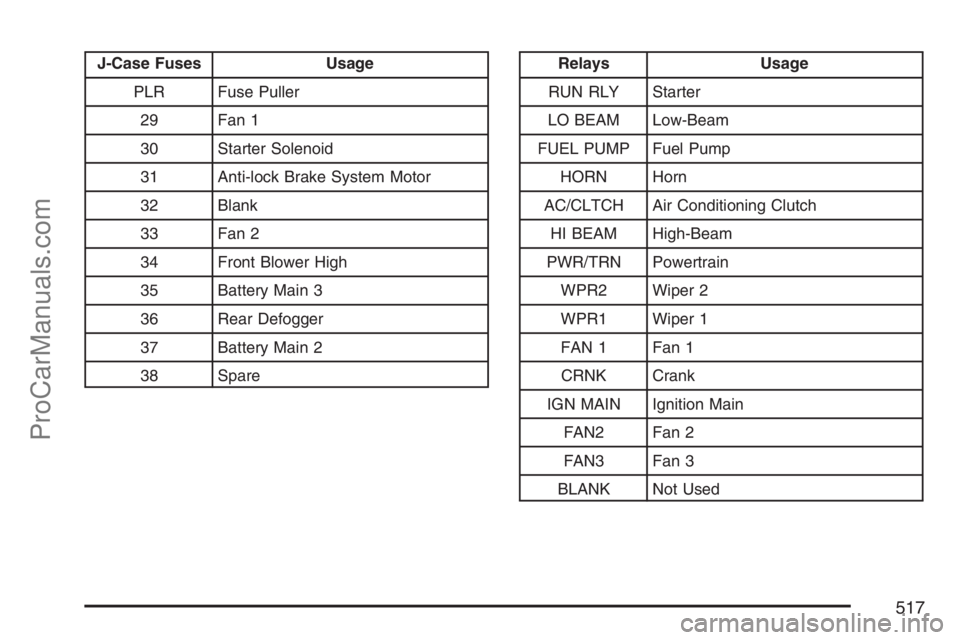

J-Case Fuses Usage
PLR Fuse Puller
29 Fan 1
30 Starter Solenoid
31 Anti-lock Brake System Motor
32 Blank
33 Fan 2
34 Front Blower High
35 Battery Main 3
36 Rear Defogger
37 Battery Main 2
38 SpareRelays Usage
RUN RLY Starter
LO BEAM Low-Beam
FUEL PUMP Fuel Pump
HORN Horn
AC/CLTCH Air Conditioning Clutch
HI BEAM High-Beam
PWR/TRN Powertrain
WPR2 Wiper 2
WPR1 Wiper 1
FAN 1 Fan 1
CRNK Crank
IGN MAIN Ignition Main
FAN2 Fan 2
FAN3 Fan 3
BLANK Not Used
517
