Page 249 of 406
4. To prevent the battery from draining while the
vehicle is being towed, remove the following
fuse from the instrument panel fuse block:
(IGN SENSOR). SeeInstrument Panel Fuse
Block on page 343for more information.
5. Turn the ignition key to ACC.
6. Shift your transmission to NEUTRAL (N).
7. Release the parking brake.
Remember to reinstall the IGN SENSOR fuse
once you have reached your destination.
Notice:If you exceed 65 mph (105 km/h) while
towing your vehicle, it could be damaged.
Never exceed 65 mph (105 km/h) while towing
your vehicle.Notice:Towing your vehicle from the rear
could damage it. Also, repairs would not
be covered by the warranty. Never have your
vehicle towed from the rear.
249
ProCarManuals.com
Page 250 of 406
Dolly Towing
To tow your vehicle with two wheels on the
ground and a dolly:
1. Put the front wheels on a dolly.
2. Put the gear shift lever in PARK (P).3. Set the parking brake and then remove the
ignition key.
4. Clamp the steering wheel in a straight-ahead
position.
5. Release the parking brake.
Towing a Trailer
Your vehicle is neither designed nor intended to
tow a trailer.
250
ProCarManuals.com
Page 308 of 406
TPMS Sensor Identi cation Codes
Each TPMS sensor has a unique identi cation
code. Any time you replace one or more of
the TPMS sensors or rotate the vehicle’s tires, the
identi cation codes need to be matched to the
new tire/wheel position. The sensors are matched,
to the tire/wheel positions, in the following order:
driver side front tire, passenger side front tire,
passenger side rear tire, and driver side rear tire
using a TPMS diagnostic tool. See your Saturn
retailer for service.
The TPMS sensors can also be matched to each
tire/wheel position by increasing or decreasing
the tire’s air pressure. When increasing the tire’s
pressure, do not exceed the maximum in ation
pressure indicated on the tire’s sidewall. To
decrease the tire’s air-pressure use the pointed
end of the valve cap, a pencil-style air pressure
gage, or a key.
You have two minutes to match each tire and wheel
position. If it takes longer than two minutes to match
any tire and wheel position, the matching process
stops and you need to start over.The TPMS matching process is outlined below:
1. Set the parking brake.
2. Turn the ignition switch to ON with the
engine off.
3. Press and hold both the Lock and Unlock
buttons on the Remote Keyless Entry
(RKE) transmitter, at the same time, for
approximately ve seconds or until you hear
the horn sound twice.
4. The horn sounding twice indicates the
receiver is ready to learn the TPMS sensors.
The driver side front turn signal comes on
indicating that corner’s sensor is ready to be
learned.
5. Start with the driver side front tire.
6. Remove the valve cap from the tire’s valve
stem. Activate the TPMS sensor by increasing
or decreasing the tire’s air pressure for
about eight seconds. The horn chirp, can take
up to 30 seconds to sound. It sounds one
time and all the turn signals ash one time to
con rm the sensor identi cation code has
been matched to the tire/wheel position.
308
ProCarManuals.com
Page 350 of 406
Fuses Usage
9 Not Used
10 Sunroof Controls
11 Not Used
12 Not Used
13 Audio Ampli er
14 Heated Seat Controls
15 Not Used
16Remote Keyless Entry (RKE)
System, XM™ Satellite Radio
17 Back-up Lamps
18 Not Used
19 Not Used
20 Auxiliary Power Outlets
21 Not Used
22 Trunk Release
23 Rear Defog
24 Heated Mirrors
25 Fuel PumpRelays Usage
26 Rear Window Defogger
27 Park Lamps
28 Not Used
29 Not Used
30 Not Used
31 Not Used
32 Not Used
33 Back-up Lamps
34 Not Used
35 Not Used
36 Trunk Release
37 Fuel Pump
38 (Diode) Cargo Lamp
350
ProCarManuals.com
Page 360 of 406
Maintenance Footnotes
(a)Visually inspect brake lines and hoses for
proper hook-up, binding, leaks, cracks, cha ng,
etc. Inspect disc brake pads for wear and rotors for
surface condition. Inspect other brake parts,
including calipers, parking brake, etc.
(b)Visually inspect front and rear suspension and
steering system for damaged, loose, or missing
parts or signs of wear. Inspect electric power
steering cables for proper hook-up, binding,
cracks, cha ng, etc.
(c)Visually inspect hoses and have them replaced
if they are cracked, swollen, or deteriorated.
Inspect all pipes, ttings and clamps; replace with
genuine parts as needed. To help ensure
proper operation, a pressure test of the cooling
system and pressure cap and cleaning the outside
of the radiator and air conditioning condenser is
recommended at least once a year.(d)Inspect wiper blades for wear, cracking, or
contamination. Clean the windshield and
wiper blades, if contaminated. Replace wiper
blades that are worn or damaged. See Windshield
Wiper Blade Replacement on page 297 and
Windshield and Wiper Blades on page 337 for
more information.
(e)Make sure the safety belt reminder light and all
your belts, buckles, latch plates, retractors, and
anchorages are working properly. Look for
any other loose or damaged safety belt system
parts. If you see anything that might keep a safety
belt system from doing its job, have it repaired.
Have any torn or frayed safety belts replaced. Also
look for any opened or broken airbag coverings,
and have them repaired or replaced. The
airbag system does not need regular maintenance.
(f)Lubricate all key lock cylinders, door hinges
and latches, hood hinges and latches, and trunk lid
hinges and latches. More frequent lubrication
may be required when exposed to a corrosive
environment. Applying silicone grease on
weatherstrips with a clean cloth will make them
last longer, seal better, and not stick or squeak.
360
ProCarManuals.com
Page 364 of 406
Ignition Transaxle Lock Check
While parked, and with the parking brake set, try
to turn the ignition to OFF in each shift lever
position.
The ignition should turn to OFF only when the
shift lever is in PARK (P).
The ignition key should come out only in OFF.
Contact your Saturn retailer if service is required.
Parking Brake and Automatic Transaxle
Park (P) Mechanism Check
{CAUTION:
When you are doing this check, your
vehicle could begin to move. You or
others could be injured and property
could be damaged. Make sure there is
room in front of your vehicle in case it
begins to roll. Be ready to apply the
regular brake at once should the vehicle
begin to move.Park on a fairly steep hill, with the vehicle facing
downhill. Keeping your foot on the regular
brake, set the parking brake.
To check the parking brake’s holding ability:
With the engine running and transaxle in
NEUTRAL (N), slowly remove foot pressure
from the regular brake pedal. Do this until the
vehicle is held by the parking brake only.
To check the PARK (P) mechanism’s holding
ability: With the engine running, shift to
PARK (P). Then release the parking brake
followed by the regular brake.
Contact your Saturn retailer if service is required.
Underbody Flushing Service
At least every spring, use plain water to ush any
corrosive materials from the underbody. Take
care to clean thoroughly any areas where mud and
other debris can collect.
364
ProCarManuals.com
Page 365 of 406
Recommended Fluids and
Lubricants
Fluids and lubricants identi ed below by name,
part number, or speci cation can be obtained from
your dealer/retailer.
Usage Fluid/Lubricant
Engine OilEngine oil which meets GM
Standard GM6094M and displays
the American Petroleum Institute
Certi ed for Gasoline Engines
starburst symbol. To determine the
proper viscosity for your vehicle’s
engine, seeEngine Oil on page 265.
Engine
Coolant50/50 mixture of clean, drinkable
water and use only DEX-COOL
®
Coolant. SeeEngine Coolant on
page 272.
Hydraulic
Brake SystemDelco
®Supreme 11 Brake Fluid or
equivalent DOT-3 brake uid.
Windshield
WasherOptikleen
®Washer Solvent.
Usage Fluid/Lubricant
Automatic
TransmissionDEXRON®-VI Automatic
Transmission Fluid.
Key Lock
CylindersMulti-Purpose Lubricant, Superlube
(GM Part No. U.S. 12346241, in
Canada 10953474).
Hood Latch
Assembly,
Secondary
Latch, Pivots,
Spring Anchor,
and Release
PawlLubriplate Lubricant Aerosol
(GM Part No. U.S. 12346293, in
Canada 992723) or lubricant
meeting requirements of NLGI #2,
Category LB or GC-LB.
Hood and
Door HingesMulti-Purpose Lubricant, Superlube
(GM Part No. U.S. 12346241, in
Canada 109435474).
Weatherstrip
ConditioningWeatherstrip Lubricant
(GM Part No. U.S. 3634770, in
Canada 10953518) or Dielectric
Silicone Grease
(GM Part No. U.S. 12345579, in
Canada 992887).
365
ProCarManuals.com
Page 372 of 406

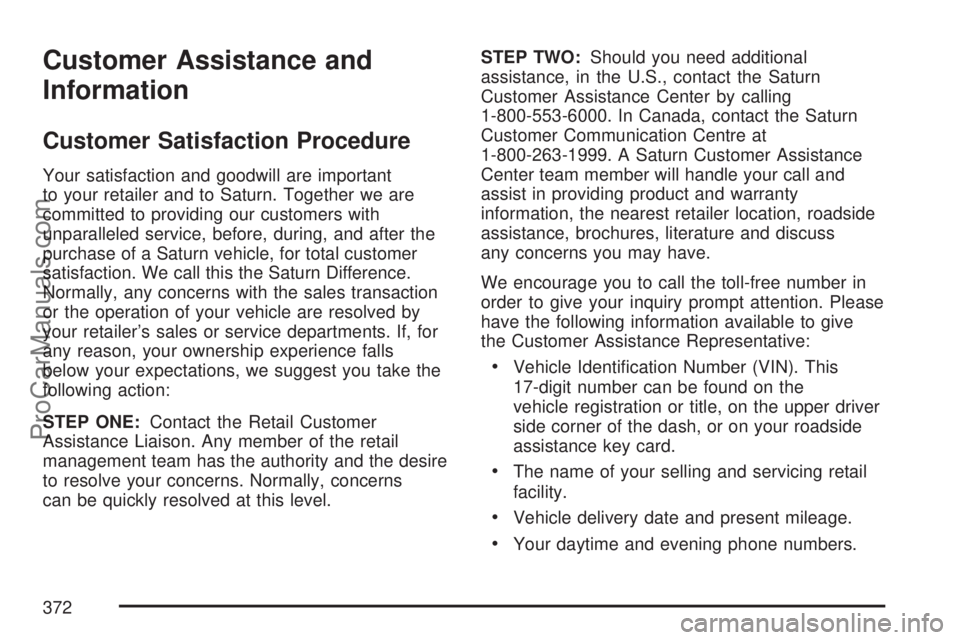

Customer Assistance and
Information
Customer Satisfaction Procedure
Your satisfaction and goodwill are important
to your retailer and to Saturn. Together we are
committed to providing our customers with
unparalleled service, before, during, and after the
purchase of a Saturn vehicle, for total customer
satisfaction. We call this the Saturn Difference.
Normally, any concerns with the sales transaction
or the operation of your vehicle are resolved by
your retailer’s sales or service departments. If, for
any reason, your ownership experience falls
below your expectations, we suggest you take the
following action:
STEP ONE:Contact the Retail Customer
Assistance Liaison. Any member of the retail
management team has the authority and the desire
to resolve your concerns. Normally, concerns
can be quickly resolved at this level.STEP TWO:Should you need additional
assistance, in the U.S., contact the Saturn
Customer Assistance Center by calling
1-800-553-6000. In Canada, contact the Saturn
Customer Communication Centre at
1-800-263-1999. A Saturn Customer Assistance
Center team member will handle your call and
assist in providing product and warranty
information, the nearest retailer location, roadside
assistance, brochures, literature and discuss
any concerns you may have.
We encourage you to call the toll-free number in
order to give your inquiry prompt attention. Please
have the following information available to give
the Customer Assistance Representative:
Vehicle Identi cation Number (VIN). This
17-digit number can be found on the
vehicle registration or title, on the upper driver
side corner of the dash, or on your roadside
assistance key card.
The name of your selling and servicing retail
facility.
Vehicle delivery date and present mileage.
Your daytime and evening phone numbers.
372
