2007 SATURN AURA stop start

As an added safety
feature, your vehicle
has been equipped with
a tire pressure
monitoring system
(TPMS) that illuminates
a low tire pressure
telltale when one
or more of your tires is
signicantly
under-inated.
Accordingly, when the low tire pressure telltale
illuminates, you should stop and check your tires
as soon as possible, and inate them to the
proper pressure. Driving on a signicantly
under-inated tire causes the tire to overheat and
can lead to tire failure. Under-ination also
reduces fuel efficiency and tire tread life, and may
affect the vehicle’s handling and stopping ability.
Please note that the TPMS is not a substitute
for proper tire maintenance, and it is the driver’s
responsibility to maintain correct tire pressure,
even if under-ination has not reached the level to
trigger illumination of the TPMS low tire pressure
telltale.Your vehicle has also been equipped with a TPMS
malfunction indicator to indicate when the system is
not operating properly. The TPMS malfunction
indicator is combined with the low tire pressure
telltale. When the system detects a malfunction, the
telltale will ash for approximately one minute and
then remain continuously illuminated. This
sequence will continue upon subsequent vehicle
start-ups as long as the malfunction exists.
When the malfunction indicator is illuminated, the
system may not be able to detect or signal low
tire pressure as intended. TPMS malfunctions may
occur for a variety of reasons, including the
installation of replacement or alternate tires or
wheels on the vehicle that prevent the TPMS from
functioning properly. Always check the TPMS
malfunction telltale after replacing one or more
tires or wheels on your vehicle to ensure that the
replacement or alternate tires and wheels allow
the TPMS to continue to function properly.
When a low tire pressure condition is detected, the
TPMS illuminates the low tire pressure warning light
on the instrument panel cluster, and at the same
time the CHECK TIRE PRESS message appears
on the Driver Information Center (DIC) display.
306
ProCarManuals.com

TPMS Sensor Identication Codes
Each TPMS sensor has a unique identication
code. Any time you replace one or more of
the TPMS sensors or rotate the vehicle’s tires, the
identication codes need to be matched to the
new tire/wheel position. The sensors are matched,
to the tire/wheel positions, in the following order:
driver side front tire, passenger side front tire,
passenger side rear tire, and driver side rear tire
using a TPMS diagnostic tool. See your Saturn
retailer for service.
The TPMS sensors can also be matched to each
tire/wheel position by increasing or decreasing
the tire’s air pressure. When increasing the tire’s
pressure, do not exceed the maximum ination
pressure indicated on the tire’s sidewall. To
decrease the tire’s air-pressure use the pointed
end of the valve cap, a pencil-style air pressure
gage, or a key.
You have two minutes to match each tire and wheel
position. If it takes longer than two minutes to match
any tire and wheel position, the matching process
stops and you need to start over.The TPMS matching process is outlined below:
1. Set the parking brake.
2. Turn the ignition switch to ON with the
engine off.
3. Press and hold both the Lock and Unlock
buttons on the Remote Keyless Entry
(RKE) transmitter, at the same time, for
approximately ve seconds or until you hear
the horn sound twice.
4. The horn sounding twice indicates the
receiver is ready to learn the TPMS sensors.
The driver side front turn signal comes on
indicating that corner’s sensor is ready to be
learned.
5. Start with the driver side front tire.
6. Remove the valve cap from the tire’s valve
stem. Activate the TPMS sensor by increasing
or decreasing the tire’s air pressure for
about eight seconds. The horn chirp, can take
up to 30 seconds to sound. It sounds one
time and all the turn signals ash one time to
conrm the sensor identication code has
been matched to the tire/wheel position.
308
ProCarManuals.com

{CAUTION:
Idling the engine in a closed-in place or
with the climate control system off can
cause deadly carbon monoxide (CO). See
Engine Exhaust on page 123.
6. Start the vehicle. SeeStarting the Engine
(Automatic Engine Start/Stop) on page 110
for more information. The vehicle must
be running while using the air compressor.
{CAUTION:
Inating something too much can make it
explode, and you or others could be
injured. Be sure to read the inator
instructions, and inate the tire to its
recommended pressure. Do not exceed
36 psi (248 kPa).
7. Push the inator kit switch to the I (on)
position.
The inator kit forces sealant and air into the
tire. Sealant could leak from the puncture
hole until the vehicle is driven and the
hole has sealed.
324
ProCarManuals.com

4. Push the air compressor inator hose onto the
tire valve stem and push the lever down to
secure in place.
5. Plug the air compressor accessory plug into
an accessory power outlet in the vehicle. See
Accessory Power Outlet(s) on page 153for
more information.
{CAUTION:
Idling the engine in a closed-in place or
with the climate control system off can
cause deadly carbon monoxide (CO). See
Engine Exhaust on page 123.
6. Start the vehicle. SeeStarting the Engine
(Automatic Engine Start/Stop) on page 110
for more information. The vehicle must
be running while using the air compressor.
{CAUTION:
Inating something too much can make it
explode, and you or others could be
injured. Be sure to read the inator
instructions, and inate the tire to its
recommended pressure. Do not exceed
36 psi (248 kPa).
7. Push the inator kit switch to the I (on)
position.
8. Make sure there is a proper connection
between the tire valve stem and the air
compressor hose by looking at the air
pressure gage. If there is not a pressure
reading while the compressor is running, the
connection between the inator kit and
the tire is bad.
Check the attachment between the air
compressor hose and the tire valve stem.
329
ProCarManuals.com

Fuses Usage
1 Air Conditioner Clutch
2 Electronic Throttle Control
3 Belt Alternator Starter (BAS) IGN
4Transmission, Transmission Control
Module Ignition 1
5 Belt Alternator Starter (BAS) Pumps
6 Emission
7 Left Headlamp Low-Beam
8 Horn
9 Right Headlamp Low-Beam
11 Left Headlamp High-Beam
12 Right Headlamp High-Beam
13 Engine Control Module BATT
14 Windshield Wiper
15Anti-lock Brake System (ABS)
(IGN 1)
16 Engine Control Module (IGN 1)
17 Cooling Fan 1
18 Cooling Fan 2
19Run Relay, Heating, Ventilation, Air
Conditioning BlowerFuses Usage
20 Body Control Module 1
21 Body Control Module Run/Crank
22 Rear Electrical Center 1
23 Rear Electrical Center 2
24 Anti-lock Brake System (ABS)
25 Body Control Module 2
26 Starter
41 Electric Power Steering
42Transmission Control Module
Battery
43 Ignition Module
44 Injectors
46 Daytime Running Lamps
47 Center High-Mounted Stoplamps
50 Driver Power Window
51 Belt Alternator Starter (BAS) BATT
52 Transmission Pump Motor
54 Battery Voltage Sense
347
ProCarManuals.com

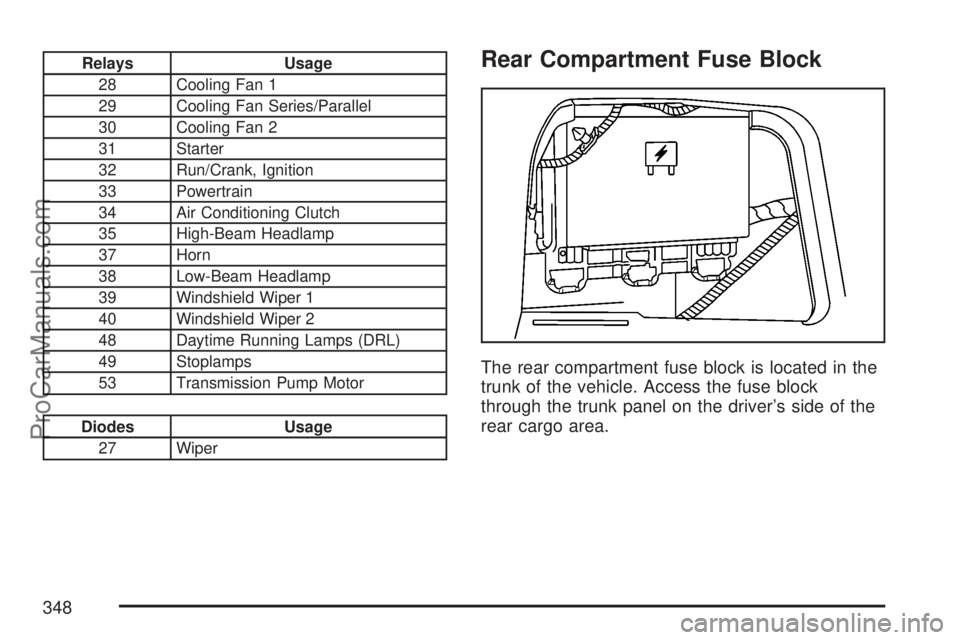

Relays Usage
28 Cooling Fan 1
29 Cooling Fan Series/Parallel
30 Cooling Fan 2
31 Starter
32 Run/Crank, Ignition
33 Powertrain
34 Air Conditioning Clutch
35 High-Beam Headlamp
37 Horn
38 Low-Beam Headlamp
39 Windshield Wiper 1
40 Windshield Wiper 2
48 Daytime Running Lamps (DRL)
49 Stoplamps
53 Transmission Pump Motor
Diodes Usage
27 Wiper
Rear Compartment Fuse Block
The rear compartment fuse block is located in the
trunk of the vehicle. Access the fuse block
through the trunk panel on the driver’s side of the
rear cargo area.
348
