2007 SATURN AURA engine

Owner Checks and Services
These owner checks and services should be
performed at the intervals specied to help ensure
the safety, dependability, and emission control
performance of your vehicle. Your Saturn retailer
can assist you with these checks and services.
Be sure any necessary repairs are completed at
once. Whenever any uids or lubricants are added
to your vehicle, make sure they are the proper
ones, as shown inRecommended Fluids and
Lubricants on page 365.
At Each Fuel Fill
It is important to perform these underhood checks
at each fuel ll.
Engine Oil Level Check
Notice:It is important to check the engine oil
regularly and keep it at the proper level.
Failure to keep the engine oil at the proper
level can cause damage to the engine not
covered by your warranty.
Check the engine oil level and add the proper oil if
necessary. SeeEngine Oil on page 265.
Engine Coolant Level Check
Check the engine coolant level and add
DEX-COOL®coolant mixture if necessary. See
Engine Coolant on page 272.
Windshield Washer Fluid Level Check
Check the windshield washer uid level in
the windshield washer uid reservoir and add the
proper uid if necessary.
At Least Once a Month
Tire Inspection and Ination Check
Inspect your vehicle’s tires for wear and make
sure they are inated to the correct pressures. See
Ination - Tire Pressure on page 304.
362
ProCarManuals.com

At Least Once a Year
Starter Switch Check
{CAUTION:
When you are doing this inspection, the
vehicle could move suddenly. If the
vehicle moves, you or others could be
injured.
1. Before you start, be sure you have enough
room around the vehicle.
2. Firmly apply both the parking brake and the
regular brake. SeeParking Brake on
page 119.
Do not use the accelerator pedal, and be
ready to turn off the engine immediately if it
starts.
3. Try to start the engine in each gear. The
vehicle should start only in PARK (P) or
NEUTRAL (N). If the vehicle starts in any
other position, contact your Saturn retailer for
service.
Automatic Transaxle Shift Lock Control
System Check
{CAUTION:
When you are doing this inspection, the
vehicle could move suddenly. If the
vehicle moves, you or others could be
injured.
1. Before you start, be sure you have enough
room around the vehicle. It should be parked
on a level surface.
2. Firmly apply the parking brake. SeeParking
Brake on page 119.
Be ready to apply the regular brake
immediately if the vehicle begins to move.
3. With the engine off, turn the ignition to ON,
but do not start the engine. Without applying
the regular brake, try to move the shift
lever out of PARK (P) with normal effort. If the
shift lever moves out of PARK (P), contact
your Saturn retailer for service.
363
ProCarManuals.com

Ignition Transaxle Lock Check
While parked, and with the parking brake set, try
to turn the ignition to OFF in each shift lever
position.
The ignition should turn to OFF only when the
shift lever is in PARK (P).
The ignition key should come out only in OFF.
Contact your Saturn retailer if service is required.
Parking Brake and Automatic Transaxle
Park (P) Mechanism Check
{CAUTION:
When you are doing this check, your
vehicle could begin to move. You or
others could be injured and property
could be damaged. Make sure there is
room in front of your vehicle in case it
begins to roll. Be ready to apply the
regular brake at once should the vehicle
begin to move.Park on a fairly steep hill, with the vehicle facing
downhill. Keeping your foot on the regular
brake, set the parking brake.
To check the parking brake’s holding ability:
With the engine running and transaxle in
NEUTRAL (N), slowly remove foot pressure
from the regular brake pedal. Do this until the
vehicle is held by the parking brake only.
To check the PARK (P) mechanism’s holding
ability: With the engine running, shift to
PARK (P). Then release the parking brake
followed by the regular brake.
Contact your Saturn retailer if service is required.
Underbody Flushing Service
At least every spring, use plain water to ush any
corrosive materials from the underbody. Take
care to clean thoroughly any areas where mud and
other debris can collect.
364
ProCarManuals.com

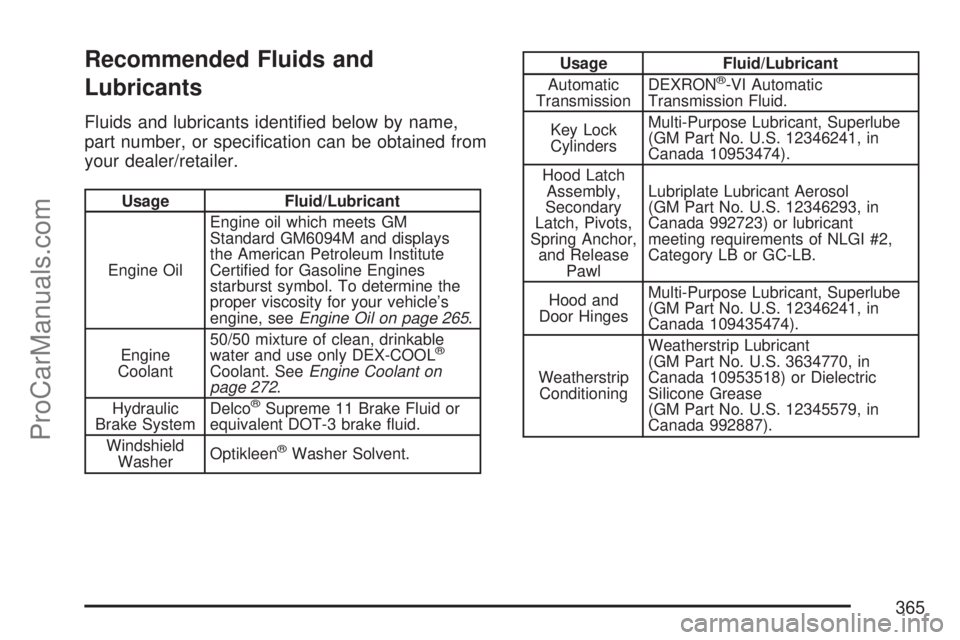

Recommended Fluids and
Lubricants
Fluids and lubricants identied below by name,
part number, or specication can be obtained from
your dealer/retailer.
Usage Fluid/Lubricant
Engine OilEngine oil which meets GM
Standard GM6094M and displays
the American Petroleum Institute
Certied for Gasoline Engines
starburst symbol. To determine the
proper viscosity for your vehicle’s
engine, seeEngine Oil on page 265.
Engine
Coolant50/50 mixture of clean, drinkable
water and use only DEX-COOL
®
Coolant. SeeEngine Coolant on
page 272.
Hydraulic
Brake SystemDelco
®Supreme 11 Brake Fluid or
equivalent DOT-3 brake uid.
Windshield
WasherOptikleen
®Washer Solvent.
Usage Fluid/Lubricant
Automatic
TransmissionDEXRON®-VI Automatic
Transmission Fluid.
Key Lock
CylindersMulti-Purpose Lubricant, Superlube
(GM Part No. U.S. 12346241, in
Canada 10953474).
Hood Latch
Assembly,
Secondary
Latch, Pivots,
Spring Anchor,
and Release
PawlLubriplate Lubricant Aerosol
(GM Part No. U.S. 12346293, in
Canada 992723) or lubricant
meeting requirements of NLGI #2,
Category LB or GC-LB.
Hood and
Door HingesMulti-Purpose Lubricant, Superlube
(GM Part No. U.S. 12346241, in
Canada 109435474).
Weatherstrip
ConditioningWeatherstrip Lubricant
(GM Part No. U.S. 3634770, in
Canada 10953518) or Dielectric
Silicone Grease
(GM Part No. U.S. 12345579, in
Canada 992887).
365
ProCarManuals.com

Normal Maintenance Replacement Parts
Replacement parts identied below by name, part number, or specication can be obtained from your
Saturn retailer.
Part Part NumbersACDelco®Part
Numbers
Engine Air Cleaner/Filter 22676970 A1627C
Engine Oil Filter 12605566 PF457G
Spark Plugs 12598004 41-103
Windshield Wiper Blades
Driver’s Side – 23.6 inches (60.0 cm) 15779416 —
Passenger’s Side – 21.0 inches (53.0 cm) 15779415 —
366
ProCarManuals.com

Engine Drive Belt RoutingThe engine drive belt on this hybrid vehicle is
under a higher tension than the engine drive belt
on a non-hybrid vehicle and requires the use
of a special kind of tool to service. See your
dealer/retailer for service.
367
ProCarManuals.com

Vehicle Data Recording
and Privacy
Your Saturn vehicle has a number of sophisticated
computers that record information about the
vehicle’s performance and how it is driven. For
example, your vehicle uses computer modules
to monitor and control engine and transmission
performance, to monitor the conditions for
airbag deployment and deploy airbags in a crash
and, if so equipped, to provide anti-lock braking
to help the driver control the vehicle. These
modules may store data to help your dealer/retailer
technician service your vehicle. Some modules
may also store data about how you operate
the vehicle, such as rate of fuel consumption
or average speed. These modules may also retain
the owner’s personal preferences, such as radio
pre-sets, seat positions, and temperature settings.
Event Data Recorders
This vehicle has an Event Data Recorder (EDR).
The main purpose of an EDR is to record, in
certain crash or near crash-like situations, such as
an air bag deployment or hitting a road obstacle,
data that will assist in understanding how a
vehicle’s systems performed. The EDR is designed
to record data related to vehicle dynamics and
safety systems for a short period of time, typically
30 seconds or less. The EDR in this vehicle is
designed to record such data as:
How various systems in your vehicle were
operating
Whether or not the driver and passenger
safety belts were buckled/fastened
How far, if at all, the driver was depressing
the accelerator and/or brake pedal
How fast the vehicle was traveling
389
ProCarManuals.com

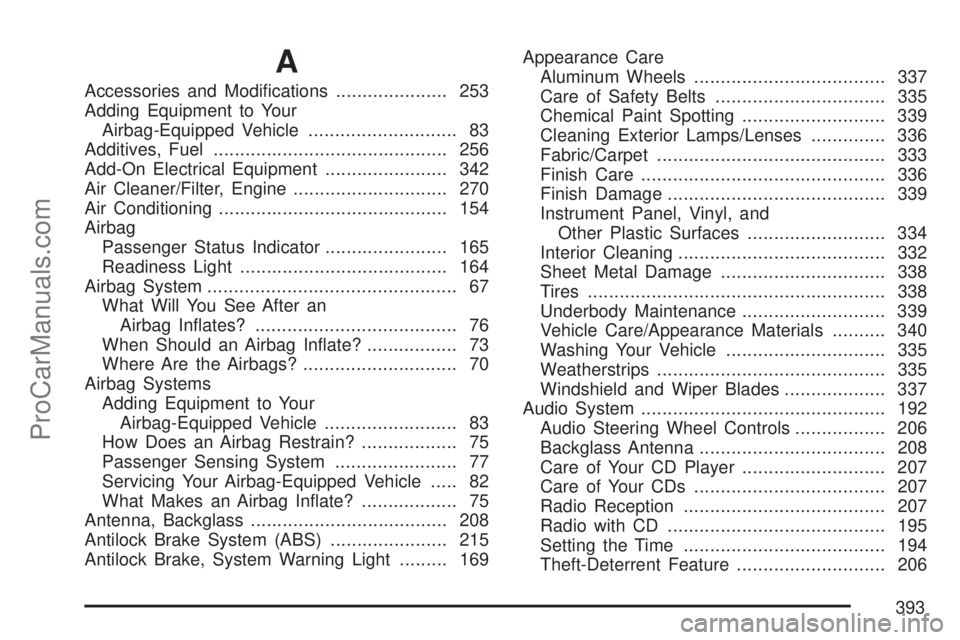

A
Accessories and Modications..................... 253
Adding Equipment to Your
Airbag-Equipped Vehicle............................ 83
Additives, Fuel............................................ 256
Add-On Electrical Equipment....................... 342
Air Cleaner/Filter, Engine............................. 270
Air Conditioning........................................... 154
Airbag
Passenger Status Indicator....................... 165
Readiness Light....................................... 164
Airbag System............................................... 67
What Will You See After an
Airbag Inates?...................................... 76
When Should an Airbag Inate?................. 73
Where Are the Airbags?............................. 70
Airbag Systems
Adding Equipment to Your
Airbag-Equipped Vehicle......................... 83
How Does an Airbag Restrain?.................. 75
Passenger Sensing System....................... 77
Servicing Your Airbag-Equipped Vehicle..... 82
What Makes an Airbag Inate?.................. 75
Antenna, Backglass..................................... 208
Antilock Brake System (ABS)...................... 215
Antilock Brake, System Warning Light......... 169Appearance Care
Aluminum Wheels.................................... 337
Care of Safety Belts................................ 335
Chemical Paint Spotting........................... 339
Cleaning Exterior Lamps/Lenses.............. 336
Fabric/Carpet........................................... 333
Finish Care.............................................. 336
Finish Damage......................................... 339
Instrument Panel, Vinyl, and
Other Plastic Surfaces.......................... 334
Interior Cleaning....................................... 332
Sheet Metal Damage............................... 338
Tires........................................................ 338
Underbody Maintenance........................... 339
Vehicle Care/Appearance Materials.......... 340
Washing Your Vehicle.............................. 335
Weatherstrips........................................... 335
Windshield and Wiper Blades................... 337
Audio System.............................................. 192
Audio Steering Wheel Controls................. 206
Backglass Antenna................................... 208
Care of Your CD Player........................... 207
Care of Your CDs.................................... 207
Radio Reception...................................... 207
Radio with CD......................................... 195
Setting the Time...................................... 194
Theft-Deterrent Feature............................ 206
