Testing the Alarm
The alarm can be tested by following these steps:
1. From inside the vehicle, lower the driver’s
window and open the driver’s door.
2. Activate the system by locking the doors with
the power door lock switch while the door is
open, or with the remote keyless entry
transmitter.
3. Get out of the vehicle, close the door and wait
for the security light to go out.
4. Then reach in through the window, unlock the
door with the manual door lock and open the
door. This should set off the alarm.
When the alarm is set the power door unlock
switch is not operational.
If the alarm does not sound when it should but the
headlamps ash, check to see if the horn works.
The horn fuse may be blown. To replace the fuse,
seeFuses and Circuit Breakers on page 435.
If the alarm does not sound or the headlamps do
not ash, the vehicle should be serviced by
your dealer.
PASS-Key®III
Your PASS-Key®III system operates on a radio
frequency subject to Federal Communications
Commission (FCC) Rules and with Industry
Canada.
This device complies with Part 15 of the FCC
Rules. Operation is subject to the following
two conditions:
1. This device may not cause harmful
interference.
2. This device must accept any interference
received, including interference that may
cause undesired operation.
This device complies with RSS-210 of Industry
Canada. Operation is subject to the following
two conditions:
1. This device may not cause interference.
2. This device must accept any interference
received, including interference that may
cause undesired operation of the device.
Changes or modications to this system by other
than an authorized service facility could void
authorization to use this equipment.
PASS-Key
®III uses a radio frequency transponder
in the key that matches a decoder in your vehicle.
103
ProCarManuals.com

PASS-Key®III Operation
Your vehicle is equipped
with the PASS-Key®III
(Personalized
Automotive Security
System) theft-deterrent
system. PASS-Key
®III
is a passive
theft-deterrent system.
This means you do not have to do anything different
to arm or disarm the system. It works when you
insert or remove the key from the ignition.When the PASS-Key
®III system senses that
someone is using the wrong key, it shuts down the
vehicle’s starter and fuel systems. The starter will
not work and fuel will stop being delivered to the
engine. Anyone using a trial-and-error method to
start the vehicle will be discouraged because of the
high number of electrical key codes.
When trying to start the vehicle, if the engine does
not start and the SECURITY light comes on, the
key may have a damaged transponder. Turn
the ignition off and try again.
If the engine still does not start, and the key
appears to be undamaged, try another ignition key.
At this time, you may also want to check the fuse.
SeeFuses and Circuit Breakers on page 435.Ifthe
engine still does not start with the other key, your
vehicle needs service. If your vehicle does start, the
rst key may be faulty. See your dealer who can
service the PASS-Key
®III to have a new key made.
104
ProCarManuals.com

Turn and Lane-Change Signals
The turn signal has two upward (for right) and
two downward (for left) positions. These positions
let you signal a turn or a lane change.
To signal a turn, move the lever all the way up or
down. When the turn is nished, the lever
returns automatically.
An arrow on the
instrument panel
cluster ashes in the
direction of the turn or
lane change.
To signal a lane change, raise or lower the lever
until the arrow starts to ash. Hold it there until you
complete your lane change. The lever returns
by itself when released. The bottom of the outside
rearview mirrors might also have lane change
indicators.As you signal a turn or a lane change, if the
arrows ash more quickly than normal, a signal
bulb could be burned out and other drivers will not
see your turn signal.
If a bulb is burned out, replace it to help avoid an
accident. If the arrows do not go on at all when
you signal a turn, check the fuse. SeeFuses and
Circuit Breakers on page 435and check for
burned-out bulbs.
If you have a trailer towing option with added
wiring for the trailer lamps, a turn signal asher is
used. With this asher installed, the signal
indicator ashes even if a turn signal bulb is
burned out. Check the front and rear turn signal
lamps regularly to make sure they are working.
Turn Signal On Chime
If your turn signal is left on for more than 3/4 of a
mile (1.2 km), a chime sounds at each ash of
the turn signal. To turn off the chime, move
the turn signal lever to the off position.
152
ProCarManuals.com

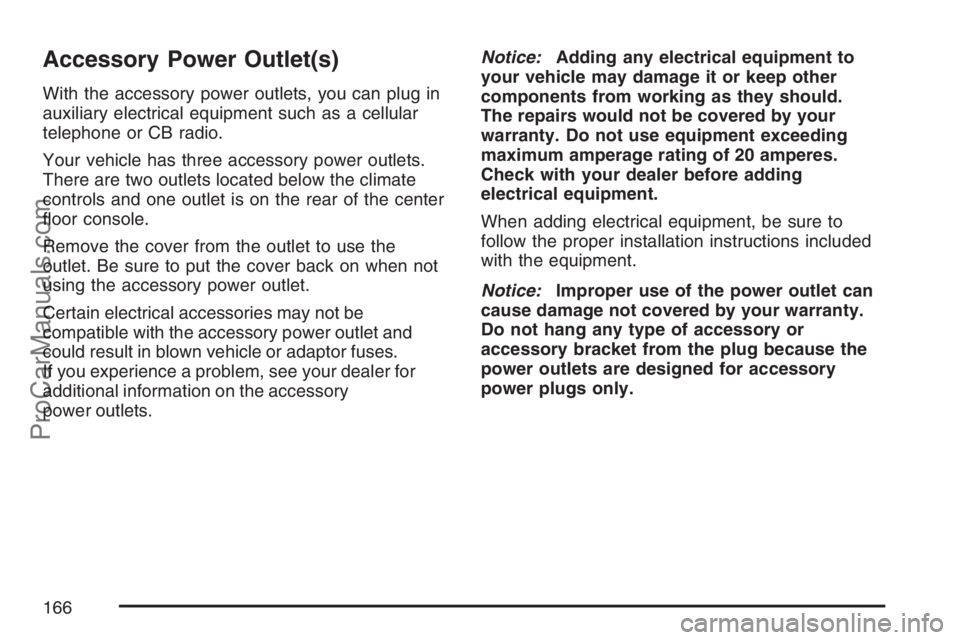

Accessory Power Outlet(s)
With the accessory power outlets, you can plug in
auxiliary electrical equipment such as a cellular
telephone or CB radio.
Your vehicle has three accessory power outlets.
There are two outlets located below the climate
controls and one outlet is on the rear of the center
oor console.
Remove the cover from the outlet to use the
outlet. Be sure to put the cover back on when not
using the accessory power outlet.
Certain electrical accessories may not be
compatible with the accessory power outlet and
could result in blown vehicle or adaptor fuses.
If you experience a problem, see your dealer for
additional information on the accessory
power outlets.Notice:Adding any electrical equipment to
your vehicle may damage it or keep other
components from working as they should.
The repairs would not be covered by your
warranty. Do not use equipment exceeding
maximum amperage rating of 20 amperes.
Check with your dealer before adding
electrical equipment.
When adding electrical equipment, be sure to
follow the proper installation instructions included
with the equipment.
Notice:Improper use of the power outlet can
cause damage not covered by your warranty.
Do not hang any type of accessory or
accessory bracket from the plug because the
power outlets are designed for accessory
power plugs only.
166
ProCarManuals.com

Vehicle Identication.................................. 433
Vehicle Identication Number (VIN)........... 433
Service Parts Identication Label............... 433
Electrical System........................................ 434
Add-On Electrical Equipment..................... 434
Headlamps................................................ 434
Windshield Wiper Fuses............................ 434Power Windows and
Other Power Options............................. 435
Fuses and Circuit Breakers....................... 435
Engine Compartment Fuse Block............... 435
Rear Underseat Fuse Block....................... 442
Capacities and Specications.................... 445
Section 5 Service and Appearance Care
321
ProCarManuals.com

Doing Your Own Service Work
{CAUTION:
You can be injured and your vehicle could
be damaged if you try to do service work
on a vehicle without knowing enough
about it.
Be sure you have sufficient knowledge,
experience, the proper replacement
parts, and tools before you attempt any
vehicle maintenance task.
Be sure to use the proper nuts, bolts,
and other fasteners. English and metric
fasteners can be easily confused. If you
use the wrong fasteners, parts can later
break or fall off. You could be hurt.
If you want to do some of your own service work,
you will want to use the proper service manual.
It tells you much more about how to service your
vehicle than this manual can.Your vehicle has an airbag system. Before
attempting to do your own service work, see
Servicing Your Airbag-Equipped Vehicle on
page 80.
You should keep a record with all parts receipts
and list the mileage and the date of any service
work you perform. SeeMaintenance Record
on page 462.
Adding Equipment to the Outside
of Your Vehicle
Things you might add to the outside of your
vehicle can affect the airow around it. This may
cause wind noise and affect windshield washer
performance. Check with your dealer before
adding equipment to the outside of your vehicle.
323
ProCarManuals.com

A. Engine Air Cleaner/Filter. SeeEngine Air
Cleaner/Filter on page 339.
B. Engine Coolant Recovery Tank. SeeCooling
System on page 349.
C. Windshield Washer Fluid Reservoir. See
“Adding Washer Fluid” underWindshield
Washer Fluid on page 357.
D. Power Steering Fluid Reservoir. SeePower
Steering Fluid on page 356.
E. Automatic Transmission Fluid Dipstick (Out of
View). See “Checking the Fluid Level” under
Automatic Transmission Fluid on page 341.
F. Engine Oil Dipstick. See “Checking Engine Oil”
underEngine Oil on page 334.G. Radiator Pressure Cap. SeeRadiator Pressure
Cap on page 347.
H. Engine Oil Fill Cap. See “When to Add Engine
Oil” underEngine Oil on page 334.
I. Remote Negative (−) Terminal (Marked GND).
SeeJump Starting on page 362.
J. Brake Master Cylinder Reservoir. See “Brake
Fluid” underBrakes on page 358.
K. Battery. SeeBattery on page 361.
L. Engine Compartment Fuse Block. SeeEngine
Compartment Fuse Block on page 435.
331
ProCarManuals.com

A. Engine Coolant Recovery Tank. SeeCooling
System on page 349.
B. Engine Air Cleaner/Filter. SeeEngine Air
Cleaner/Filter on page 339.
C. Windshield Washer Fluid Reservoir. See
“Adding Washer Fluid” underWindshield
Washer Fluid on page 357.
D. Engine Oil Dipstick. See “Checking Engine Oil”
underEngine Oil on page 334.
E. Automatic Transmission Fluid Dipstick. See
“Checking the Fluid Level” underAutomatic
Transmission Fluid on page 341.
F. Engine Oil Fill Cap. See “When to Add Engine
Oil” underEngine Oil on page 334.G. Radiator Pressure Cap. SeeRadiator Pressure
Cap on page 347.
H. Remote Negative (−) Terminal (Marked GND).
SeeJump Starting on page 362.
I. Power Steering Fluid Reservoir. SeePower
Steering Fluid on page 356.
J. Brake Master Cylinder Reservoir. See “Brake
Fluid” underBrakes on page 358.
K. Engine Compartment Fuse Block. SeeEngine
Compartment Fuse Block on page 435.
L. Battery. SeeBattery on page 361.
