2007 RAM CHASSIS CAB engine

WARNING!A hot exhaust system can start a fire if you park over
materials that can burn. Such materials might be
grass or leaves coming into contact with your ex-
haust system. Do not park or operate your vehicle in
areas where your exhaust system can contact any-
thing that can burn.
Service CCV Filter
The 6.7L Cummins engine utilizes a Closed Crankcase
Ventilation (CCV) system. This system filters and recycles
gasses produced in the crankcase during the normal
combustion process. Service CCV Filter will be displayed
on the overhead console of your Dodge truck if the CCV
filter is due for required maintenance. This filter is
located on the top of the engine valve cover. For addi-
tional information, see your Dodge truck dealer. Catalyst Full See Owner Manual
Catalyst Full See Owner Manual will be displayed on the
overhead console of your Dodge truck if the exhaust
particulate filter reaches 80% of its maximum storage
capacity. Under conditions of exclusive short duration
and low speed driving cycles, your Cummins engine and
exhaust aftertreatment system may never reach the con-
ditions required to remove the trapped PM, if this occurs
Catalyst Full See Owner Manual will be displayed on the
overhead console in your Dodge truck. If this message is
displayed you will hear one chime to assist in alerting
you of this condition.
Catalyst Stat::::::::::80%
Catalyst Stat::::::::::80% will replace the message Catalyst
Full See Owner Manual after it is displayed for one
minute. The engine Powertrain Control Module (PCM)
will continue to monitor the amount of particulate matter416 MAINTAINING YOUR VEHICLE

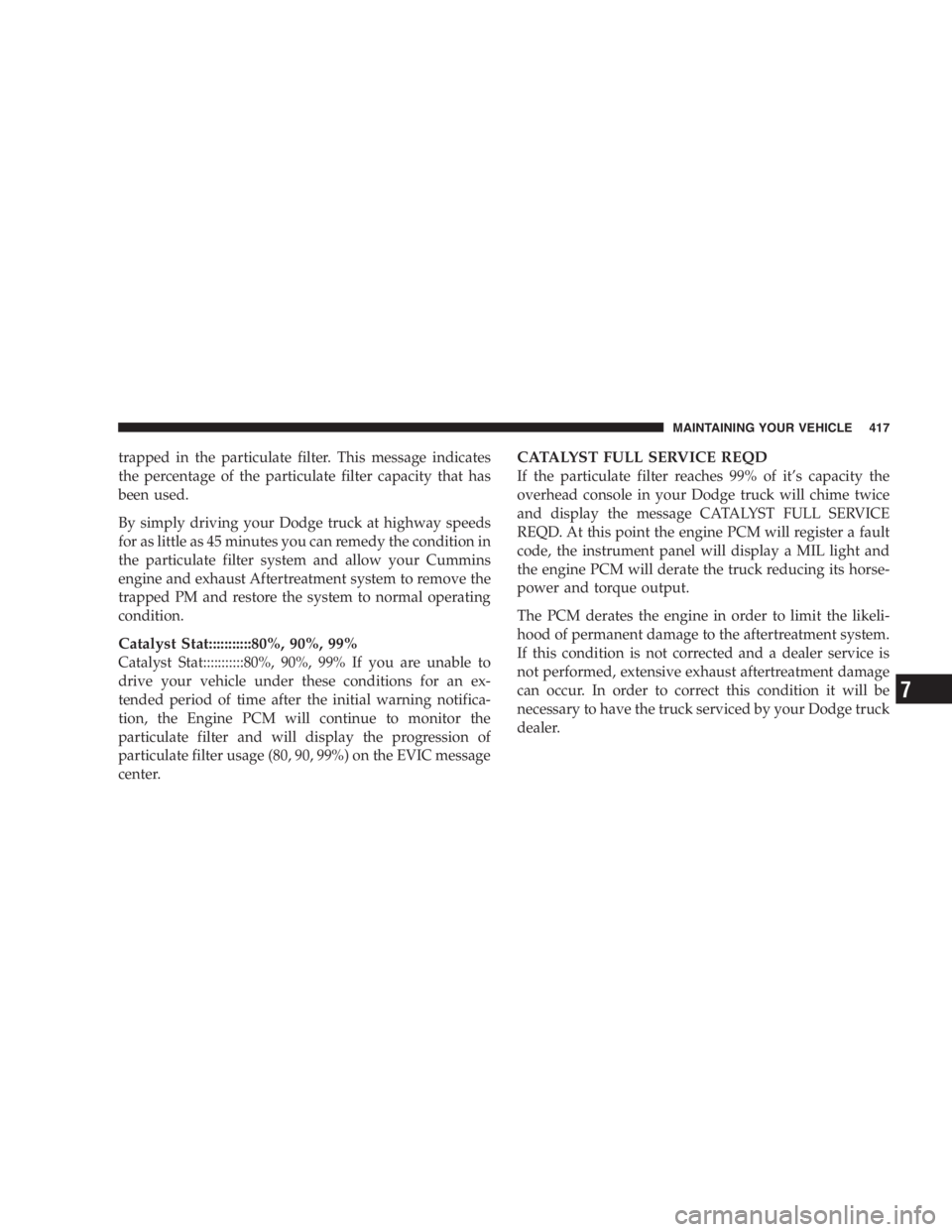

trapped in the particulate filter. This message indicates
the percentage of the particulate filter capacity that has
been used.
By simply driving your Dodge truck at highway speeds
for as little as 45 minutes you can remedy the condition in
the particulate filter system and allow your Cummins
engine and exhaust Aftertreatment system to remove the
trapped PM and restore the system to normal operating
condition.
Catalyst Stat:::::::::::80%, 90%, 99%
Catalyst Stat:::::::::::80%, 90%, 99% If you are unable to
drive your vehicle under these conditions for an ex-
tended period of time after the initial warning notifica-
tion, the Engine PCM will continue to monitor the
particulate filter and will display the progression of
particulate filter usage (80, 90, 99%) on the EVIC message
center. CATALYST FULL SERVICE REQD
If the particulate filter reaches 99% of it’s capacity the
overhead console in your Dodge truck will chime twice
and display the message CATALYST FULL SERVICE
REQD. At this point the engine PCM will register a fault
code, the instrument panel will display a MIL light and
the engine PCM will derate the truck reducing its horse-
power and torque output.
The PCM derates the engine in order to limit the likeli-
hood of permanent damage to the aftertreatment system.
If this condition is not corrected and a dealer service is
not performed, extensive exhaust aftertreatment damage
can occur. In order to correct this condition it will be
necessary to have the truck serviced by your Dodge truck
dealer. MAINTAINING YOUR VEHICLE 417
7

Emission-Related Components (Gas Engines)
Positive Crankcase (PCV) Valve
Proper operation of the crankcase ventilation system
requires that the PCV valve be free of sticking or plug-
ging from deposits. Deposits can accumulate in the PCV
valve and passages with increasing mileage. Have the
PCV valve, hoses, and passages checked for proper
operation at the intervals specified. If the valve is
plugged or sticking, replace with a new valve— do not
attempt to clean the old PCV valve! Check the ventila-
tion hoses for indications of damage, weepage or plug-
ging with deposits. Replace if necessary.
Maintenance Free Battery (Gas Engines)
The top of the maintenance free battery is permanently
sealed. You will never have to add water, nor is periodic
maintenance required. WARNING!• Battery fluid is a corrosive acid solution and can
burn or even blind you. Don’t allow battery fluid
to contact your eyes, skin or clothing. Don’t lean
over a battery when attaching clamps. If acid
splashes in eyes or on skin, flush the area imme-
diately with large amounts of water.
• Battery gas is flammable and explosive. Keep
flame or sparks away from the battery. Don’t use
a booster battery or any other booster source with
an output greater than 12 volts. Don’t allow cable
clamps to touch each other.
• Battery posts, terminals and related accessories
contain lead and lead compounds. Wash hands
after handling.418 MAINTAINING YOUR VEHICLE

CAUTION!• It is essential when replacing the cables on the
battery that the positive cable is attached to the
positive post and the negative cable is attached to
the negative post. Battery posts are marked (+)
positive and negative (-) and identified on the
battery case.
• If a “fast charger” is used while battery is in
vehicle, disconnect both vehicle battery cables
before connecting the charger to battery. Do not
use a “fast charger” to provide starting voltage.
Maintenance Free Batteries (Diesel Engines)
The top of the maintenance free batteries are perma-
nently sealed. You will never have to add water, nor is
periodic maintenance required. NOTE: Replacement batteries should both be of equal
capacity to prevent damage to the vehicle’s charging
system.
CAUTION!It is essential when replacing the cables on the
battery that the positive cable is attached to the
positive post and the negative cable is attached to the
negative post. Battery posts are marked (+) positive
and negative (-) and identified on the battery case.
Also, if a “fast charger” is used while battery is in
vehicle, disconnect both vehicle battery cables be-
fore connecting the charger to battery. Do not use a
“fast charger” to provide starting voltage. MAINTAINING YOUR VEHICLE 419
7

WARNING!Battery posts, terminals, and related accessories con-
tain lead and lead compounds. Always wash hands
after handling the battery.
Battery Blanket Usage
A battery loses 60% of its cranking power as the battery
temperature decreases to 0°F (-18°). For the same de-
crease in temperature, the engine requires twice as much
power to crank at the same RPM. The use of 120 VAC
powered battery blankets will greatly increase starting
capability at low temperatures. Suitable battery blankets
are available from your authorized Mopar  dealer. Air Conditioner Maintenance
For best possible performance, your air conditioner
should be checked and serviced by an Authorized Dealer
at the start of each warm season. This service should
include cleaning of the condenser fins and a performance
test. Drive belt tension should also be checked at this
time.
NOTE: Refer to Section 3 of the Warranty Information
book for further warranty information.420 MAINTAINING YOUR VEHICLE

WARNING!Fluid level should be checked on a level surface and
with the engine off to prevent injury from moving
parts and to insure accurate fluid level reading. Do
not overfill. Use only manufacturers recommended
power steering fluid.
If necessary, add fluid to restore to the proper indicated
level. With a clean cloth, wipe any spilled fluid from all
surfaces. Refer to Fluids, Lubricants, and Genuine Parts
for correct fluid type.
Front Suspension Ball Joints
The ball joints originally supplied with the vehicle are
permanently lubricated at the factory and do not require
service. The ball joints and seals should be inspected
whenever the vehicle is serviced for other reasons. Steering Linkage — Inspection
Whenever the vehicle is hoisted, all steering linkage
joints should be inspected for evidence of damage. If
seals are damaged, parts should be replaced to prevent
leakage or contamination of the grease.
Front Prop Shaft Lubrication
Lubricate the front driveshaft grease fitting at each oil
change listed in the appropriate Maintenance Schedule
for your vehicle (Schedule “A” and “B”). Use Mopar
type MS-6560 (lithium based grease), or equivalent.422 MAINTAINING YOUR VEHICLE

Windshield Wiper Blades
The rubber edges of the wiper blades and the windshield
should be cleaned periodically with a sponge or soft cloth
and a mild nonabrasive cleaner. This will remove accu-
mulations of salt or road film.
Operation of the wipers on dry glass for long periods
may cause deterioration of the wiper blades. Always use
washer fluid when using the wipers to remove salt or dirt
from a dry windshield.
Avoid using the wiper blades to remove frost or ice from
the windshield. Keep the blade rubber out of contact with
petroleum products such as engine oil, gasoline, etc.
Windshield Washers
The fluid reservoir is located under the hood and should
be checked for fluid level at regular intervals. Fill the
reservoir with windshield washer solvent only (not ra-
diator antifreeze). When refilling the washer fluid reservoir, take some
washer fluid and apply it to a cloth or towel and wipe
clean the wiper blades, this will help blade performance.
To prevent freeze-up of your windshield washer system
in cold weather, select a solution or mixture that meets or
exceeds the temperature range of your climate. This
rating information can be found on most washer fluid
containers.
WARNING!Commercially available windshield washer solvents
are flammable. They could ignite and burn you. Care
must be exercised when filling or working around
the washer solution.424 MAINTAINING YOUR VEHICLE

After the engine has warmed, operate the defroster for a
few minutes to reduce the possibility of smearing or
freezing the fluid on the cold windshield. Mopar All
Weather Windshield Washer Solution, used with water as
directed on the container, aids cleaning action, reduces
the freezing point to avoid line clogging, and is not
harmful to paint or trim.
Exhaust System
The best protection against carbon monoxide entry into
the vehicle body is a properly maintained engine exhaust
system.
Whenever a change is noticed in the sound of the exhaust
system, when exhaust fumes can be detected inside the
vehicle, or when the underside or rear of the vehicle is
damaged, have a competent mechanic inspect the com-
plete exhaust system and adjacent body areas for broken,
damaged, deteriorated, or mispositioned parts. Open
seams or loose connections could permit exhaust fumes to seep into the passenger compartment. In addition,
inspect the exhaust system each time the vehicle is raised
for lubrication or oil change. Replace parts as required.
WARNING!Exhaust gases can injure or kill. They contain carbon
monoxide (CO) which is colorless and odorless.
Breathing it can make you unconscious and can
eventually poison you. To avoid breathing CO, fol-
low the preceding safety tips.
Exhaust System Rubber Isolator and Loop-Type
Hanger — If Equipped
Inspect surfaces whenever the vehicle is hoisted for
rubber to metal separation or deep cracks. If, however,
excessively deep localized cracks are present, or any part MAINTAINING YOUR VEHICLE 425
7
