Ifyourcarcatchesonfireforanyreason,callthefiredepartment.Donotendangeryourlifebyattemptingtoputoutthefire.
Stoppingengine
Turnkeybacktoposition3.
Donotstopengineimmediatelyafterhardorextendeddriving.Keepenginerunningatincreasedidleforabouttwominutestopreventexcessiveheatbuild-upbeforeturningoffengine.
Toavoidbatteryrun-down,alwaysremovetheignitionkeyfromtheignitionlock.
Makesurethatwhenyouleavethecar,evenbriefly,youhavewithdrawntheignitionkey.
Engagethesteeringlockbymovingthesteeringwheeltotheleftorright.Turnthesteeringwheeltothelockingpositionbeforeyouswitchofftheenginesothatyoudon’thavetoexertyourselfwhenlockingorunlockingthesteering.
Warning!
Dangerofinjury.Hotenginecompartmentcomponentscanburnskinoncontact.
Beforeworkingonanypartintheenginecompartment,turntheengineoffandletitcooldownsufficiently.
Engine-compartmentblower,radiatorfan
Theradiatorandradiatorfansareinthefrontofthecar.Theengine-compartmentblowerismountedontheenginecompartmentlid.
Warning!
Riskofinjury.Aftertheengineisswitchedoff,theengine-compartmenttemperatureismonitoredforapprox.30minutes.Duringthisperiod,anddependingontemperature,theengine-compartmentblowermaycontin-uetorunorstarttorun.
Carryoutworkintheseareasonlywiththeengineoff,theignitionoff,andexerciseextremecaution.
Warning!
Riskofinjury.Theradiatorfansinthefrontendofthecarmaybeoperatingorunex-pectedlystartoperatingwhentheengineisswitchedon.
Carryoutworkintheseareasonlywiththeengineswitchedoff.
Automaticgaragedoor
TheignitionsysteminyourPorschemayinterferewithyourelectronicallyoperatedgaragedoor.
Tocheckthis,driveyourPorscheclosetothegaragedoor.Makesurenottointerferewiththeoperatingrangeofthedoor.
Runtheengineatdifferentspeeds.
Ifthegaragedooropensorcloseswithoutyouoperatingthegaragedoorunitinyourcar,contactthedealerwhoinstalledtheautomaticgaragedoortohavethefrequencyand/orcodingofthegaragedoorsignalchangedormodified.
90Controls,Instruments
Page 122 of 355
CHRONOStopwatch
Function
Youcanusethestopwatchtomeasuretimeintervals,e.g.ontheracecircuitoronwork-relatedjourneys.MeasuredlaptimescanbestoredandevaluatedifthevehicleisequippedwithPorscheCommunicationManagement(PCM).
Pleaseobservethechapter“Sportdisplay”intheseparatePCMoperatinginstructions.
Stopwatchontheinstrumentpanel
Thestopwatchhasananalogueandadigitaldisplay.Thelargepointeroftheanaloguedisplay
measurestheseconds.Thetwosmallpointersmeasurehoursandminutes.Thedisplayre-startsatzeroafter12hours.Secondsandincrementsof1/100thofasecondcanbereadonthedigitaldisplay.Thedigitaldisplayandthedisplayintheon-boardcomputercanindicateupto99hoursand59minutes.
Thestopwatchcanbeswivelledbothtotheleftandtotheright.
Stopwatchdisplays:
–onthestopwatchontheinstrumentpanel,
–intheon-boardcomputermenuCHRONO,
–ontheperformancedisplayinthePCM.
Starting/stoppingstopwatch
Allstopwatchdisplaysarestartedandstoppedviatheon-boardcomputermenuCHRONO.
Noteonoperation
WhenyouleavetheCHRONOmenuwhilethestopwatchisrunning,measurementwillcontinue.
Thestopwatchstopsaftertheignitionisswitchedoff.Iftheignitionisswitchedonagainwithinapprox.4minutes,thestopwatchwillcontinuetorun.
Theonlywaytoresetthestopwatchtozeroisbyselecting“Reset”intheCHRONOmenu.
Startingthetiming
Pushoperatingleverforward.Theselectionfieldisswitchedon.
SelectCHRONOwiththeoperatinglever.
120Controls,Instruments
Page 124 of 355
Stoppingthetiming
Aftertimemeasurementisstarted,theon-boardcomputerdisplaychangestothe“Stoptim-ing/Intermediatetime”.
Select“Stoptiming”withtheoperatinglever.
Pushleverforward.Thetimeisstoppedinallstopwatchdisplays,andtheon-boardcompu-terdisplaychangestothe“Continue/Reset”selection.
Thetimingcanbecontinuedorresettozero.
Note
PCM:Aftertiminghasbeenstopped,apromptaskingwhetherthetimeistobestoredappearsonthePCM.
Continuetiming
Aftertiminghasbeenstopped,theon-boardcomputerdisplaychangestothe“Continue/Reset”selection.
122Controls,Instruments
Page 125 of 355
Pushoperatingleverforward.Thestopwatchdisplayscontinuethetiming.
Theon-boardcomputerdisplayreturnstothe“Stoptiming/Intermediatetime”selection.Youcanstopthestopwatchormeasureanintermediatetime.
Resettingthetime

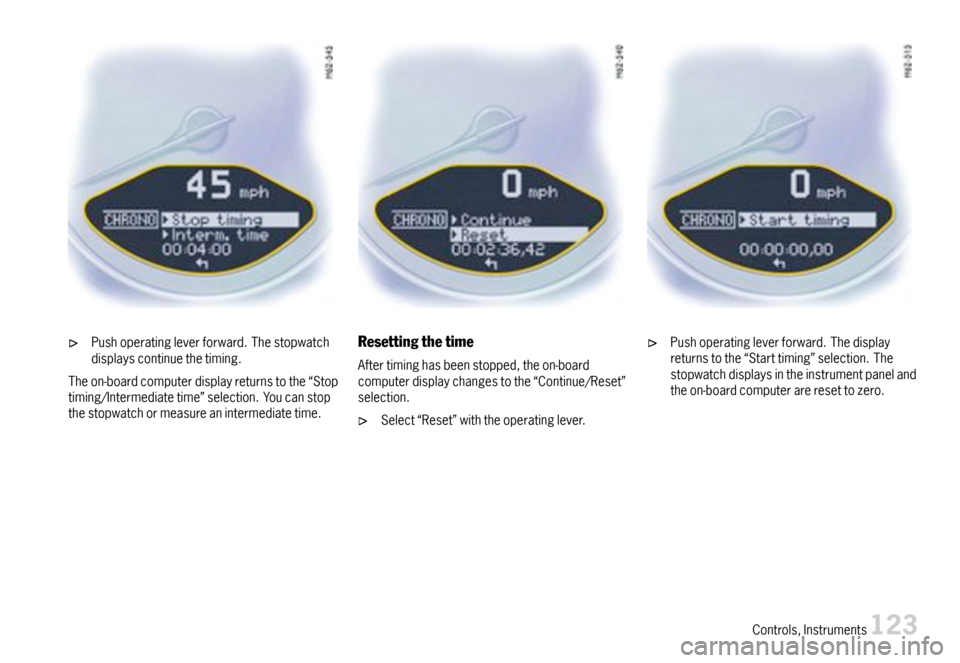

Aftertiminghasbeenstopped,theon-boardcomputerdisplaychangestothe“Continue/Reset”selection.
Select“Reset”withtheoperatinglever.
Pushoperatingleverforward.Thedisplayreturnstothe“Starttiming”selection.Thestopwatchdisplaysintheinstrumentpanelandtheon-boardcomputerareresettozero.
Controls,Instruments123
Page 126 of 355
A-LapB-Intermediatetime
Displayingintermediatetimes
Severalintermediatetimescanbedisplayedforarouteorforalapontheracecircuit.Theinterme-diatetimesBareforyourinformation.MeasuredlaptimesAcanbestoredandevaluatedifthevehicleisequippedwithPorscheCommunicationManagement(PCM).
Aftertiminghasbeenstarted,theon-boardcompu-terdisplaychangestothe“Stoptiming/Intermedi-atetime”selection.
124Controls,Instruments
Page 127 of 355
Select“Intermediatetime”withtheoperatingleverandpushtheoperatingleverforwards.
Theintermediatetimewillbedisplayedforapprox.5seconds.Theon-boardcomputerdisplaythen
returnstothe“Stoptiming/Intermediatetime”selection.
Youcanstopthestopwatchormeasureanotherintermediatetime.
Inordertostarttiminganewlap:
The“Newlap?”selectionappearsfor5secondsafterselectionof“Intermediatetime”.
Select“Newlap?”withtheoperatingleverandpushtheoperatingleverforwards.
Controls,Instruments125
Page 138 of 355
OILDisplayandmeasurementof
theengineoillevel
Conditionsformeasuringtheoillevel
Caution!
Riskofenginedamage.
Regularlychecktheoillevelafterrefueling.
Donotallowtheoilleveltofallbelowtheminimummark.
1.Itisimportanttoensurethatthevehicleishorizontalforcorrectoillevelmeasurementtooccur.
2.Engineisoff.
3.Ignitionon.
Oilreturntime
Beforetheoillevelismeasured,theengineoilhastohaveflowedbackintotheoilpan.Thetimetakenfortheengineoiltoflowbackdependsontheenginetemperatureandhowlongtheenginehasbeenstopped.
Thiswaitingtimeiscounteddownintheon-boardcomputerdisplaywhentheignitionisswitchedon.Theoilleveldisplaysegmentsstartto“cycle”.
Itisbesttomeasuretheengineoillevelbeforeembarkingonajourney(ifthevehiclehasnotbeendrivenforanextendedperiod)orwiththeengineatoperatingtemperature.Shorterwaitingtimesareachievedinthisway.
Initiatingoillevelmeasurement
Switchignitionon(donotstarttheengine).Theengine-oillevelmeasurementdisplayappearsintheon-boardcomputer.
Allowwaitingtimetoelapse.
Oncethemeasurementhasbeencompleted,youcanreadofftheengineoillevelonthesegmentdisplay.
–Ifthesegmentsarefilledinuptothetopline,theoillevelhasreachedthemaximummark.
Undernocircumstancesaddengineoil.
136Controls,Instruments
Page 139 of 355
–Ifonlythebottomsegmentisfilledin,theoillevelhasreachedtheminimummark.
Addengineoilimmediately.
–Ifthebottomsegmentflashes,theoillevelhasdroppedtobelowtheminimummark.
Addengineoilimmediately.
Thedifferencebetweentheminimumandmax-imummarksonthesegmentdisplayisapprox.1.2liters.Eachsegmentofthedisplaycorre-spondstoaquantityapprox.0.4liter.
Addengineoilifnecessary.
Pleaseobservethechapter”ENGINEOILLEVEL”onpage236.
Neveraddmoreengineoilthanrequiredtoreachthemaximummark.Oillevelmeasurementduringrefueling
Theoillevelisautomaticallymeasuredduringrefueling.
Preconditions
1.Ignitionisswitchedoff.
2.Iftheengineisatoperatingtemperature,atleast5minutesmustelapsebetweenparkingthevehicleandstartingtheengine.
3.Refuelingcompletedwithin15minutes.
Whentheignitionisswitchedon,theengineoillevelisshownonthesegmentdisplay.
Measurementwillbestoppediftheaboverequire-mentsarenotmet.
Startoillevelmeasurementinthe“OIL“menuor
Startoillevelmeasurementbyswitchingontheignition.
Failure
Afailureoftheoilleveldisplayisindicatedbyawarningmessageintheon-boardcomputer.
