2007 PONTIAC SOLSTICE engine

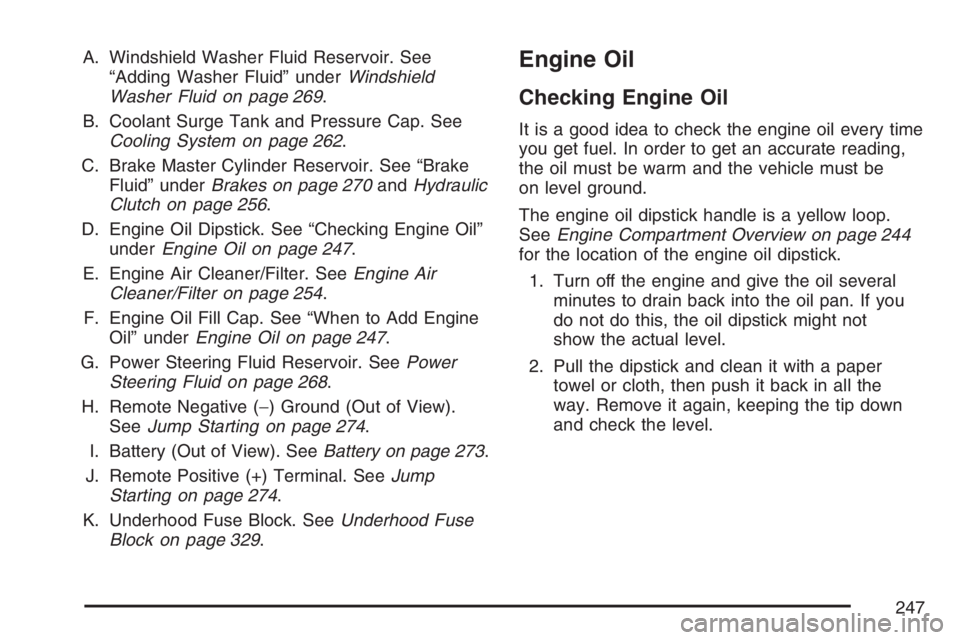

A. Windshield Washer Fluid Reservoir. See
“Adding Washer Fluid” underWindshield
Washer Fluid on page 269.
B. Coolant Surge Tank and Pressure Cap. See
Cooling System on page 262.
C. Brake Master Cylinder Reservoir. See “Brake
Fluid” underBrakes on page 270andHydraulic
Clutch on page 256.
D. Engine Oil Dipstick. See “Checking Engine Oil”
underEngine Oil on page 247.
E. Engine Air Cleaner/Filter. SeeEngine Air
Cleaner/Filter on page 254.
F. Engine Oil Fill Cap. See “When to Add Engine
Oil” underEngine Oil on page 247.
G. Power Steering Fluid Reservoir. SeePower
Steering Fluid on page 268.
H. Remote Negative (−) Ground (Out of View).
SeeJump Starting on page 274.
I. Battery (Out of View). SeeBattery on page 273.
J. Remote Positive (+) Terminal. SeeJump
Starting on page 274.
K. Underhood Fuse Block. SeeUnderhood Fuse
Block on page 329.Engine Oil
Checking Engine Oil
It is a good idea to check the engine oil every time
you get fuel. In order to get an accurate reading,
the oil must be warm and the vehicle must be
on level ground.
The engine oil dipstick handle is a yellow loop.
SeeEngine Compartment Overview on page 244
for the location of the engine oil dipstick.
1. Turn off the engine and give the oil several
minutes to drain back into the oil pan. If you
do not do this, the oil dipstick might not
show the actual level.
2. Pull the dipstick and clean it with a paper
towel or cloth, then push it back in all the
way. Remove it again, keeping the tip down
and check the level.
247

When to Add Engine Oil
If the oil is below the MIN (minimum) mark, you
will need to add at least one quart/liter of oil.
But you must use the right kind. This section
explains what kind of oil to use. For engine
oil crankcase capacity, seeCapacities and
Specications on page 332.
Notice:Do not add too much oil. If the engine
has so much oil that the oil level gets above
the upper mark that shows the proper
operating range, the engine could be damaged.SeeEngine Compartment Overview on page 244
for the location of the engine oil ll cap.
Be sure to add enough oil to put the level
somewhere in the proper operating range. Push
the dipstick all the way back in when you are
through.
2.4L L4 Engine2.0L L4 Engine
248

What Kind of Engine Oil to Use
For Vehicles With the 2.0L L4 Engine
Look for two things:
GM4718M
Your vehicle’s engine requires a special oil
meeting GM Standard GM4718M, such
as Mobil 1
®or equivalent. Oils meeting this
standard may be identied as synthetic.However, not all synthetic oils will meet this
GM standard. You should look for and use only
an oil that meets GM Standard GM4718M.
Notice:If you use oils that do not have the
GM4718M Standard designation, you can cause
engine damage not covered by your warranty.
SAE 5W-30
As shown in the viscosity chart, SAE 5W-30
is best for your vehicle.
These numbers on an oil container show its
viscosity, or thickness. Do not use other
viscosity oils such as SAE 20W-50.
Oils meeting these
requirements should
also have the
starburst symbol on
the container. This
symbol indicates
that the oil has been
certied by the
American Petroleum
Institute (API).
You should look for this on the oil container, and
use only those oils that are identied as meeting
GM Standard GM4718M and have the starburst
symbol on the front of the oil container.
249

Your vehicle’s engine is lled at the factory with
a synthetic oil which meets all requirements
for your vehicle.
Substitute Engine Oil: When adding oil to maintain
engine oil level, oil meeting GM Standard
GM4718M may not be available. You can add
substitute oil designated SAE 5W-30 with
the starburst symbol at all temperatures. Substitute
oil not meeting GM Standard GM4718M should
not be used for an oil change.For Vehicles With the 2.4L L4 Engine
Look for two things:
GM6094M
Your vehicle’s engine requires oil meeting
GM Standard GM6094M. You should look for
and use only an oil that meets GM Standard
GM6094M.
SAE 5W-30
As shown in the viscosity chart, SAE 5W-30
is best for your vehicle.
250

These numbers on an oil container show its
viscosity, or thickness. Do not use other
viscosity oils such as SAE 20W-50.
Oils meeting these
requirements should
also have the starburst
symbol on the
container. This symbol
indicates that the oil
has been certied by the
American Petroleum
Institute (API).
You should look for this information on the oil
container, and use only those oils that are identied
as meeting GM Standard GM6094M and have the
starburst symbol on the front of the oil container.
Notice:Use only engine oil identied as
meeting GM Standard GM6094M and showing
the American Petroleum Institute Certied
For Gasoline Engines starburst symbol. Failure
to use the recommended oil can result in
engine damage not covered by your warranty.
GM Goodwrench
®oil meets all the requirements
for your vehicle.If you are in an area of extreme cold, where the
temperature falls below−20°F (−29°C), it is
recommended that you use either an SAE 5W-30
synthetic oil or an SAE 0W-30 oil. Both will
provide easier cold starting and better protection
for the engine at extremely low temperatures.
Engine Oil Additives
Do not add anything to the oil. The recommended
oils with the starburst symbol that meet GM
Standard GM6094M are all you will need for good
performance and engine protection.
When to Change Engine Oil (Vehicles
Without a Driver Information Center)
If your vehicle does not have a Driver Information
Center (DIC), change the engine oil and lter
at the intervals specied in the maintenance
schedule. SeeScheduled Maintenance on
page 337.
If your vehicle has a DIC, it has the Engine Oil
Life System. SeeEngine Oil Life System on
page 252for information on when to change the
engine oil.
251

Engine Oil Life System
When to Change Engine Oil (Vehicles
With Driver Information Center)
If your vehicle has a Driver Information Center
(DIC), it has the Engine Oil Life System, a
computer system that lets you know when to
change the engine oil and lter. This is based on
engine revolutions and engine temperature,
and not on mileage. Based on driving conditions,
the mileage at which an oil change will be
indicated can vary considerably. For the oil life
system to work properly, you must reset the
system every time the oil is changed.
When the system has calculated that oil life has
been diminished, it will indicate that an oil change
is necessary. A CHANGE OIL SOON message
will come on. SeeDIC Warnings and Messages on
page 148. Change the oil as soon as possible
within the next 600 miles (1 000 km). It is possible
that, if you are driving under the best conditions,
the oil life system may not indicate that an oil
change is necessary for over a year.However, the engine oil and lter must be changed
at least once a year and at this time the system
must be reset. Your dealer has GM-trained service
people who will perform this work using genuine
GM parts and reset the system. It is also important
to check your oil regularly and keep it at the
proper level.
If the system is ever reset accidentally, you must
change the oil at 3,000 miles (5 000 km) since
the last oil change. Remember to reset the oil life
system whenever the oil is changed.
How to Reset the Engine Oil Life
System
The Engine Oil Life System calculates when to
change your engine oil and lter based on vehicle
use. Anytime your oil is changed, reset the
system so it can calculate when the next oil
change is required. If a situation occurs where you
change your oil prior to a CHANGE OIL SOON
message being turned on, reset the system.
252

After changing the engine oil, the system must be
reset as follows:
1. Turn the ignition to RUN, with the engine off.
2. Press the information and reset buttons
on the DIC at the same time to enter the
personalization menu. SeeDIC Vehicle
Personalization on page 152.
3. Press the information button to scroll through
the available personalization menu modes
until the DIC display shows OIL-LIFE RESET.
4. Press and hold the reset button until the DIC
display shows ACKNOWLEDGED. This will
tell you the system has been reset.
5. Turn the key to LOCK.
If the CHANGE OIL SOON message comes back
on when you start your vehicle, the engine oil
life system has not reset. Repeat the reset
procedure.What to Do with Used Oil
Used engine oil contains certain elements that
may be unhealthy for your skin and could
even cause cancer. Do not let used oil stay on
your skin for very long. Clean your skin and nails
with soap and water, or a good hand cleaner.
Wash or properly dispose of clothing or rags
containing used engine oil. See the manufacturer’s
warnings about the use and disposal of oil
products.
Used oil can be a threat to the environment. If you
change your own oil, be sure to drain all the oil from
the lter before disposal. Never dispose of oil by
putting it in the trash, pouring it on the ground, into
sewers, or into streams or bodies of water. Instead,
recycle it by taking it to a place that collects used
oil. If you have a problem properly disposing of
used oil, ask your dealer, a service station, or a
local recycling center for help.
253

Engine Air Cleaner/Filter
SeeEngine Compartment Overview on page 244
for the location of the engine air cleaner/lter.2.4L L4 Engine
2.0L L4 Engine
254
