To turn off cruise control, push the ON.OFF switch. Both the CRUISE indicator light
and the SET indicator light in the instrument panel will go out.
control Panel dis Pla Y with
n aV igation sYste M
(if so equipped)
TRIP BUTTON
When the TRIP button is pressed, the following
modes will display on the screen:
Warning messages (if there are any)
TRIP 1 ( Elapsed Time, Driving Distance,
Average Speed)
TRIP 2 ( Elapsed Time, Driving Distance, Average Speed)
FUEL ECONOMY (Average Fuel Economy, Distance to Empty)
MAINTENANCE ( Engine Oil, Tire Rotation)
OFF
MAINTENANCE ITEMS
You can set the engine oil and the tire rotation interval. To display the setting of the
maintenance interval, select the ENGINE O IL or TIRE R OTATION key using the
joystick and press the ENTER button. To set the maintenance interval, select the
M AINTENANCE
S CHEDULE key by using the joystick and push the joystick to the
right or left. To reset the maintenance interval, select the RESET key using the joystick
and press the ENTER button.
DISPLAY SCREEN SETTINGS
The SETTING screen will appear when the SETTING button is pressed. Select the
DISPLAY key with the joystick and press the ENTER button to choose from various
display screen options. The DISPLAY key will allow you to personalize the information
shown on the display screen, such as climate control or audio system display.
CLOCK /SET ADJUSTMENT
The clock on the display screen can be adjusted using the joystick by the following
procedure:
Press the SETTING button, then select SYSTEM SETTINGS from the menu on the
display screen.
Next select CLOCK to enter the CLOCK SETTINGS mode.
Then select the HOURS or MINUTES key and hold the joystick left or right to
adjust the time. After the desired time is shown on the display screen, press the
BACK button to store.
Refer to your Owner’s Manual and Navigation System Owner’s Manual for additional
information on your navigation system.
child safetY rear door lock
Child safety locks help prevent the rear doors from being opened accidentally, especially when small children are in the vehicle. The child safety lock levers are located on the edge of the rear doors. When the lever is in the LOCK position, the door can be opened only from the outside.
This easy-to-use Quick Reference Guide is intended to help you more fully appreciate some of the unique features and functions of your new vehicle. However, it is not intended to replace your Owner’s Manual. The Owner’s Manual contains more detailed information to help you better understand the important safety warnings, features, operation, and maintenance of your vehicle.
QR7E-0R51U1 Printing: January 2007 (09)
Nissan, the Nissan Brand Symbol, “SHIFT_” tagline, Z and Nissan model names are Nissan trademarks. ©2007 Nissan North America, Inc.
Sh ift_

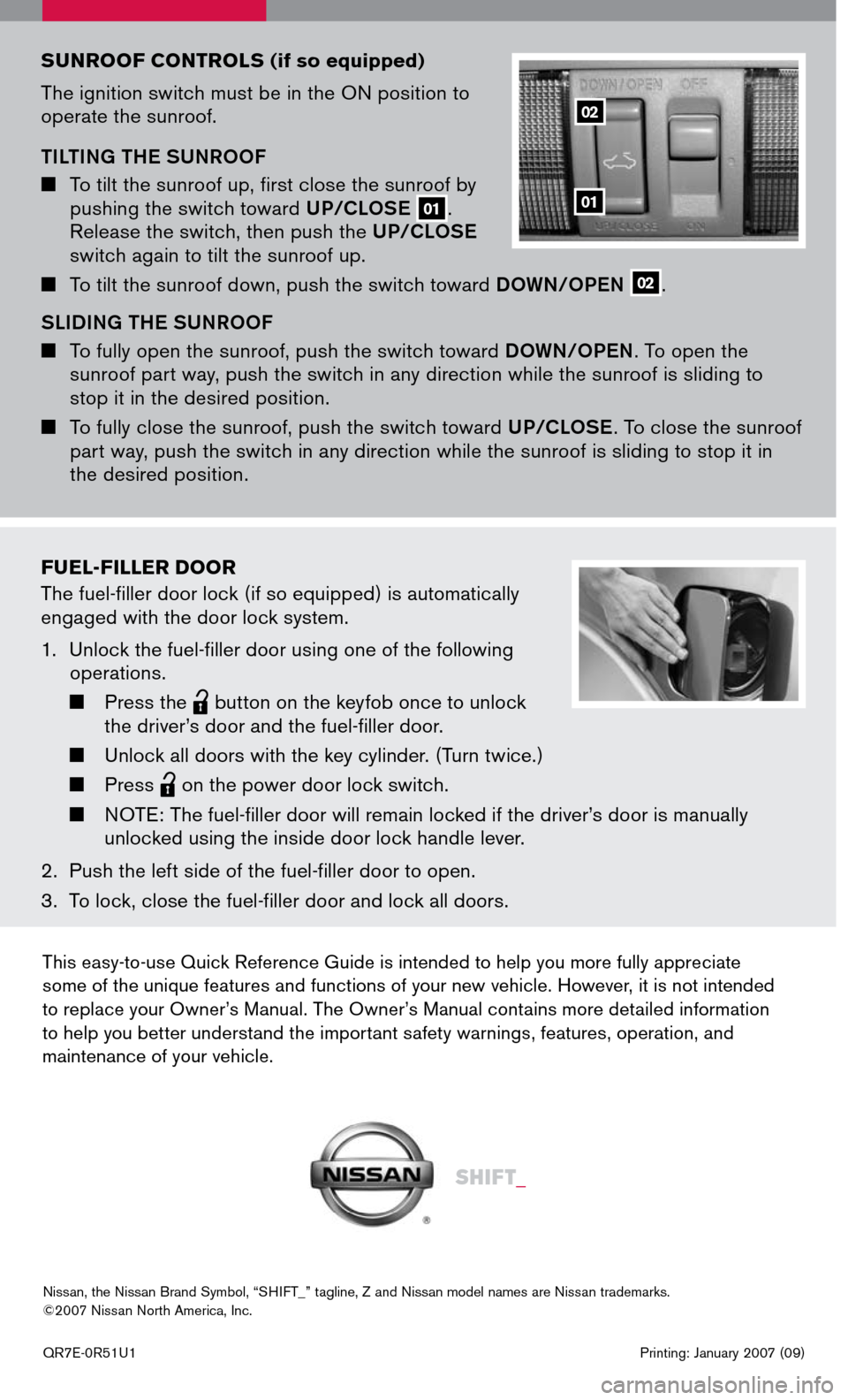

sunroof controls (if so equipped)
The ignition switch must be in the ON position to operate the sunroof.
TILTING THE SUNROOF
To tilt the sunroof up, first close the sunroof by pushing the switch toward UP/CLOSE 01. Release the switch, then push the UP/CLOSE switch again to tilt the sunroof up.
To tilt the sunroof down, push the switch toward DOWN/OPEN 02.
SLIDING THE SUNROOF
To fully open the sunroof, push the switch toward DOWN/OPEN. To open the sunroof part way, push the switch in any direction while the sunroof is sliding to stop it in the desired position.
To fully close the sunroof, push the switch toward UP/CLOSE. To close the sunroof part way, push the switch in any direction while the sunroof is sliding to stop it in the desired position.
02
01
fuel-filler door
The fuel-filler door lock (if so equipped) is automatically engaged with the door lock system.
1. Unlock the fuel-filler door using one of the following
operations.
Press the
lpd0151
button on the keyfob once to unlock
the driver’s door and the fuel-filler door.
Unlock all doors with the key cylinder. (Turn twice.)
Press
lpd0151
on the power door lock switch.
NOTE: The fuel-filler door will remain locked if the driver’s door is manually
unlocked using the inside door lock handle lever.
2. Push the left side of the fuel-filler door to open.
3. To lock, close the fuel-filler door and lock all doors.
