2 Instruments and controlsInstrument panel ..................................................................... 2-2
Meters and gauges ............................................................... 2-3
Speedometer and odometer ......................................... 2-4
Tachometer ........................................................................ 2-4
Engine coolant temperature gauge ............................. 2-5
Fuel gauge ......................................................................... 2-5
Compass display (if so equipped) .................................... 2-6
Warning/indicator lights and audible reminders ............ 2-9
Checking bulbs................................................................. 2-9
Warning lights ................................................................... 2-9
Indicator lights ................................................................ 2-14
Audible reminders.......................................................... 2-16
Security systems.................................................................. 2-17
Vehicle security system (if so equipped) ................ 2-17
NISSAN Vehicle Immobilizer System ....................... 2-18
Windshield wiper and washer switch ........................... 2-20
Rear window wiper and washer switch ....................... 2-21
Rear window and outside mirror defroster switch...... 2-22
Headlight and turn signal switch ................................... 2-22
Xenon headlights (if so equipped) .......................... 2-22
Headlight switch ........................................................... 2-23
Daytime running light system (Canada only) ........ 2-25
Instrument brightness control ..................................... 2-26
Turn signal switch ........................................................ 2-27Fog light switch (if so equipped) .............................. 2-27
Hazard warning flasher switch ......................................... 2-27
Horn ........................................................................................ 2-28
Heated seats (if so equipped) ......................................... 2-28
Vehicle Dynamic Control (VDC) OFF switch (if so
equipped) .............................................................................. 2-29
Power outlet.......................................................................... 2-30
Storage .................................................................................. 2-31
Coin box........................................................................... 2-31
Cellular phone holder ................................................... 2-31
Cup holders .................................................................... 2-32
Glove box ........................................................................ 2-33
Console box .................................................................... 2-34
Door pockets .................................................................. 2-36
Cargo net (if so equipped) ......................................... 2-36
Tonneau cover (if so equipped)................................. 2-37
Windows................................................................................ 2-38
Power windows.............................................................. 2-38
Sunroof (if so equipped) ................................................... 2-40
Automatic sunroof ......................................................... 2-40
Interior lights ......................................................................... 2-42
Ceiling light ..................................................................... 2-42
Map light .......................................................................... 2-43
Rear personal light ........................................................ 2-43


06.7.5/Z50-D/V5.0


All-Wheel Drive (AWD) warning light
(AWD models)
Low tire pressure warning light
Cruise set indicator light
or
Anti-lock Braking System
(ABS) warning light
Low washer fluid warning light
Front passenger air bag status light
or
Brake warning light
P position selecting warning light (if so
equipped)
High beam indicator light (Blue)
Charge warning light
Seat belt warning light
Malfunction indicator light (MIL)
Door open warning light
Supplemental air bag warning light
Security indicator light
Engine oil pressure warning light
All-Wheel Drive (AWD) LOCK indicator
light (AWD models)
Slip indicator light (if so equipped)
Intelligent Key warning light (if so
equipped)
Continuously Variable Transmission (CVT)
indicator light
Turn signal/hazard indicator lights
Low fuel warning light
Cruise main switch indicator light
Vehicle Dynamic Control (VDC) OFF indi-
cator light (if so equipped)
CHECKING BULBSApply the parking brake and turn the ignition
switch to ON without starting the engine. The
following lights will come on:
,
or
,
,
,
The following lights come on briefly and then go
off:
,
or
,
,
,
,
,
,
,
If any light fails to come on, it may indicate a
burned-out bulb or an open circuit in the elec-
trical system. Have the system repaired
promptly.
WARNING LIGHTS
All-wheel drive (AWD) warning
light (AWD models)
The
warning light comes on when the
ignition switch is turned to ON. It turns off soon
after the engine is started.
If the AWD system malfunctions or the revolu-
tion, or radius of the front and the rear wheel
WARNING/INDICATOR LIGHTS
AND AUDIBLE REMINDERS
Instruments and controls
2-9


06.7.5/Z50-D/V5.0


differs, the warning light will either remain illumi-
nated or blink. See “Using all-wheel drive
(AWD)” in the “5. Starting and driving” section.

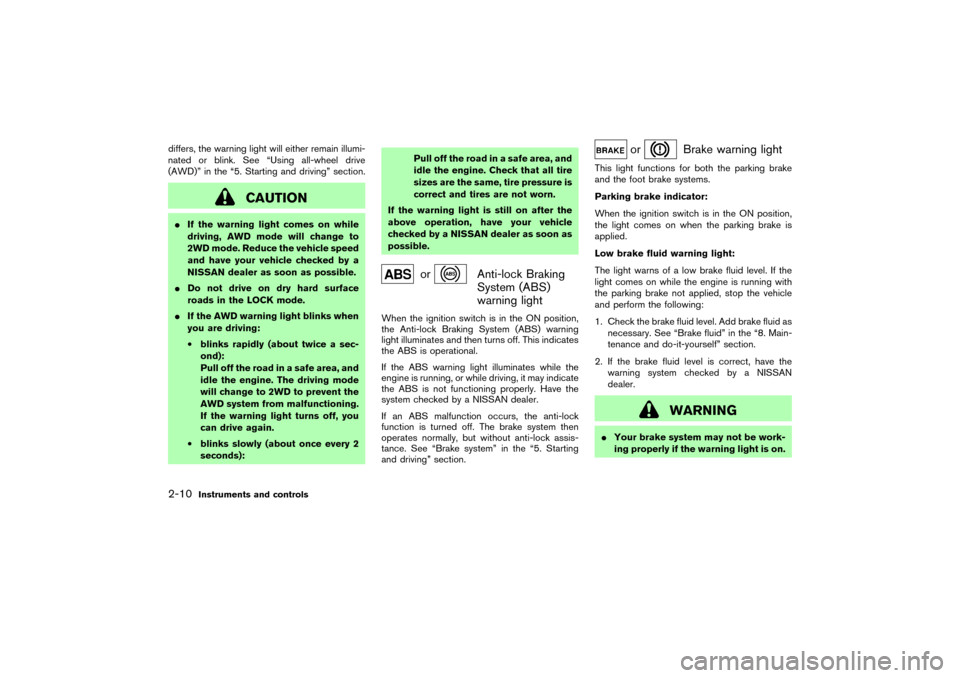

CAUTION

If the warning light comes on while
driving, AWD mode will change to
2WD mode. Reduce the vehicle speed
and have your vehicle checked by a
NISSAN dealer as soon as possible.

Do not drive on dry hard surface
roads in the LOCK mode.

If the AWD warning light blinks when
you are driving:
•blinks rapidly (about twice a sec-
ond):
Pull off the road in a safe area, and
idle the engine. The driving mode
will change to 2WD to prevent the
AWD system from malfunctioning.
If the warning light turns off, you
can drive again.
•blinks slowly (about once every 2
seconds):Pull off the road in a safe area, and
idle the engine. Check that all tire
sizes are the same, tire pressure is
correct and tires are not worn.
If the warning light is still on after the
above operation, have your vehicle
checked by a NISSAN dealer as soon as
possible.
or
Anti-lock Braking
System (ABS)
warning light
When the ignition switch is in the ON position,
the Anti-lock Braking System (ABS) warning
light illuminates and then turns off. This indicates
the ABS is operational.
If the ABS warning light illuminates while the
engine is running, or while driving, it may indicate
the ABS is not functioning properly. Have the
system checked by a NISSAN dealer.
If an ABS malfunction occurs, the anti-lock
function is turned off. The brake system then
operates normally, but without anti-lock assis-
tance. See “Brake system” in the “5. Starting
and driving” section.
or
Brake warning light
This light functions for both the parking brake
and the foot brake systems.
Parking brake indicator:
When the ignition switch is in the ON position,
the light comes on when the parking brake is
applied.
Low brake fluid warning light:
The light warns of a low brake fluid level. If the
light comes on while the engine is running with
the parking brake not applied, stop the vehicle
and perform the following:
1. Check the brake fluid level. Add brake fluid as
necessary. See “Brake fluid” in the “8. Main-
tenance and do-it-yourself” section.
2. If the brake fluid level is correct, have the
warning system checked by a NISSAN
dealer.
WARNING

Your brake system may not be work-
ing properly if the warning light is on.
2-10
Instruments and controls


06.7.5/Z50-D/V5.0

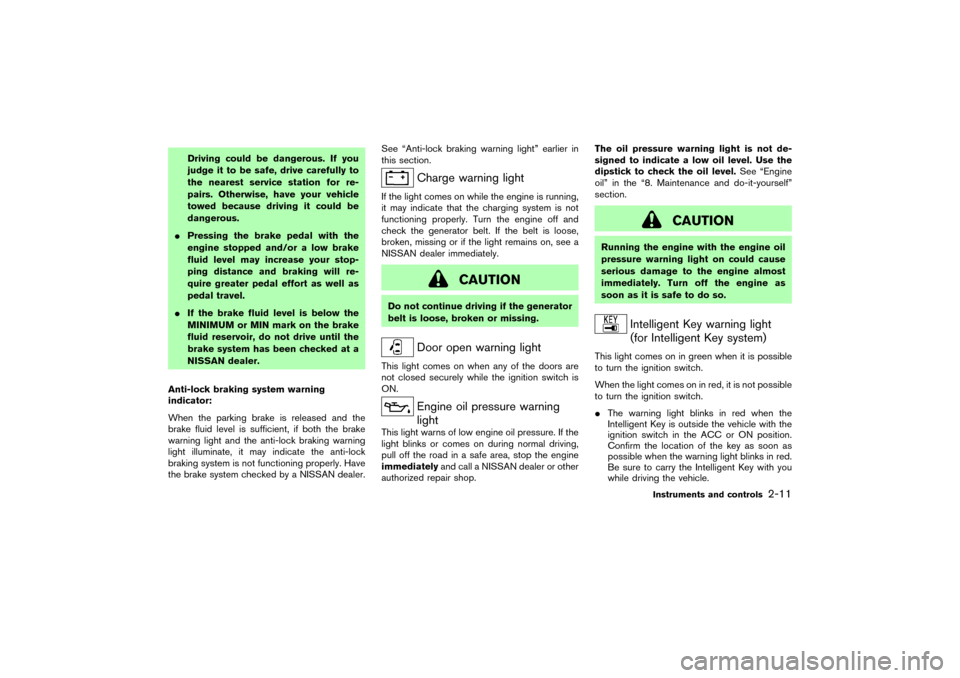

Driving could be dangerous. If you
judge it to be safe, drive carefully to
the nearest service station for re-
pairs. Otherwise, have your vehicle
towed because driving it could be
dangerous.

Pressing the brake pedal with the
engine stopped and/or a low brake
fluid level may increase your stop-
ping distance and braking will re-
quire greater pedal effort as well as
pedal travel.

If the brake fluid level is below the
MINIMUM or MIN mark on the brake
fluid reservoir, do not drive until the
brake system has been checked at a
NISSAN dealer.
Anti-lock braking system warning
indicator:
When the parking brake is released and the
brake fluid level is sufficient, if both the brake
warning light and the anti-lock braking warning
light illuminate, it may indicate the anti-lock
braking system is not functioning properly. Have
the brake system checked by a NISSAN dealer.See “Anti-lock braking warning light” earlier in
this section.
Charge warning light
If the light comes on while the engine is running,
it may indicate that the charging system is not
functioning properly. Turn the engine off and
check the generator belt. If the belt is loose,
broken, missing or if the light remains on, see a
NISSAN dealer immediately.
CAUTION
Do not continue driving if the generator
belt is loose, broken or missing.
Door open warning light
This light comes on when any of the doors are
not closed securely while the ignition switch is
ON.
Engine oil pressure warning
light
This light warns of low engine oil pressure. If the
light blinks or comes on during normal driving,
pull off the road in a safe area, stop the engine
immediatelyand call a NISSAN dealer or other
authorized repair shop.The oil pressure warning light is not de-
signed to indicate a low oil level. Use the
dipstick to check the oil level.See “Engine
oil” in the “8. Maintenance and do-it-yourself”
section.
CAUTION
Running the engine with the engine oil
pressure warning light on could cause
serious damage to the engine almost
immediately. Turn off the engine as
soon as it is safe to do so.
Intelligent Key warning light
(for Intelligent Key system)
This light comes on in green when it is possible
to turn the ignition switch.
When the light comes on in red, it is not possible
to turn the ignition switch.

The warning light blinks in red when the
Intelligent Key is outside the vehicle with the
ignition switch in the ACC or ON position.
Confirm the location of the key as soon as
possible when the warning light blinks in red.
Be sure to carry the Intelligent Key with you
while driving the vehicle.
Instruments and controls
2-11


06.7.5/Z50-D/V5.0


The supplemental air bag warning light does
not come on at all.
Unless checked and repaired, the Supplemental
Restraint System and/or the pre-tensioner seat
belt may not function properly. For additional
information, see “Supplemental restraint system”
in the “1. Safety — seats, seat belts and supple-
mental restraint system” section.
WARNING
If the supplemental air bag warning
light is on, it could mean that the
supplemental front air bag, supplemen-
tal side air bag, curtain air bag systems
and/or pre-tensioner seat belt system
will not operate in an accident. To help
avoid injury to yourself or others, have
your vehicle checked by a NISSAN
dealer as soon as possible.INDICATOR LIGHTS
All-wheel drive (AWD) LOCK
indicator light (AWD models)
This light comes on when the ignition switch is
turned to ON, and turns off within 1 second.When selecting LOCK mode while the engine is
running, this light will illuminate. See “Using
all-wheel drive (AWD)” in the “5. Starting and
driving” section.
Continuously variable
transmission (CVT) indicator
light
When the ignition switch is turned ON, the light
comes on for 2 seconds.
Cruise main switch indicator
light
The light comes on when the cruise control main
switch is pushed. The light goes out when the
main switch is pushed again. When the cruise
main switch indicator light comes on, the cruise
control system is operational.
Cruise set indicator light
The light comes on while the vehicle speed is
controlled by the cruise control system. If the
light blinks while the engine is running, it may
indicate the cruise control system is not func-
tioning properly. Have the system checked by a
NISSAN dealer.
Front passenger air bag status
light
The front passenger air bag status light
(
) will be lit and the passenger front air bag
will be OFF depending on how the front passen-
ger seat is being used.
For front passenger air bag status light opera-
tion, see “NISSAN advanced air bag system” in
the “1. Safety — Seats, seat belts and supple-
mental restraint system” section of this manual.High beam indicator light
(Blue)
This light comes on when the headlight high
beam is on and goes out when the low beam is
selected.
Malfunction indicator light
(MIL)
If the malfunction indicator light comes on steady
or blinks while the engine is running, it may
indicate a potential emission control and/or CVT
malfunction.
The malfunction indicator light may also come on
steady if the fuel-filler cap is loose or missing, or
if the vehicle runs out of fuel. Check to make sure
the fuel-filler cap is installed and closed tightly,
2-14
Instruments and controls


06.7.5/Z50-D/V5.0


and that the vehicle has at least three gallons of
fuel in the fuel tank.
After a few driving trips, the
light should
turn off if no other potential emission control
system malfunction exists.
If this indicator light comes on continuously for
20 seconds and then blinks for 10 seconds
when the engine is not running, it indicates that
the vehicle is not ready for an emission control
system inspection/maintenance test. See
“Readiness for inspection/maintenance (I/M)
test” in the “9. Technical and consumer informa-
tion” section of this manual.
Operation:
The malfunction indicator light will come on in
one of two ways:

Malfunction indicator light on steady — An
emission control system and/or CVT mal-
function has been detected. Turn the ignition
switch to OFF and check the fuel-filler cap. If
the fuel-filler cap is loose or missing, tighten
or install the cap and continue to drive the
vehicle. The
light should turn off after a
few driving trips. If the
light does not
turn off after a few driving trips, have the
vehicle inspected by a NISSAN dealer. You
do not need to have your vehicle towed to the
dealer.
Malfunction indicator light blinking — An en-
gine misfire has been detected which may
damage the emission control system. To re-
duce or avoid emission control system dam-
age:
a) Do not drive at speeds above 45 MPH
(72 km/h).
b) Avoid hard acceleration or deceleration.
c) Avoid steep uphill grades.
d) If possible, reduce the amount of cargo
being hauled or towed.
The malfunction indicator light may stop
blinking and come on steady.
Have the vehicle inspected by a NISSAN
dealer. You do not need to have your vehicle
towed to the dealer.

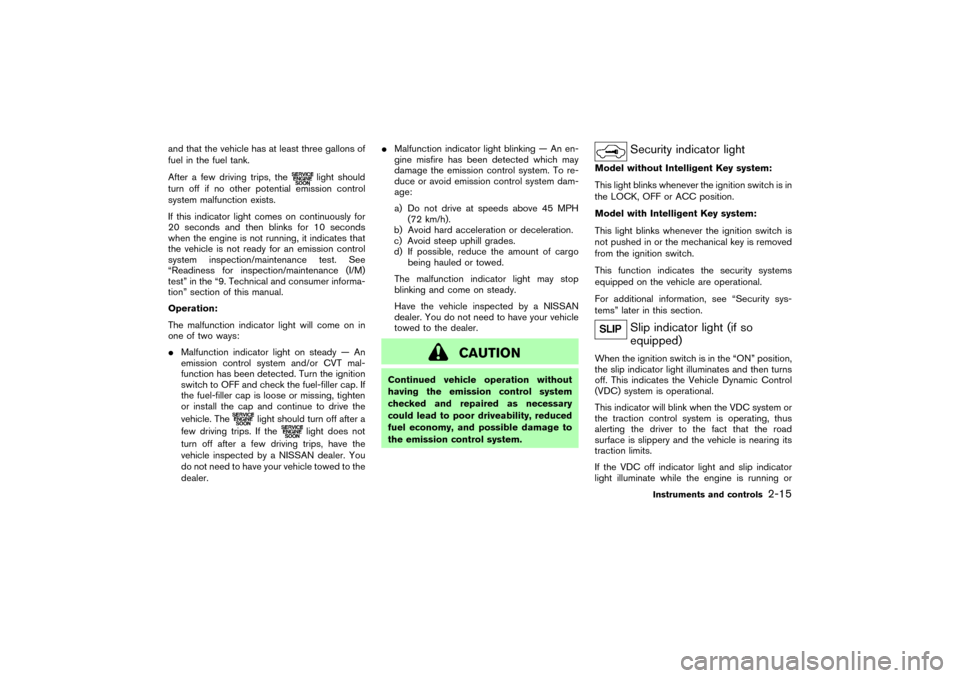

CAUTION
Continued vehicle operation without
having the emission control system
checked and repaired as necessary
could lead to poor driveability, reduced
fuel economy, and possible damage to
the emission control system.
Security indicator light
Model without Intelligent Key system:
This light blinks whenever the ignition switch is in
the LOCK, OFF or ACC position.
Model with Intelligent Key system:
This light blinks whenever the ignition switch is
not pushed in or the mechanical key is removed
from the ignition switch.
This function indicates the security systems
equipped on the vehicle are operational.
For additional information, see “Security sys-
tems” later in this section.
Slip indicator light (if so
equipped)
When the ignition switch is in the “ON” position,
the slip indicator light illuminates and then turns
off. This indicates the Vehicle Dynamic Control
(VDC) system is operational.
This indicator will blink when the VDC system or
the traction control system is operating, thus
alerting the driver to the fact that the road
surface is slippery and the vehicle is nearing its
traction limits.
If the VDC off indicator light and slip indicator
light illuminate while the engine is running or
Instruments and controls
2-15


06.7.5/Z50-D/V5.0


on the remote keyless entry, pushing the
request switch (Intelligent Key equipped
model) or using the key.
When using the remote keyless entry system
or the request switch, the hazard indicators
will operate as shown in “Remote keyless
entry system” or “Intelligent Key system” in
the “3. Pre-driving checks and adjustments”
section.
4. Confirm that the SECURITY indicator light in
the meter comes on. The SECURITY indica-
tor light glows for about 30 seconds and then
blinks. The system is now activated. If, during
this 30 second time period, the door is
unlocked by the key, the remote keyless
entry, request switch or the ignition switch is
turned to ACC or ON, the system will not
activate.
Even when the driver and/or passengers
are in the vehicle, the system will activate
with all doors locked and ignition switch
off. Turn the ignition switch to ACC to turn
the system off.
Vehicle security system operationThe security system will give the following alarm:

The headlights blink and the horn sounds
intermittently.
The alarm automatically turns off after ap-
proximately 1 minute. However, the alarm
reactivates if the vehicle is tampered with
again. The alarm can be stopped by unlock-
ing a door with the key, by pushing the
UNLOCK button on the remote keyless entry
or pushing the request switch.
The alarm is activated by:

Opening the door (including the lift gate)
without using the key, remote keyless entry or
pushing the request switch.
How to stop alarmThe alarm will stop only by unlocking a door with
the key, by pushing the UNLOCK button on
remote keyless entry, or pushing the request
switch (when carrying the Intelligent Key with
you). The alarm will not stop if the ignition switch
is turned to ACC or ON.
If the system does not operate as de-
scribed above, have it checked by a
NISSAN dealer.NISSAN VEHICLE IMMOBILIZER
SYSTEMThe NISSAN Vehicle Immobilizer System will not
allow the engine to start without the use of the
registered NISSAN Vehicle Immobilizer System
key.If the engine fails to start using the registered
NISSAN Vehicle Immobilizer System key, it may
be due to interference caused by another
NISSAN Vehicle Immobilizer System key, an
automated toll road device or automated pay-
ment device on the key ring. Restart the engine
using the following procedures:
1. Leave the ignition switch in the ON position
for approximately 5 seconds.
2. Turn the ignition switch to the OFF or LOCK
position and wait approximately 10 seconds.
3. Repeat step 1 and 2 again.
4. Restart the engine while holding the device
(which may have caused the interference)
separate from the registered NISSAN Vehicle
Immobilizer System key.
If this procedure allows the engine to start,
NISSAN recommends placing the registered
NISSAN Vehicle Immobilizer System key on a
separate key ring to avoid interference from
other devices.
Statement related to section 15 of FCC
rules for NISSAN Vehicle Immobilizer Sys-
tem (CONT ASSY-BCM, ANT ASSY-
IMMOBILIZER)
This device complies with part 15 of the
FCC Rules and RSS-210 of Industry
2-18
Instruments and controls


06.7.5/Z50-D/V5.0


The indicator light in the switch
C
will
illuminate when low or high is selected.
The heater is controlled by a thermostat,
automatically turning the heater on and off.
The indicator light will remain on as long as
the switch is on.
3. When the vehicle’s interior is warmed, or
before you leave the vehicle, be sure to turn
the switch to the off position (center)
3.

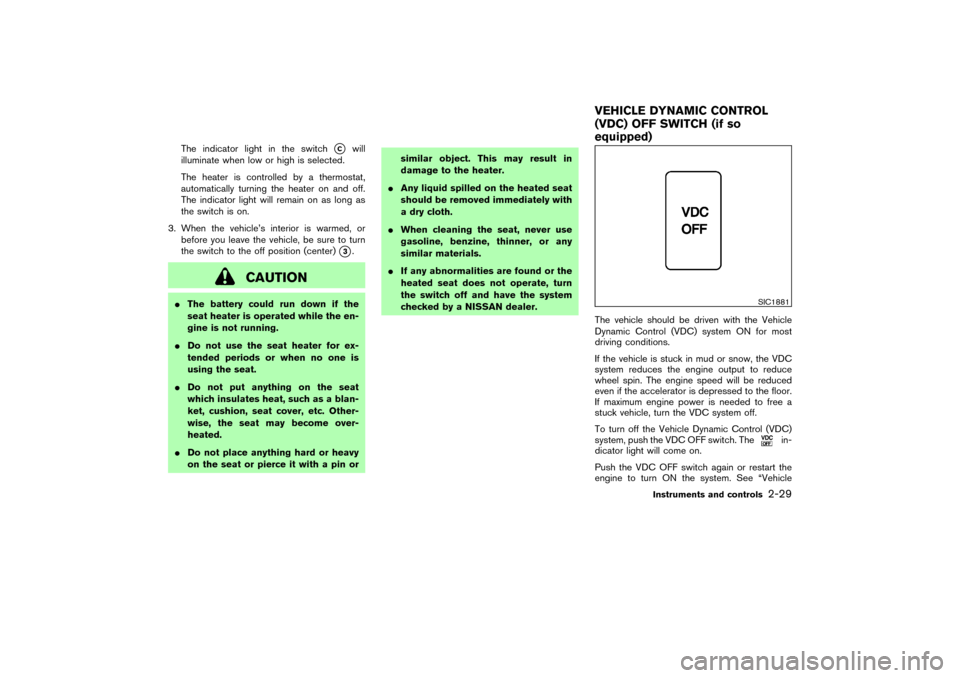

CAUTION

The battery could run down if the
seat heater is operated while the en-
gine is not running.

Do not use the seat heater for ex-
tended periods or when no one is
using the seat.

Do not put anything on the seat
which insulates heat, such as a blan-
ket, cushion, seat cover, etc. Other-
wise, the seat may become over-
heated.

Do not place anything hard or heavy
on the seat or pierce it with a pin orsimilar object. This may result in
damage to the heater.

Any liquid spilled on the heated seat
should be removed immediately with
a dry cloth.

When cleaning the seat, never use
gasoline, benzine, thinner, or any
similar materials.

If any abnormalities are found or the
heated seat does not operate, turn
the switch off and have the system
checked by a NISSAN dealer.
The vehicle should be driven with the Vehicle
Dynamic Control (VDC) system ON for most
driving conditions.
If the vehicle is stuck in mud or snow, the VDC
system reduces the engine output to reduce
wheel spin. The engine speed will be reduced
even if the accelerator is depressed to the floor.
If maximum engine power is needed to free a
stuck vehicle, turn the VDC system off.
To turn off the Vehicle Dynamic Control (VDC)
system, push the VDC OFF switch. The
in-
dicator light will come on.
Push the VDC OFF switch again or restart the
engine to turn ON the system. See “Vehicle
SIC1881
VEHICLE DYNAMIC CONTROL
(VDC) OFF SWITCH (if so
equipped)
Instruments and controls
2-29


06.7.5/Z50-D/V5.0
