2007 NISSAN MURANO engine

“FUEL ECONOMY” informationAverage Fuel Economy and Distance to Empty
will be displayed for reference.
To reset, select the “Reset” key using the joy-
stick and push the “ENTER” button or push the
“TRIP” button for more than approximately 1.5
seconds.
“MAINTENANCE” informationYou can set the engine oil and the tire rotation
interval.
And the tire pressure will appear on the screen
(if the tire pressure system is equipped).
To display the setting of the maintenance inter-
val, select the “Engine Oil” or “Tire Rotation” key
using the joystick and push the “ENTER” button.To set the maintenance interval, select the
“Maintenance Schedule” key by using the joy-
stick and move the joystick to the right or left.
To reset the maintenance interval, select the
“Reset” key using the joystick and push the
“ENTER” button.
To display the MAINTENANCE NOTICE, auto-
matically when setting trip distance is reached,
select the “Display Maintenance Notification”
key and push the “ENTER” button.
SAA1318
SAA1319
SAA1320
Display screen, heater, air conditioner and audio systems
4-13


06.7.5/Z50-D/V5.0


Underneath the bumper and the cor-
ner areas of the bumper cannot be
viewed on the RearView Monitor be-
cause of its monitoring range limita-
tion.

Do not put anything on the rear view
camera. The rear view camera is in-
stalled above the license plate.

When washing the vehicle with high-
pressure water, be sure not to spray
it around the camera. Otherwise, wa-
ter may enter the camera unit caus-
ing water condensation on the lens, a
malfunction, fire or an electric shock.

Do not strike the camera. It is a pre-
cision instrument. Otherwise, it may
malfunction or cause damage result-
ing in a fire or an electric shock.
CAUTION
There is a plastic cover over the camera.
Do not scratch the cover when cleaning
dirt or snow from it.
HOW TO READ THE DISPLAYED
LINESLines which indicate the vehicle clearance and
distances to objects with reference to the
bumper line
A
are displayed on the monitor.
They are indicated as reference distances to
objects. Displayed lines indicate distances 1.5
feet (red)
1, 3 feet (yellow)
2, 7 feet (green)
3and 10 feet (green)
4from the lower part of
the bumper line
A.
The vehicle clearance lines are wider than
the actual clearance.
REARVIEW MONITOR SETTING
WARNING
Do not adjust the Brightness, Contrast,
Tint and Color of the RearView Monitor
while the vehicle is moving. Make sure
the parking brake is firmly applied and
the engine is not running.
To adjust the Brightness, Contrast, Tint and
Color of the RearView Monitor, push the “SET-
TING” button with the RearView Monitor on,
select the item key and adjust the level using the
joystick.OPERATING TIPS
When the selector lever is shifted to R, the
monitor screen automatically changes to the
RearView Monitor mode. However, the radio
can be heard.

It may take some time until the RearView
Monitor is displayed after the selector lever
has been shifted to R. Objects may be dis-
torted momentarily until the RearView Moni-
tor screen is displayed completely. When the
selector lever is returned to a position other
than R, it may take some time until the screen
SAA0889
4-20
Display screen, heater, air conditioner and audio systems


06.7.5/Z50-D/V5.0


WARNING

The air conditioner cooling function
operates only when the engine is
running.

On hot, sunny days, temperatures in
a closed vehicle could quickly be-
come high enough to cause severe or
possibly fatal injuries to people or
animals. Do not leave children or
adults who would normally require
the assistance of others in your ve-
hicle. Unattended pets should also
not be left alone.

Do not use the recirculation mode for
long periods as it may cause the
interior air to become stale and the
windows to fog up.
Start the engine and operate the controls to
activate the air conditioner.
AUTOMATIC OPERATION
Cooling and/or dehumidified heating
(AUTO)This mode may be normally used all year round
as the system automatically works to keep a
constant temperature. Air flow distribution and
fan speed are also controlled automatically.
1. Push the AUTO button on. (AUTO will be
displayed.)
2. Turn the temperature set dial to the left or
right to set the desired temperature.

Adjust the temperature set dial to about 75°F
(24°C) for normal operation.

The temperature of the passenger compart-
ment will be maintained automatically. Air
flow distribution and fan speed are also con-
trolled automatically.
3. You can individually set driver and front pas-
senger side temperature using each tem-
perature control knob. When the DUAL but-
ton is pushed or passenger side temperature
control knobis turned, the DUAL indicator
will come on. To turn off the passenger side
temperature control, push the DUAL button.
A visible mist may be seen coming from the
ventilators in hot, humid conditions as the air iscooled rapidly. This does not indicate a malfunc-
tion.
Heating (A/C OFF)The air conditioner does not activate. When you
need to heat only, use this mode.
1. Push the A/C button. (A/C OFF will be
displayed and A/C indicator will turn off.)
2. Turn the temperature set dial to the left or
right to set the desired temperature.

The temperature of the passenger compart-
ment will be maintained automatically. Air
flow distribution and fan speed are also con-
trolled automatically.

Do not set the temperature lower than the
outside air temperature. Otherwise the sys-
tem may not work properly.

Not recommended if windows fog up.Dehumidified defrosting or defogging1. Push the
FRONT defroster button on.
(The indicator light on the button will come
on.)
2. Turn the temperature set dial to the left or
right to set the desired temperature.

To quickly remove ice from the outside of the
windows, turn the fan speed control knobto
4-24
Display screen, heater, air conditioner and audio systems


06.7.5/Z50-D/V5.0


right and set to the maximum position.

As soon as possible after the windshield is
clean, push the AUTO button to return to the
auto mode.

When the
front defroster button is
pushed, the air conditioner will automatically
be turned on at outside temperatures above
23°F (−5°C) to defog the windshield, and the
air recirculate mode will automatically be
turned off.
Outside air is drawn into the passenger
compartment to improve the defogging per-
formance.
MANUAL OPERATION
Fan speed controlTurn the fan control button
to manually
control the fan speed.
Push the AUTO button to return to automatic
control of the fan speed.
Air recirculationPush the air recirculation button
to recir-
culate interior air inside the vehicle. The indicator
light on the
button will come on.
The air recirculation
cannot be activatedwhen the air conditioner is in the front defrosting
mode
.
Fresh airPush the button
to draw outside air into
the passenger compartment. The indicator light
on the
button will come on.
Automatic intake air controlIn the AUTO mode, the intake air will be con-
trolled automatically. To manually control the
intake air, push the air recirculate
or fresh
air
button. To return to the automatic
control mode, push the indicator-illuminated but-
ton for about 2 seconds. The indicator lights
(both air recirculate and fresh air buttons) will
flash twice, and then the intake air will be
controlled automatically.
Air flow controlPushing the MODE manual air flow control
button selects the air outlet to:
: Air flows from center and side ventila-
tors.: Air flows from center and side ventila-
tors and foot outlets.: Air flows from foot outlets and side
ventilators.
: Air flows from defroster, foot outlets
and side ventilators.
To turn the system offPush the OFF button.OPERATING TIPSWhen the engine coolant temperature and out-
side air temperature are low, the air flow from the
foot outlets may not operate for a maximum of
150 seconds. However, this is not a malfunction.
After the coolant temperature warms up, the air
flow from the foot outlets will operate normally.
Display screen, heater, air conditioner and audio systems
4-25


06.7.5/Z50-D/V5.0


Turn the ignition switch to ACC or ON and push
the power on switch to turn on the radio. If you
listen to the radio with the engine not running,
the key should be turned to the ACC position.
Radio reception is affected by station signal
strength, distance from radio transmitter, build-
ings, bridges, mountains and other external in-
fluences. Intermittent changes in reception qual-
ity normally are caused by these external
influences.
Using a cellular phone in or near the ve-
hicle may influence radio reception quality.Radio receptionYour radio system is equipped with state-of-the-
art electronic circuits to enhance radio recep-
tion. These circuits are designed to extend re-
ception range, and to enhance the quality of that
reception.
However there are some general characteristics
of FM, AM and satellite radio signals that can
affect radio reception quality in a moving vehicle,
even when the finest equipment is used. These
characteristics are completely normal in a given
reception area, and do not indicate any malfunc-
tion in your radio system.
Remember that a moving vehicle is not the ideal
place to listen to a radio. Because of the move-
ment, reception conditions will constantlychange. Buildings, terrain, signal distance and
interference from other vehicles can work
against ideal reception. Described below are
some of the factors that can affect your radio
reception.
FM RADIO RECEPTIONRange: FM range is normally limited to 25 to 30
miles (40 to 48 km), with monaural (single
channel) FM having slightly more range than
stereo FM. External influences may sometimes
interfere with FM station reception even if the FM
station is within 25 miles (40 km). The strength
of the FM signal is directly related to the distance
between the transmitter and receiver. FM signals
follow a line-of-sight path, exhibiting many of the
same characteristics as light. For example they
will reflect off objects.
Fade and drift: As your vehicle moves away from
SAA0306
AUDIO SYSTEM
Display screen, heater, air conditioner and audio systems
4-27


06.7.5/Z50-D/V5.0


Removing the antennaYou can remove the antenna if necessary.
Hold the bottom of the antenna and remove by
turning counterclockwise.
CAUTION

Be sure that antenna is removed be-
fore the vehicle enters an automatic
car wash.

Be sure to fold down the antenna
before the vehicle enters a garage
with a low ceiling.When installing a CB, ham radio or car phone in
your NISSAN, be sure to observe the following
cautions, otherwise the new equipment may
adversely affect the Engine control system and
other electronic parts.
WARNING

A cellular telephone should not be
used while driving so full attention
may be given to vehicle operation.
Some jurisdictions prohibit the use
of cellular telephones while driving.

If you must make a call while your
vehicle is in motion, the hands free
cellular phone operational mode (if
so equipped) is highly recommended.
Exercise extreme caution at all times
so full attention may be given to
vehicle operation.

If a conversation in a moving vehicle
requires you to take notes, pull off
the road to a safe location and stop
your vehicle before doing so.
CAUTION

Keep the antenna as far as possible
away from the electronic control
modules.

Keep the antenna wire more than 8 in
(20 cm) away from the electronic con-
trol system harnesses. Do not route
the antenna wire next to any harness.

Adjust the antenna standing-wave
ratio as recommended by the manu-
facturer.

Connect the ground wire from the CB
radio chassis to the body.

For details, consult a NISSAN dealer.
CAR PHONE OR CB RADIO
Display screen, heater, air conditioner and audio systems
4-45


06.7.5/Z50-D/V5.0


5 Starting and drivingPrecautions when starting and driving ............................. 5-2
Exhaust gas (Carbon monoxide) .................................. 5-2
Three-way catalyst ........................................................... 5-3
Tire pressure monitoring system (TPMS) ................. 5-3
Avoiding collision and rollover ...................................... 5-5
On-pavement and offroad driving precautions
(AWD) ................................................................................. 5-6
Drinking alcohol/drugs and driving .............................. 5-6
Driving safety precautions.............................................. 5-6
Ignition switch (Except for Intelligent Key equipped
model) ....................................................................................... 5-9
Key positions .................................................................. 5-10
NISSAN Vehicle Immobilizer System (NVIS) ......... 5-10
Ignition switch (Intelligent Key System equipped
model)..................................................................................... 5-10
Ignition switch positions .............................................. 5-11
NISSAN Vehicle Immobilizer System (NVIS) ......... 5-12
Before starting the engine ................................................ 5-12
Starting the engine ............................................................. 5-13
Driving the vehicle ............................................................... 5-13
CVT (Continuously Variable Transmission)............. 5-13
M-CVT (CVT with Manual shift mode)..................... 5-17
Parking brake........................................................................ 5-21
Cruise control ....................................................................... 5-22Precautions on cruise control .................................... 5-22
Cruise control operations ............................................ 5-22
Break-in schedule .............................................................. 5-24
Increasing fuel economy .................................................... 5-24
Using all-wheel drive (AWD) (if so equipped) ............ 5-25
AWD lock switch operations...................................... 5-25
AWD warning light ........................................................ 5-27
Parking/parking on hills...................................................... 5-29
Power steering ..................................................................... 5-30
Brake system ........................................................................ 5-30
Braking precautions ...................................................... 5-30
Anti-lock Braking System (ABS) ............................... 5-31
Vehicle Dynamic Control (VDC) system
(if so equipped) .................................................................. 5-32
Cold weather driving .......................................................... 5-34
Freeing a frozen door lock .......................................... 5-34
Antifreeze ......................................................................... 5-34
Battery .............................................................................. 5-34
Draining of coolant water ............................................ 5-34
Tire equipment................................................................ 5-34
Special winter equipment ............................................ 5-35
Driving on snow or ice ................................................. 5-35
Engine block heater (if so equipped) ....................... 5-35


06.7.5/Z50-D/V5.0

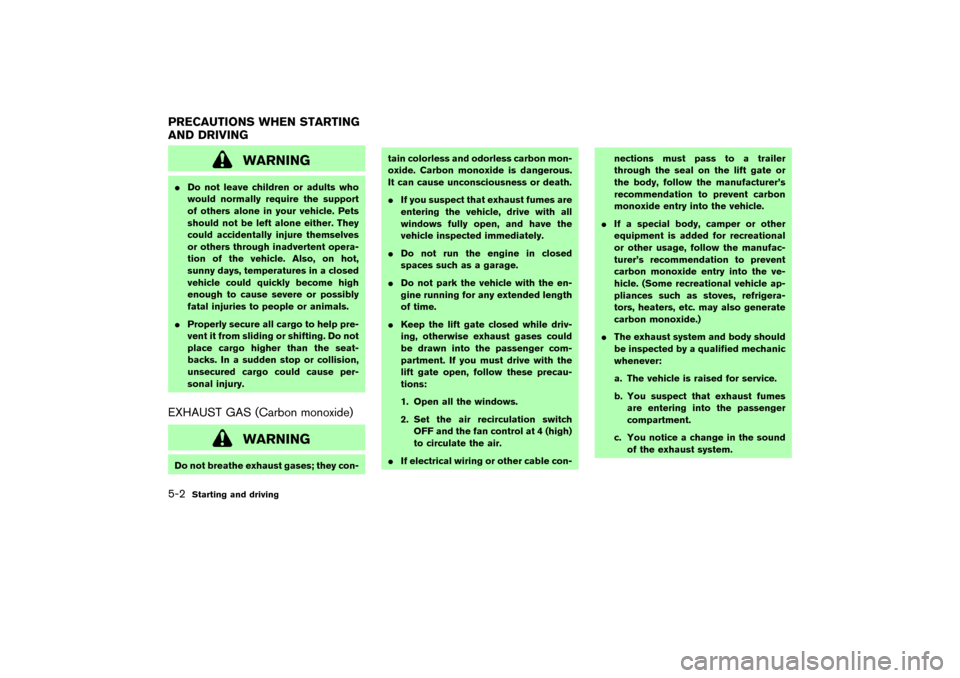

WARNING

Do not leave children or adults who
would normally require the support
of others alone in your vehicle. Pets
should not be left alone either. They
could accidentally injure themselves
or others through inadvertent opera-
tion of the vehicle. Also, on hot,
sunny days, temperatures in a closed
vehicle could quickly become high
enough to cause severe or possibly
fatal injuries to people or animals.

Properly secure all cargo to help pre-
vent it from sliding or shifting. Do not
place cargo higher than the seat-
backs. In a sudden stop or collision,
unsecured cargo could cause per-
sonal injury.EXHAUST GAS (Carbon monoxide)
WARNING
Do not breathe exhaust gases; they con-tain colorless and odorless carbon mon-
oxide. Carbon monoxide is dangerous.
It can cause unconsciousness or death.

If you suspect that exhaust fumes are
entering the vehicle, drive with all
windows fully open, and have the
vehicle inspected immediately.

Do not run the engine in closed
spaces such as a garage.

Do not park the vehicle with the en-
gine running for any extended length
of time.

Keep the lift gate closed while driv-
ing, otherwise exhaust gases could
be drawn into the passenger com-
partment. If you must drive with the
lift gate open, follow these precau-
tions:
1. Open all the windows.
2. Set the air recirculation switch
OFF and the fan control at 4 (high)
to circulate the air.

If electrical wiring or other cable con-nections must pass to a trailer
through the seal on the lift gate or
the body, follow the manufacturer’s
recommendation to prevent carbon
monoxide entry into the vehicle.

If a special body, camper or other
equipment is added for recreational
or other usage, follow the manufac-
turer’s recommendation to prevent
carbon monoxide entry into the ve-
hicle. (Some recreational vehicle ap-
pliances such as stoves, refrigera-
tors, heaters, etc. may also generate
carbon monoxide.)

The exhaust system and body should
be inspected by a qualified mechanic
whenever:
a. The vehicle is raised for service.
b. You suspect that exhaust fumes
are entering into the passenger
compartment.
c. You notice a change in the sound
of the exhaust system.PRECAUTIONS WHEN STARTING
AND DRIVING5-2
Starting and driving


06.7.5/Z50-D/V5.0
