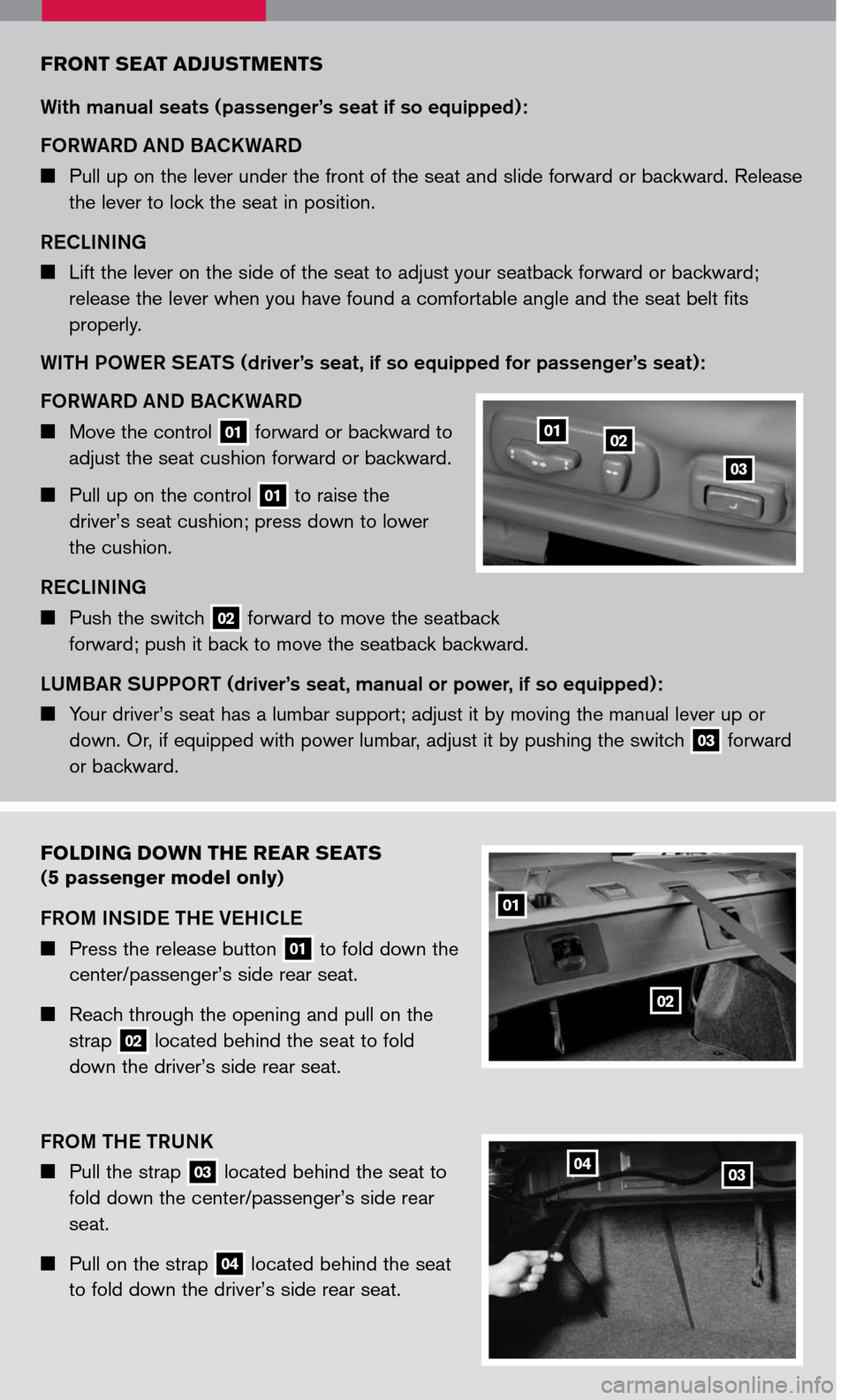

FRONT SEAT ADJUSTMENTS
With manual seats (passenger’s seat if so equipped):
F ORWARD AND BACKWARD
Pull up on the lever under the front of the seat and slide forward or backward. Release
the lever to lock the seat in position.
R ECLINING
Lift the lever on the side of the seat to adjust your seatback forward or backward;
release the lever when you have found a comfortable angle and the seat belt fits
properly.
W ITH POWER SEATS
(driver’s seat, if so equipped for passenger’s seat):
F ORWARD AND BACKWARD
Move the control 01 forward or backward to
adjust the seat cushion forward or backward.
Pull up on the control 01 to raise the
driver’s seat cushion; press down to lower
the cushion.
R ECLINING
Push the switch 02 forward to move the seatback
forward; push it back to move the seatback backward.
L UMBAR SUPPORT
(driver’s seat, manual or power, if so equipped):
Your driver’s seat has a lumbar support; adjust it by moving the manual lever up or
down. Or, if equipped with power lumbar, adjust it by pushing the switch 03 forward
or backward.
02
03
01
FOLDING DOWN THE REAR SEATS
(5 passenger model only)
FROM INSIDE THE VEHICLE
Press the release button 01 to fold down the
center/passenger’s side rear seat.
Reach through the opening and pull on the
strap 02 located behind the seat to fold
down the driver’s side rear seat.
F ROM THE TRUNK
Pull the strap 03 located behind the seat to
fold down the center/passenger’s side rear
seat.
Pull on the strap 04 located behind the seat
to fold down the driver’s side rear seat.
0304
01
02
Page 10 of 14

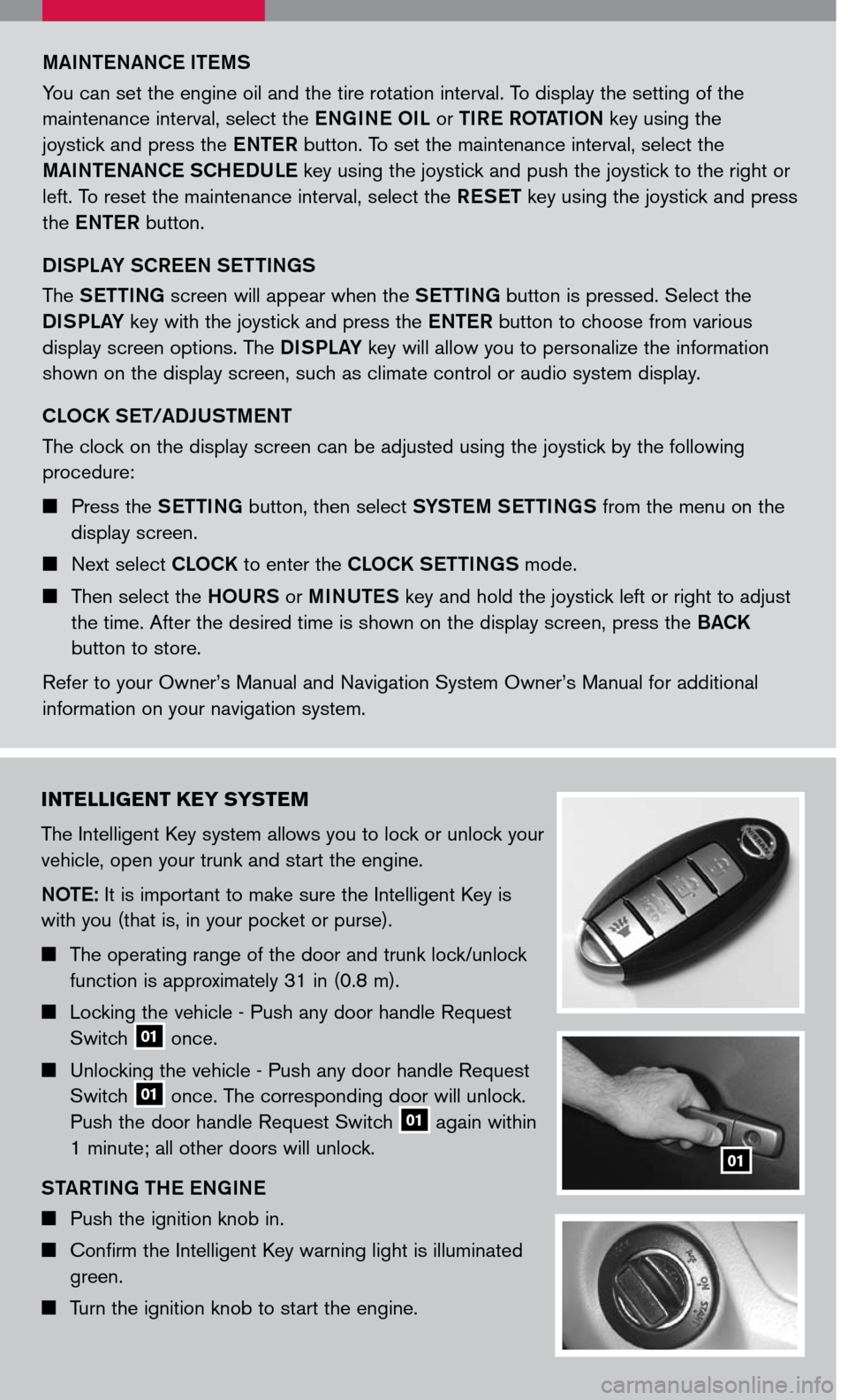

MAINTENANCE ITEMS
You can set the engine oil and the tire rotation interval. To display the setting of the
maintenance interval, select the ENGINE OIL or TIRE ROTATION key using the
joystick and press the ENTER button. To set the maintenance interval, select the
M AINTENANCE SCHEDULE
key using the joystick and push the joystick to the right or
left. To reset the maintenance interval, select the RESET key using the joystick and press
the ENTER button.
DISPLAY SCREEN SETTINGS
The SETTING screen will appear when the SETTING button is pressed. Select the
DISPLAY key with the joystick and press the ENTER button to choose from various
display screen options. The DISPLAY key will allow you to personalize the information
shown on the display screen, such as climate control or audio system display.
CLOCK SET/ADJUSTMENT
The clock on the display screen can be adjusted using the joystick by the following
procedure:
Press the SETTING button, then select SYSTEM SETTINGS from the menu on the
display screen.
Next select CLOCK to enter the CLOCK SETTINGS mode.
Then select the HOURS or MINUTES key and hold the joystick left or right to adjust
the time. After the desired time is shown on the display screen, press the BACK
button to store.
Refer to your Owner’s Manual and Navigation System Owner’s Manual for additional
information on your navigation system.
I NTELLIGENT KEY SYSTEM
The Intelligent Key system allows you to lock or unlock your
vehicle, open your trunk and start the engine.
NOTE
: It is important to make sure the Intelligent Key is
with you (that is, in your pocket or purse).
The operating range of the door and trunk lock/unlock
function is approximately 31 in (0.8 m).
Locking the vehicle - Push any door handle Request
Switch 01 once.
Unlocking the vehicle - Push any door handle Request
Switch 01 once. The corresponding door will unlock.
Push the door handle Request Switch 01 again within
1 minute; all other doors will unlock.
STARTING THE ENGINE
Push the ignition knob in.
Confirm the Intelligent Key warning light is illuminated
green.
Turn the ignition knob to start the engine.
01
Page 11 of 14

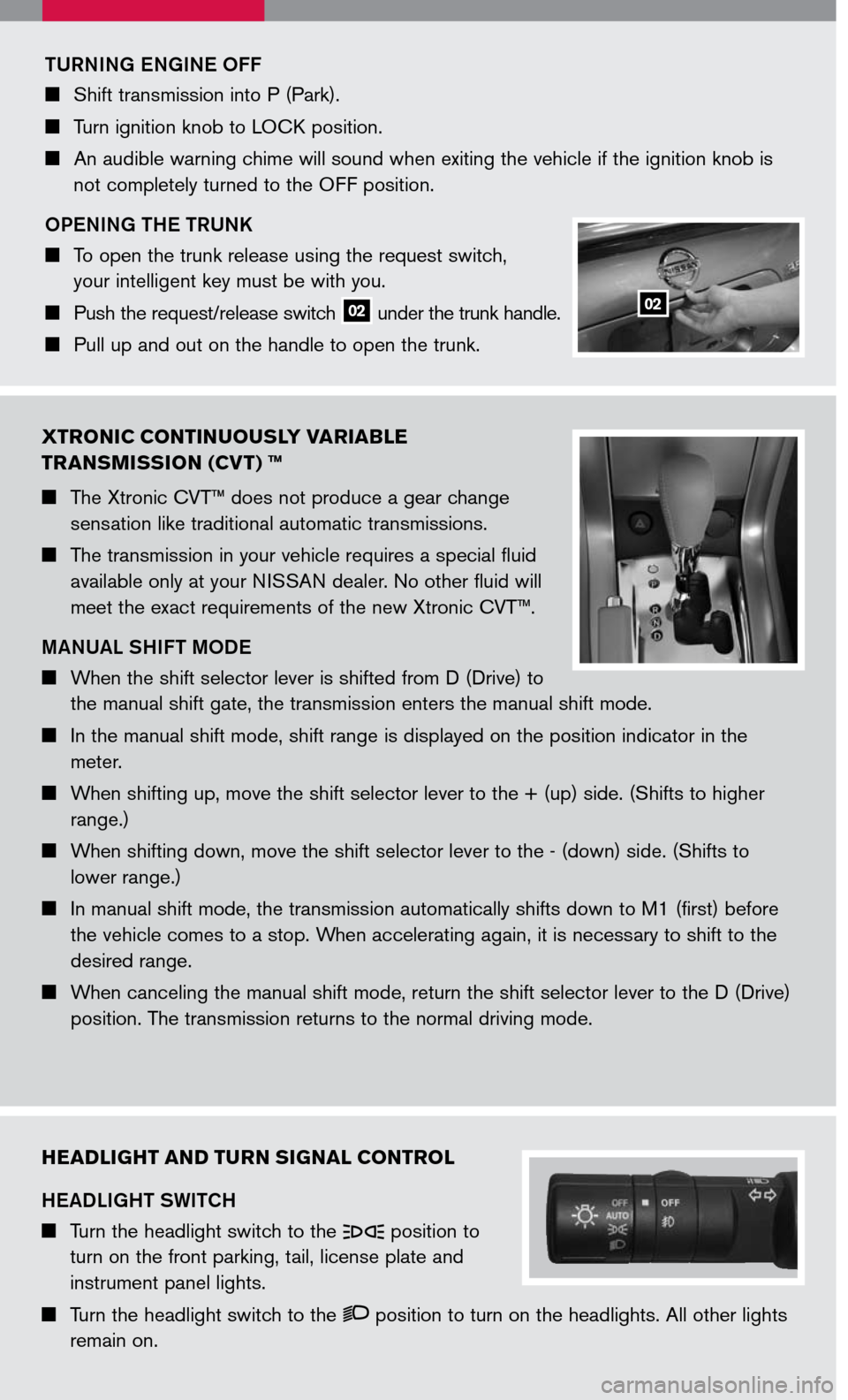

XTRONIC CONTINUOUSLY VARIABLE
TRANSMISSION (CVT) ™
The Xtronic CVT™ does not produce a gear change
sensation like traditional automatic transmissions.
The transmission in your vehicle requires a special fluid
available only at your NISSAN dealer. No other fluid will
meet the exact requirements of the new Xtronic CVT™.
MANUAL SHIFT MODE
When the shift selector lever is shifted from D (Drive) to
the manual shift gate, the transmission enters the manual shift mode.
In the manual shift mode, shift range is displayed on the position indicator in the
meter.
When shifting up, move the shift selector lever to the + (up) side. (Shifts to higher
range.)
When shifting down, move the shift selector lever to the - (down) side. (Shifts to
lower range.)
In manual shift mode, the transmission automatically shifts down to M1 (first) before
the vehicle comes to a stop. When accelerating again, it is necessary to shift to the
desired range.
When canceling the manual shift mode, return the shift selector lever to the D (Drive)
position. The transmission returns to the normal driving mode.
TURNING ENGINE OFF
Shift transmission into P (Park).
Turn ignition knob to LOCK position.
An audible warning chime will sound when exiting the vehicle if the ignition knob is
not completely turned to the OFF position.
OPENING THE TRUNK
To open the trunk release using the request switch,
your intelligent key must be with you.
Push the request/release switch 02 under the trunk handle.
Pull up and out on the handle to open the trunk.
02
HEADLIGHT AND TURN SIGNAL CONTROL
HEADLIGHT SWITCH
Turn the headlight switch to the position to
turn on the front parking, tail, license plate and
instrument panel lights.
Turn the headlight switch to the position to turn on the headlights. All other lights
remain on.
Page 14 of 14

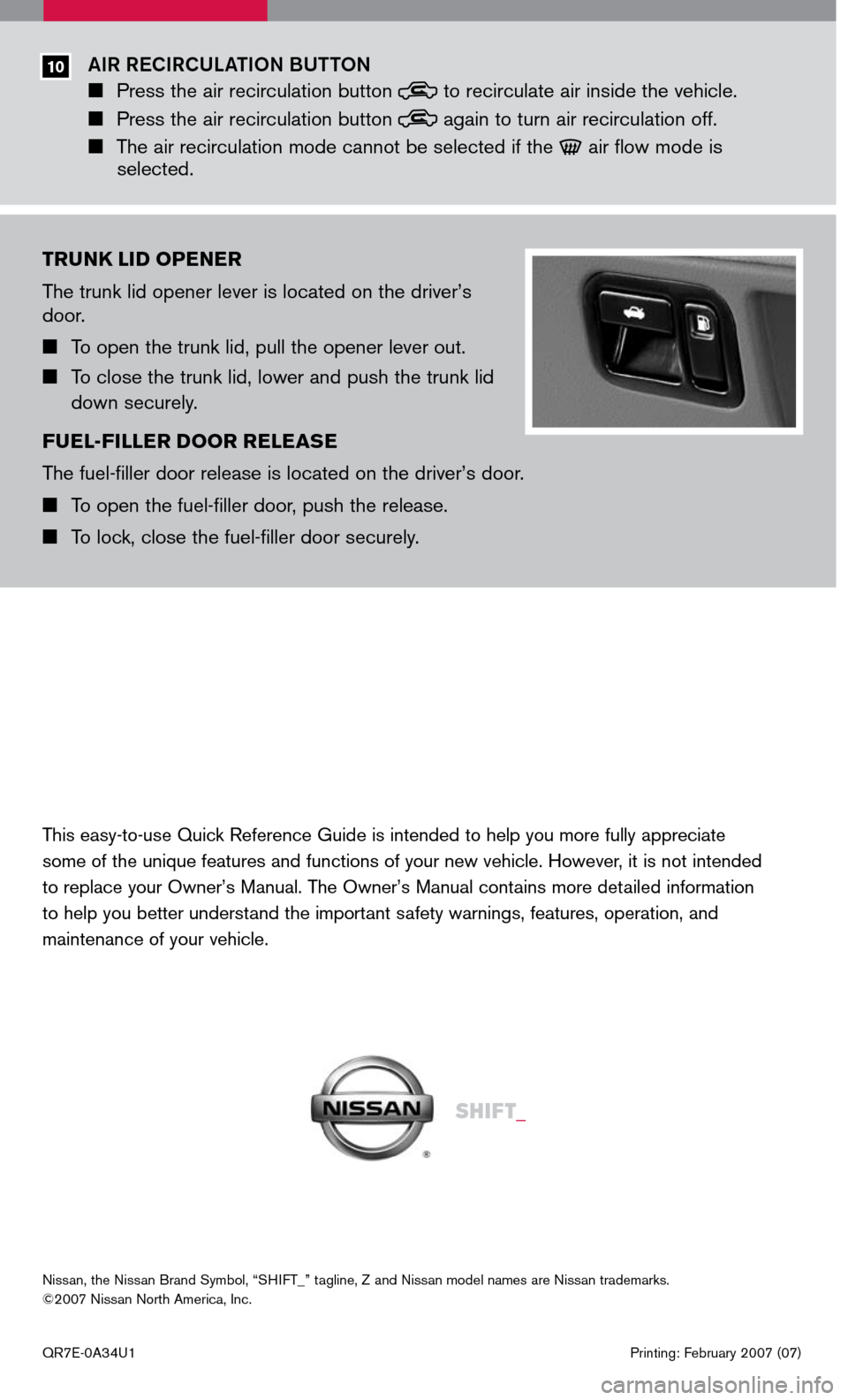

TRUNK LID OPENER
The trunk lid opener lever is located on the driver’s door.
To open the trunk lid, pull the opener lever out.
To close the trunk lid, lower and push the trunk lid
down securely.
FUEL-FILLER DOOR RELEASE
The fuel-filler door release is located on the driver’s door.
To open the fuel-filler door, push the release.
To lock, close the fuel-filler door securely.
QR7E-0A34U1 Printing: February 2007 (07)
Nissan, the Nissan Brand Symbol, “SHIFT_” tagline, Z and Nissan model names are Nissan trademarks. ©2007 Nissan North America, Inc.
Sh ift_
AIR RECIRCULATION BUTTON
Press the air recirculation button to recirculate air inside the vehicle.
Press the air recirculation button again to turn air recirculation off.
The air recirculation mode cannot be selected if the air flow mode is selected.
10
This easy-to-use Quick Reference Guide is intended to help you more fully appreciate
some of the unique features and functions of your new vehicle. However, it is not intended
to replace your Owner’s Manual. The Owner’s Manual contains more detailed information
to help you better understand the important safety warnings, features, operation, and
maintenance of your vehicle.
