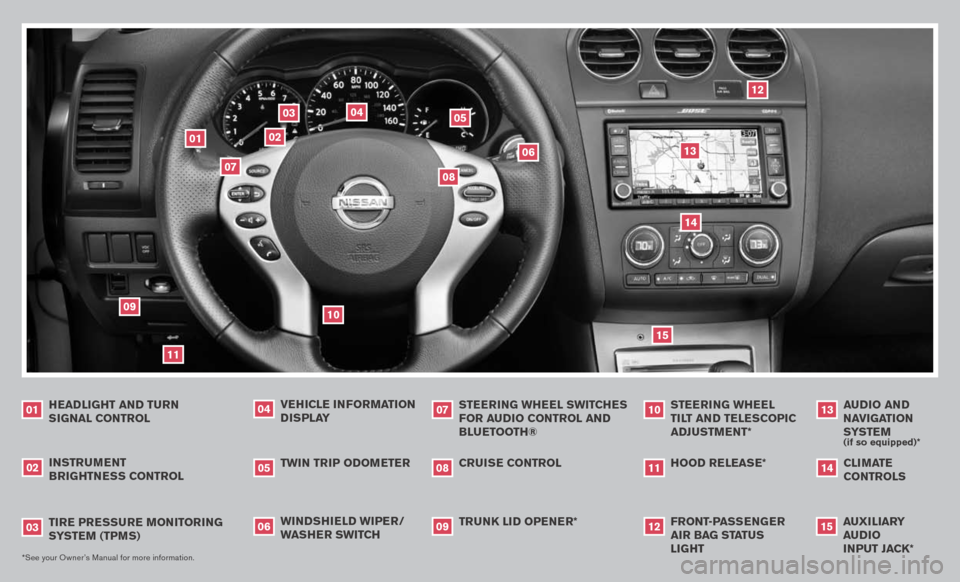

TIRE PRESSURE MONITORING SYSTEM (TPMS)
03
VEHICLE INFORMATION
DISPLAY
04
TWIN TRIP ODOMETER
05
TRUNK LID OPENER*CRUISE CONTROL
WINDSHIELD WIPER/WASHER SWITCH
06
0809
0508
03
07
12
02
13
04
06
11
14
HEADLIGHT AND TURN SIGNAL CONTROL
01
INSTRUMENT BRIGHTNESS CONTROL
02
STEERING WHEEL SWITCHES
FOR AUDIO CONTROL AND
BLUETOOTH®
07
*See your Owner’s Manual for more information.
10
09
FRONT-PASSENGER AIR BAG STATUS LIGHT
12
HOOD RELEASE*
11
STEERING WHEEL TILT AND TELESCOPIC
ADJUSTMENT*
10
CLIMATE CONTROLSAUDIO AND NAVIGATION SYSTEM
(if so equipped)*
1314
01
15
AUXILIARY AUDIO INPUT JACK*
15
CRUISE CONTROL

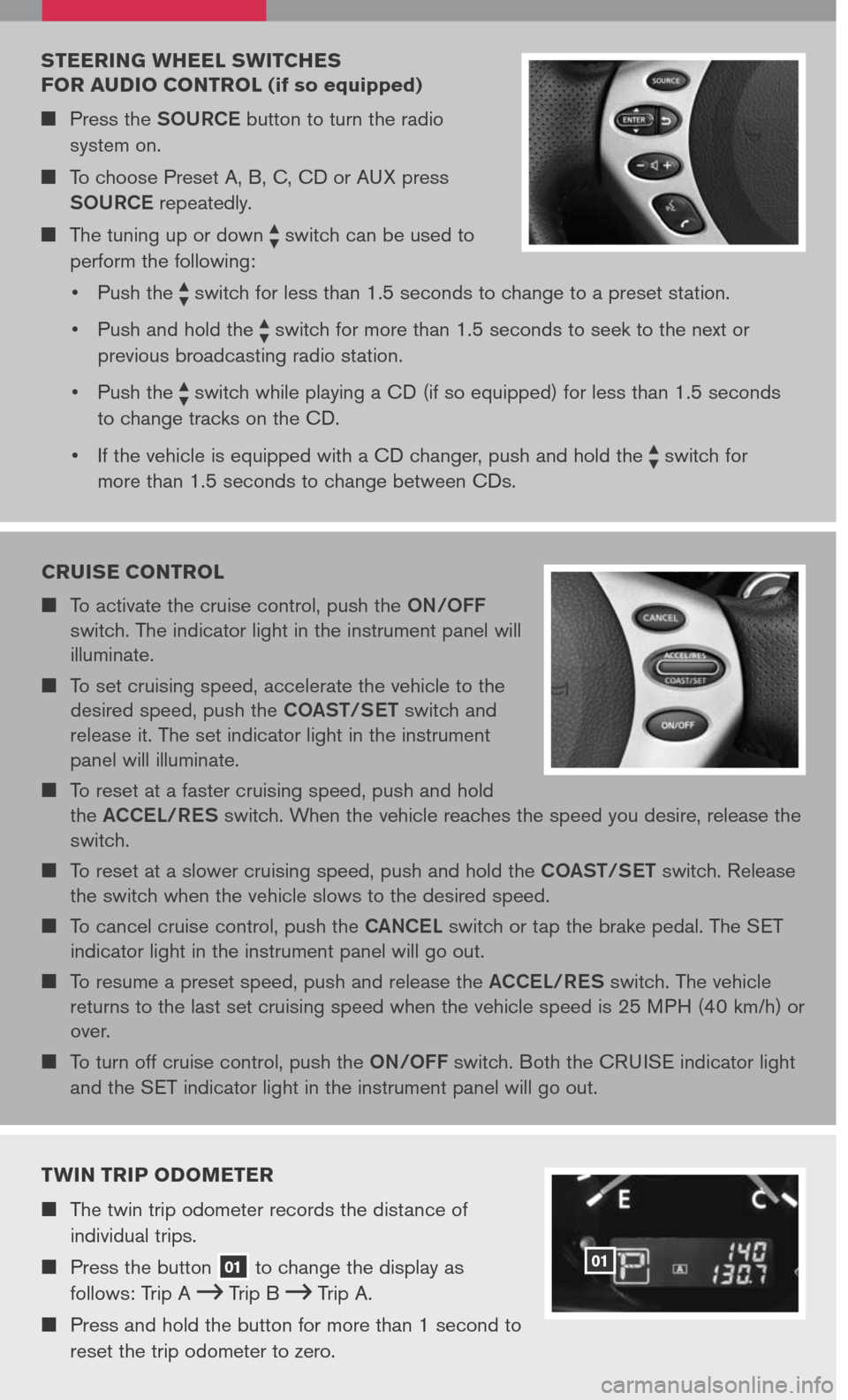

To activate the cruise control, push the ON/OFF
switch. The indicator light in the instrument panel will
illuminate.
To set cruising speed, accelerate the vehicle to the
desired speed, push the COAST/SET switch and
release it. The set indicator light in the instrument
panel will illuminate.
To reset at a faster cruising speed, push and hold
the ACCEL/RES switch. When the vehicle reaches the speed you desire, release the
switch.
To reset at a slower cruising speed, push and hold the COAST/SET switch. Release
the switch when the vehicle slows to the desired speed.
To cancel cruise control, push the CANCEL switch or tap the brake pedal. The SET
indicator light in the instrument panel will go out.
To resume a preset speed, push and release the ACCEL/RES switch. The vehicle
returns to the last set cruising speed when the vehicle speed is 25 MPH (40 km/h) or
over.
To turn off cruise control, push the ON/OFF switch. Both the CRUISE indicator light
and the SET indicator light in the instrument panel will go out.
STEERING WHEEL SWITCHES
FOR AUDIO CONTROL (if so equipped)
Press the SOURCE button to turn the radio
system on.
To choose Preset A, B, C, CD or AUX press
SOURCE repeatedly.
The tuning up or down switch can be used to
perform the following:
• Push the
switch for less than 1.5 seconds to change to a preset station.
• Push and hold the
switch for more than 1.5 seconds to seek to the next or
previous broadcasting radio station.
• Push the
switch while playing a CD (if so equipped) for less than 1.5 seconds
to change tracks on the CD.
• If the vehicle is equipped with a CD changer, push and hold the
switch for
more than 1.5 seconds to change between CDs.
TWIN TRIP ODOMETER
The twin trip odometer records the distance of
individual trips.
Press the button 01 to change the display as
follows: Trip A Trip B Trip A.
Press and hold the button for more than 1 second to
reset the trip odometer to zero.
01
